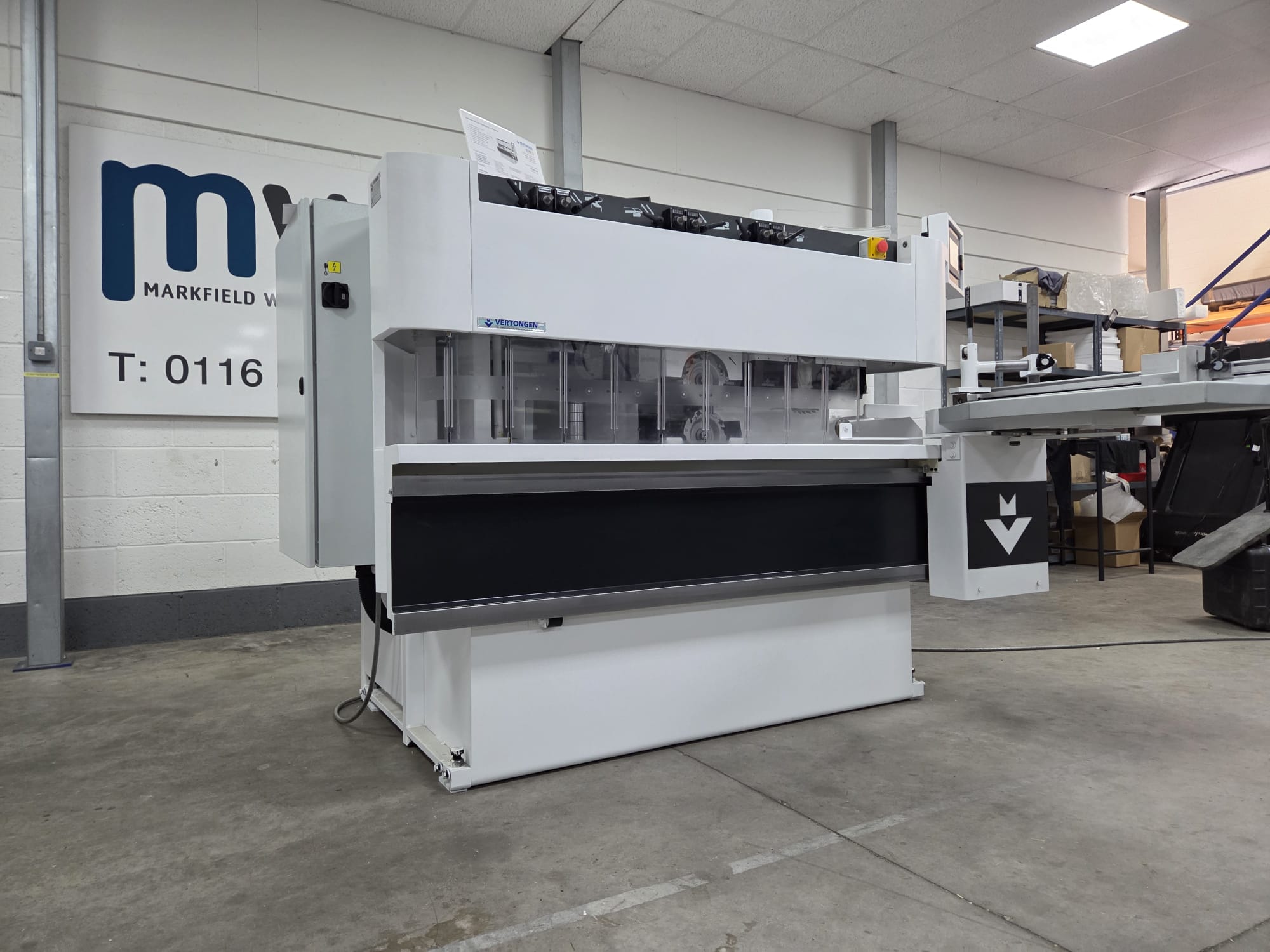

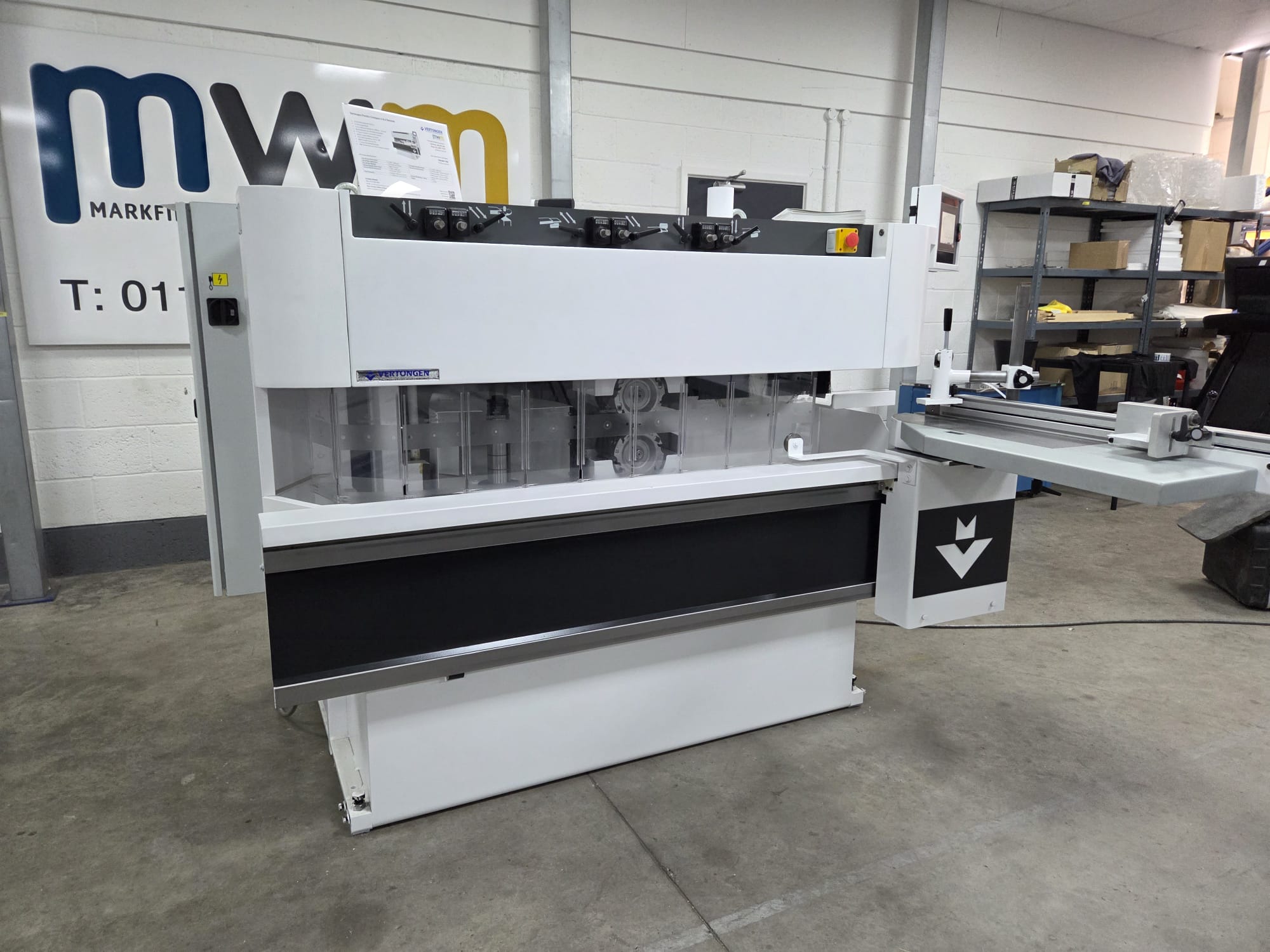

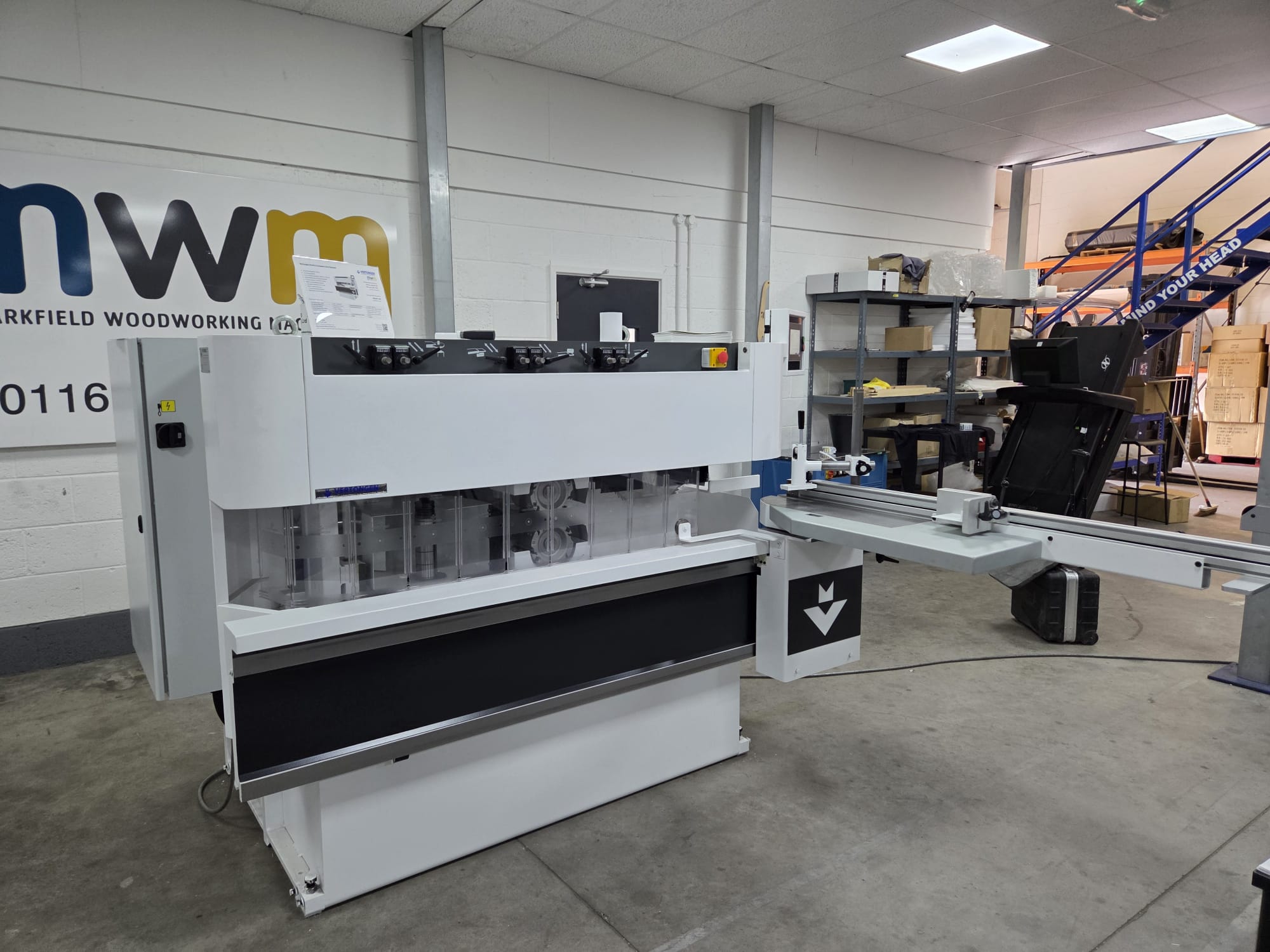

Vertongen Pentho Compact 3 Tenoner

Original price was: £33,150.00.Current price is: £31,500.00.

(£37,800.00 inc VAT)

The Vertongen Pentho Compact 3 is an Industrial slot and Tenon machine for manufacturing professional woodworking joints.

Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Table Mounting
Vertical attached, extra solid
Table
Fixed in height, Swivelling +60 to -60 degrees

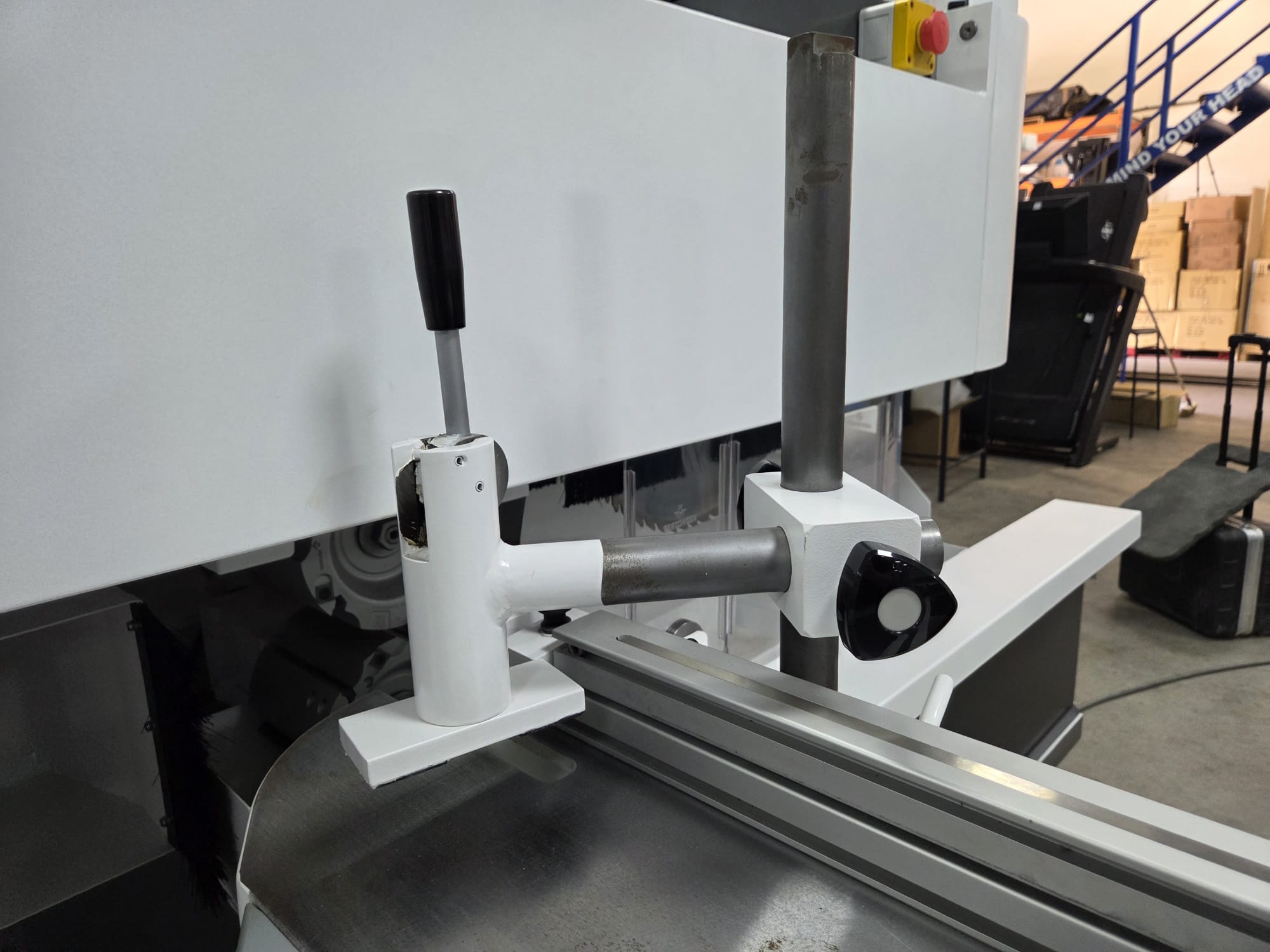

Clamps
Manual vertical clamping with vertical pneumatic clamps option
Cut off saw motor
2.2kW – 3,000 RPM
Cut off saw Noise reduced saw
Ø 400mm, included
cut off saw Positioning
Manual on side bearings
Tenoning Heads Motor
2x 2.2kW
Tenoning heads suspension
Side Bearings

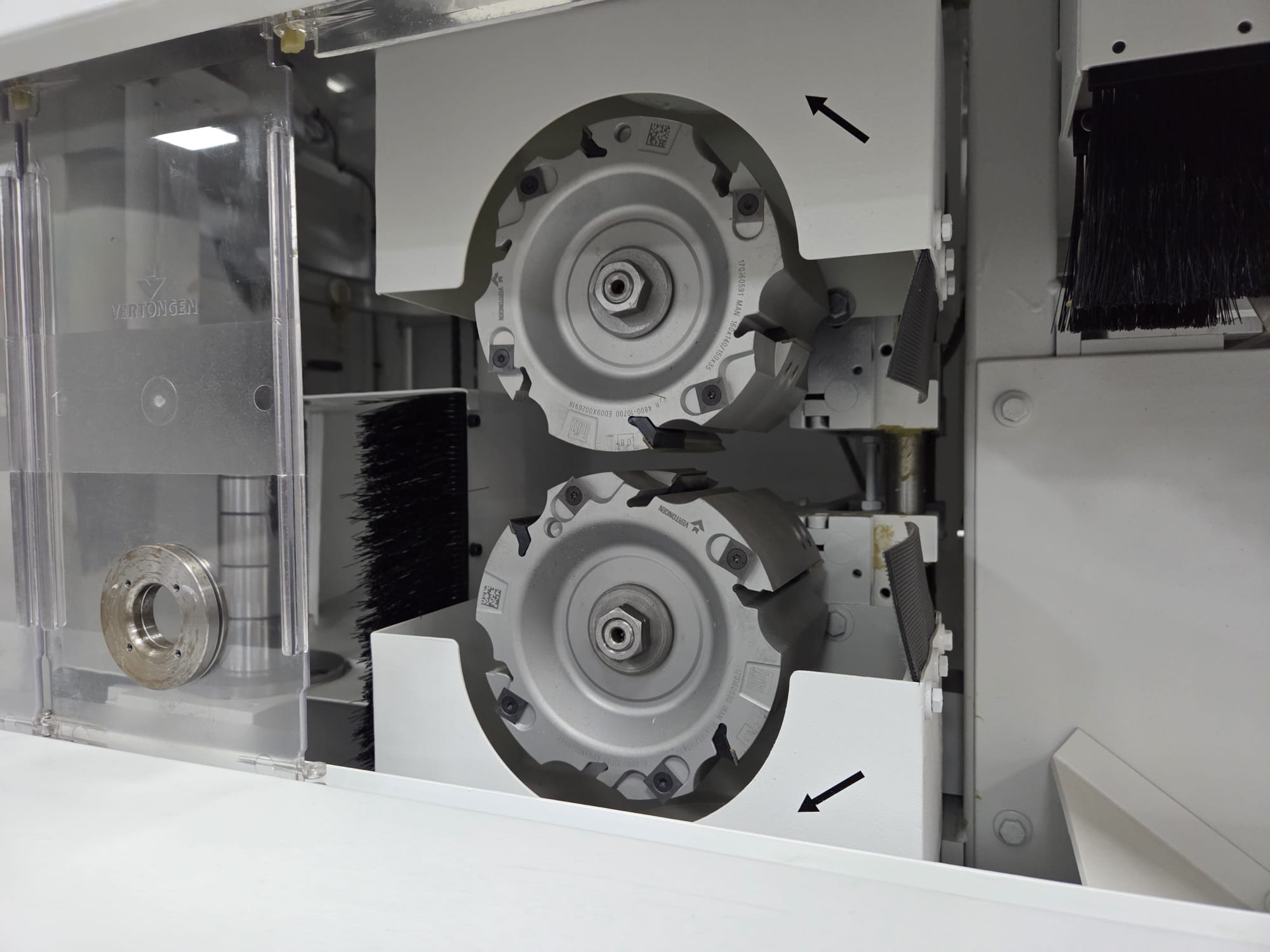

Tenon Heads
included, Ø 160mm, length 145mm with exchangeable blades
Tenoning heads movement
Horizontal upper -55mm to +25mm Horizontal lower -55mm to 0mm Vertical upper +3mm to +150mm Vertical lower -2mm to +80mm
Vertical Spindle RPM
4,000
Vertical Spindle Reading

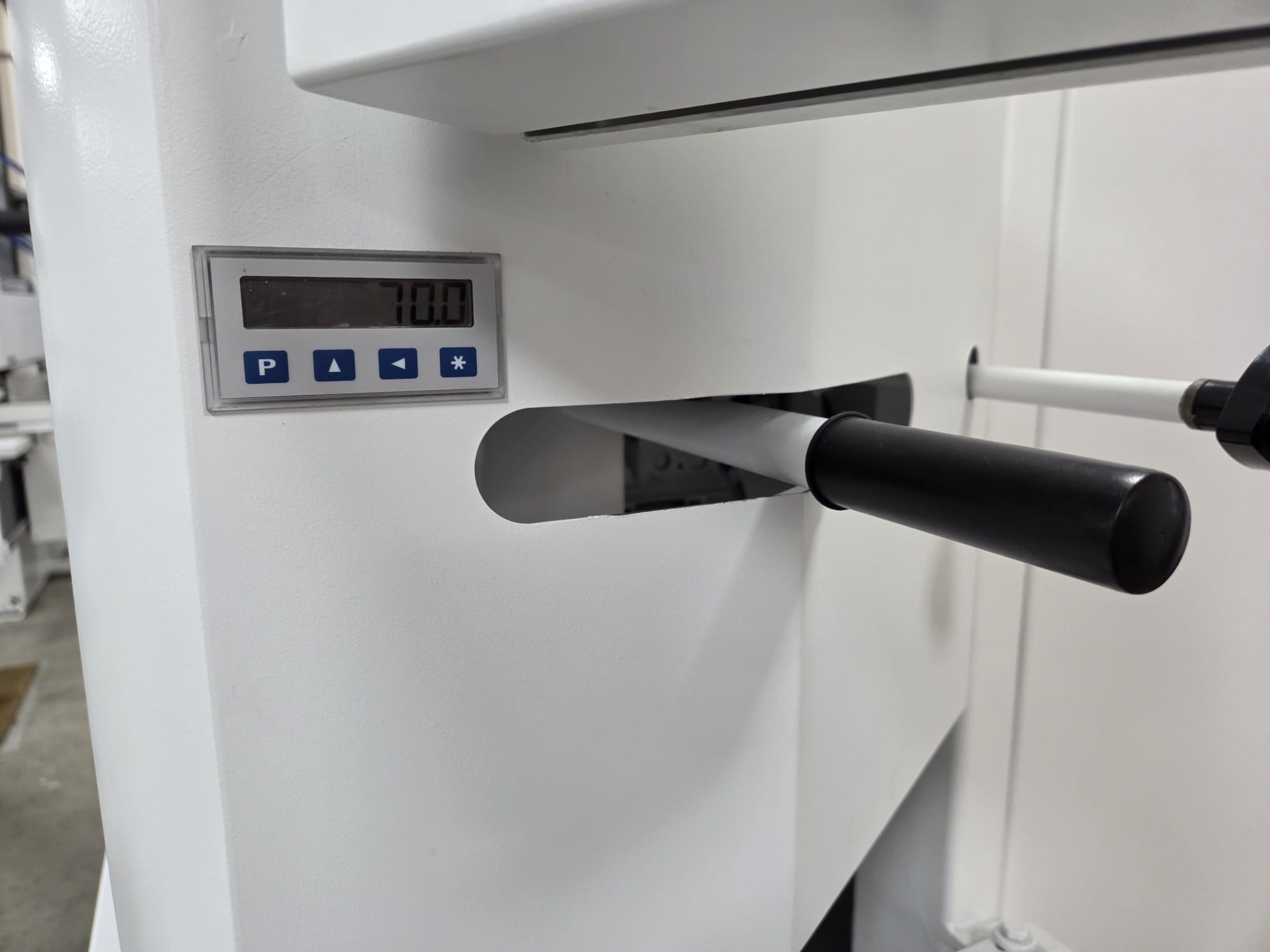

Mechanical digital counter on front and rear side of the machine

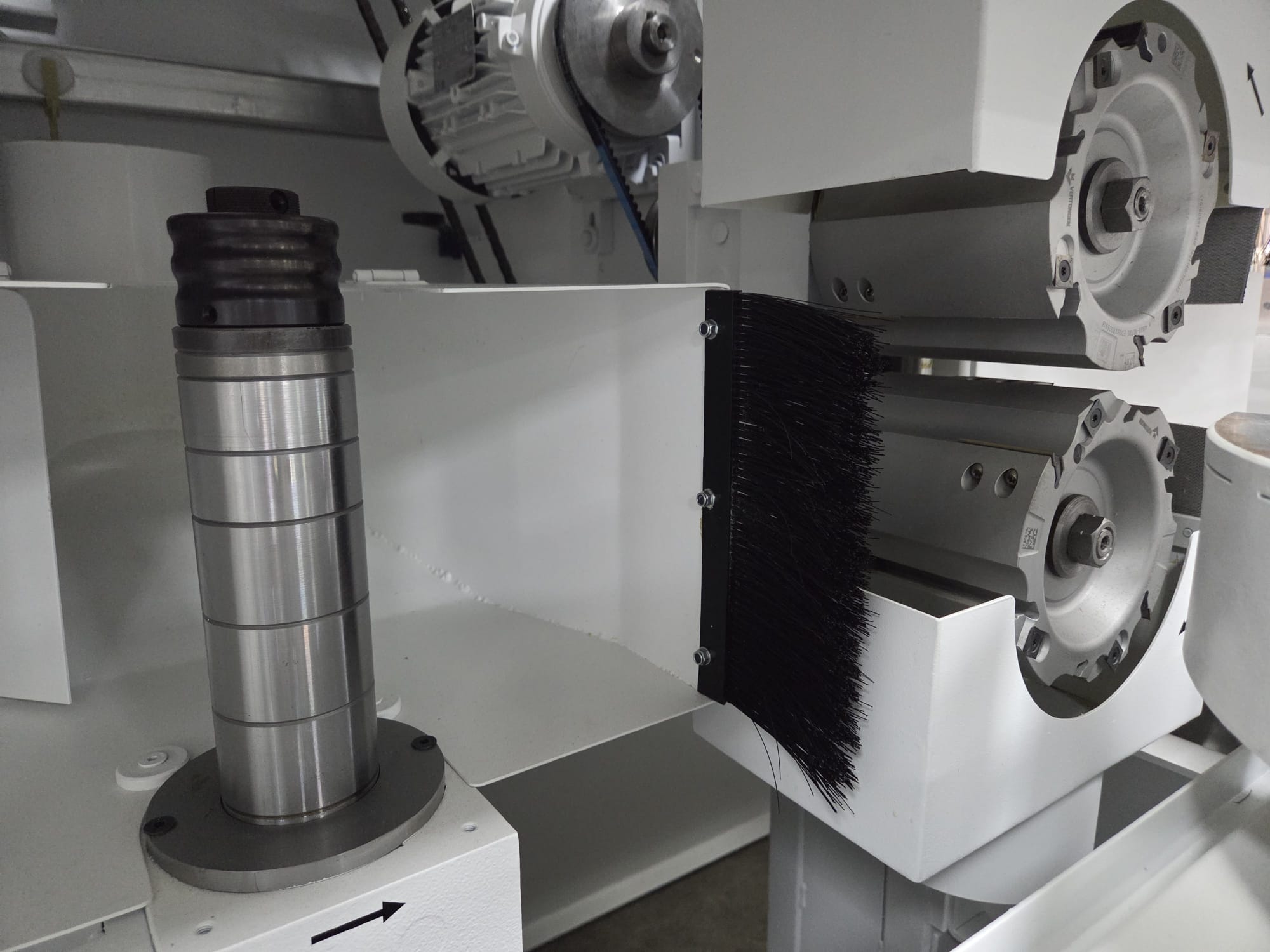

Vertical Spindle Measurements Spindle
Length: 200mm with Prolock, 300mm x 50mm with HP Prolock Diameter: Ø 40mm or Ø 50mm
Extraction
150 mm Ø
Movement
Manual with automatic movement option
Backing wood
Clamp for straight backing wood, with round backing wood option
Dimensions
160 x 600mm
Cut off saw adjustment
Horizontal 20-155mm, with 150mm cut-off capacity
cut off saw Extraction
Ø 80mm
cut off saw Measuring rod
Digital read-out or laser option
Tenoning heads RPM
4500
Tenoning heads readout

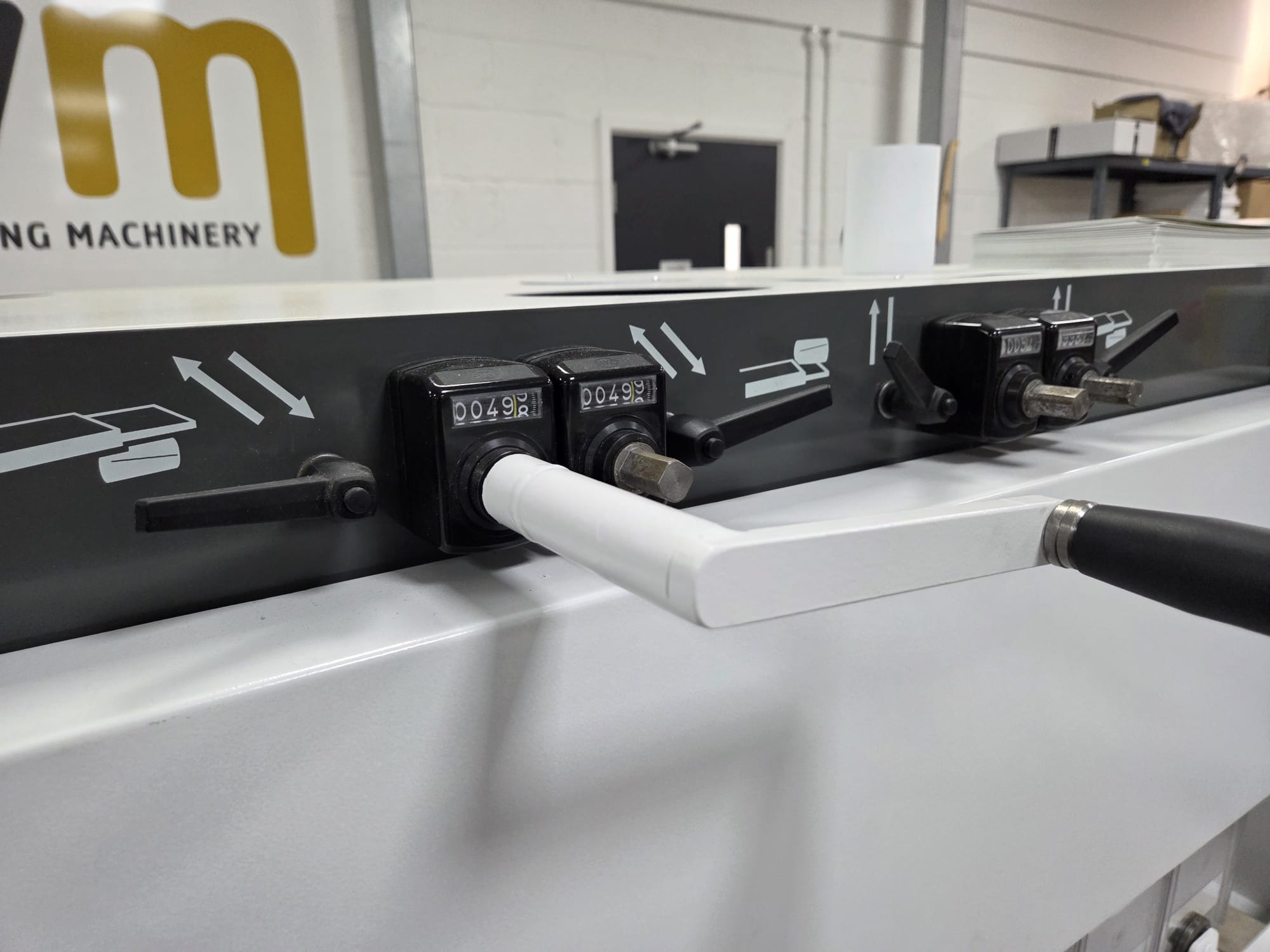

Mechanical digital counter on front and rear side of the machine
Extraction
2 x Ø 150mm
Vertical Spindle Motor
7.5kW
Vertical Spindle suspension
Dovetailed
Vertical Spindle Movement
Horizontally 150mm, vertically -150mm to +25mm
Tool Diameter
Maximum Ø 350mm
THE UNIVERSAL TENONER

Vertongen Pentho Compact 3


  • Saw with cut-off capacity 150 mm
  • Tenon heads
  • 1 x Vertical spindle 200 mm with Prolock
  • Performance en high-performance pack available
  • All movements are manually adjustable
  • 7-inch touch panel for starting motors and job recipes in own language
  • Total table swiveling +60° to -60°
  • Round backing wood available

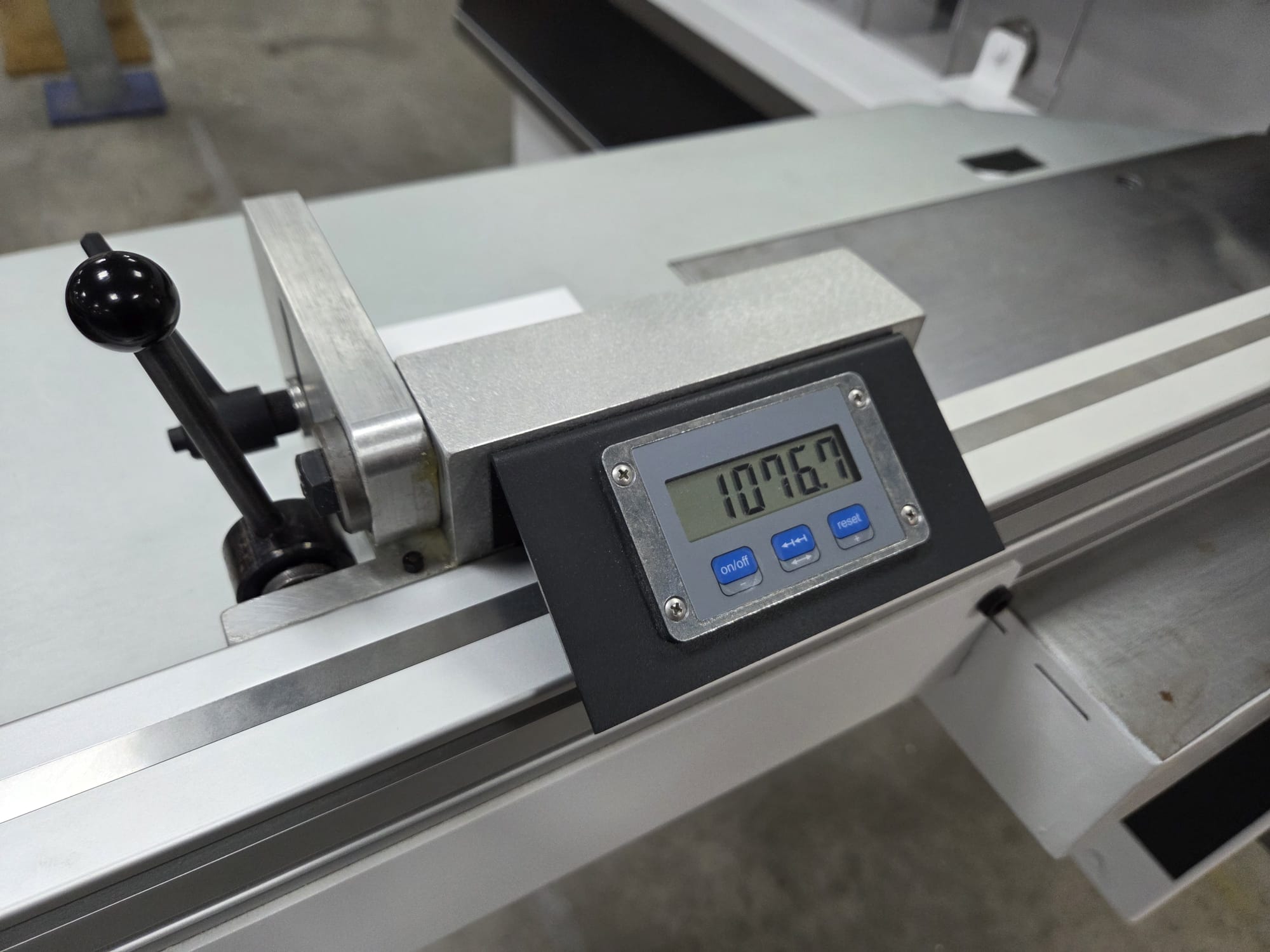

  • Digital length-fence 2,4 with 1 large swiveling backstop
  • High-quality saw and tenon heads installed



Arrange a Demo
Vertongen Pentho Compact 3 Tenoner | Markfield Woodworking Machinery

Need assistance or Expert Advice?

We pride ourselves in offering a friendly and professional service

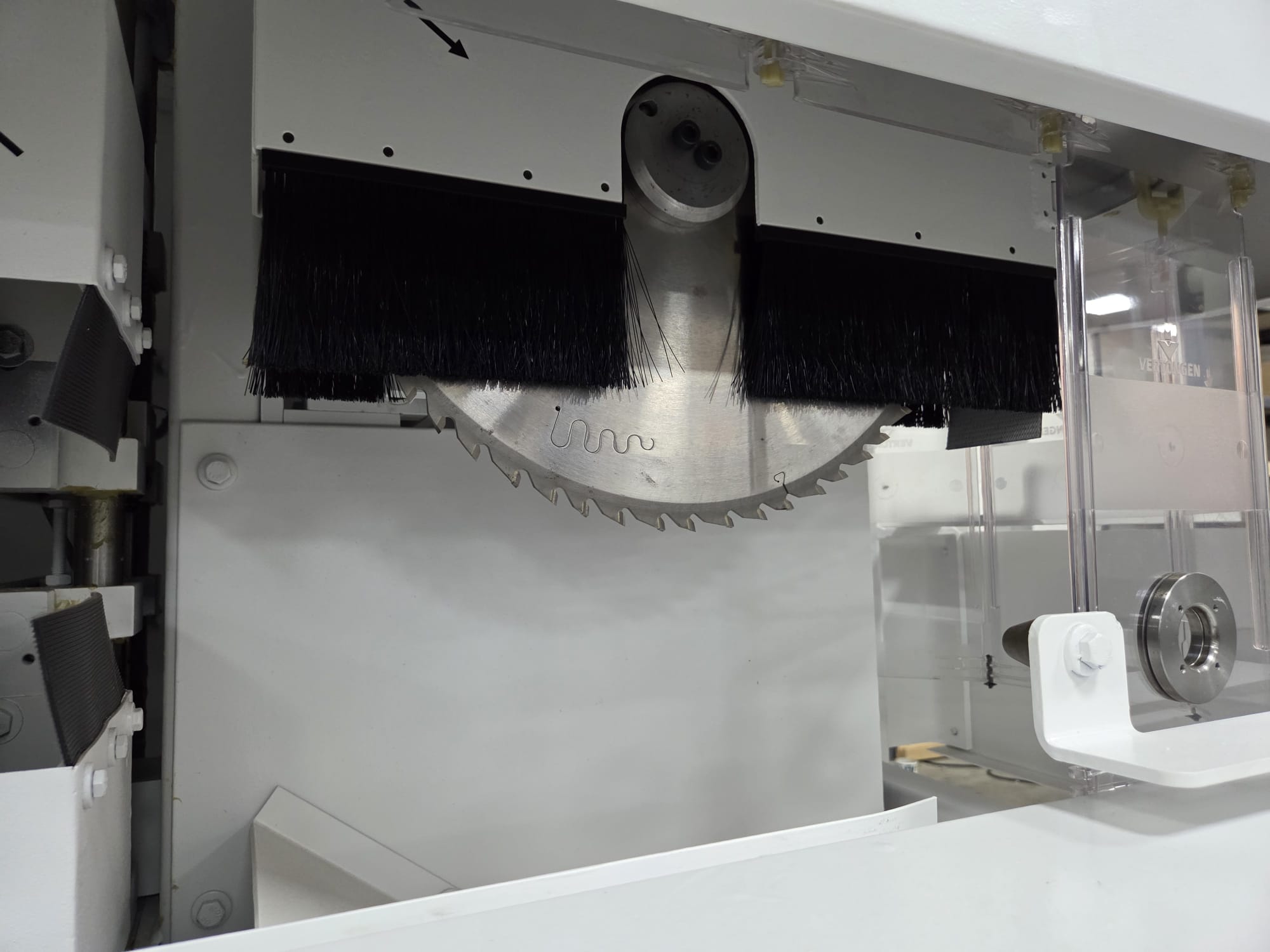

Noise reduced Cut off Saw


The Vertongen Pentho Compact 3 Tenoner has a noise-reduced cut-off saw with a cut-off capacity of 150mm, two tenon heads, and a vertical spindle adjustable to an accuracy of 0.1 mm.

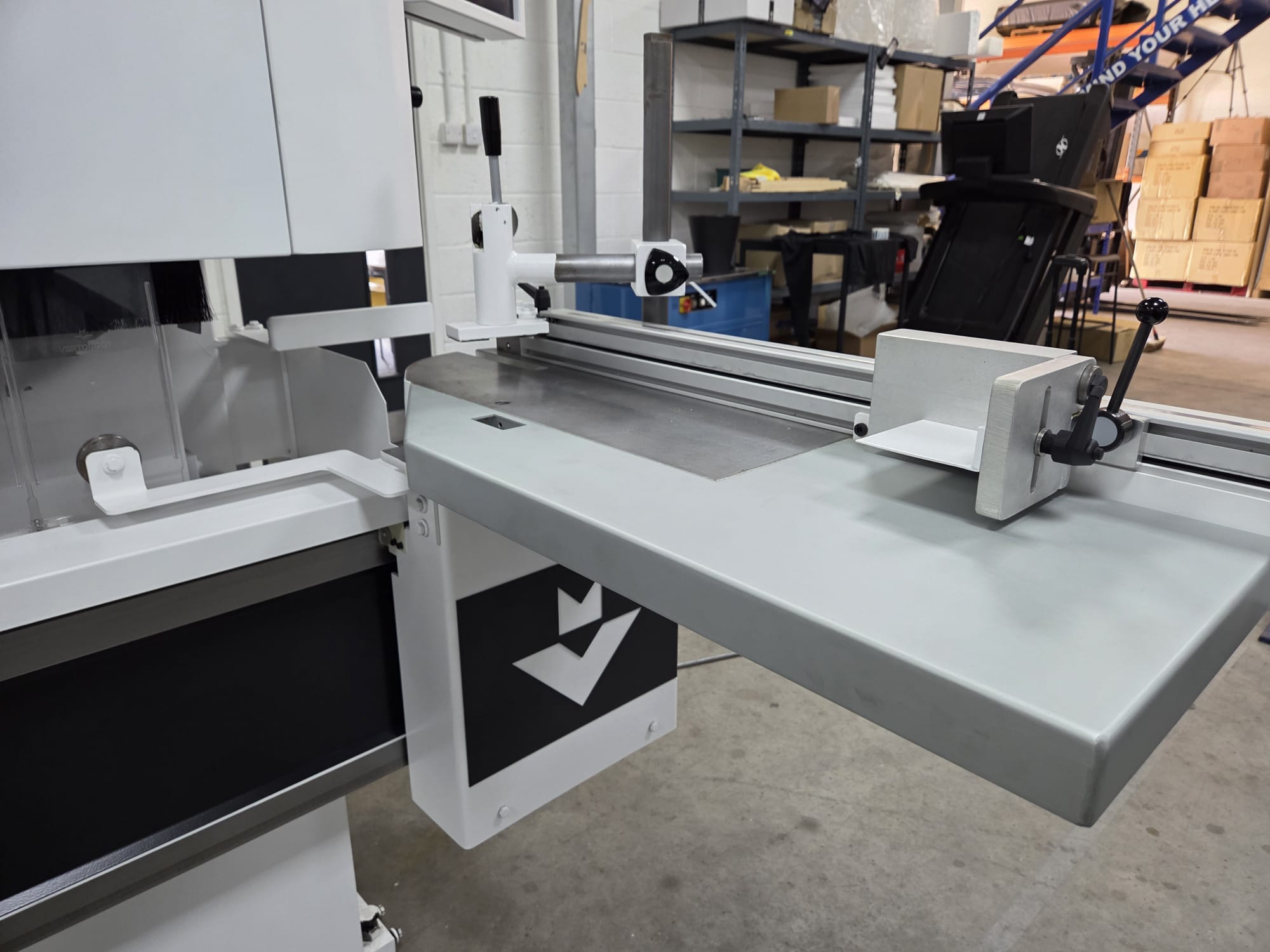

The slot & tenon machine is equipped with a robust table on a stable and wear-resistant vertical slide bar. The table can be swiveled 60° in two directions for angled work.

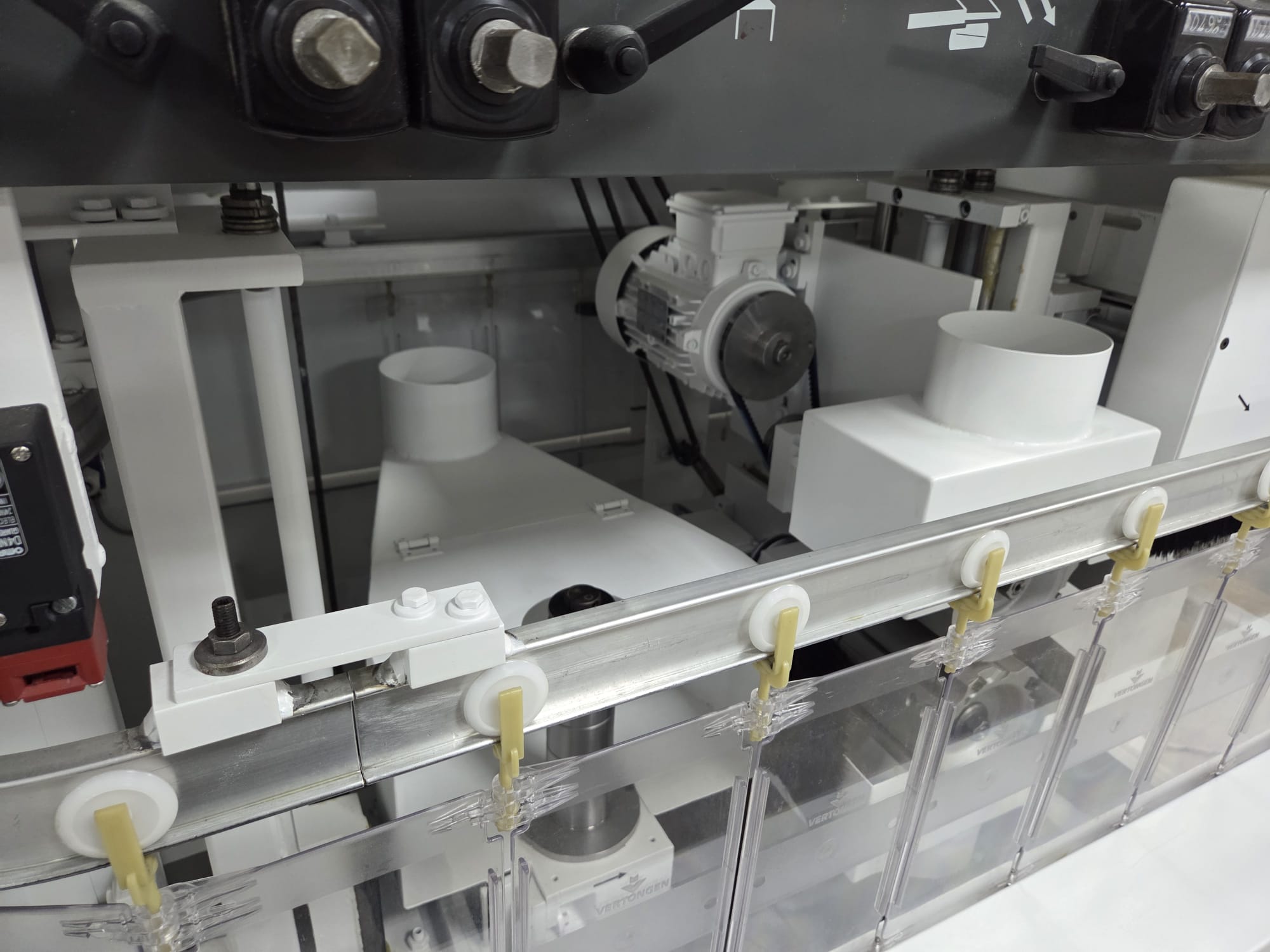

As a safety system, the Pentho Compact 3 is equipped with a transparent dust protection screen that moves with the table and completely seals the machine.

The table can be swivelled 60 degree in two directions. The working area of the table does not change

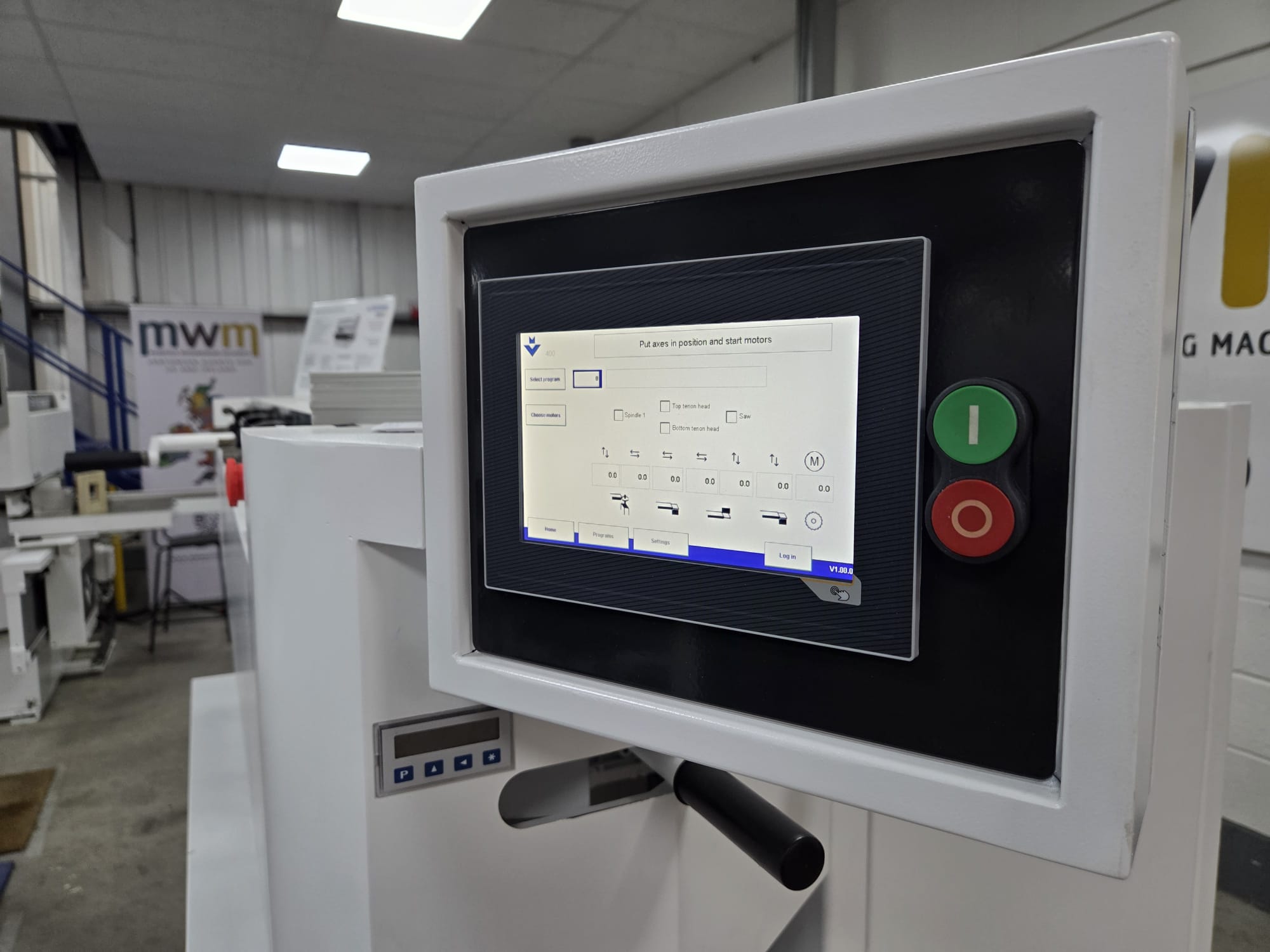

7″ touch screen for the operation of the machine and starting of all motors.

The safety-screen covers the complete machine. Loading and unloading still remains easy.

The spindles are horizontally and vertically adjustable with 0.1mm accuracy

Upgrade your Pentho 3 with the High Performance Pack


Convert your setup time into valuable production time

With a spindle of 300mm and 7 individual CNC positionings, this High-performance CNC Tenoner switches between different programs in only 15 seconds. All axes, including the saw, set themselves simultaneously and automatically in the correct position. The position of the length-fence gets automatically recalculated in function of the saw. It’s easy, straightforward graphical application allows the operator to make any type of single tenon right from the first time.
