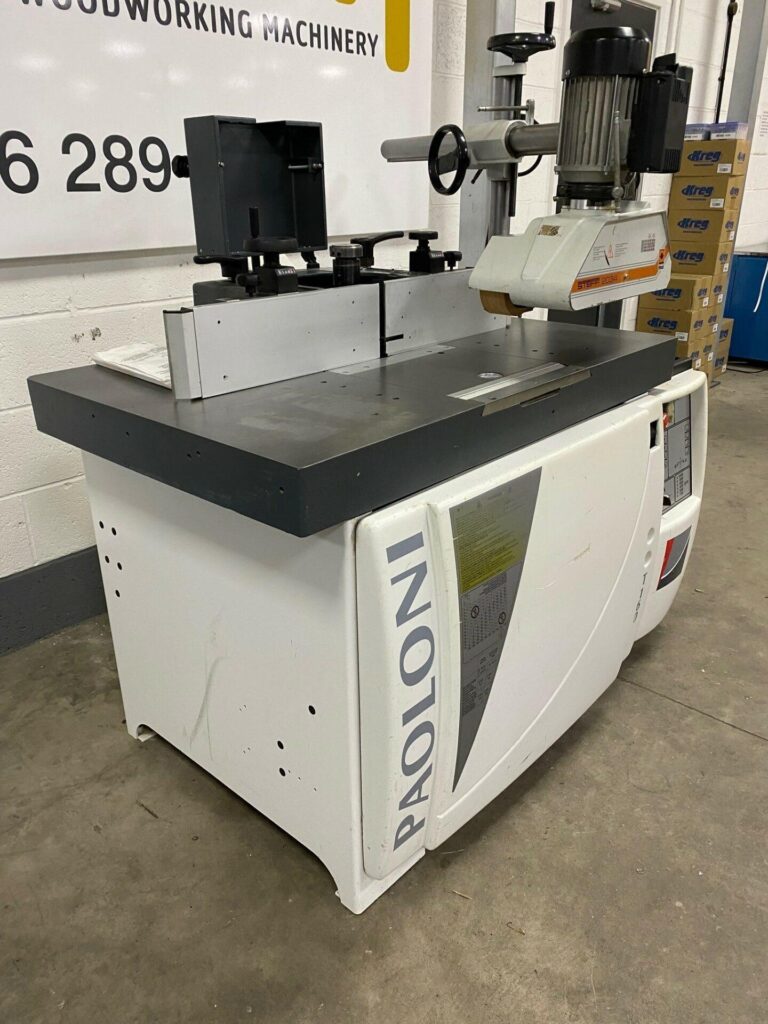

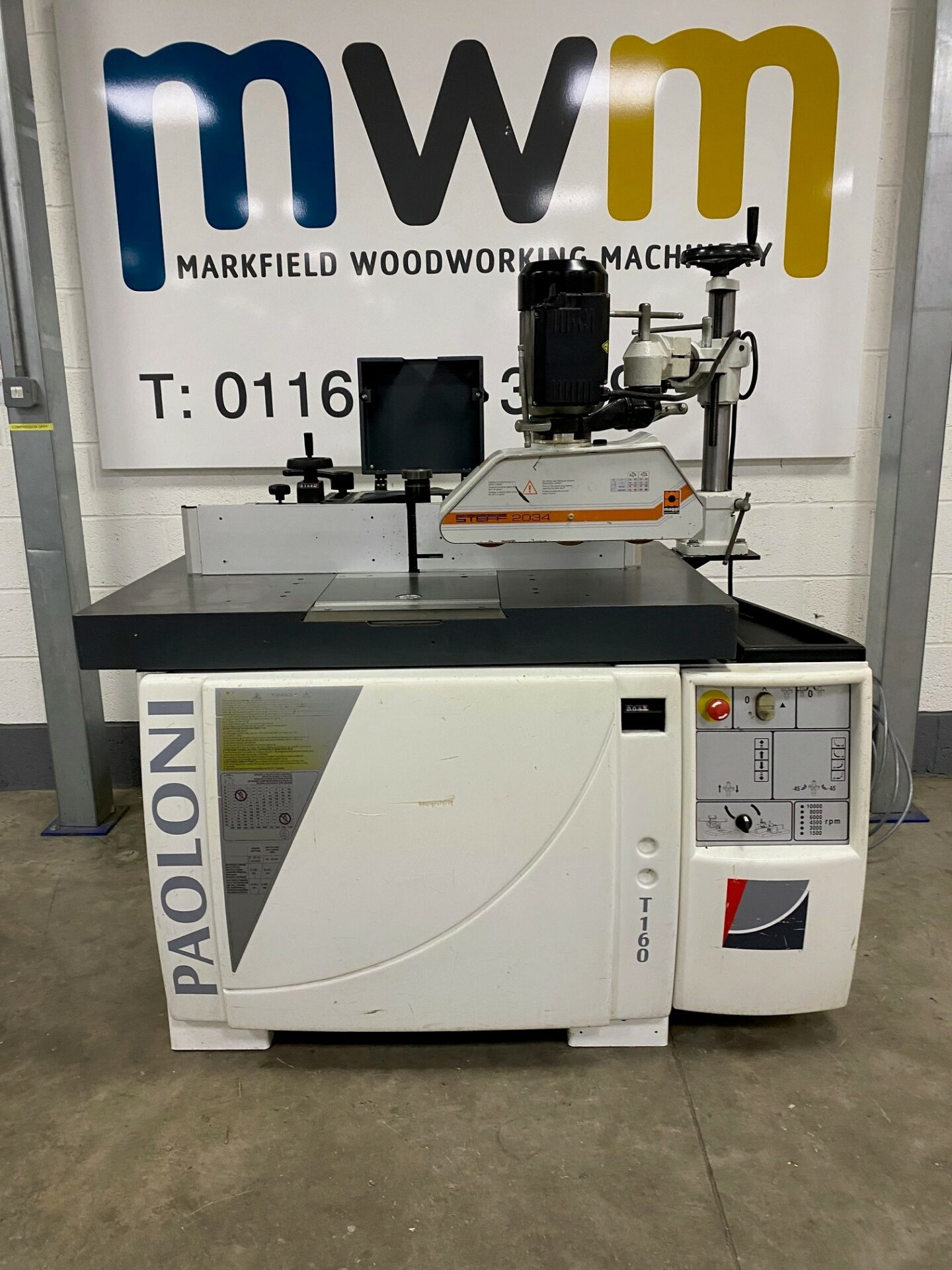

Used Paoloni T160 Spindle Moulder

From £3,650.00 + VAT

(£4,380.00 inc VAT)
  • Electrical Rise and Fall of spindle
  • 2013 Model
  • 30mm Spindle
  • NON TILTING



Comes with

  • Maggi 2034 Powerfeed
Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Fixed worktable size
1200 x 780mm
Useable spindle height
140mm
Max size of retractable tool under the table
320 x 50 mm
Spindle Diameter
30mm
Spindle rotation speeds
3,000/4,500/6,000/8,000/10,000 rpm
Main motor power
5.5 kW / 7.5 HP

Adjustable fence complete with:

  • Handwheel & read-out for fence full stroke moving
  • handwheel & read-out for infeed foot moving
  • motorized quick-flipping system to clear the table in a few seconds
  • quick locking system of the table fence
  • dust extraction hood d 120 mm
  • aluminium plates
  • Rear dust extraction hood on machine bed d 120 mm
  • Spindle rise & fall of mechanical read-out
  • Electric read-out of spindle inclination
  • Pedal-operated mechanical brake
  • Automatic rise & fall with decimal jog adjustment
  • Automatic tilting with decimal jog adjustment
  • Adjustable sector on the table to grant workpieces the maximum support in accordance with tool diameter
  • Oversized front door to facilitate speed change
