Robland HX310 Pro Combination Machine 3ph

From £4,995.00 + VAT

(£5,994.00 inc VAT)

Available in single phase or 3 phase combining a sliding table panel saw, spindle moulder and planer thicknesser in a compact robust unit.

  • 30mm spindle diameter
  • 310mm planer/thicknesser width
  • 1450mm cut length
  • 250mm saw blade diameter
  • standard planer blades
Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Weight
539 KG
Dust extraction Outlet
100 mm + 60 mm
Saw rotation speed
4500 rpm
Diameter saw blade and bore
250 x 30 mm
Saw cutting depth at 90°
85 mm
Saw cutting depth at 45°
55 mm
Dimensions cat iron table
1077 x 273 mm
Dimensions Sliding table
1450 x 320 mm
Cutting length
1600 mm
cutting width parallel fence
640 mm
Saw motor (1ph)
2.2 kW / 3 HP
Saw motor (3ph)
3 kW / 4 HP
PT width
310 mm
max. depth of cut
4 mm
PT Feeding Speed
6m/min
PT Cutterblock block rotation speed
5500 rpm
Voltage / Phase
1ph or 3ph
Spindle Rotation speed (3ph)
3000 / 6000 rpm
Spindle Rotation speed (1ph)
6000 rpm
Diameter spindle Arbor
30 mm (50 mm option)
Capacity spindle moulder
120 mm
Spindle Travel
140 mm
Dimensions table opening
180 mm
Motor Power (1ph)
2.2 kW / 3 HP
Motor Power (3ph)
3 kW / 4 HP
PT planer table length
1320 mm
PT Height capacity thicknesser
230 mm
PT Diameter cutter block
70 mm
Number of knives
3
Dimensions of Knives
310 x 25 x 3 mm
PT Motor power (1ph)
2.2 kW / 3 HP
PT Motor power (3ph)
3 kW / 4 HP

Robland HX310 Pro Combination Machine 3ph


Our best selling combination machine from from Robland. Available in single phase or 3 phase combining a sliding table panel saw, spindle moulder and planer thicknesser in a compact robust unit.

The single phase 240v machine comes with 3 x 3hp motos, an individual motor for each part of the machine and a single 6000rpm spindle speed. A 16amp supply is a minimum requirement.

The three phase 415v machine comes with 3 x 4hp motors and dual 3000 / 6000rpm  spindle speeds. If you require a scoring motor, have a look at the NX310 machines where this option is available.

Robland HX310 Pro Combination Machine

Why choose Robland?


  • Over 50 years experiance in making quality combined machinery
  • 100% made in Belgium
  • Made their name over Europe manufacturing combination equipment
  • Solid, heavy build designed to last
  • Great value for money over competitors
  • Simple no-nonsense designs
  • Easy to use and set up
  • Lots of options to make the machine suit you
  • Fully CE certified

NEED ASSISTANCE OR EXPERT ADVICE?

We pride ourselves in offering a friendly and professional service

Spindle arbor


The spindle diameter is 30 mm, the working length is 120 mm. The up and down stroke is 140 mm.

Optional Extra: Morticing unit which attaches to the back of the machine. Robland Planer Thicknesser NXSD

Morticer (Optional)


The morticer unit guarantees a comfortable handling. The control levers are removable for the treatment of large workpieces.

Setting the height


Setting the height of the thicknessing table is easy and simple, the travel up/down is 230 mm.

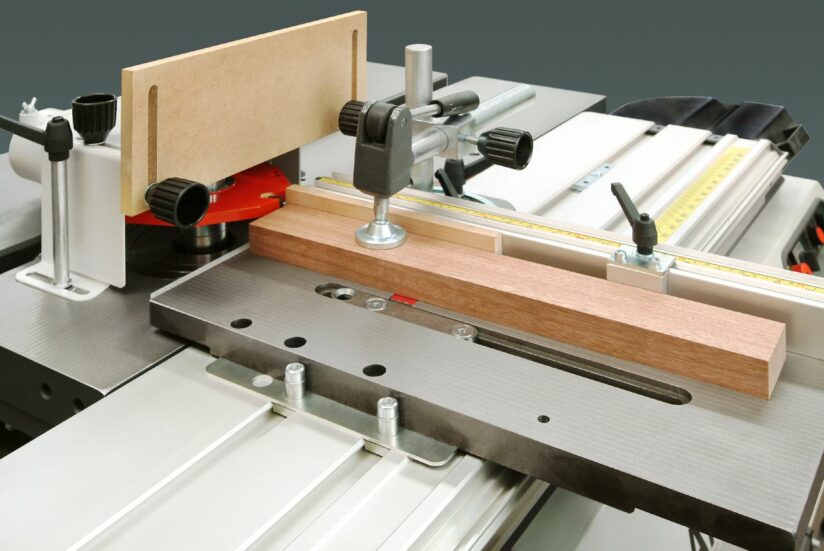

Tenoning table (Optional)

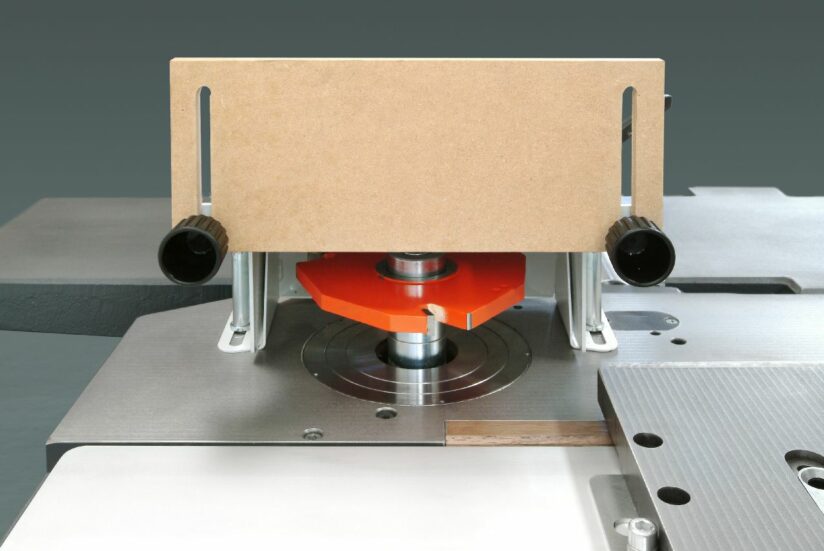

The heavy duty tenoning table enables you to execute in all safety all tenoning work. Safety hood for tenoning with diameter capacity 260 mm.

Support table (Optional)


The extra support table on the sliding table offers the possibility of machining big panels.

Jointer fence


The large, hard anodized, jointer fence makes edge planning easy. Thanks to its special swivel-support bracket, the fence sets at any angle without a gap between the fence and the table surface.

Mitre cross-cut fence


In both directions 2 x 45° mitre cross-cut fence.

Fold away support table (Optional)


The cast iron power feed “fold away” support table.

Optional support wheel kit that lifts up the machine for easy manoeuvring. Robland Planer thicknesser NXSD 410

Wheelsystem (Optional)


The heavy duty tenoning table enables you to execute in all safety all tenoning work. Safety hood for tenoning with diameter capacity 260 mm.

standard block components consisting of 2 knives (packaging) and the block. Robland Planer thicknesser NXSD 410

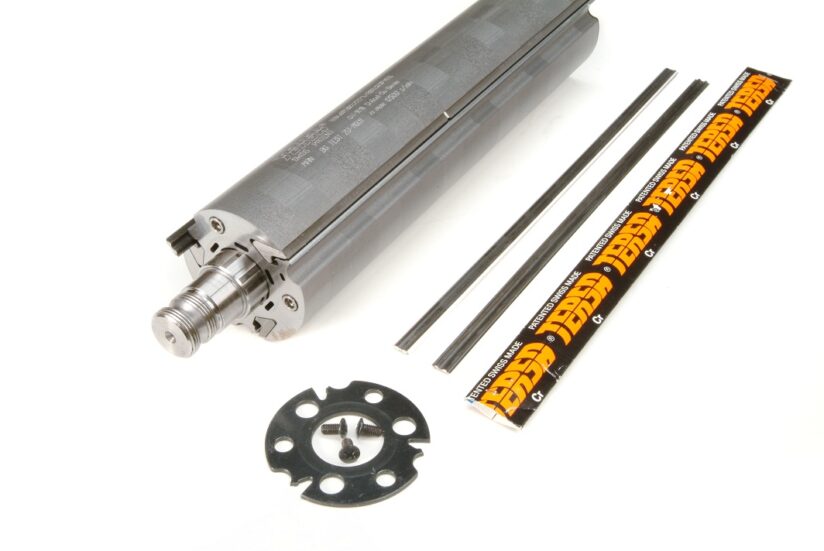

Tersa (Optional)


The 3-knives Tersa cutter block offers you all the comfort and precision when changing the knives.

Spiral (Optional)


The future of planer blocks – quiet and easy to use.

The spiral arrangment of the blades gives an easy cut through the wood reducing stress on the motor and machine. Increased blade life with each cutter having 4 sharp sides.

No need to change all the blades! Usually a planer blade is replaced when a chip or knick is found, meaning a whole blade has to be sharpened or replaced. with a spiral cutter you would only change one individual cutter.
