Technical Specifications
Voltage / Phase
415v / 3ph
Weight
655 KG
Spindle Length
180mm
Spindle Stroke
205mm
Table height
930mm

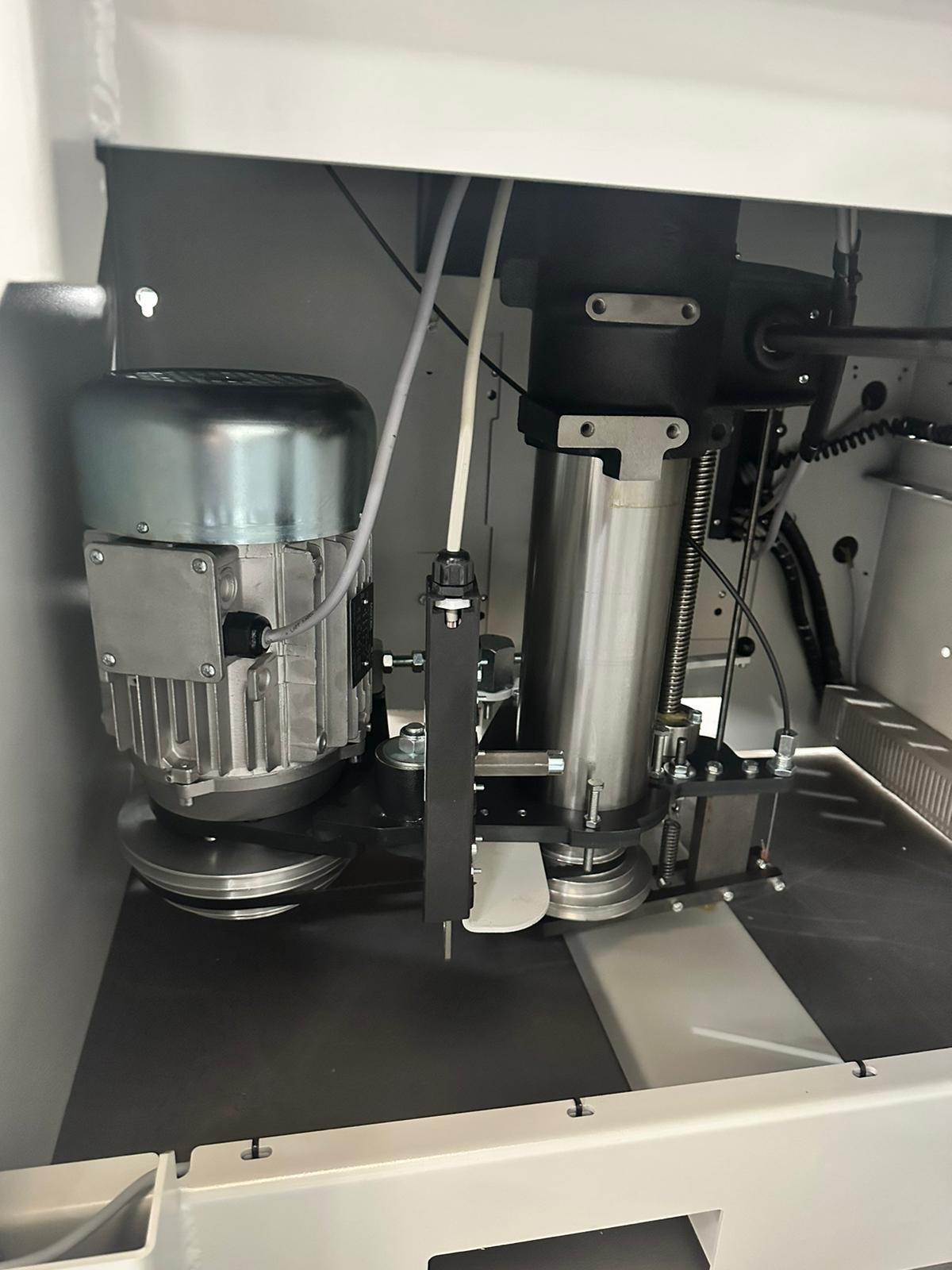

Motor Power
7kW / 9HP
Shaft Diameter
30mm
Spindle Rotation
3000 / 4500 / 6000 / 7000 / 10,000 RPM
Max. Diameter and height table opening
320 x 95mm
Dust Extraction outlet
120mm
Interchangeable MK 5 Shaft
Optional Interchangeable MK5 shaft, diameter upon request 30/40/50 mm.

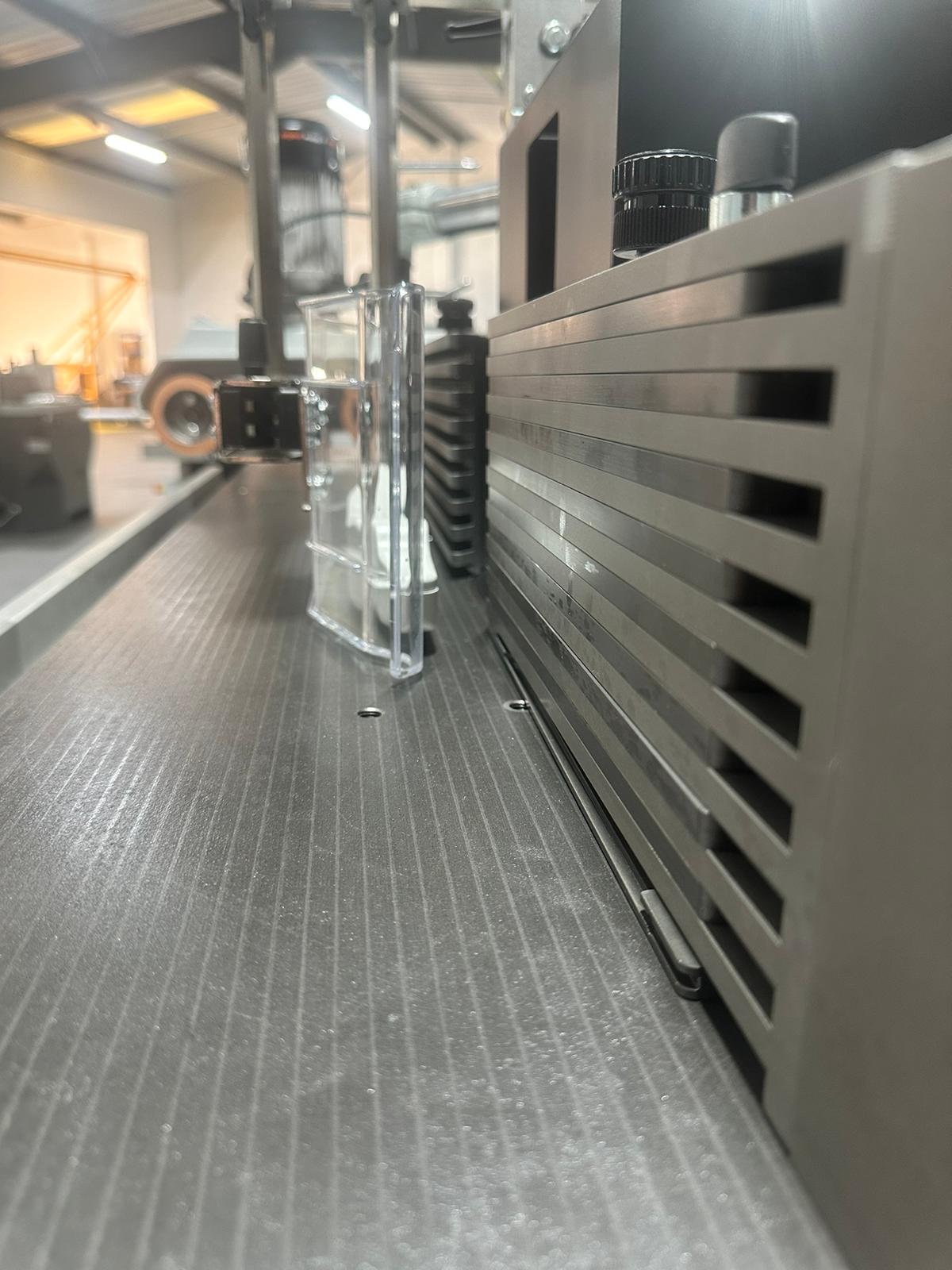

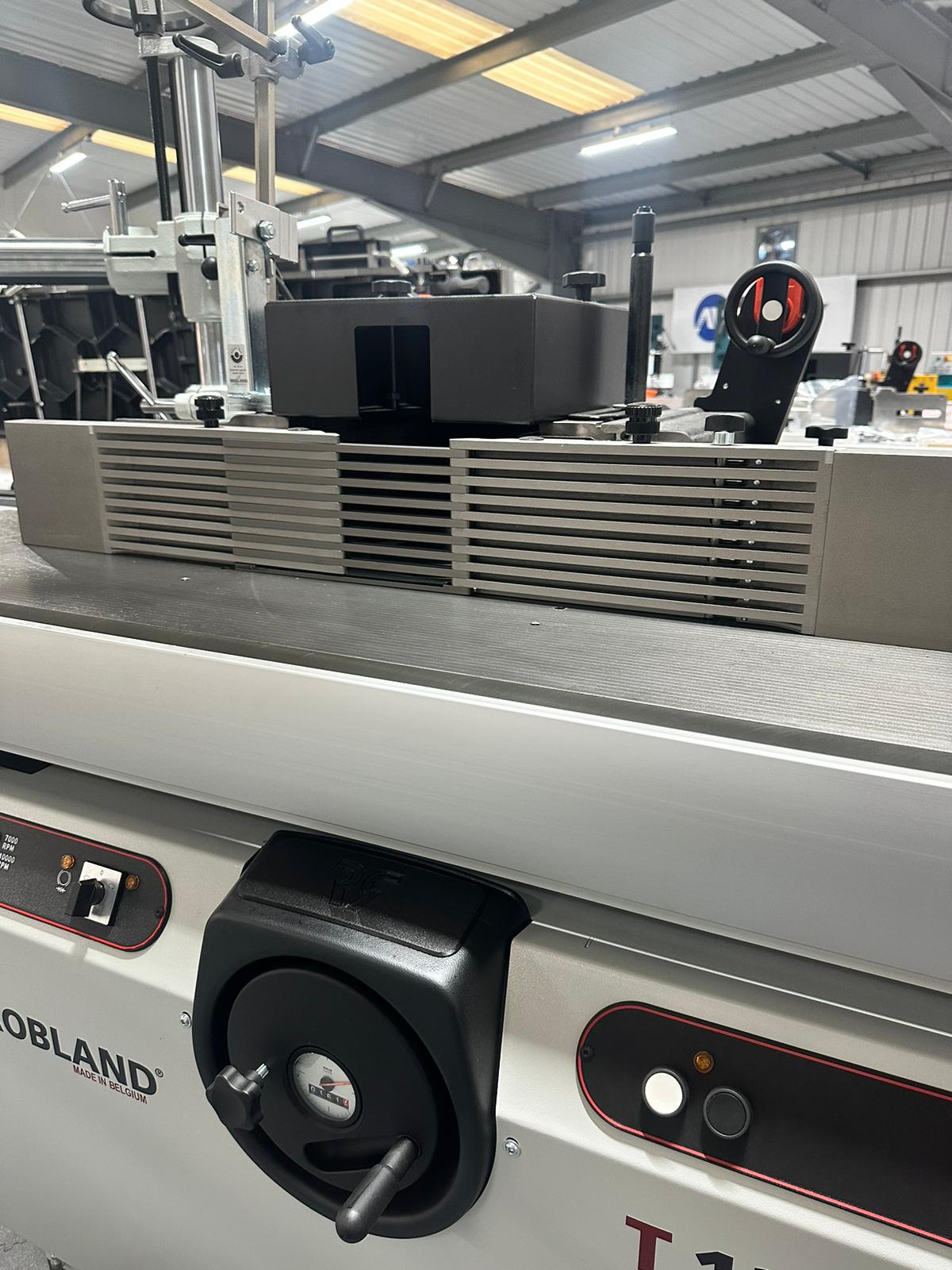

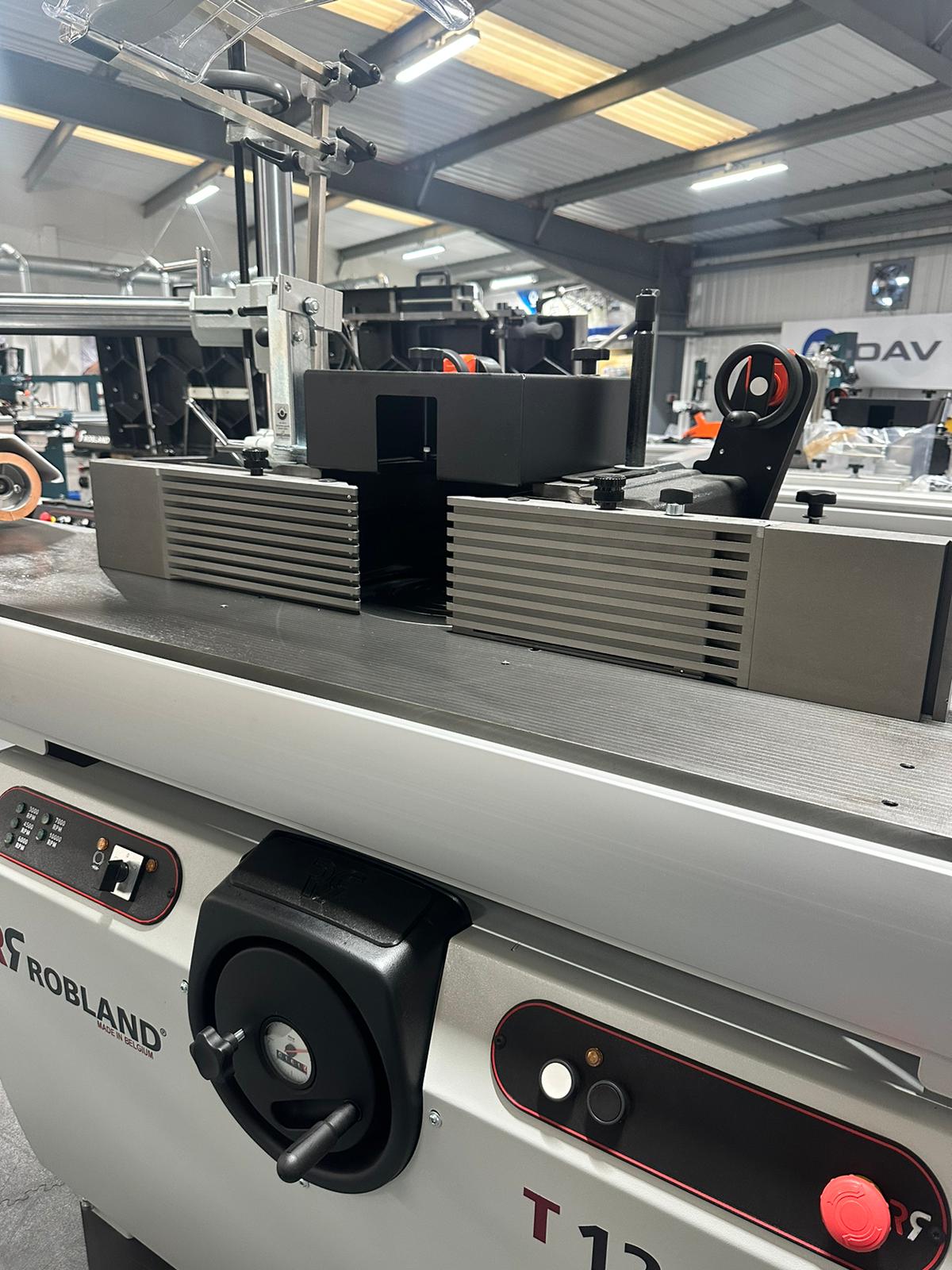

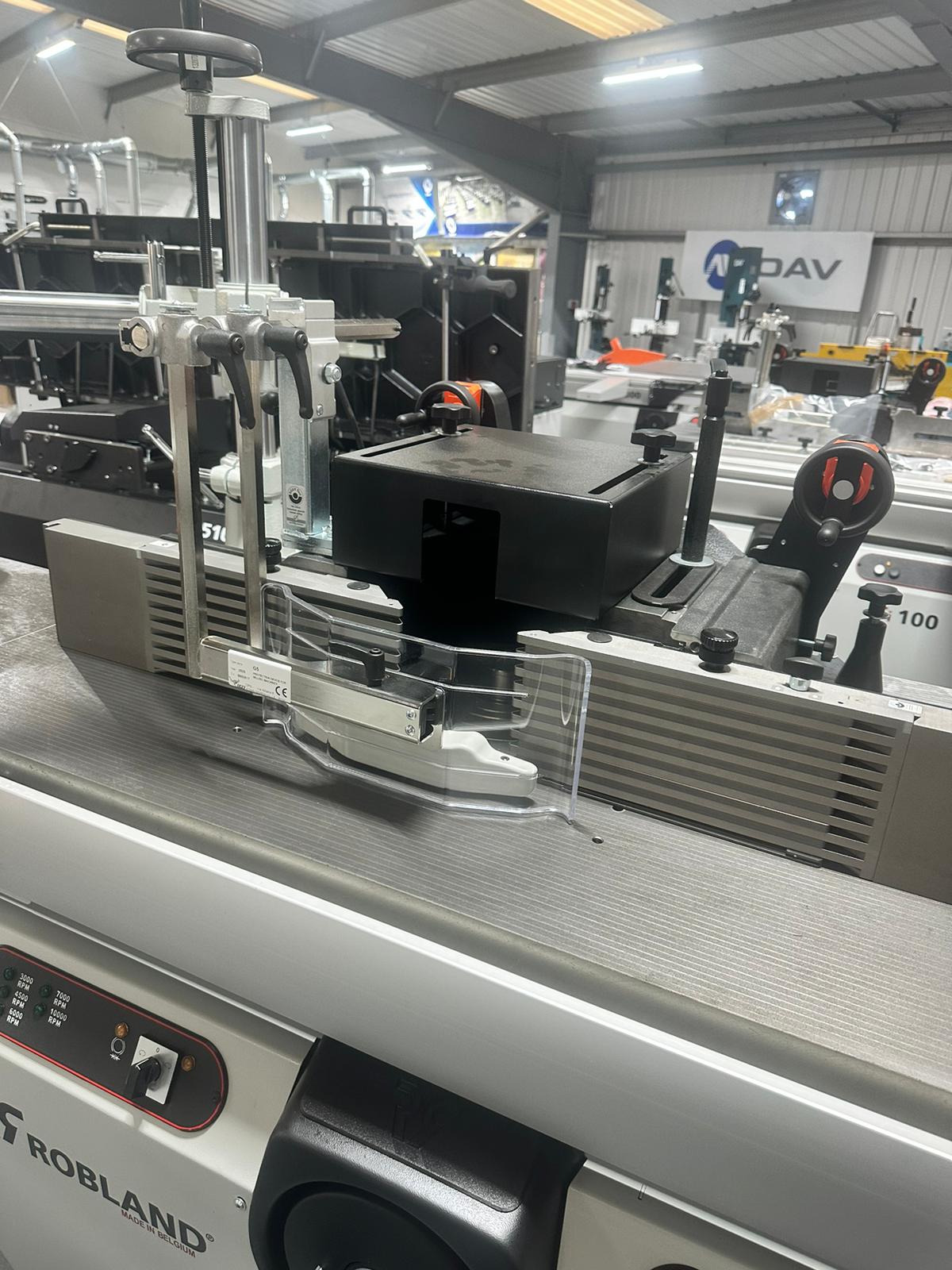

Sturdy, Stable Fence
Sturdy, stable fence with micro adjustment and positioning by handwheel and mechanical indicators. (PRO PACK)
Linear Guides
The fence moves on lineair guides. (PRO PACK)
NEED ASSISTANCE OR EXPERT ADVICE?
We pride ourselves in offering a friendly and professional service

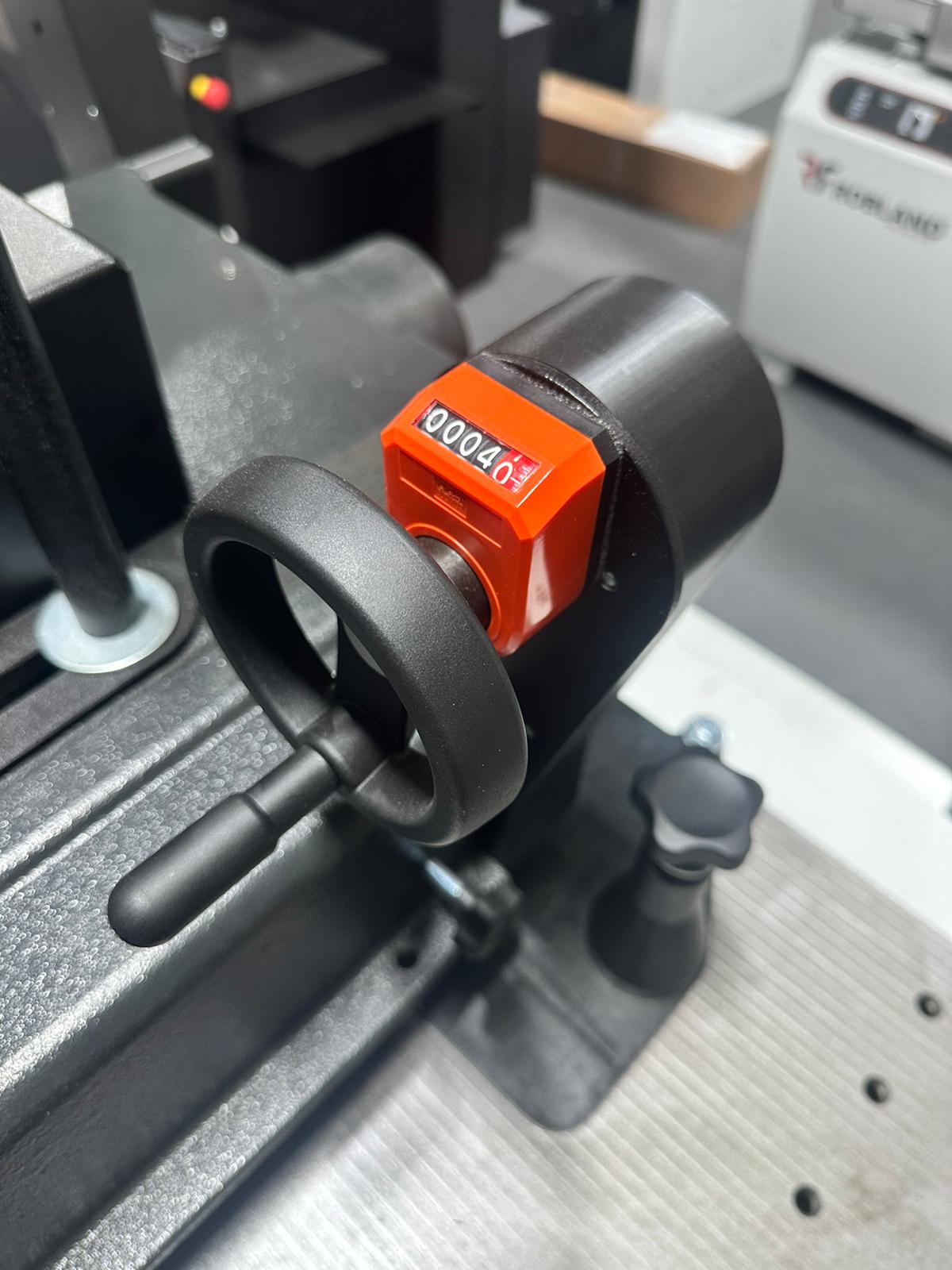

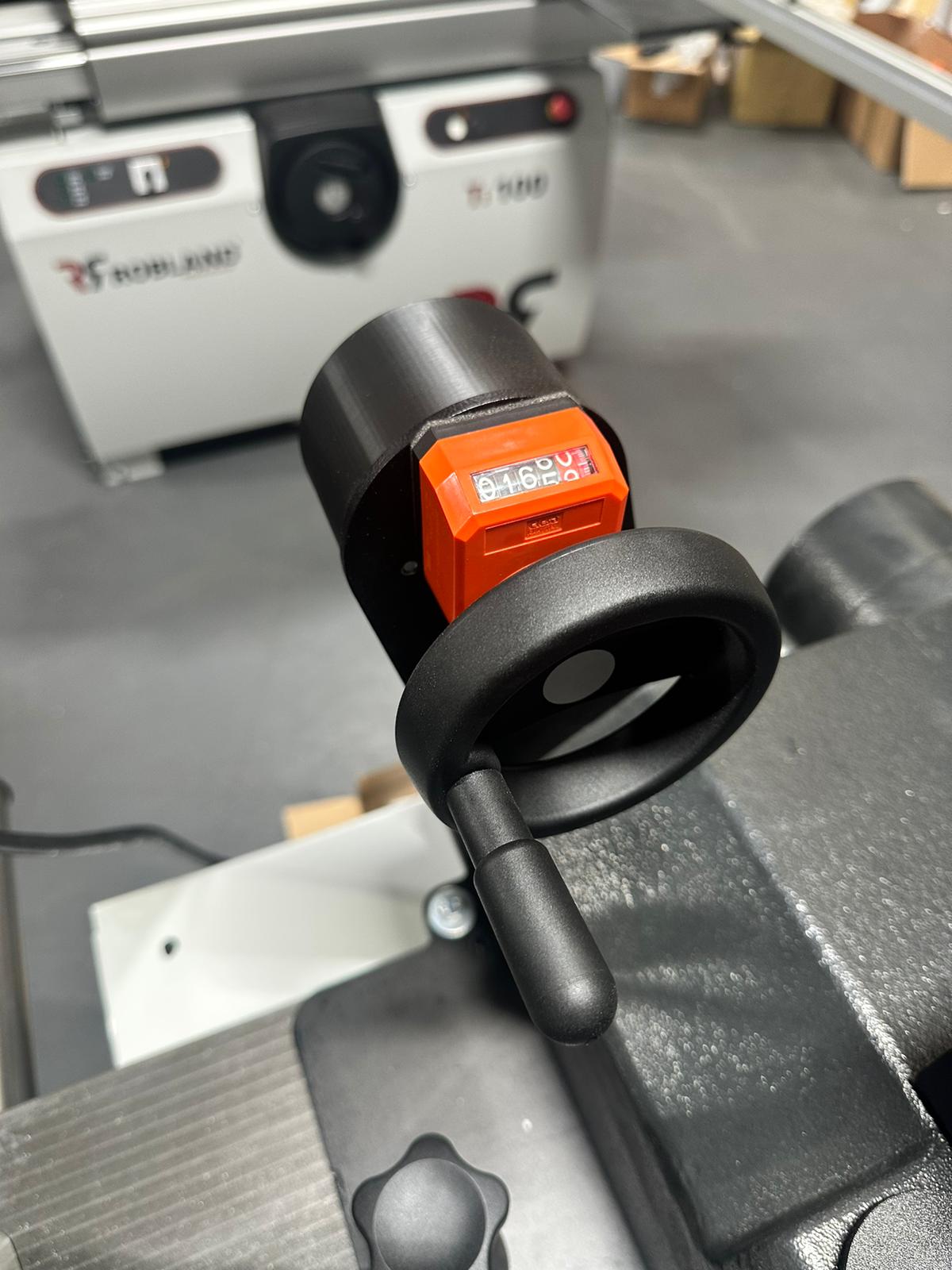

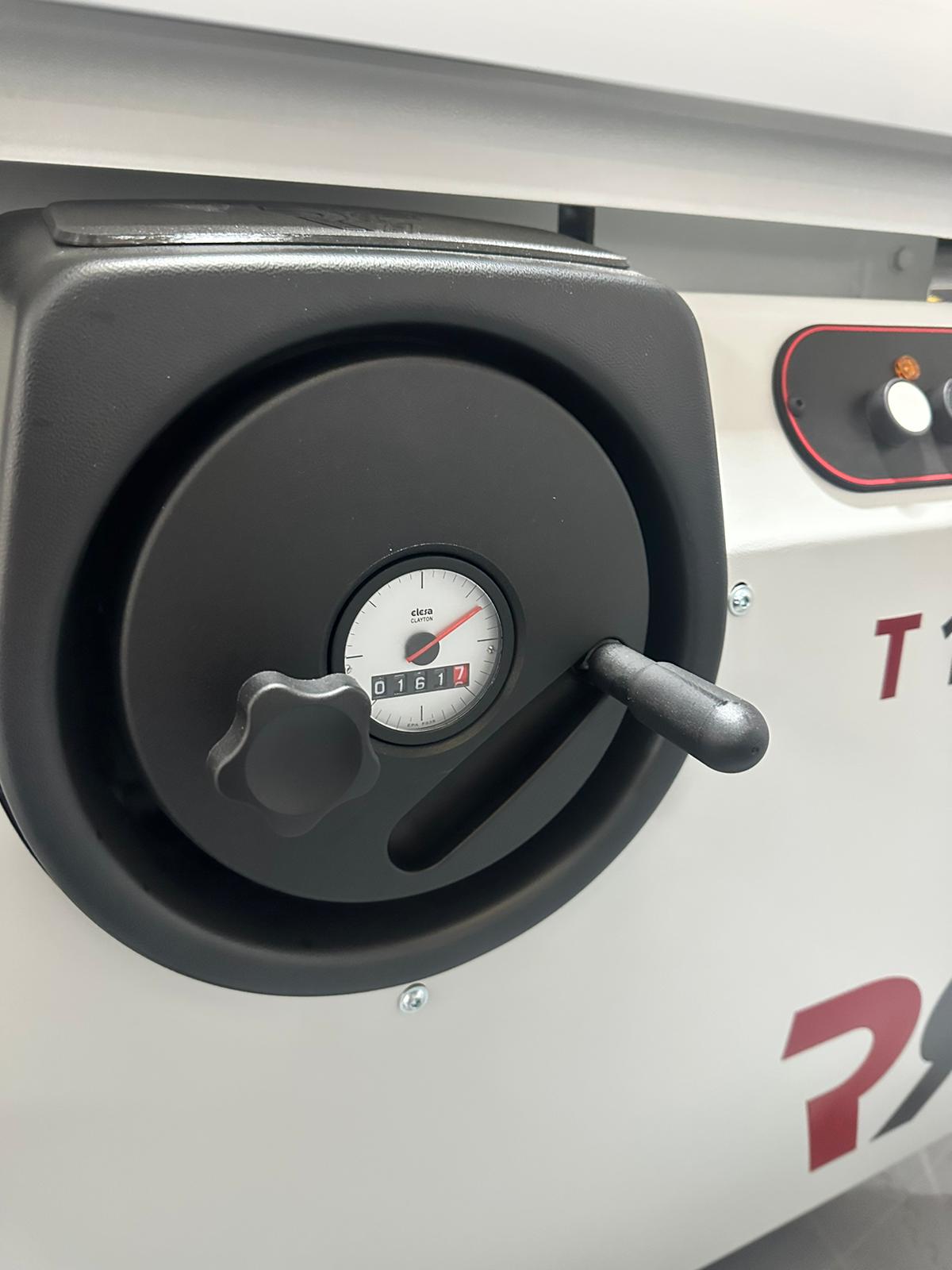

Read-out Height
Handwheel with integrated analogue read-out height spindle moulder. (PRO PACK)

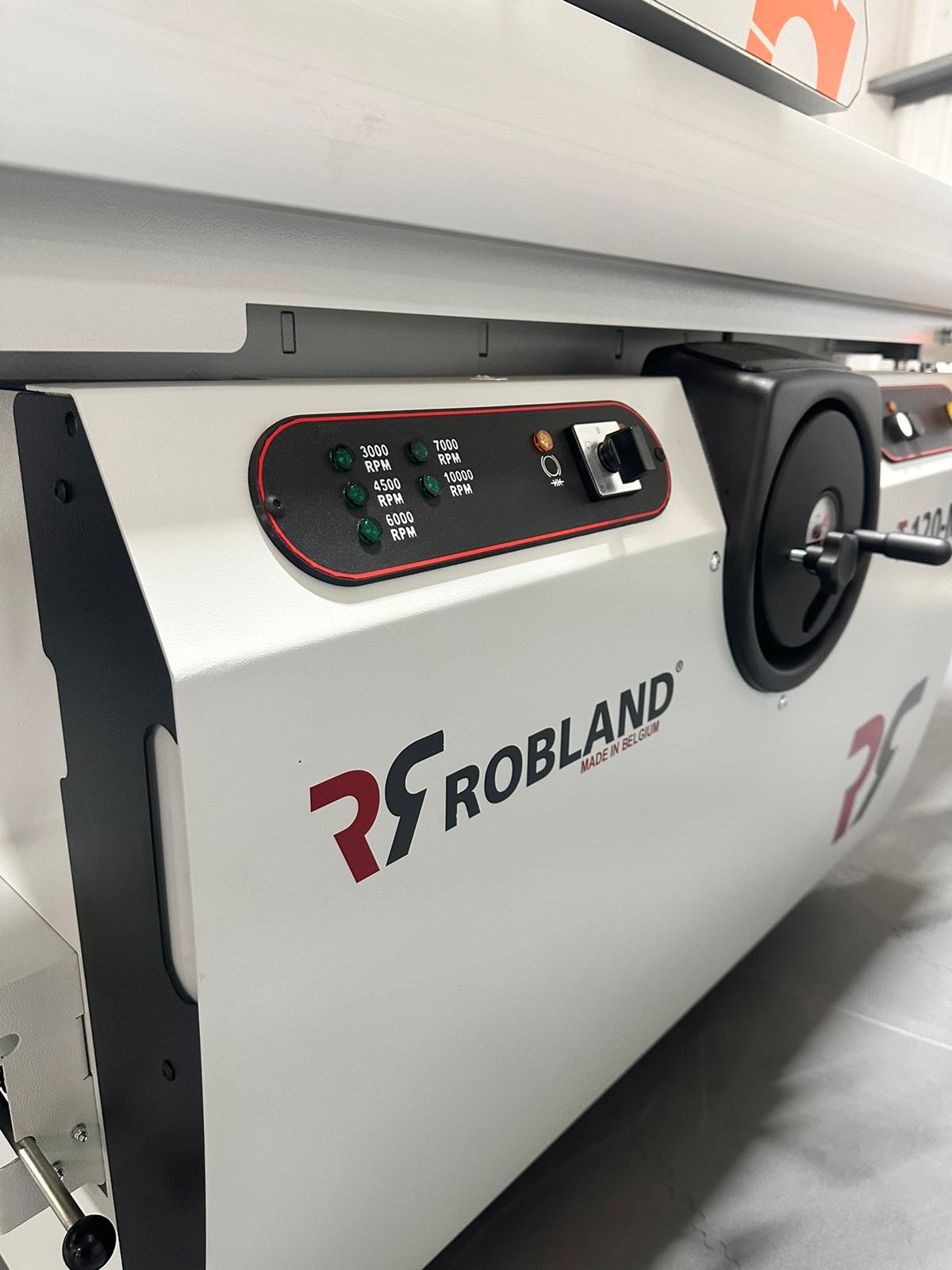

5 Rotation Speeds
The machine is standardly equipped with 5 rotations speeds (3000/4500/6000/7000 and 10000 RPM)
Swing Away Device
Fence is lifted and lowered from the table with a swing away device. (COMFORT PACK)
Motorised Rise and Fall and Digital Read
Motorised rise and fall and digital read out of the spindle height. (COMFORT PACK)
Cast Iron Tenoning Table with Fence
Cast iron tenoning table with fence
