Technical Specifications
Voltage / phase
415V / 3ph
Weight
560 KG
Spindle Length
180 mm
Spindle Stroke
205 mm
Cast Iron Table Dimensions
1200 x 705 mm
Table Height
930 mm
Motor Power
7 kW / 9.5 HP
Shaft Diameter (fixed)
50 mm
Shaft Diameter (Quick Exchange)
30 / 32 / 40 / 50 mm
Spindle Rotation Speed
3000 / 4500 / 6000 / 7000 / 10000 RPM
Max. Diameter and height table opening
320 x 95 mm
Dust extraction Outlet
120 mm
Interchangeable MK 5 Shaft
The Robland T120-S Spindle Moulder features an interchangeable MK5 shaft, diameter upon request 30/40/50 mm.

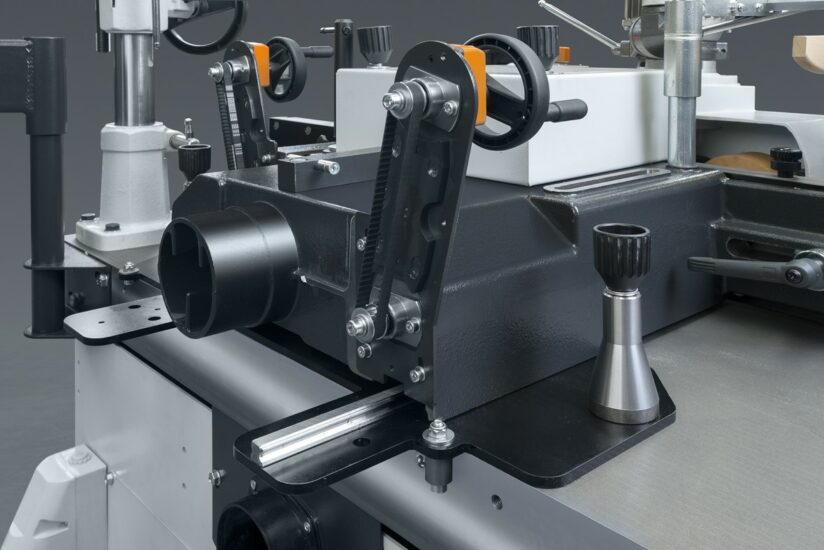

Heavy Duty Fence
Sturdy, stable fence with micro adjustment and positioning by handwheel and mechanical indicators now come as standard.
Linear Guides
The fence moves on lineair guides.
NEED ASSISTANCE OR EXPERT ADVICE?
We pride ourselves in offering a friendly and professional service

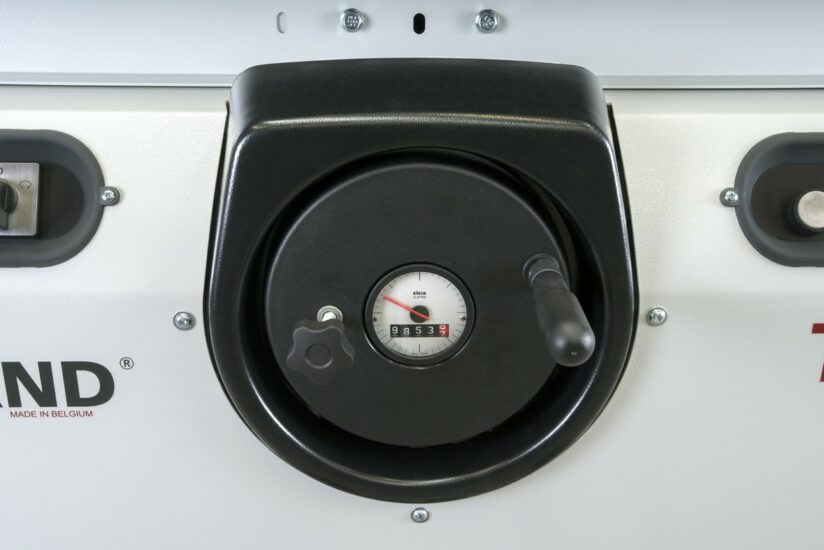

Read-out Height
Handwheel with integrated analogue read-out height spindle moulder.

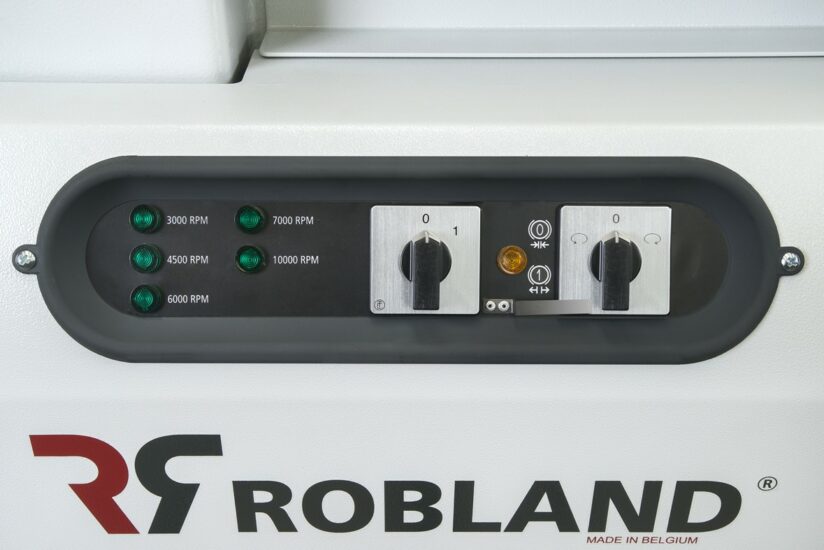

5 Rotation Speeds
The machine is standardly equipped with 5 rotations speeds (3000/4500/6000/7000 and 10000 RPM)
Swing Away Device
Fence is lifted and lowered from the table with a swing away device. (COMFORT PACK)
Motorised rise and fall and digital read
Motorised rise and fall and digital read out of the spindle height. (COMFORT PACK)
Cast iron tenoning table with fence
Cast iron tenoning table with fence
