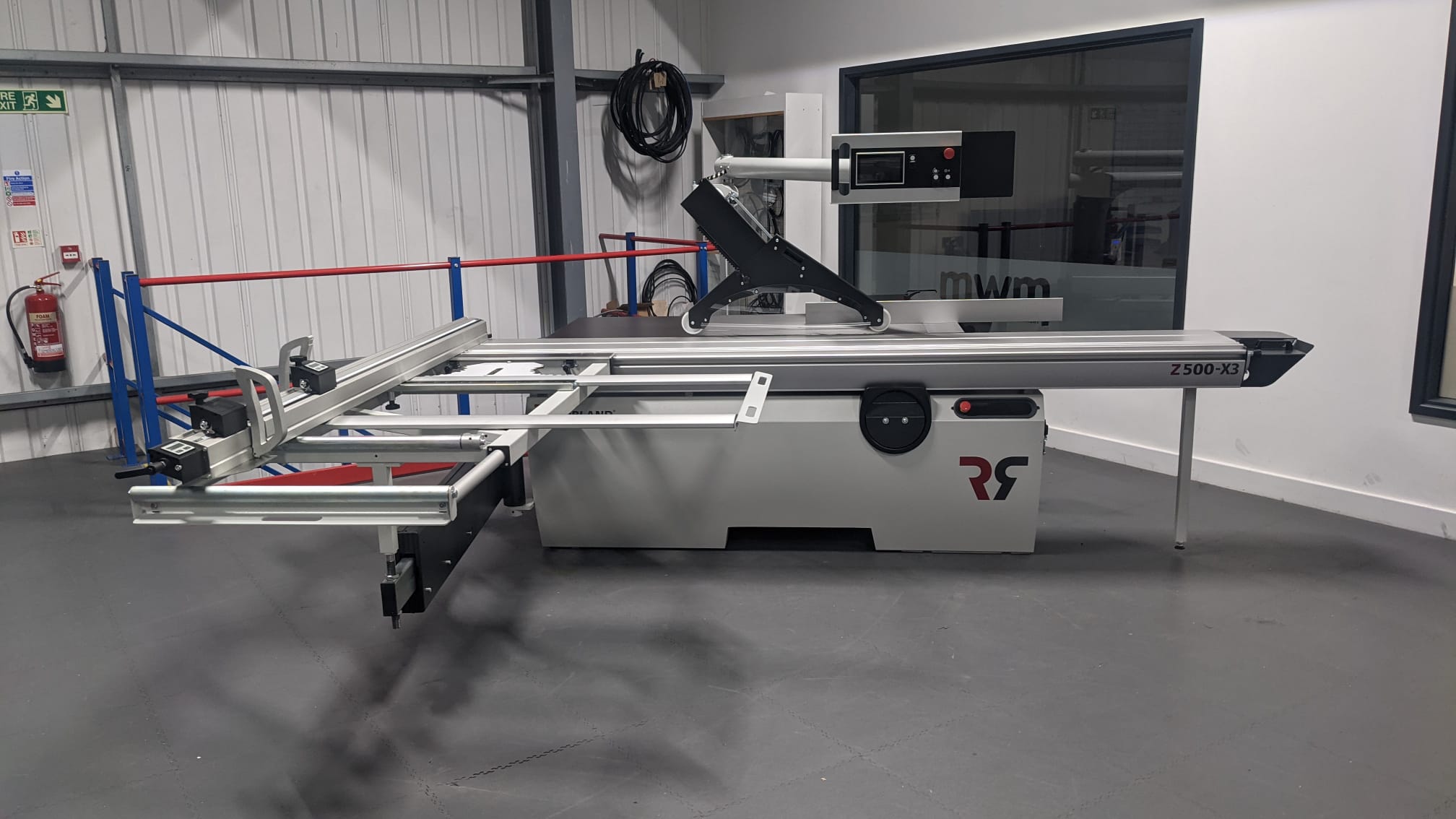

The Robland Z500X3 is a top range panel saw manufactured by Robland in Belgium.
This machine features, programmable main blade height and tilt with a programmable rip fence. Extra start/ stop integrated into the sliding table. Safe LED Scribe light. Digital readouts on the crosscut fence. Dual outrigger support with extra crosscut fence support. A 500mm main blade with 120mm scribe blade. The 500mm blade provides a 175mm depth of cut at 90 degrees. Overhead guard and extraction arm with overhead 7″ colour touch screen.
Need assistance or Expert Advice?
We pride ourselves in offering a friendly and professional service

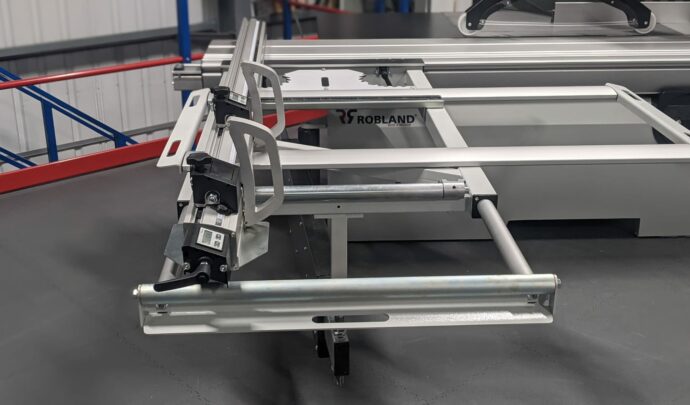

Z500 Outrigger table
A Luxury outrigger table (1505 x 760mm) with extensions in length and width with slanting telescopic crosscut fence (2295 – 3355mm). The index system with length correction facilitates accurate sawing of angles and mitre cuts.
Also available option on the Z400 Series
Saw Aggregate

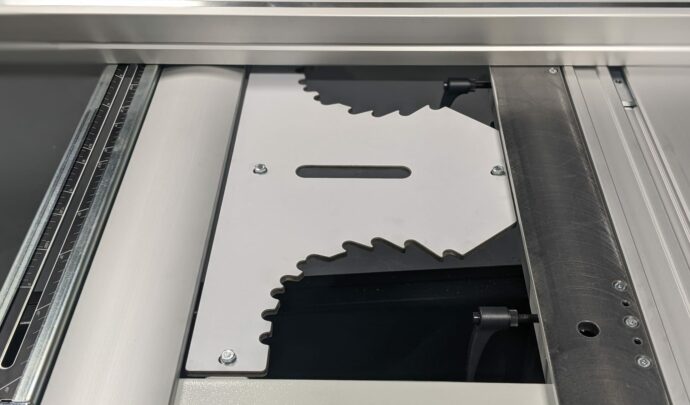

Saw aggregate rotating shells maintaining the origin while tilting
Sliding table
The hard anodized sliding table is precision machined. The heart of the sliding table is 8 hardened steel rods inserted into the table extrusion, thus making the whole system extremely wear-free

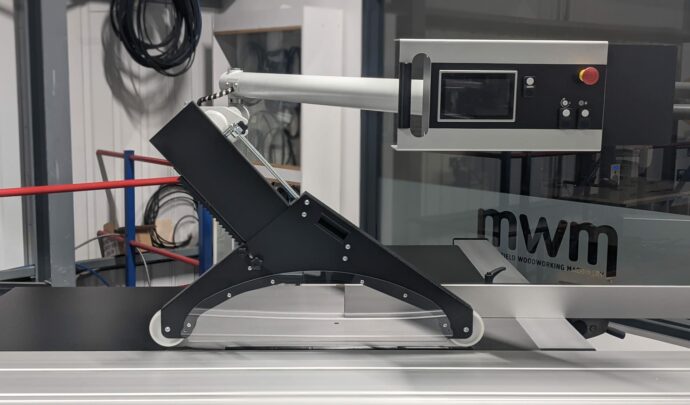

Overhead Saw Guard and Extraction Arm
Overhead saw guard and integrated extraction tube. Provided as standard with the Z400 and Z500 series

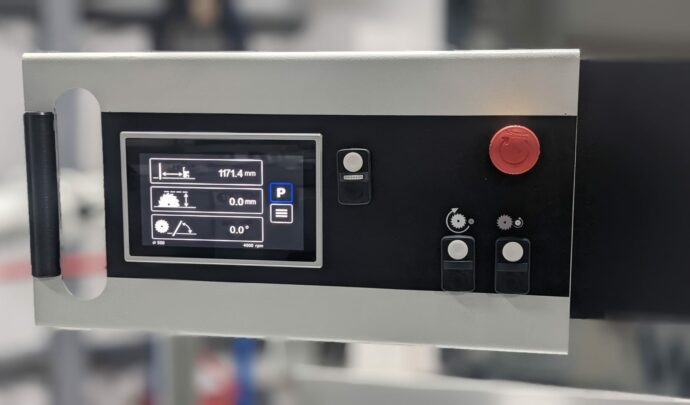

Programmable Panel Saw
The Robland Z500X3 Panel Saw has the following programmable functions
- Programmable Main Blade Height
- Programmable Main Blade Tilt
- Programmable rip fence positioning
Preset Mitre Guides
The Z500X3’s outrigger table has preset mitre guides for easy and precise mitre cuts

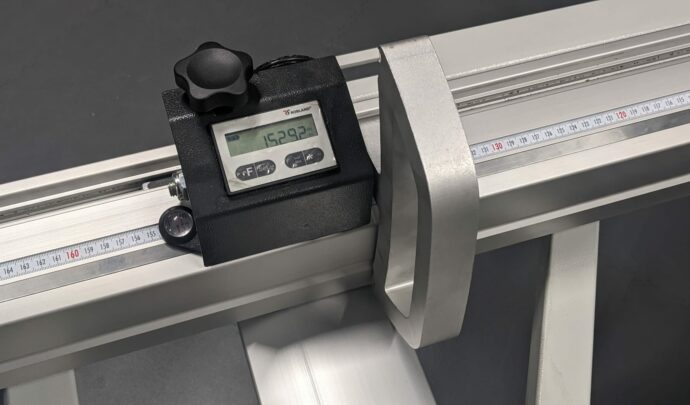

Digital Readout on the Crosscut fence
The Z500X3 has one digital readout with flip stop on the crosscut fence. Another manual readout with magnifying glass which can be used in conjunction with the telescopic digital readout.

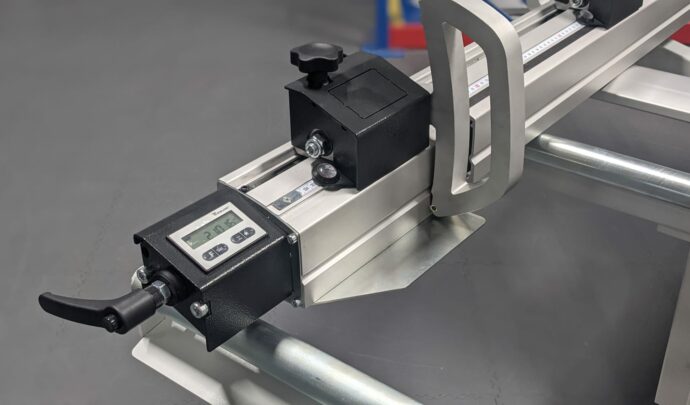

Telescopic Digital readout
For the longer workpieces on the crosscut fence, the Robland Z500X3 has a telescopic digital readout. Telescopic to 3355mm

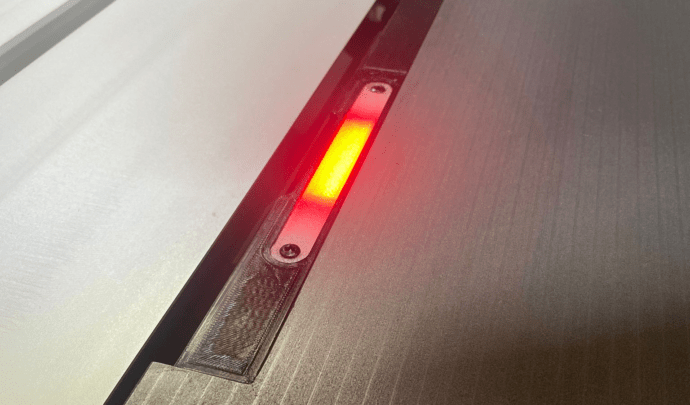

Safe LED Scribe Light
A safe LED scribe light which turns on only when the scribe is active to inform the operator that the scribe is above the table and operational.

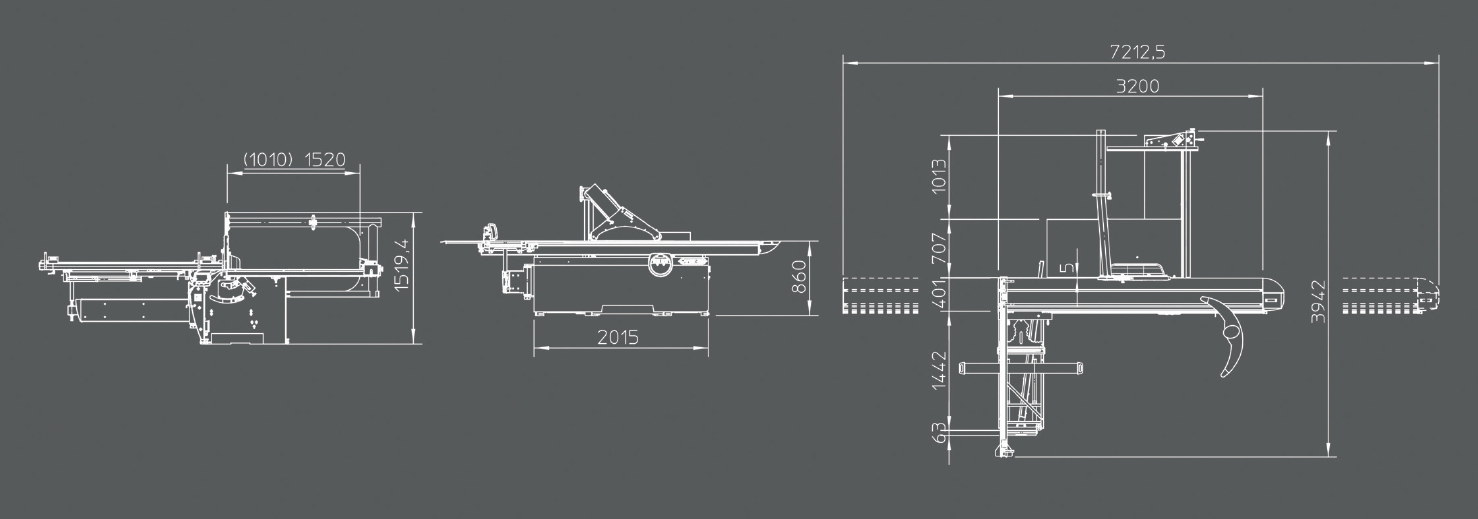

Robland Z500X3 Panel Saw Floor Plan
