Robland NXZ Panel Saw 3ph

Enquire for price

OPTIONAL EXTRAS INSTALLED ON THIS MACHINE

  • Scoring unit

Standard features on this machine

  • 1.6M Sliding table with 1600mm cutting length
  • 700mm rip capacity
  • 300mm Blade diameter
  • 250mm Blade diameter with scoring blade
  • 100mm adjustable scoring blade
Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Weight
385 KG
Available Phases
single (1ph) 240V + Three (3ph) 415V
Saw blade rotation speed
4500 RPM
Diameter Saw blade
250 x 30 mm
Cutting length
1600 mm
Dimensions table
1080 x 410 mm
Dust extraction outlets
100 + 60 mm
Motor Power Single Phase
3.7 kW / 5 HP
Motor Power Three Phase
2.2 kW / 3 HP
Cutting depth at 45° / 90° (250mm Blade)
55 / 85 mm
Cutting depth at 45° / 90° (315mm Blade)
75 / 107 mm
Cutting width parallel fence
700 mm
Dimensions sliding table
1450 x 320 mm (2050 option)

Robland NXZ Panel Saw


The Robland NXZ Panel Saw is a compact entry level panel saw based on the Robland NX combination range. There is an option to have the machine with or without the scribe blade. Also This machine has the option to be ordered in single phase or three phase to suit your requirements. The NXZ’s parallel fence has a cut width of 900mm, The sliding table length is 1450x320mm, Max depth of cut at a 90 degree angle would be 107mm whilst using the maximum blade diameter of 315mm. The NXZ is also capable of doing tilt work, with the blade arbor tilting from 90 – 45 degrees. This machine may be available for demonstration in our Leicestershire based showroom.

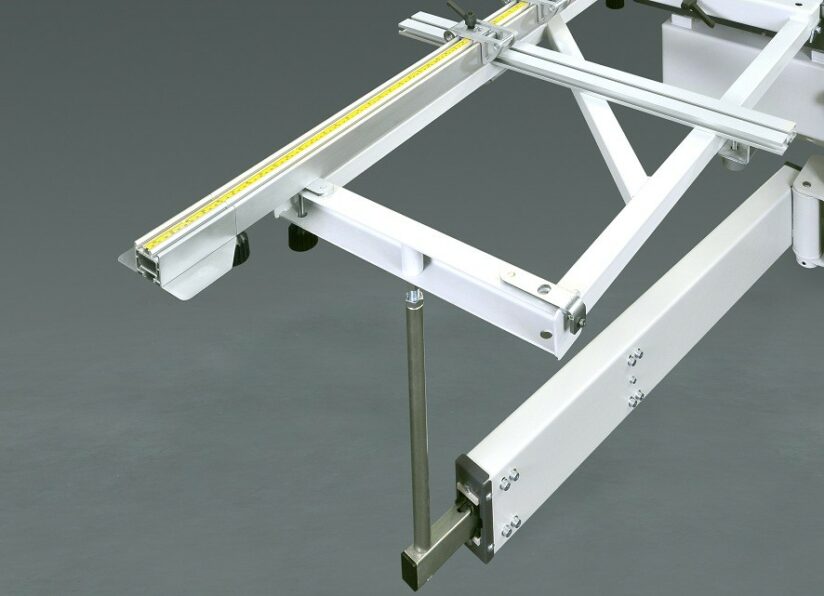

NXZ Panel Saw Extra Support Table
(Optional) Extra Support table

Extra support table for sliding table

Optional Extra: Wheel kit. This enables you to move your machine around easier. Robland Planer Thicknesser NXSD
(Optional) Wheel System

With the wheel system, you can easily move your machine

NXZ Panel Saw Parallel Saw Fence
(Standard) Parallel Saw Fence

Parallel saw fence, cutting width 700mm

NXZ Panel Saw Scoring Unit
(Optional) NXZ Panel Saw Scoring Unit

Scoring unit for the 250 mm version

NXZ Panel Saw Mitre Fence
(Standard) NXZ Panel Saw Mitre Cross-cut fence

In both directions 2 x 45° mitre cross-cut fence, standard feature on the machine.

NXZ Panel Saw Cast Iron Table
(Standard) NXZ Panel Saw Cast Iron Table Extension

Cast Iron table extension
