Technical Specifications
MACHINE TYPE
Band Resaws
MAXIMUM CUTTING CAPACITY
800x300mm (WxH)
SAW WHEEL MOTOR
50HP
DISTANCE FROM BLADE TO CONVEYOR
5 – 200mm
PACKING DIMENSIONS
355 x 228 x 250cm
SAW BLADE WIDTH
125mm
CONVEYOR HEIGHT FROM FLOOR
926mm
NET WEIGHT
4045KG
MAX MATERIAL HEIGHT
350mm
MAX SIZE FEED-BLADE
300mm
MACHINE DIMENSIONS
345 x 225 x 230cm
VOLTAGE / PHASE
415V / 3ph
FEED MOTOR POWER
7.5HP WITH INVERTER
BLADE LIFT MOTOR
2 HP
SAW WHEEL DIAMETER
1070mm
SAW BLADE LENGTH
7730mm
CONVEYOR BELT SIZES
800mm
VARIABLE FEED SPEED
0-20M/min
GROSS WEIGHT
4200KG
MAX SIZE BLADE-FENCE
200mm
MIN CUT WIDTH
3mm
DUST EXTRACTION OUTLET
3 x 150mm

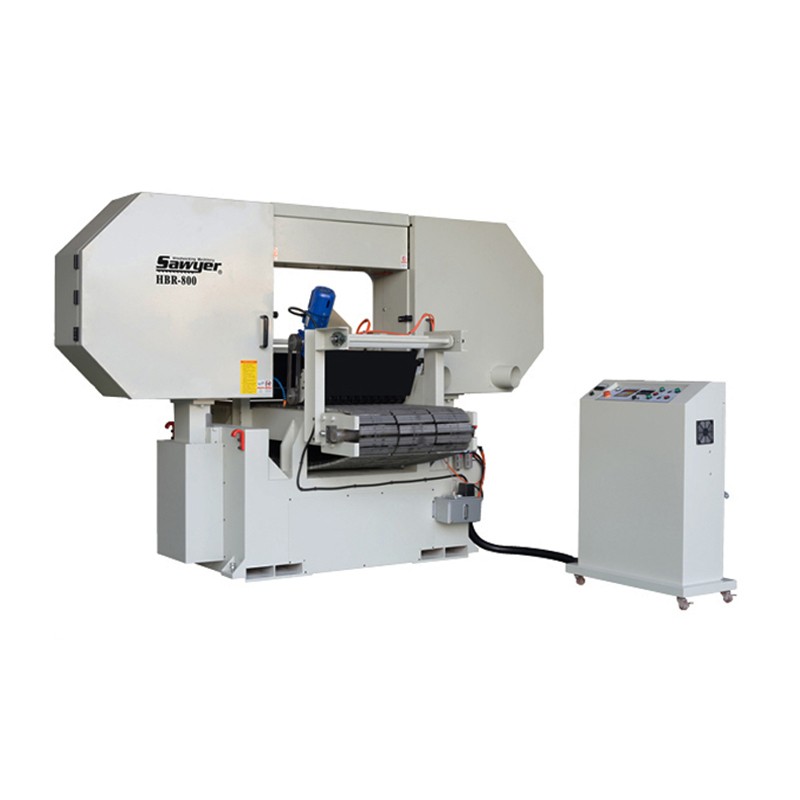

Sawyer HBR-800
Hydraulic blade tension system
Position the blade on the wheel, simply turn the switch to engage the hydraulic tension system and correct pressure will be set every time..
Soft Entry
The invertor driven feed system senses the timber before the timber hits the blade. For the first 50mm of cutting, the feeder will run slow, protecting the blade from bending or shattering. After the first initial cut, the feed system increases the speed to the desired cut speed.
Digital Fence
Simply key in your cut size, the fence will move its self to the correct position with auto lock.
Automatic lucrication
Oil mist is delivered directly onto the saw blade via the pressurised oil reservoir.
