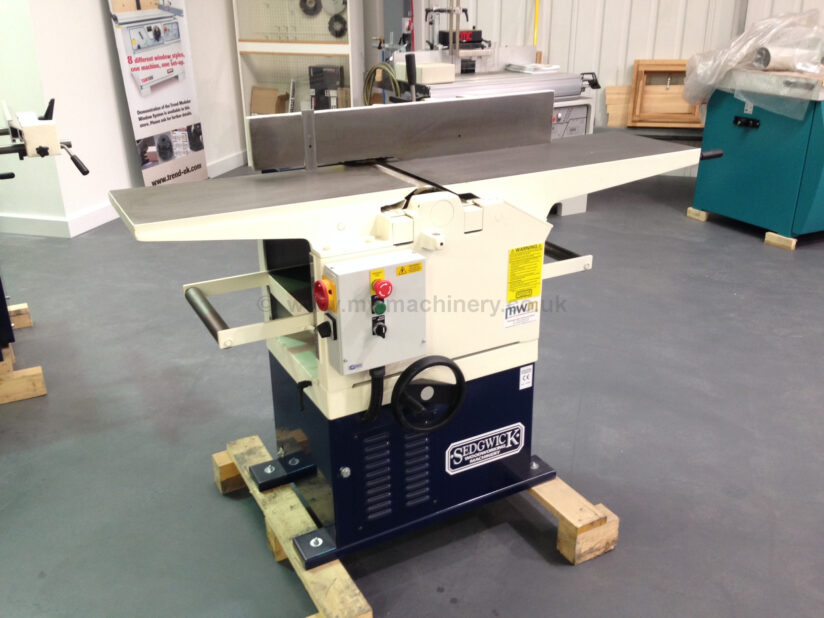

Sedgwick PT Planer Thicknesser 1 Phase

From £3,495.00 + VAT

(£4,194.00 inc VAT)

The Sedgwick PT255 planer thicknesser is designed and built for precision, long life and minimum maintenance.

Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

MACHINE TYPE
Planer Thicknessers
VOLTAGE / PHASE
1ph or 3ph
THICKNESSING WIDTH
255mm
SURFACE TABLE LENGTH
1200mm
SURFACE TABLE HEIGHT
830mm
CUTTERBLOCK DIAMETER
80mm
CUTTERBLOCK SPEED
4,000 rpm
FEED SPEEDS
5.5m/min
TILTING ANGLE FENCE
0°-45°
MAKE
Sedgwick
SURFACE CAPACITY
255mm
THICKNESSING DEPTH
180mm
INFEED TABLE LENGTH
600mm
THICKNESSING TABLE LENGTH
600mm
CUTTERBLOCK KNIVES
2
FEED ROLLER DIAMETER
40mm
FENCE SIZE
550 x 90mm
MOTOR RATING
1.5Kw

Sedgwick PT Planer Thicknesser 1 Phase

The Sedgwick PT255 planer thicknesser has a rigid mainframe assembly (cast iron base, side frames, and fixed outfeed table) gives exceptional stability, and accurately houses the feed and cutterblock bearings, and the infeed and thicknessing tables. The Tersa knife block is available as an option.

Construction

The Sedgwick PT Planer Thicknesser is designed and built for precision, long life and minimum maintenance. Its rigid mainframe assembly (cast iron, side frames, and fixed outfeed table) gives exceptional stability, and accurately houses the feed and cutterblock bearings, and the infeed thicknessing tables.

The cutterblock

A large diameter three knife TERSA cutterblock provides improved finish, and runs in ‘sealed for life’ bearings for minimum maintenance.
Driving the cutterblock is an industrial motor via a heavy section vee belt which, combined with the centrifugal force of the large diameter block, provides ample power.

Surface Plaining

The cast infeed table rises and falls square gibs for long term accuracy, and is fitted with a rule showing depth of cut. A generously proportioned cast iron fence is then mounted off the table on a cast iron bracket. The fence cab be tilted between 90° – 45° making it suitable for bevel work and chamfering, and is easily returned to 90° via a positive stop. Adjustable shaw guards are also supplied.

Thicknessing

For long term accuracy, and to avoid time consuming mode changes, the surfacing tables remain in place when thicknessing, utilising instead a dual function chip collection hood.
The thicknessing table is again cast iron and is mounted on a large diameter precision ground pillar to ensure precise and parallel positioning, with an off-centre lock for added rigidity. The steel feed rollers (one spiral-fluted the other rubber-coated) run in self-lubricating bushes and are driven by a heavy-duty chain for efficient and constant feeding of demanding production work and difficult stock.

Sedgwick MBT Fence on an angle

Angle Fence

Cast iron tables
