Technical Specifications

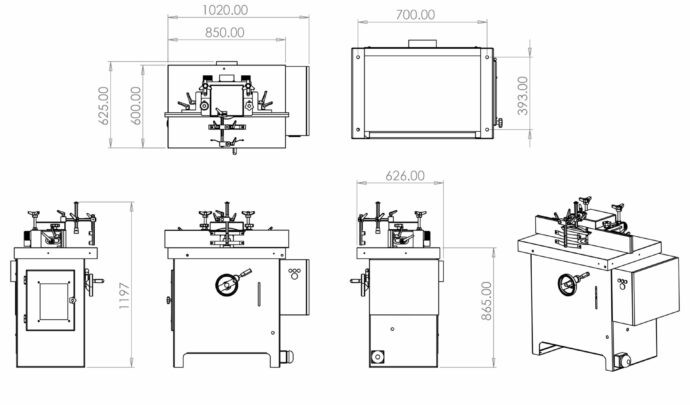

Sedgwick SM210 Spindle Moulder 3ph
Sedgwick SM210 415v Spindle Moulder – A heavy duty but well priced spindle moulder from the leading British woodworking machine manufacturer.
Construction
A cast iron table mounted on a heavy duty steel cabinet provides maximum timber support and a stable and accurate base for anchoring the spindle, motor housing, and rise & fall mechanism. All tables feature an anti-friction planed finish. The bearing housing, rise & fall assembly and motor mountings are also in machined cast iron. The spindle is belt driven by an industrial motor and runs in “sealed for life” bearings, which require only minimal maintenance.
Ease of Operation
The spindle rise and fall mechanism is operated by a handwheel at the front of the machine, and the spindle height read from an adjacent scale. The SM210 features a cast iron ‘horseshoe’ type assembly with independently adjustable precision-ground fence plates and movement indicators. Changeover between the four spindle speeds is effected by quick and easy belt re-positioning. A viewing
panel showing pulley speed is incorporated.
Safety Features
The machine is equipped with a fabricated steel cutter guard and a robust shaw guard set with hexagonal mountings and steel ratchet handles. Twin outlets facilitate dust extraction from both the cutter well and fence locations. Additional safety features include: automatic braking; starter with thermal overload no volt release protection and lock-off emergency stop; lockable isolator; electronically interlocked door; a footstop and a socket for a power feed unit.
Versatility
The machine’s removable spindle allows the operator to select between 30mm and 11/4″ dia. spindles, as well as offering the flexibility of optional router or tenoning spindles.
Available Options
Prices on Application
Cast Iron Sliding table Assembly
Tenoning Hood c/w Timber stop
Stub Spindle to flush mount cutters
Router Spindle (c/w 1/2″ collet)
500mm table extensions
