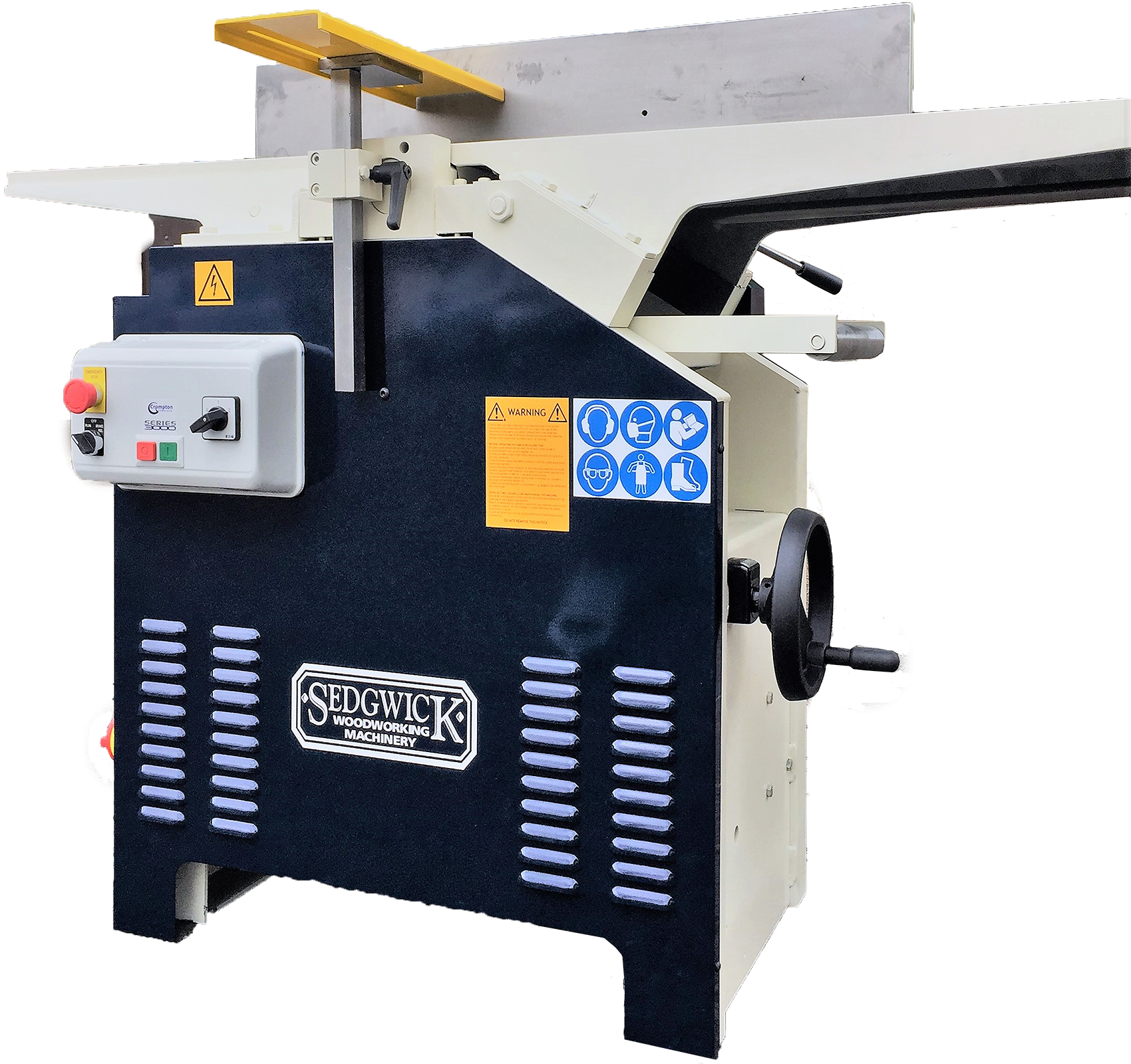

Sedgwick MBT Planer Thicknesser 415v TERSA

Original price was: £5,820.00.Current price is: £4,695.00.

(£5,634.00 inc VAT)

The Sedgwick MB308 planer thicknesser has a rigid mainframe assembly (cast iron base, side frames, and fixed outfeed table) gives exceptional stability, and accurately houses the feed and cutterblock bearings, and the infeed and thicknessing tables.

Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

MAKE
Sedgwick
MOTOR POWER
4hp
FENCE TILTABLE
Yes 45°
CUTTER BLOCK / DIAMETER
100mm
LENGTH OF OUTFEED TABLE
650mm
OVERALL DIMENSIONS (MM)
1700 x 950 x 1265mm
THICKNESS DEPTH
230mm
MODEL
MBS
PLANING WIDTH (SURFACING/THICKNESSING)
308mm
FEED RATE (THICKNESSING)
4.5 + 7m/min
LENGTH OF INFEED TABLE
850mm
LENGTH OF THICKNESSING TABLE
1000mm
VOLTAGE / PHASE
415V / 3ph

Sedgwick MBT Planer Thicknesser 415v TERSA

Sedgwick MBT planer thicknesser has a rigid mainframe assembly (cast iron base, side frames, and fixed outfeed table) gives exceptional stability, and accurately houses the feed and cutter block bearings, and the infeed and thicknessing tables.

Standard Features

MBT (TERSA MB Planer thicknesser) Can also be ordered as an MBS (Spiral block installed instead of TERSA), Both MBS and MBT are available in single or three phase electrics and both have the same additional options available.

Construction

The sedgwick MB Planer Thicknesser is designed and built for precision, long life and minimum maintenance. Its rigid mainframe assembly gives exceptional stability, and accurately houses the feed and cutterblock bearings, and the infeed and thicknessing tables.

The Cutterblock

A large diameter four knife TERSA cutterblock provides improved finish, and runs in ‘sealed for life’ bearings for minimum maintenance.
Driving the cutterblock is an industrial motor via two heavy section vee belts which, combined with the centrifugal force of the large diameter block, provides ample power.

Surface Plaining

The cast iron infeed table (which on the MB planer has increased length for accurate surfacing) rises and falls in square gibs for long term accuracy, and is fitted with a rule showing depth of cut. A generously proportioned cast iron fence is then mounted off the table on a cast iron bracket. The fence cab be tilted between 90 -45 making it suitable for bevel work and chamfering, and is easily returned to 90 via a positive stop. Adjustable shaw guards are also supplied.

Sedgwick MBT Fence on an angle

Tilting Fence


The Sedgwick MBT Planer Thicknesser’s fence is capable of tilting from 90° to 45° allowing you to complete angled work easily.

maximum size block of wood 230mm on top of thicknessing bed. Robland Planer thicknesser NXSD 410. Robland Planer Thicknesser NXSD

Thicknessing Height


MBT Planer thicknessers have a maximum workpiece height for thicknessing of 230mm.

Available in single or three phase Sedgwick MBS Planer

Available in single and three phase


MBT and MBS machines are available in either single phase or three phase, specific to your requirements.
