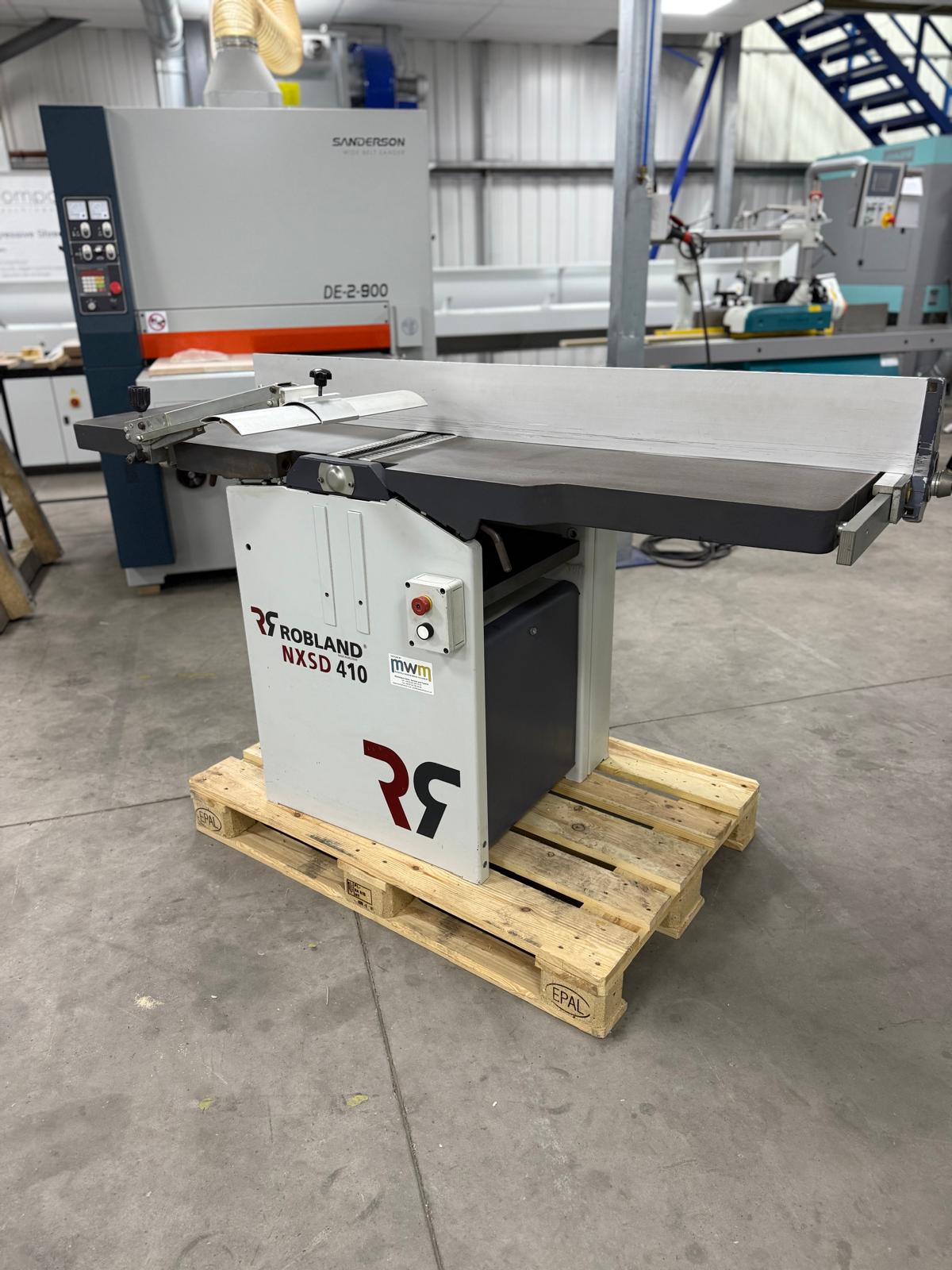

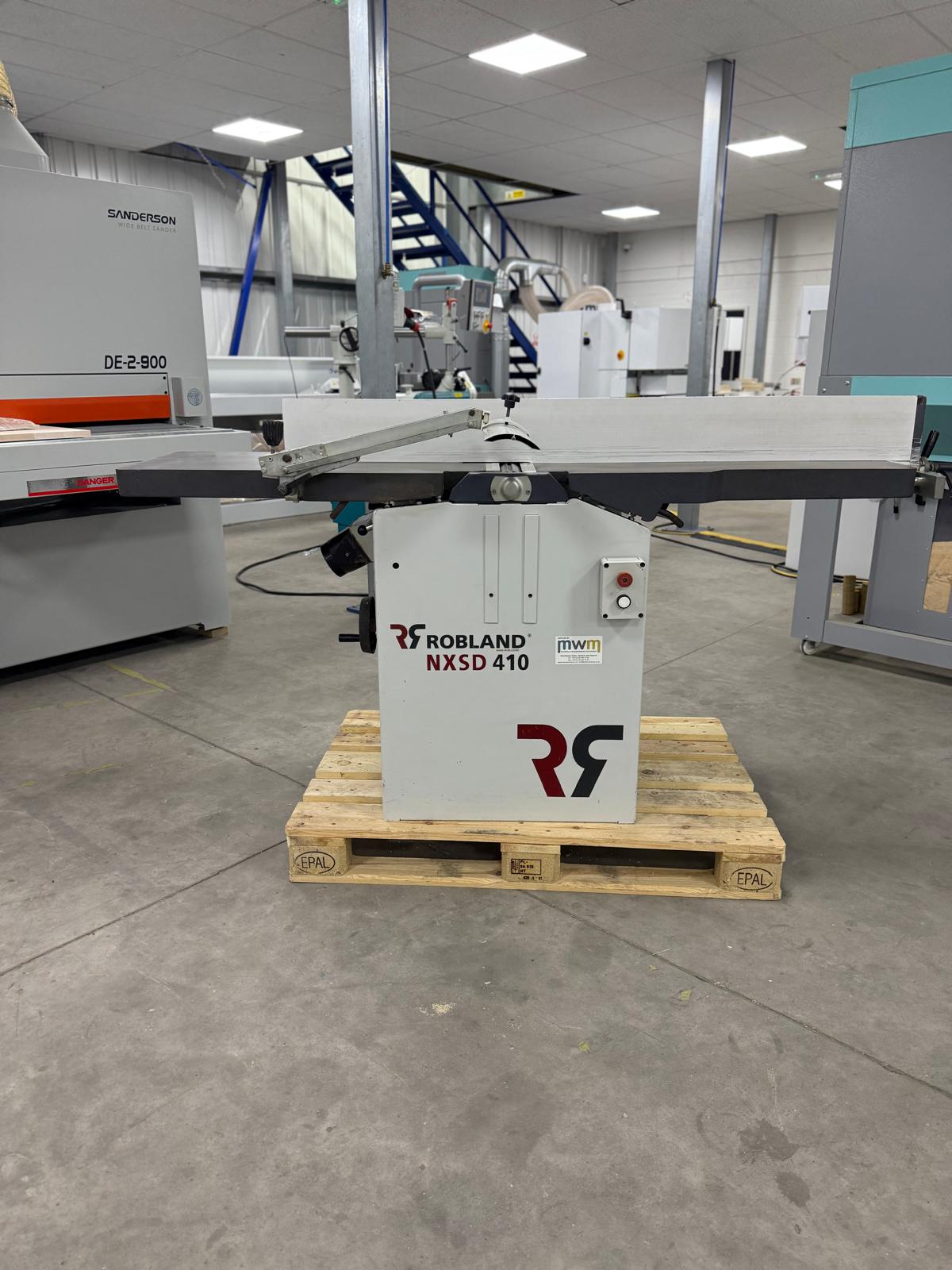

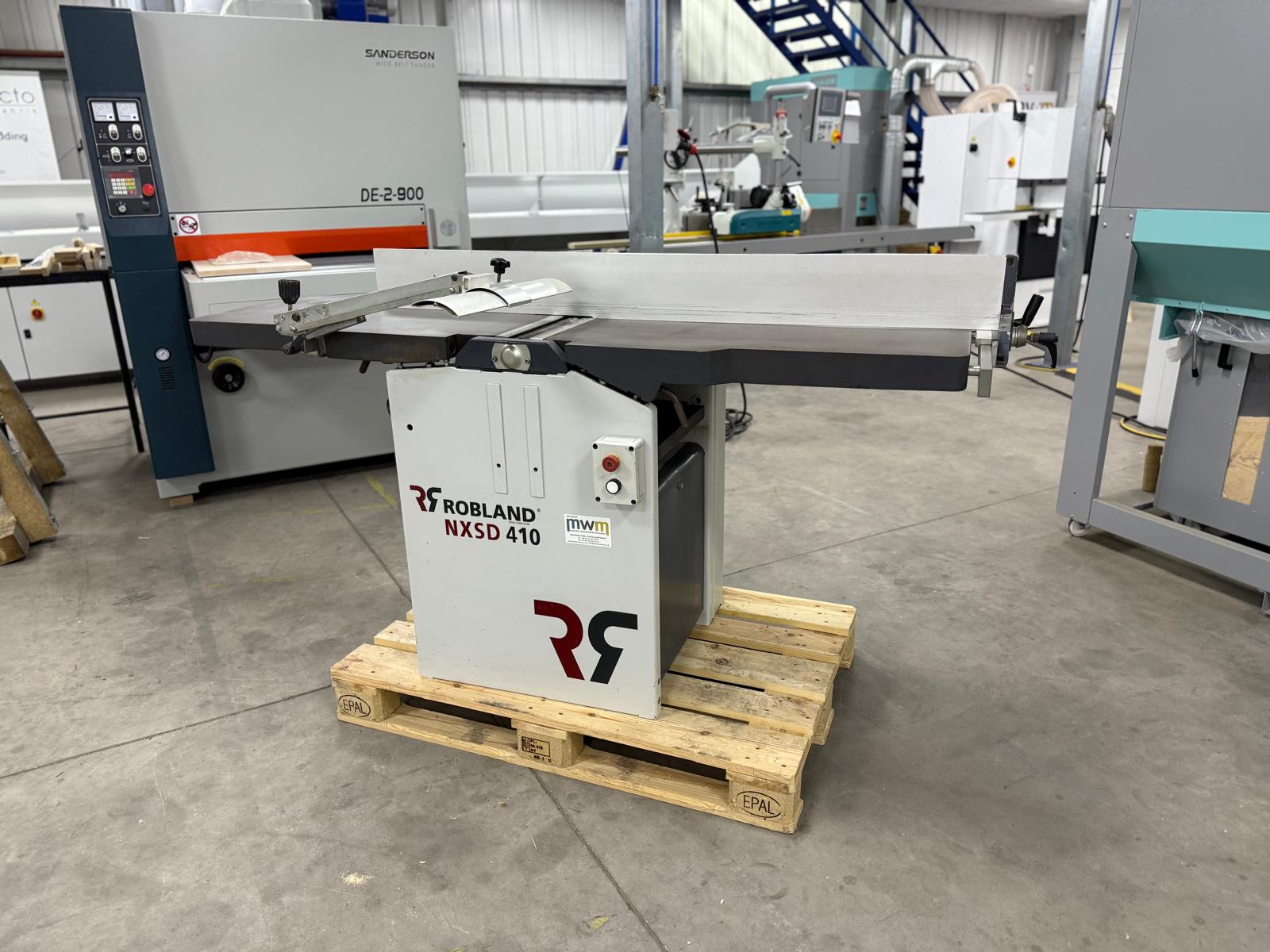

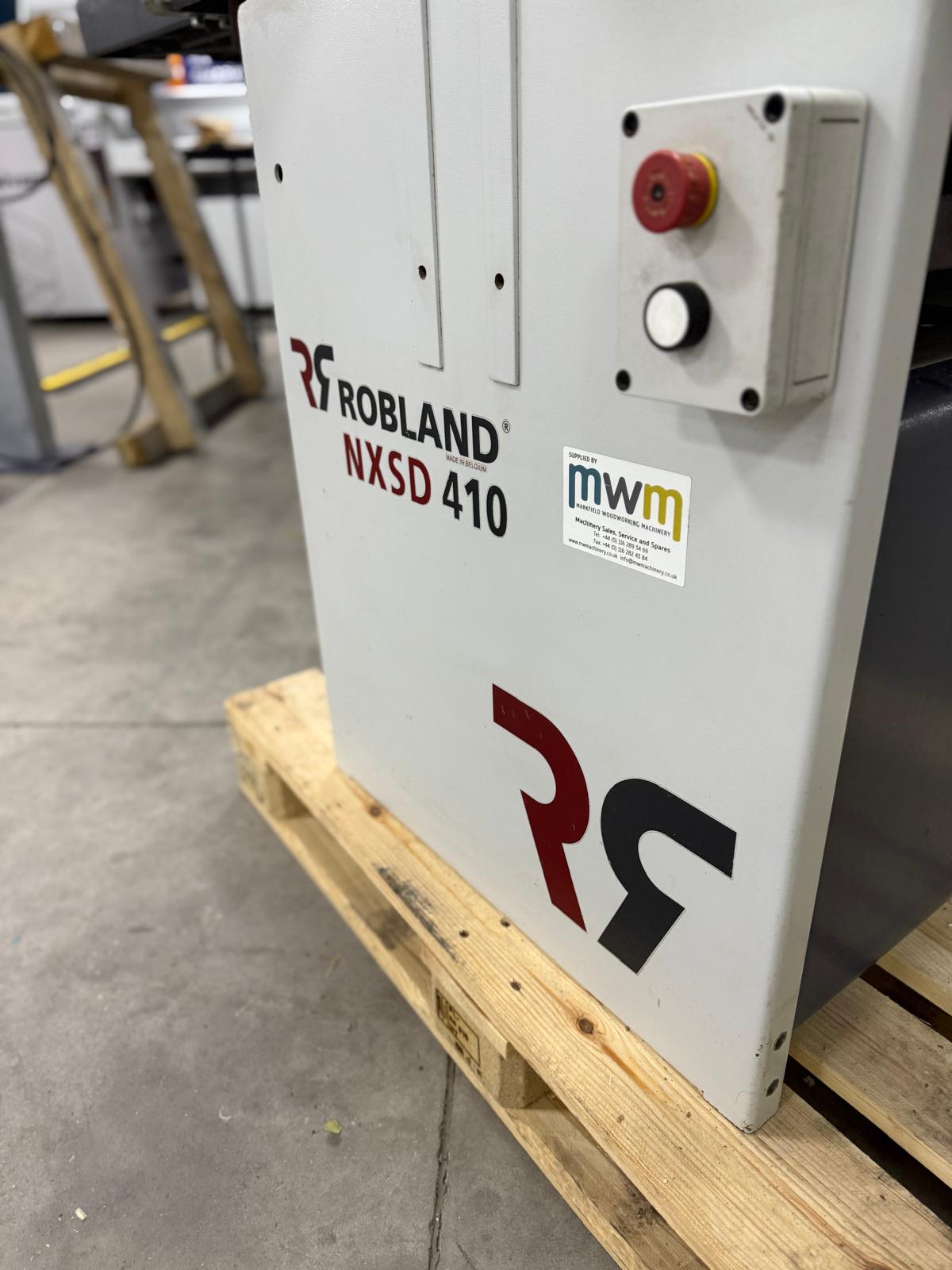

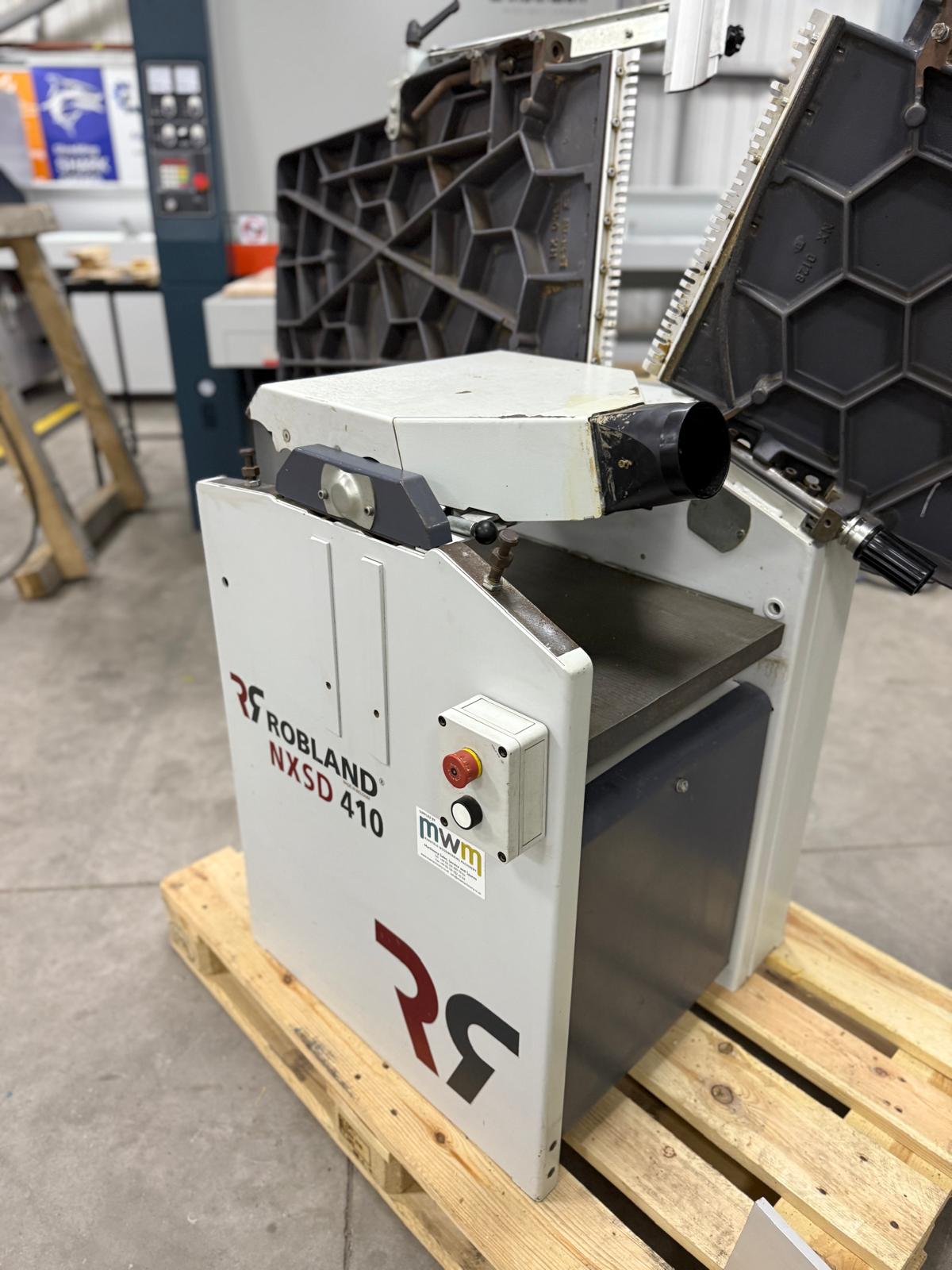

Name: USED Robland NXSD410 Planer Thicknesser 3ph TERSA | Markfield Woodworking Machinery
Brand: Used Machines

Technical Specifications

Motor Power

6.6 HP

cutter block speed

5500 rpm

length of outfeed table

880 mm

Max. thicknessing height

230 mm

Dust extraction outlet

100 mm

Fence dimensions

1500 x 150 mm

Cutter block diameter

70 mm

length of infeed table

880 mm

tilting fence

90° – 45°

Max. planing width

410 mm

voltage / phase

415v / 3ph

Year of manufacture

2012

Download product pdf

NEED ASSISTANCE OR EXPERT ADVICE?

We pride ourselves in offering a friendly and professional service

0116 2893469 Send us a message

Optional Extra: Wheel kit. This enables you to move your machine around easier. Robland Planer Thicknesser NXSD

Wheelsystem

With the wheelsystem, you can easily move your machine.

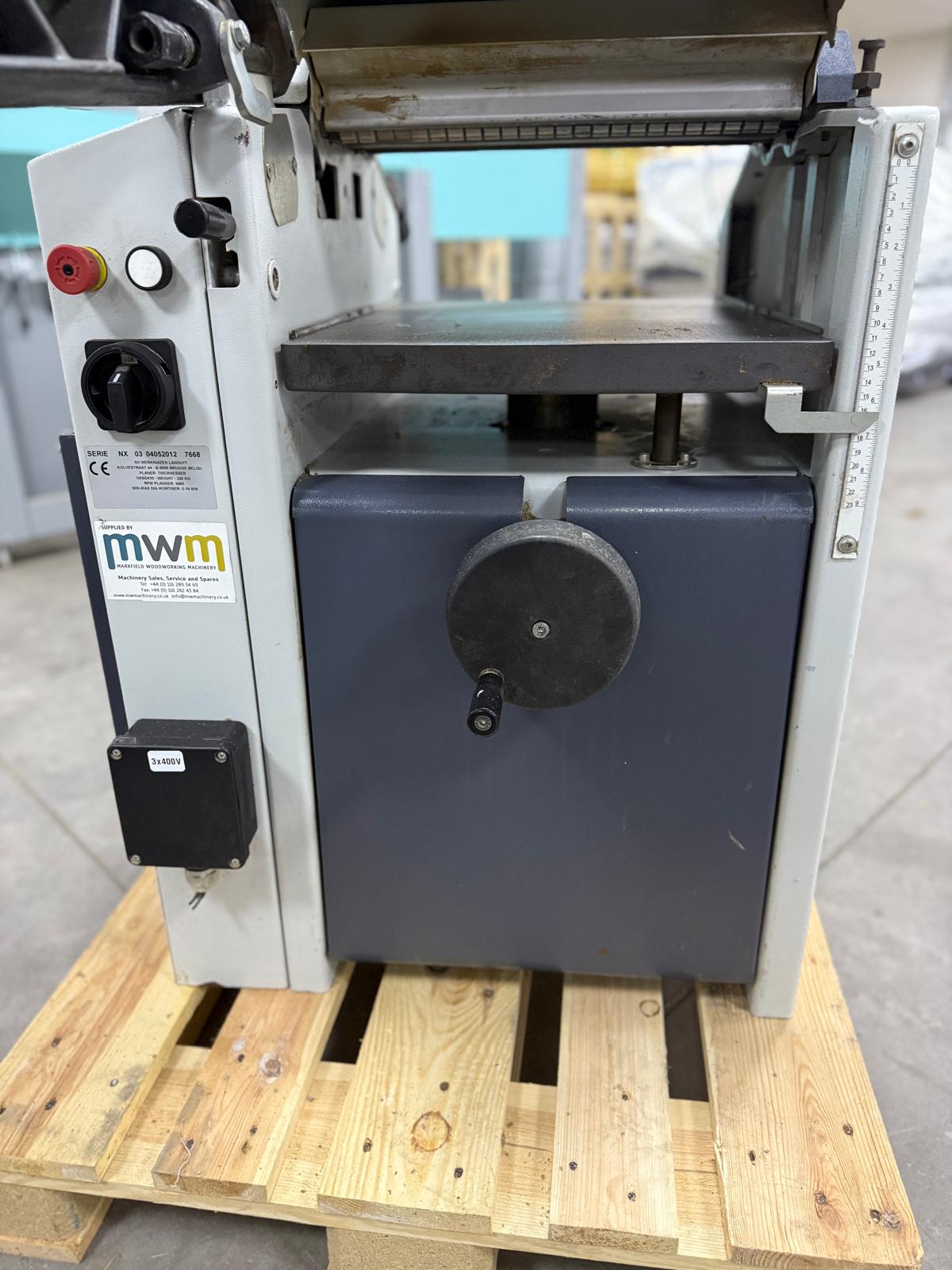

Handwheel

Handwheel with integrated analogue read out thickness table.

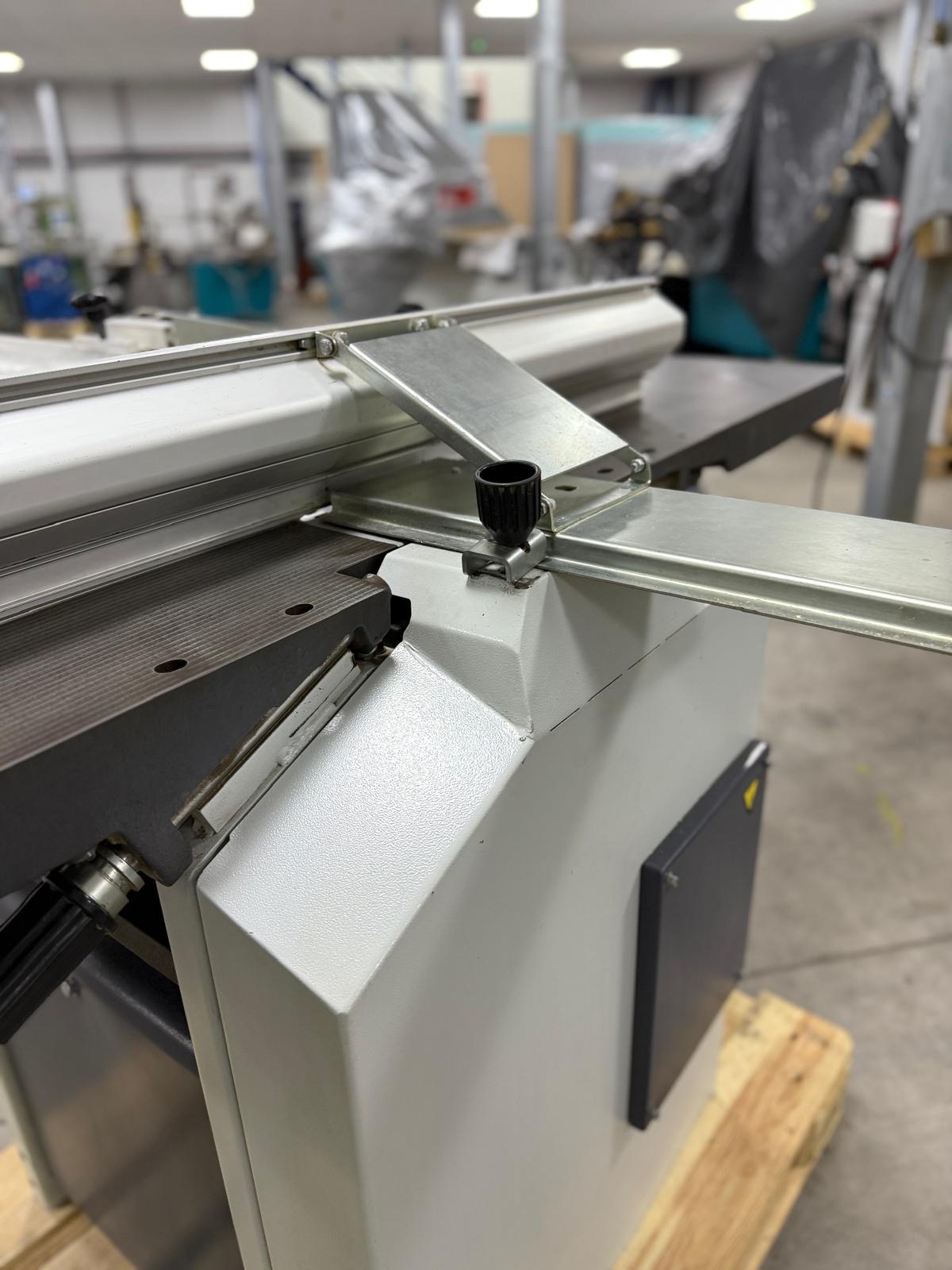

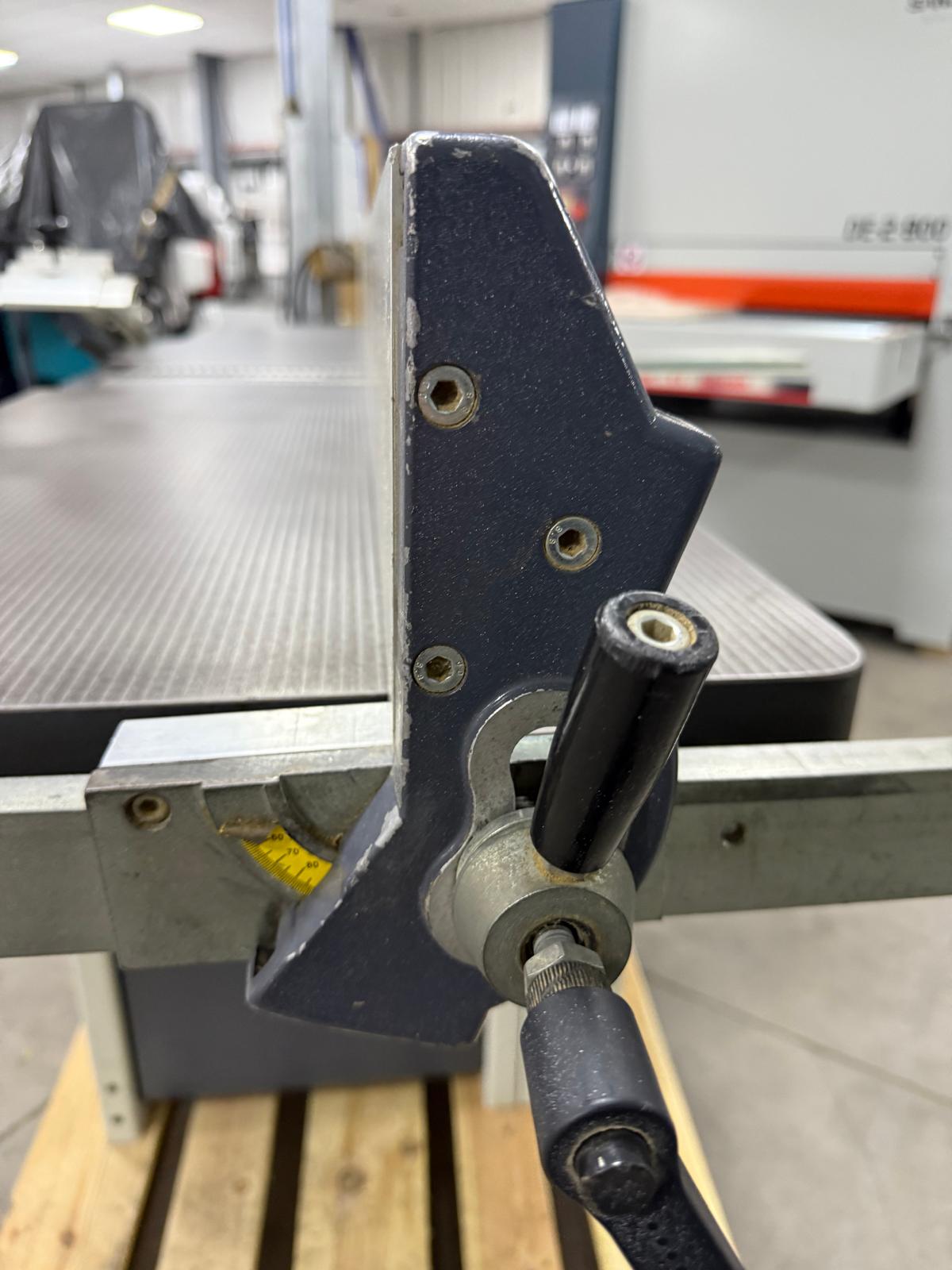

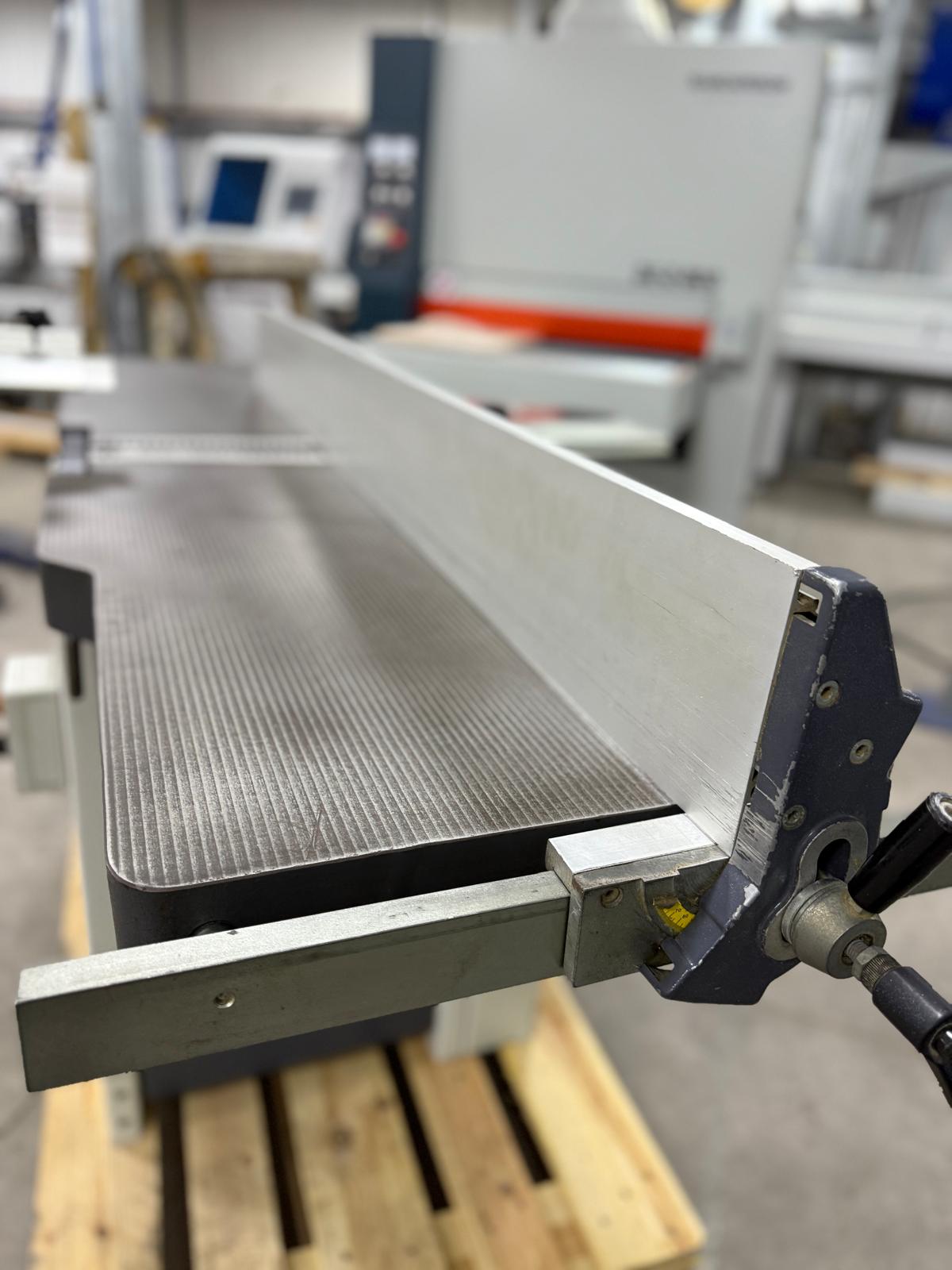

Jointer Fence

The large, hard anodized, jointer fence makes edge planing easy. Thanks to its special swivel-support bracket, the fence sets at any angle without a gap between the fence and the table surface.

Cast Iron Tables

The cast iron tables have a total length of 1800 mm.

standard block components consisting of 2 knives (packaging) and the block. Robland Planer thicknesser NXSD 410

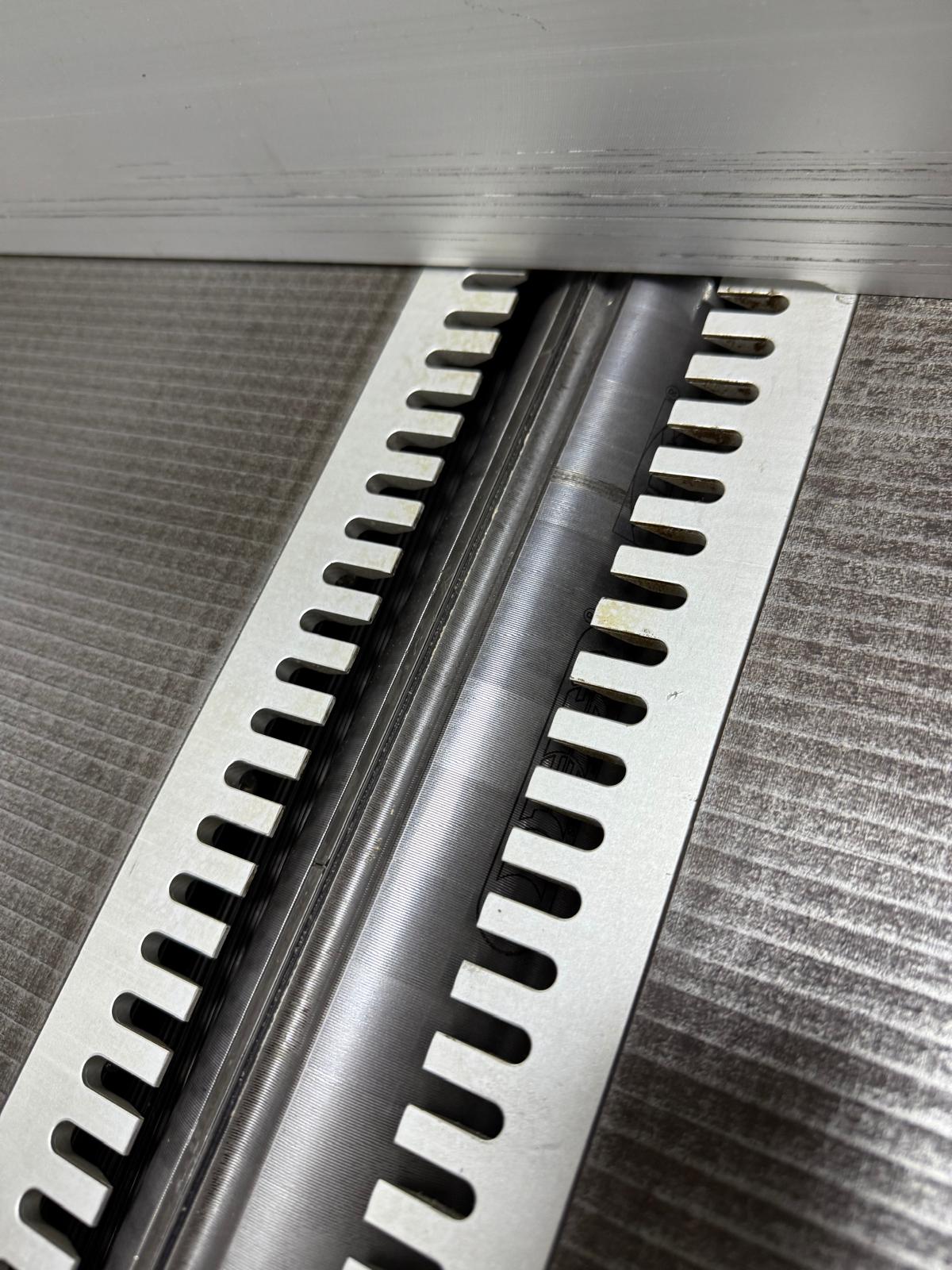

Tersa

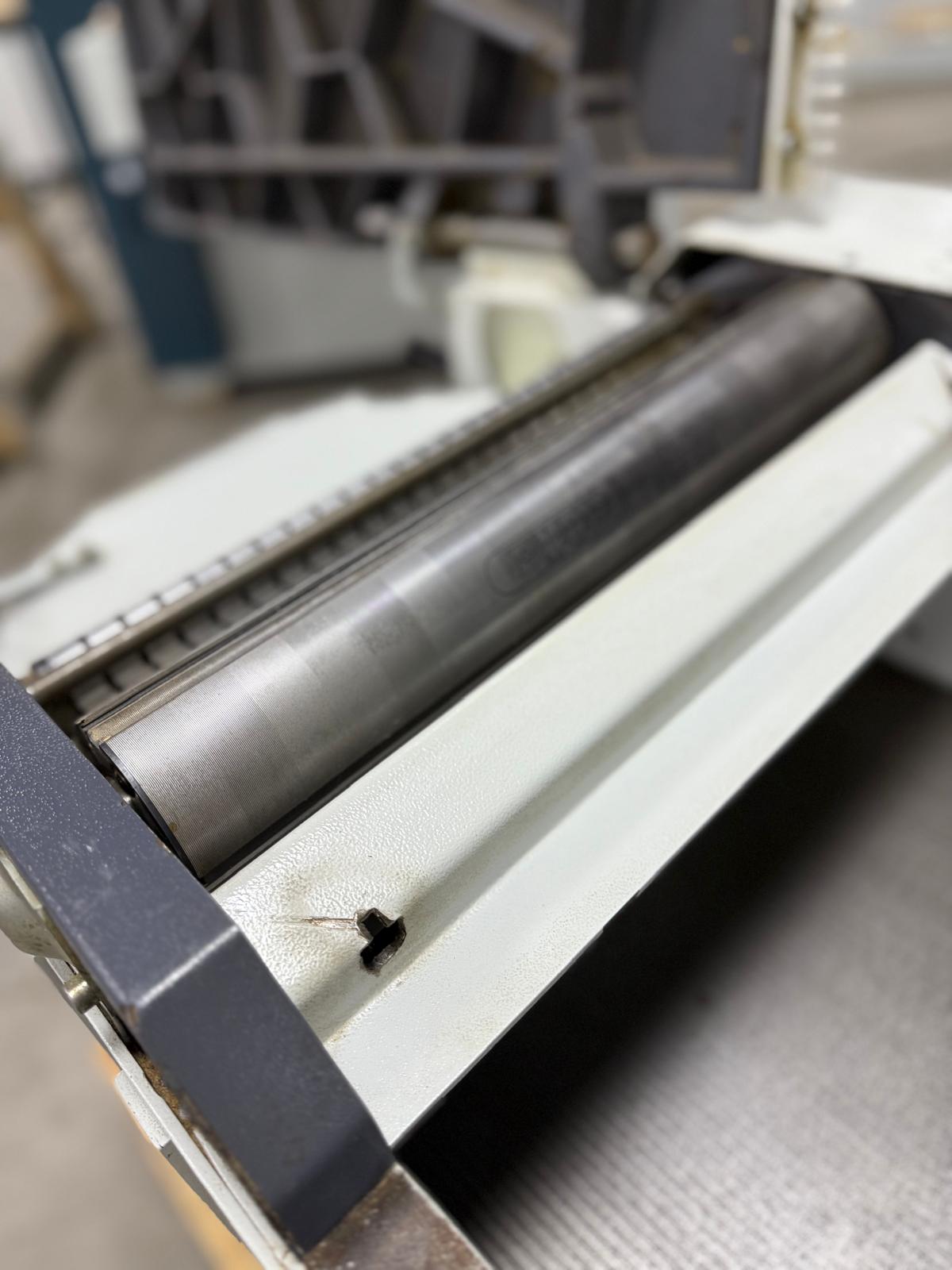

“TERSA” cutter-block with 3 reversible knives (HSS), provides quick precise setting of the knives.

Morticer

The smooth and easy to operate mortiser unit can be removed from the machine within minutes. It also has 2 detachable handles, easy when machining large workpieces. The chuck capacity is from 0 to 16 mm.

maximum size block of wood 230mm on top of thicknessing bed. Robland Planer thicknesser NXSD 410. Robland Planer Thicknesser NXSD

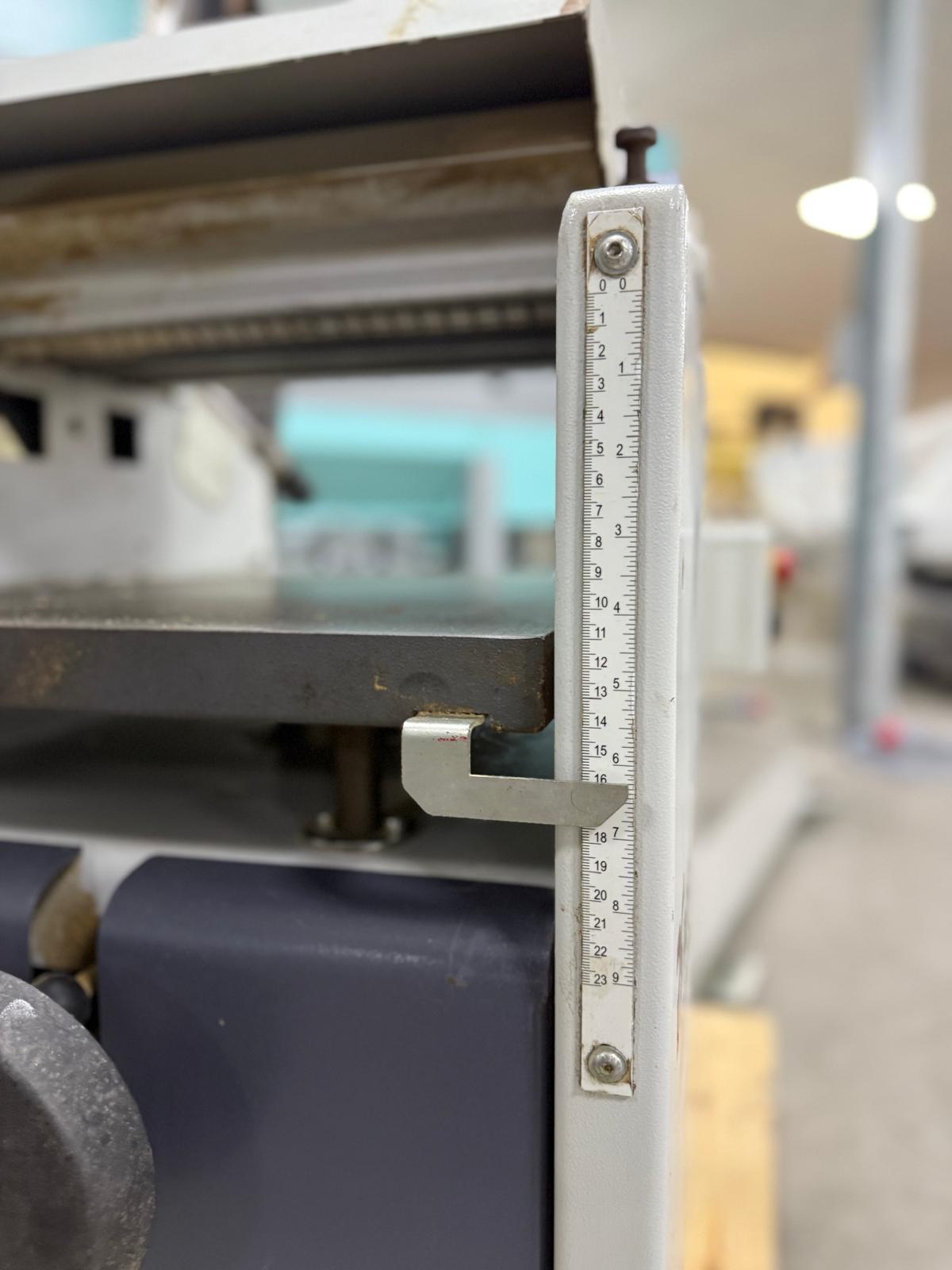

Thicknessing Capacity

Up to 230 mm thicknessing capacity with precision setting and locking. The very sturdy central column and positive feed system ensure excellent results.
