Now Sold USED Robland X260 Series Combination Machine

Enquire for price

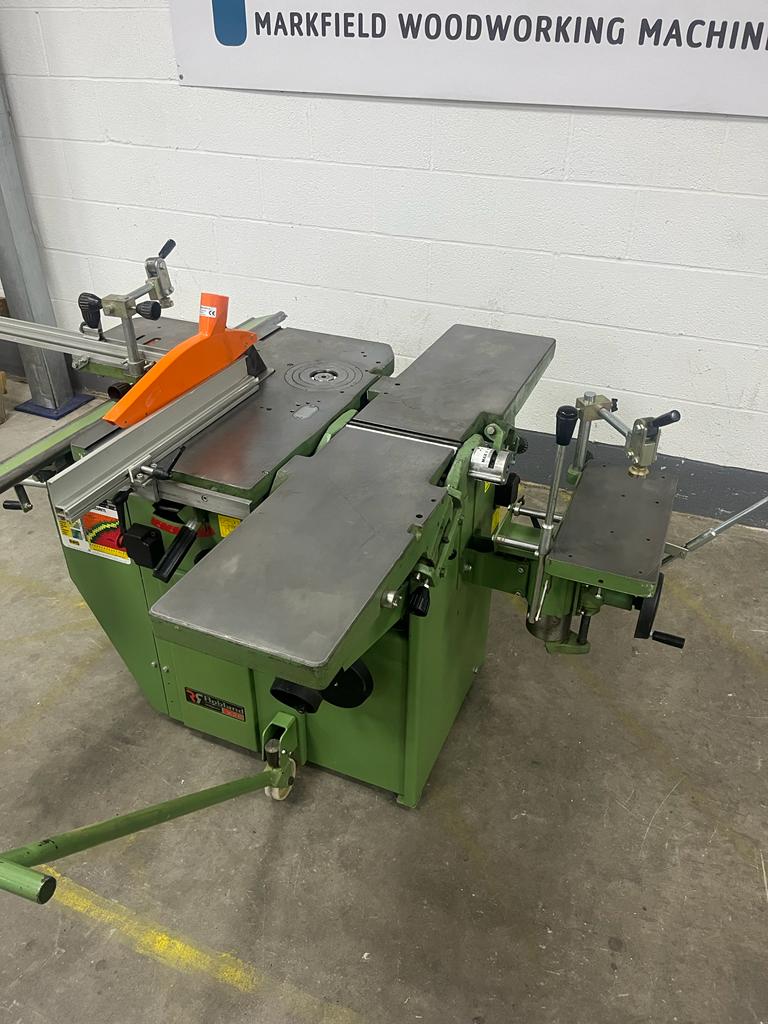

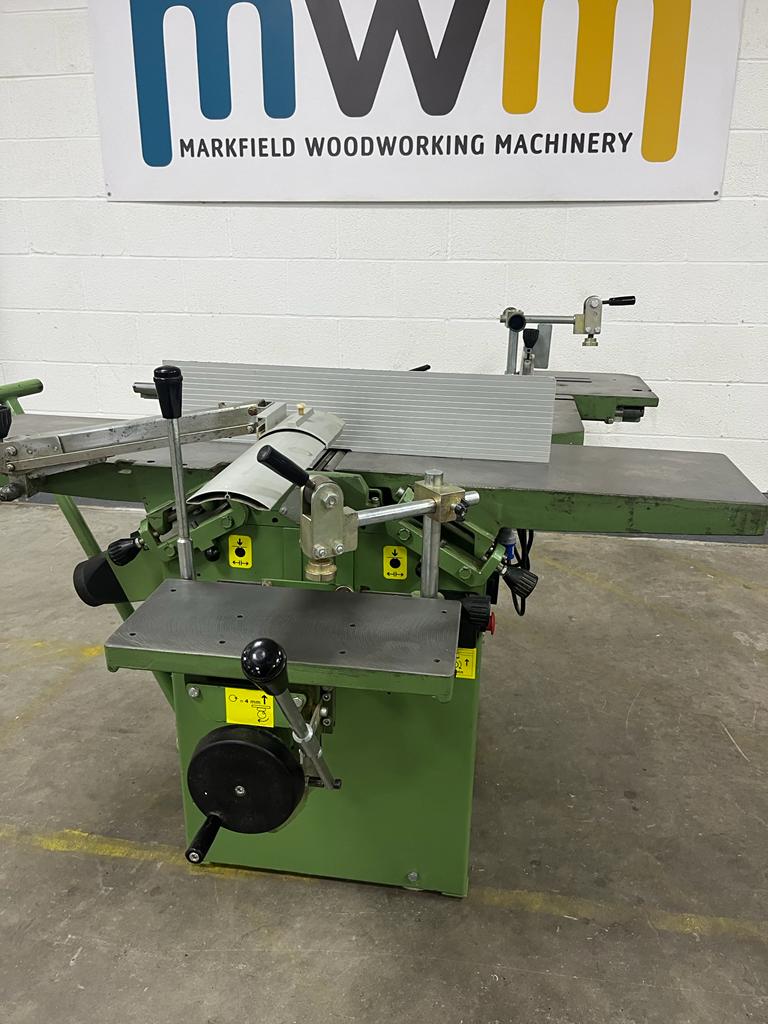

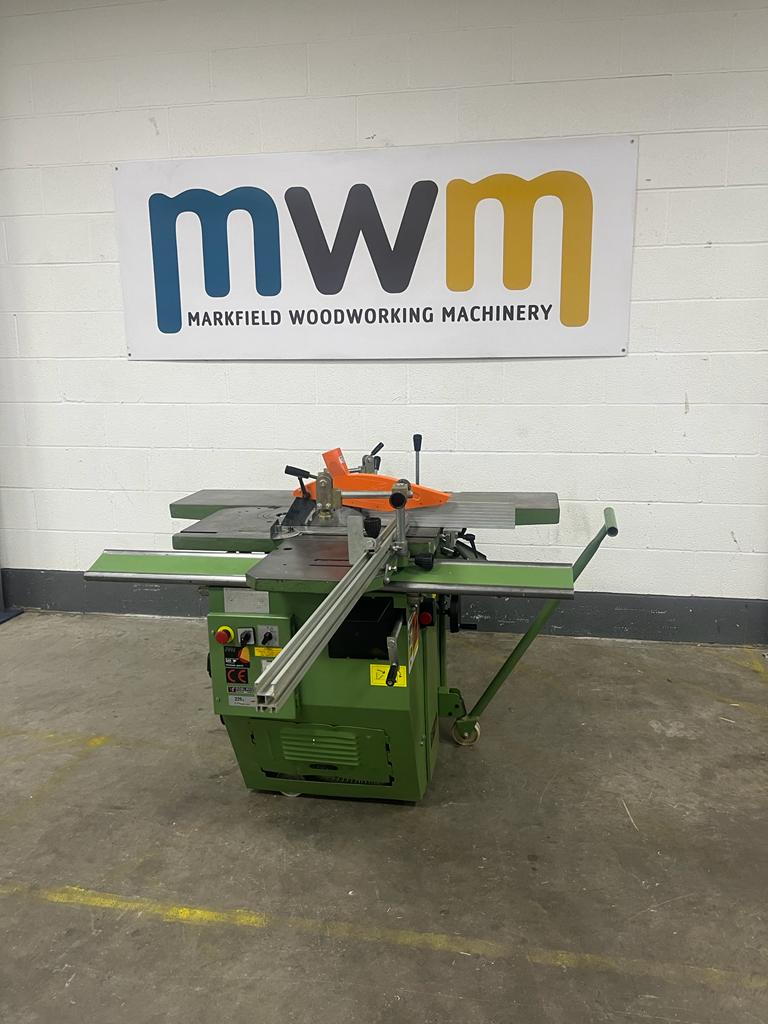

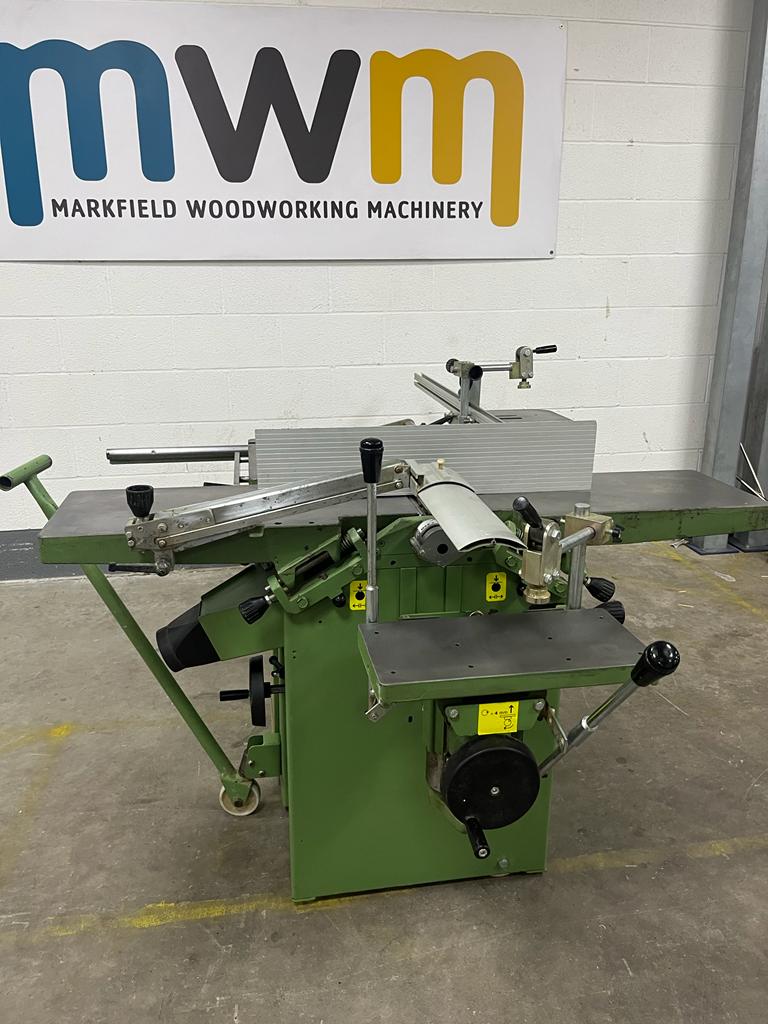

Robland X260 Series Combination Machine – 1ph

This Robland Combination machine from 1996 is a perfect example of, if you look after it it will last. In full working order, was taken in as the Gentleman was retiring. This machine is equipped with 5 different operations:

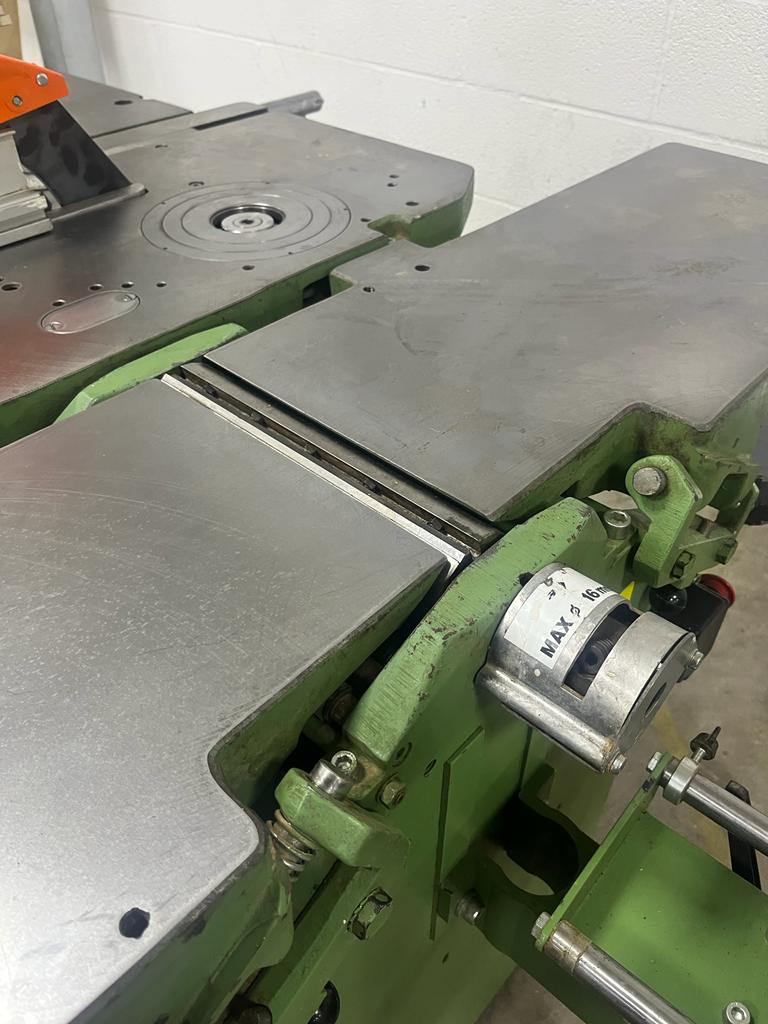

  • Planer
  • Thicknesser
  • Saw

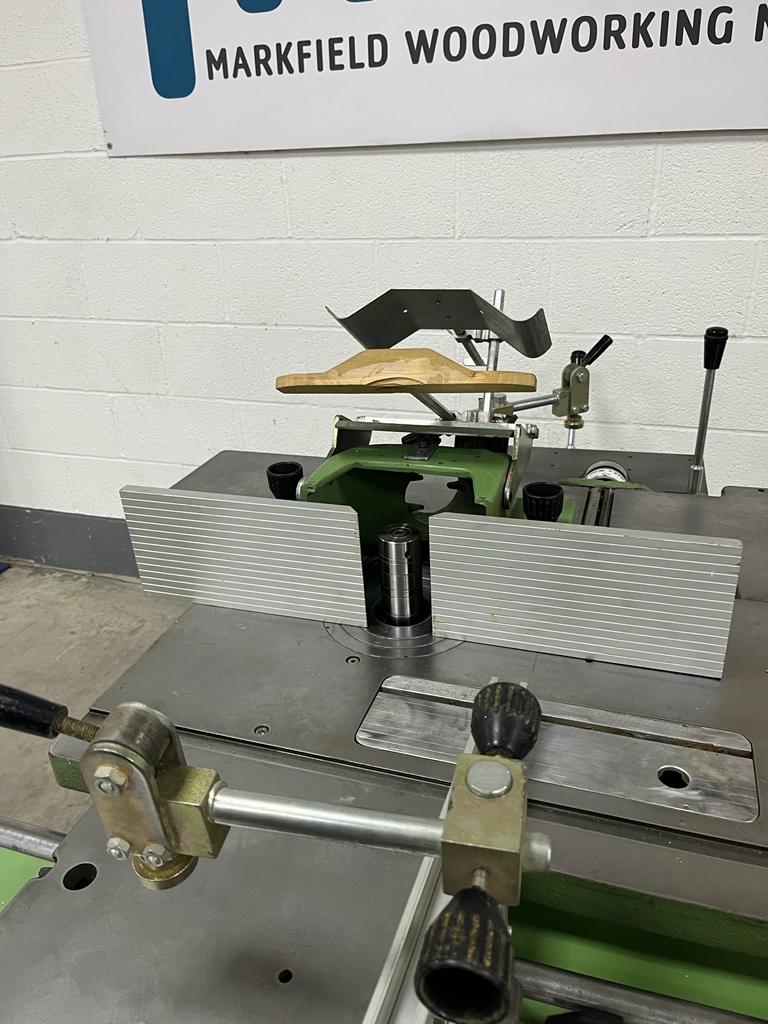

  • Spindle
  • Mortiser

This machine can be viewed in our showroom so if interested please contact us.

Now Sold Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Get a quote
Payment Options

Technical Specifications

Voltage
220V
Motor Single Phase
3HP
Weight X260
350KG

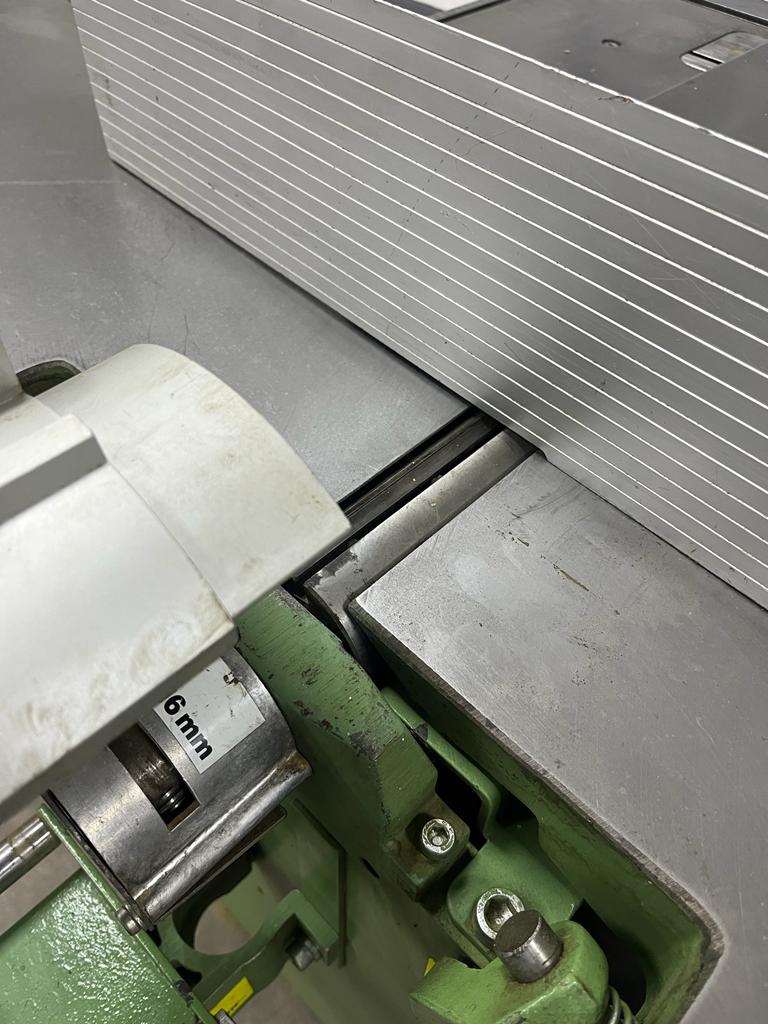

Planer Thicknesser Knives
3 HSS
RPM of Planer Thicknesser
4500RPM
Max Width
260mm
Max Thickness
230mm
Feed Speed
6m
Mortiser RPM
4500 RPM
Stroke : Cross in/out/up
165x140x85mm
Chuck Mounting
Left M24x1.5
Capacity Chuck – 2 Jaws
0-16
Saw RPM
4000
Max. Depth of Cut at 90
85mm
Max. Depth of Cut at 45
45mm
Max. Saw Blade Diameter
250mm x 30mm

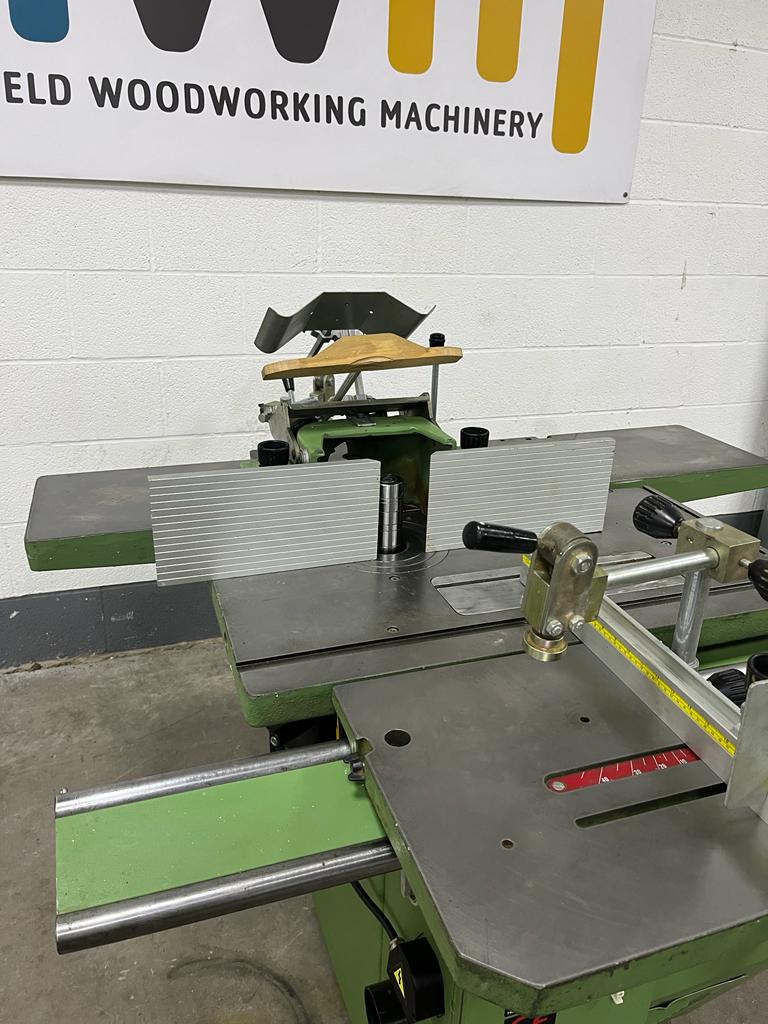

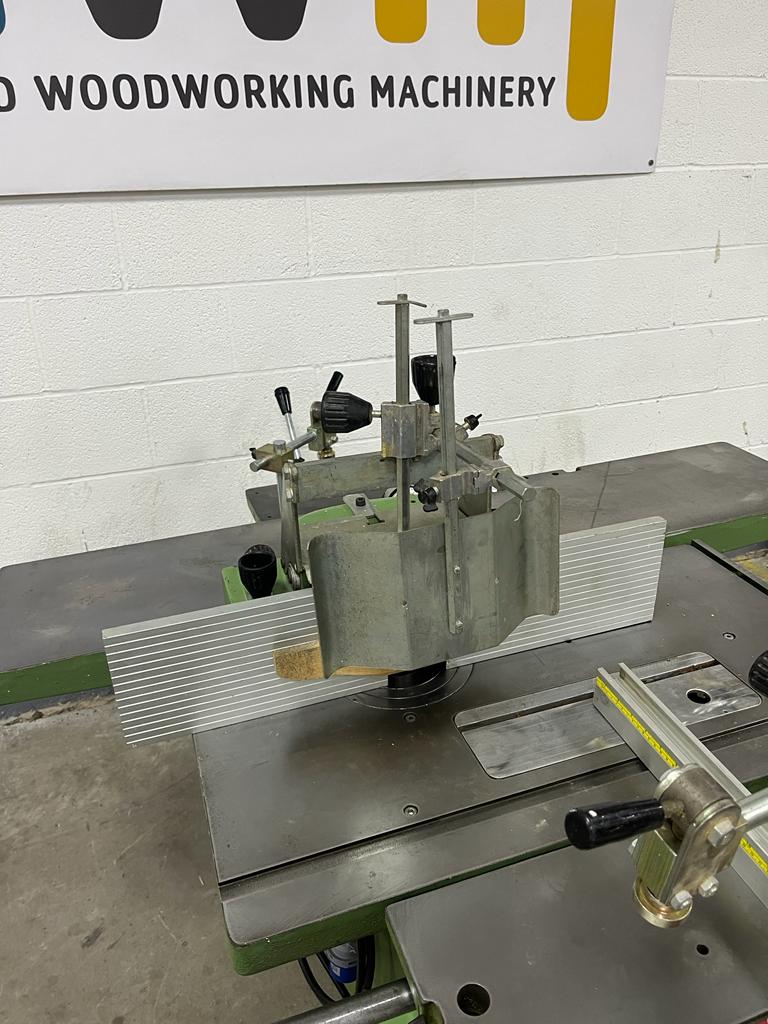

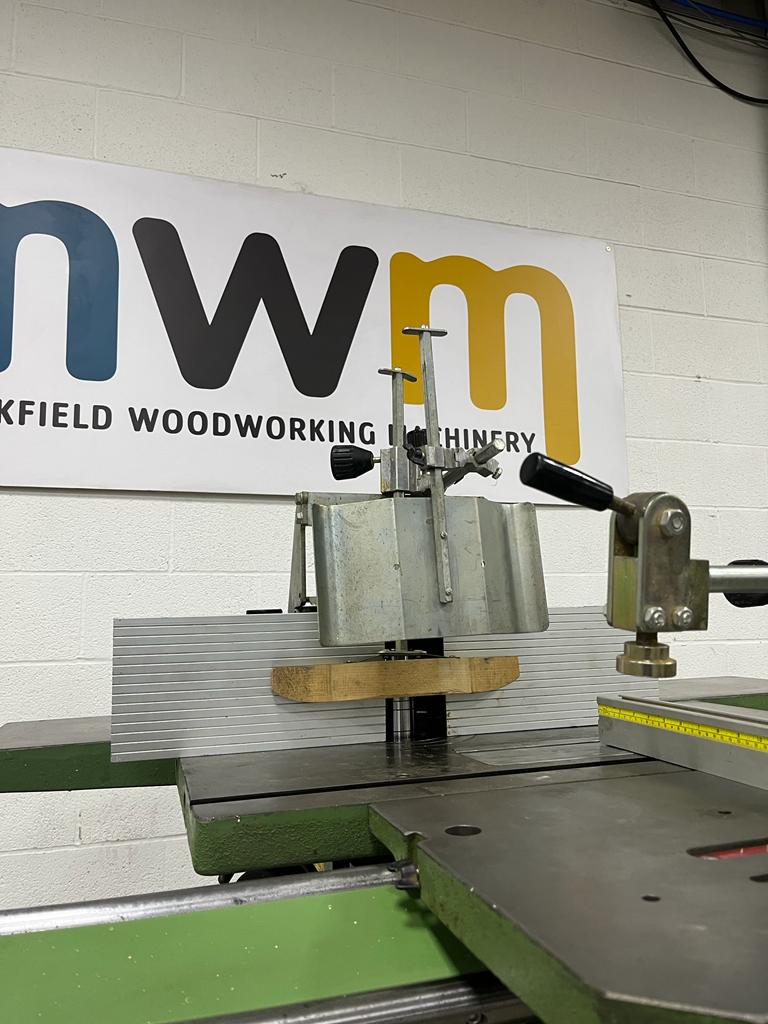

Spindle RPM
6000 RPM
Spindle Diameter
30mm
Spindle Capacity
125mm
Rise and Fall of Spindle Shaft
140mm
Table Opening Diameter
180mm
Max. Diameter Tool with Fence
180mm
Max. Diameter Tenoning Tool
250mm

Footprint of this Used Robland X260 Series Combination Machine
