Technical Specifications

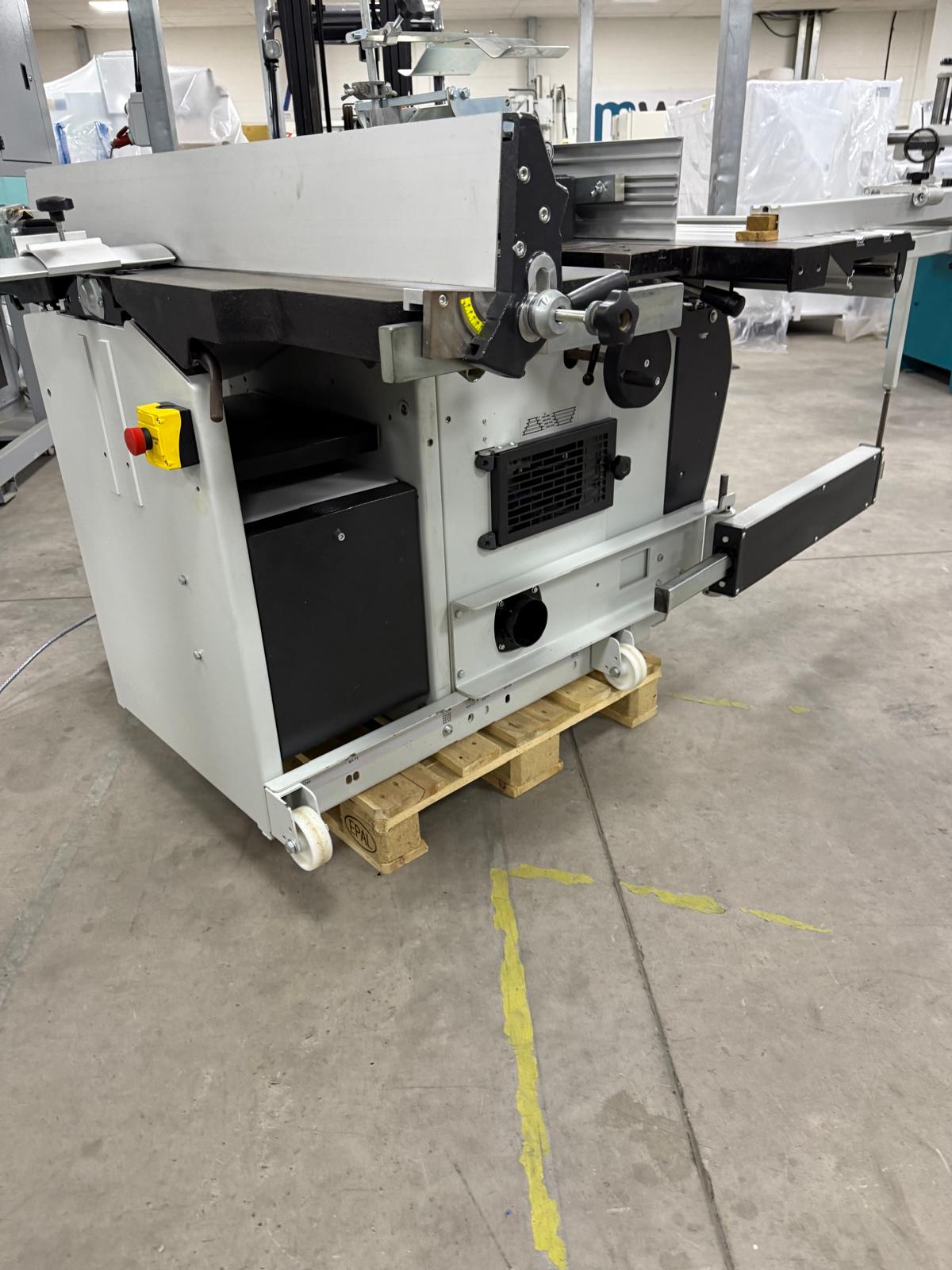

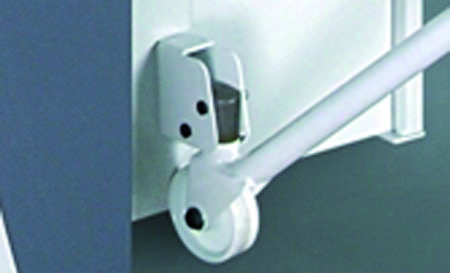

Optional Wheel System
With the wheel system, you can easily move your machine around your workshop.
Hand wheel
The thicknesser height adjustment hand wheel with integrated mechanical read out offers even more comfort and precision.
Optional Fold Away Support Table
Cast Iron power feed “fold away” support table.

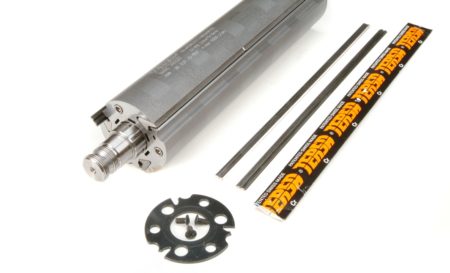

Optional Tersa
The 3-Knives Tersa cutter block offers you all the comfort and precision when changing the knives.

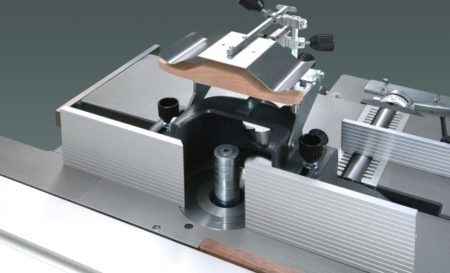

Spindle
Standard spindle diameter is 30 mm, the working length is 120 mm. The up-and-down stroke is 140 mm. (4 speeds)

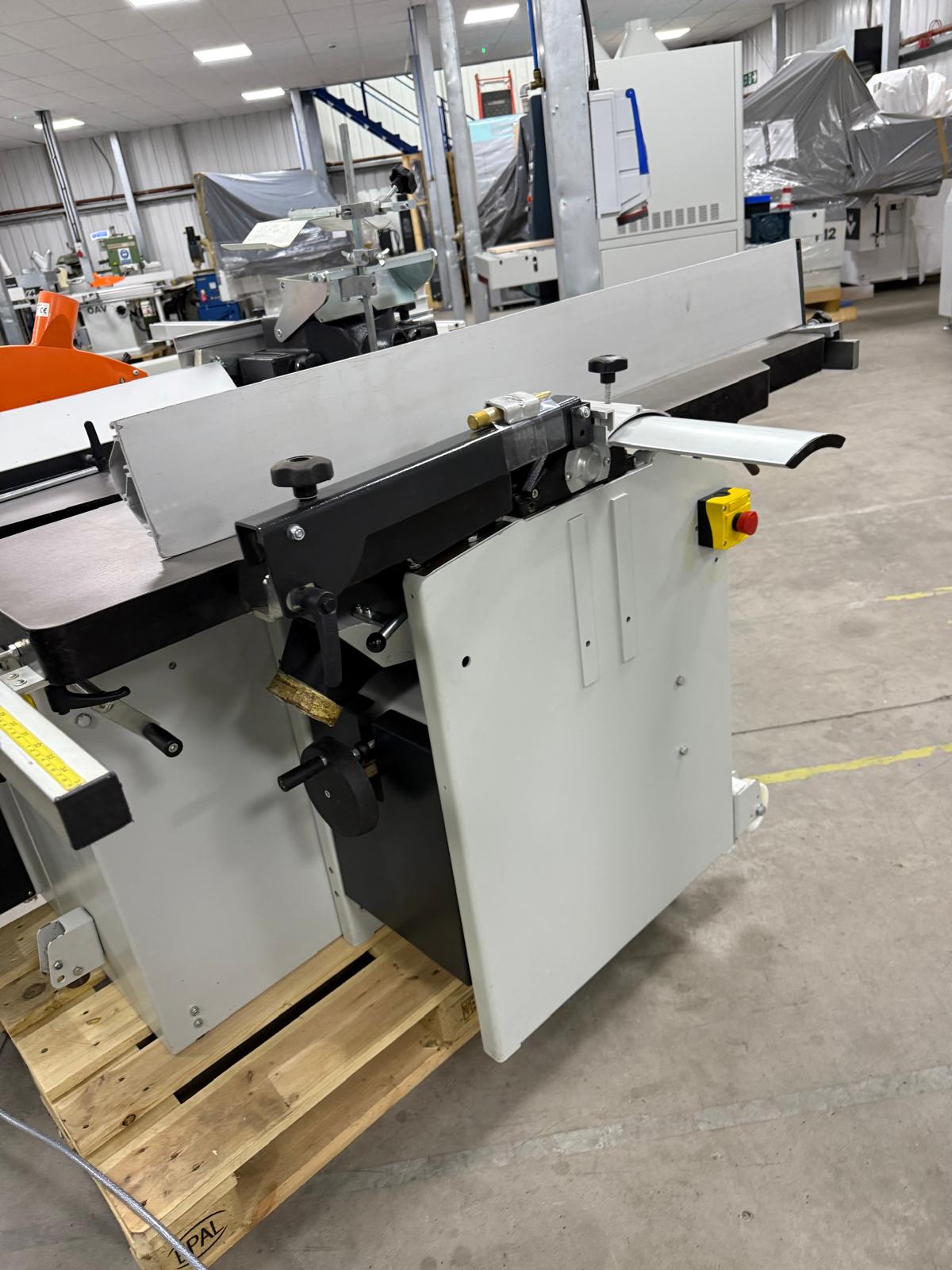

Jointer Fence
The large, hard anodised, jointer fence makes edge planing easy. Thanks to its special swivel-support bracket, the fence sets at any angle without a gap between the fence and the table surface.
Setting the Height
Setting the height of the thicknessing table is easy and simple, the travel up/ down is 230 mm
Mitre Cross-cut fence
In both directions 2 x 45° mitre cross cut fence are standard features on the machine.

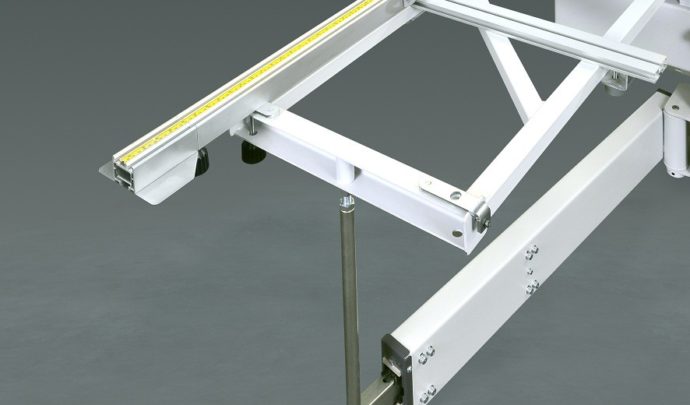

Cross-cut table
The cross-cut table, supported by the telescopic arm, is equipped with a sturdy cross-cut fence with 2 flip stops, thus enabling large workpieces to be machined.
Optional Extra Support table
Extra support table for sliding table
Safety Hood
Safety hood for tenoning with diameter capacity of 260 mm
Scoring Unit
Scoring unit for the 250 mm version
Spindle
4-speed spindle arbor with speeds 2900 / 4000 / 6000 / 7500
Spindle Diameter
Standard spindle diameter is 30mm, the working length is 120mm, the up and down stroke is 140 mm
