Robland NX310 Pro II Combination Machine 3ph

£9,500.00

(£11,400.00 inc VAT)

The Robland NX310 PRO Combination Machine comes with inward folding planer beds, a telescopic arm, scribe blade option (Not installed), and a multi-speed spindle.

  • OPTIONS FITTED TO THIS MACHINE –
  • 2500MM SLIDING TABLE

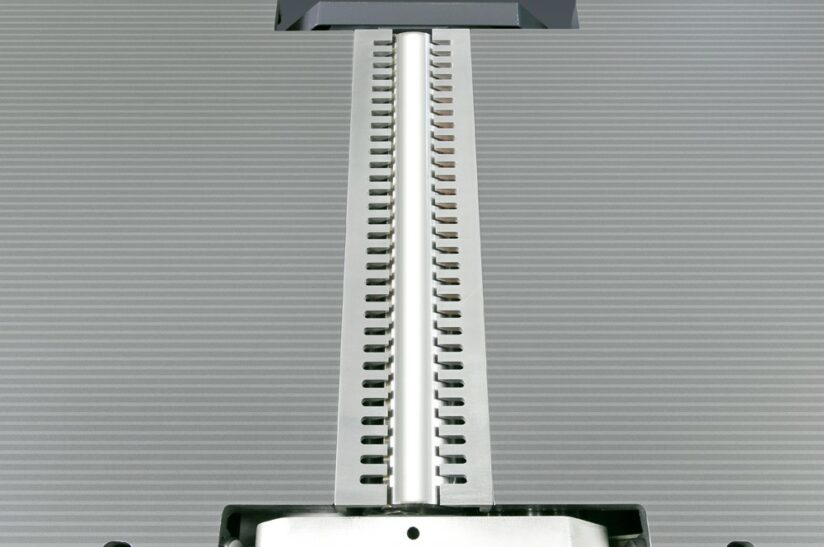

  • SPIRAL CUTTER BLOCK
  • ANALOGUE READOUTS ON THE THICKNESSER AND SOINDLE HEIGHTS
  • SINGLE PHASE
Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Weight
550 KG
Dust extraction outlet
100 mm + 60 mm
Saw rotation speed
4500 rpm
Diameter saw blade and bore
250 x 30 mm
Saw cutting depth at 90Ā°
85 MM
Saw cutting depth at 45Ā°
55 mm
Single Phase motor
2.2 kW / 3 HP
Three Phase motor
3.72 kW / 5 HP
PT Planer tables length
1400 mm
PT Height capacity
230 mm
PT PT Diameter cutterblock
70 mm
Number of knives
3
Knives dimensions
310 x 25 x 3 mm
PT Max. depth of cut
4mm
PT Cutterblock rotation speed
5500 rpm
Voltage / phase
1ph or 3ph
Max Dimensions Saw blade (with 100 mm scorer)
250 mm
Saw cast iron table dimensions
1080 x 410 mm
Saw sliding table dimensions
1450 x 320 mm
Saw cutting length
1600 mm
Saw parallel cut width
800 mm
Spindle rotation speed
2900 / 4000 / 6000 / 7500 rpm
Diameter spindle Arbor
30 mm (50 mm Option)
Spindle capacity Arbor
122 mm
Spindle Travel
140 mm
Spindle Table opening dimensions
180 mm
PT thicknesser width
310 mm
PT Feeding Speed
6m/min
Optional support wheel kit that lifts up the machine for easy manoeuvring. Robland Planer thicknesser NXSD 410
Wheel System

With the wheel system, you can easily move your machine.

Handwheel for thicknessing bed with optional analogue readout. Robland Planer thicknesser NXSD 410. Robland Planer Thicknesser NXSD

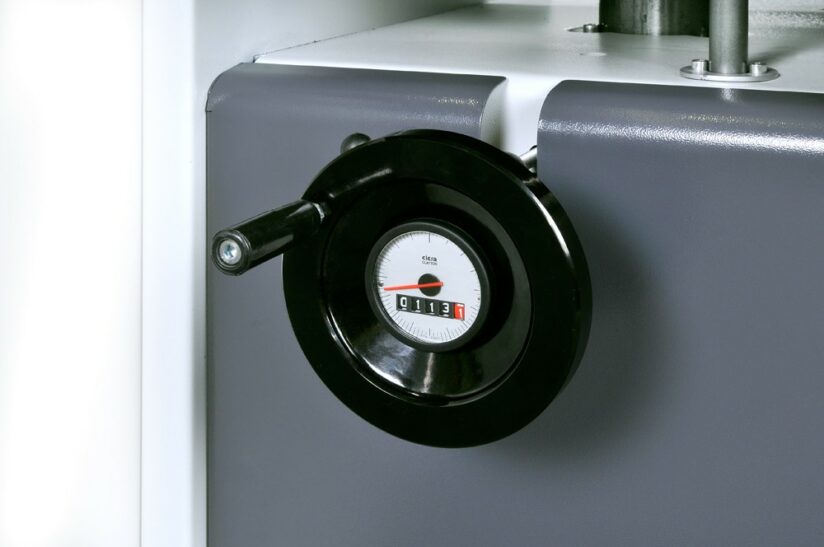

Handwheel

The thicknesser height adjustment handwheel with integrated mechanical read-out offers even more comfort and precision.

Support Table

A cast iron power feed ā€œfold awayā€ support table.

Spindle

4-Speed spindle arbor with speeds 2900/4000/6000/7500

standard block components consisting of 2 knives (packaging) and the block. Robland Planer thicknesser NXSD 410

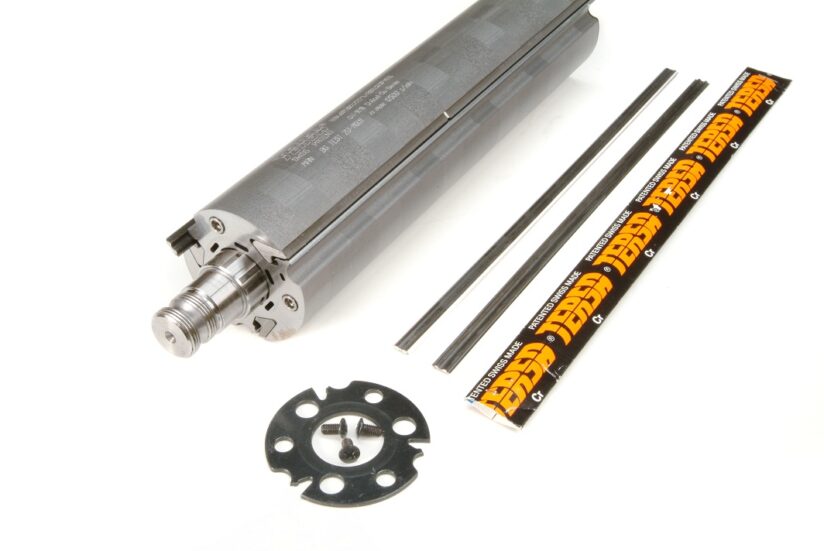

Tersa

The 3-knives Tersa cutter block offers you all the confort and precision when changing the knives.

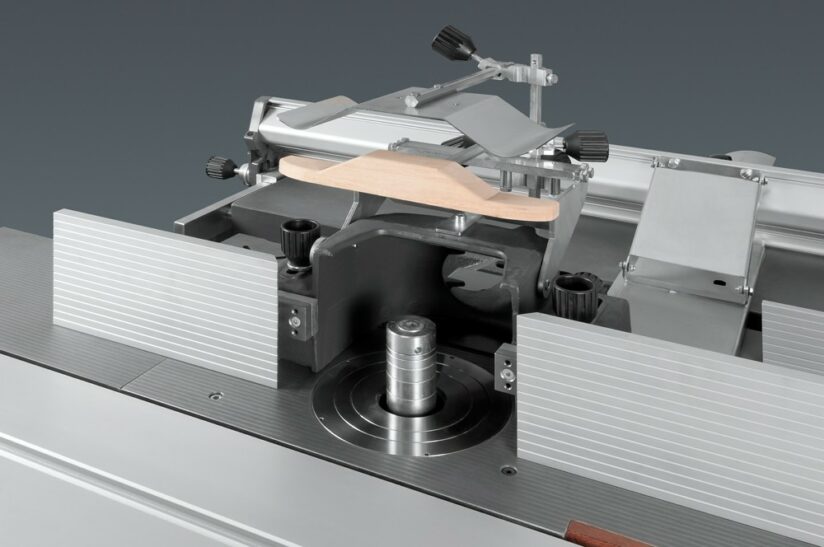

Spindle

Standard spindle diameter is 30 mm, the working length is 120 mm. The up-and-down stroke is 140 mm. (4 speeds)

Jointer Fence

The large, hard anodized, jointer fence makes edge planing easy. Thanks to its special swivel-support bracket, the fence sets at any angle without a gap between the fence and the table surface.

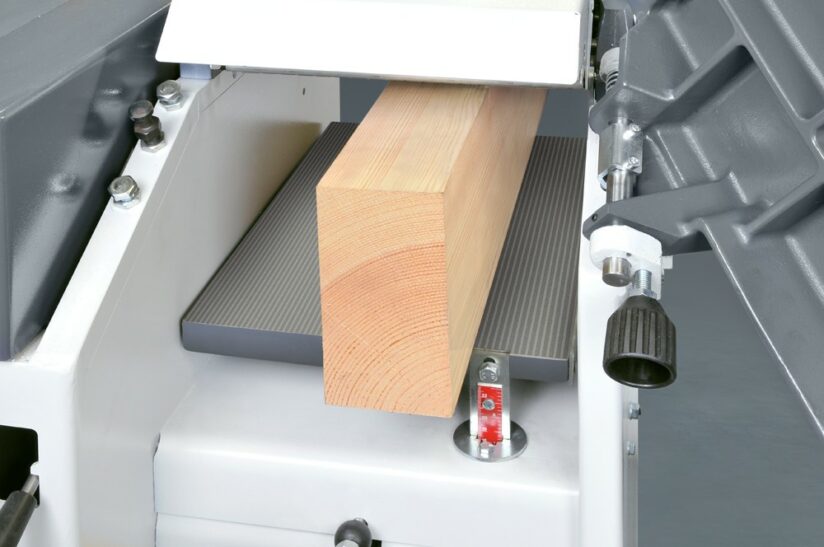

Setting the height

Setting the height of the thicknessing table is easy and simple, the travel up/down is 230 mm.

Mitre Cross-cut Fence

In both directions 2 x 45Ā° mitre cross-cut fence are standard features on the machine.

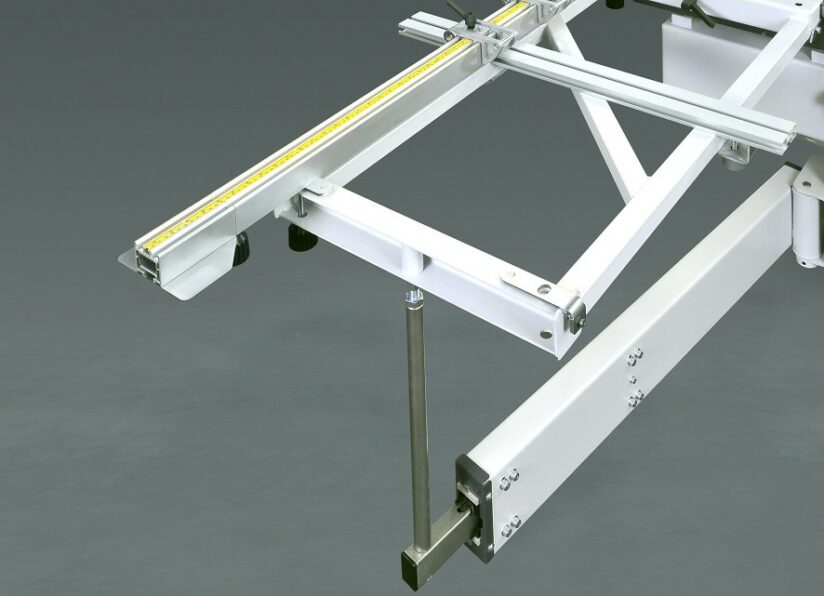

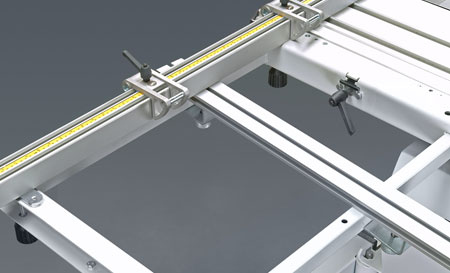

Cross-cut Table

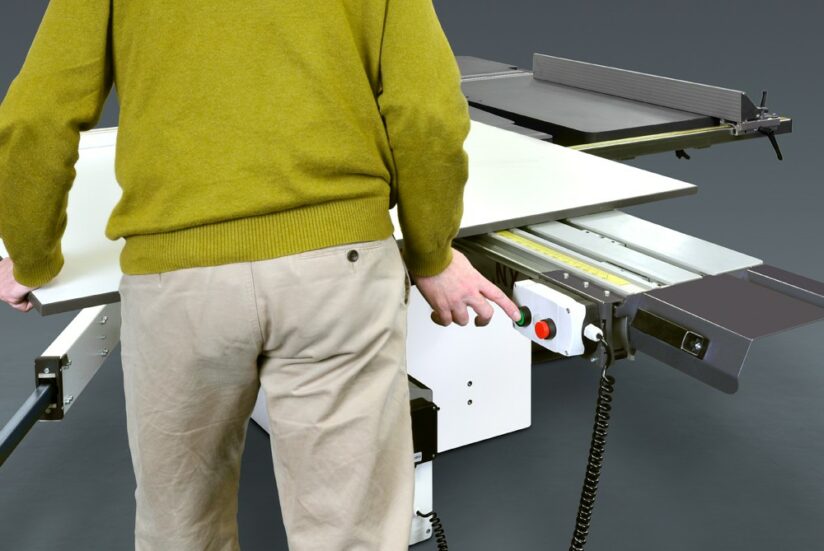

The cross-cut table, supported by the telescopic arm, is equipped with a sturdy cross-cut fence with 2 flip stops, thus enabling large workpieces to be machined.

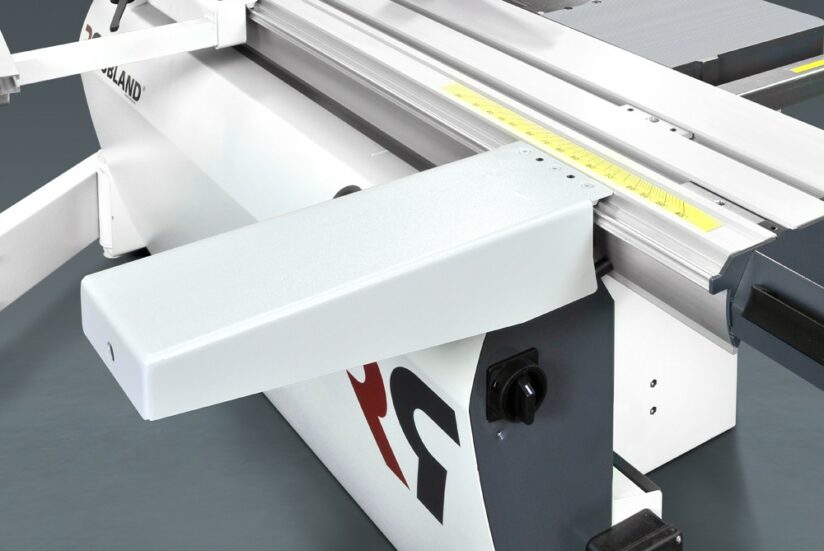

Extra Support Table

Extra support table for sliding table.

single phase combination woodworking machine | MWM

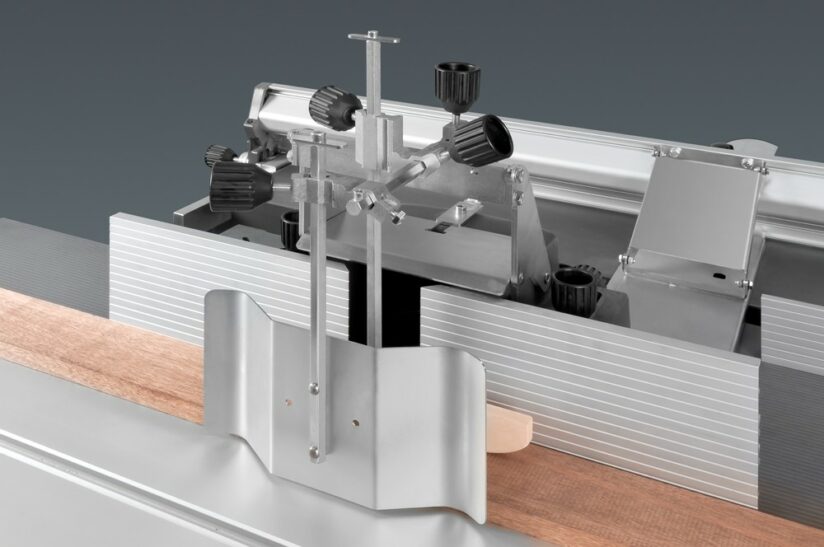

Safety Hood

Safety hood for tenoning with diameter capacity 260mm.

NXZ Panel Saw Scoring Unit
Scoring Unit

Scoring unit for the 250 mm version.
