Robland HX TZ Combination Machine 1ph

Enquire for price

The Robland HX TZ is a combined Saw and Spindle moulder and can also be used for tenoning.

  • 4500RPM on the saw
  • 3000/6000 RPM on the spindle
  • Available in single and 3 phase



Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Weight
340 KG
Dust Extraction Outlet
100 mm + 60 mm on saw guard
Spindle rotation speed 3ph
3000 / 6000 rpm
Spindle rotation speed 1ph
6000 rpm
Diameter spindle Arbor
30 mm
Capacity spindle Arbor
120 mm
Spindle Travel
140 mm
Dimensions table opening
180 mm
Motor power 3ph
2.94 kW / 4 hp
Motor power 1ph
2.2 kW / 3 hp
Voltage / phase
1ph / 3ph
Saw Rotation Speed
4500 rpm
Diameter Saw blade and Bore
250 x 30 mm
Cutting depth at 90°
85 mm
Cutting depth at 45°
55 mm
Dimensions cast iron table
1450 x 320 mm
Dimensions sliding table
1450 x 320 mm
Cutting length
1200 mm
cutting width parallel fence
660 mm
3ph motor
4 hp / 2.94 kW
1ph motor
3 hp / 2.2 kW

HX TZ Combination Machine


The Robland HX TZ is a combined Saw and Spindle moulder and can also be used for tenoning. A perfect partner to the NXSD 310 planer thicknesser in a semi-separate setup.

HX TZ Fold away support table
Fold away support table

Cast Iron power feed support table that can ‘fold away’

Handwheel for thicknessing bed with optional analogue readout. Robland Planer thicknesser NXSD 410. Robland Planer Thicknesser NXSD
Handwheel

Hand wheel with integrated analogue read out for height of spindle moulder

Robland Saw Spindle NLXTZ

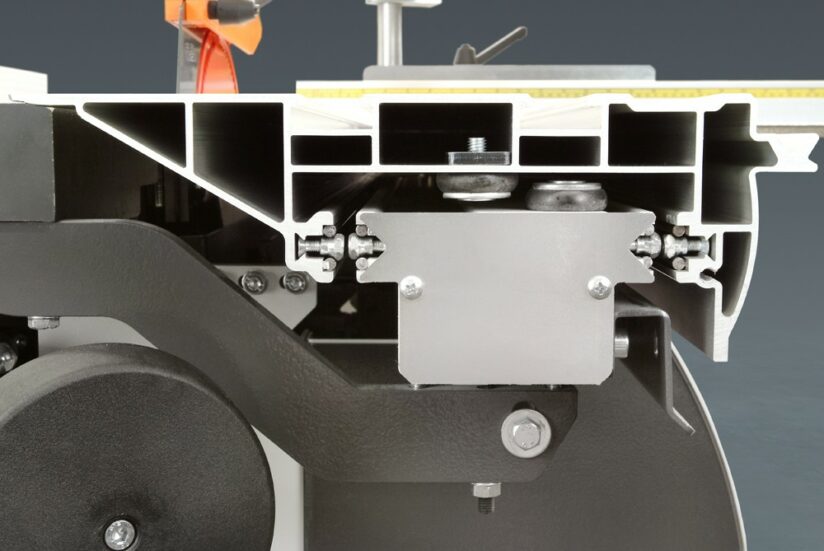

Sliding Table

Very easy to operate, anodised well dimensioned sliding table, wide lower beam.

single phase combination woodworking machine | MWM

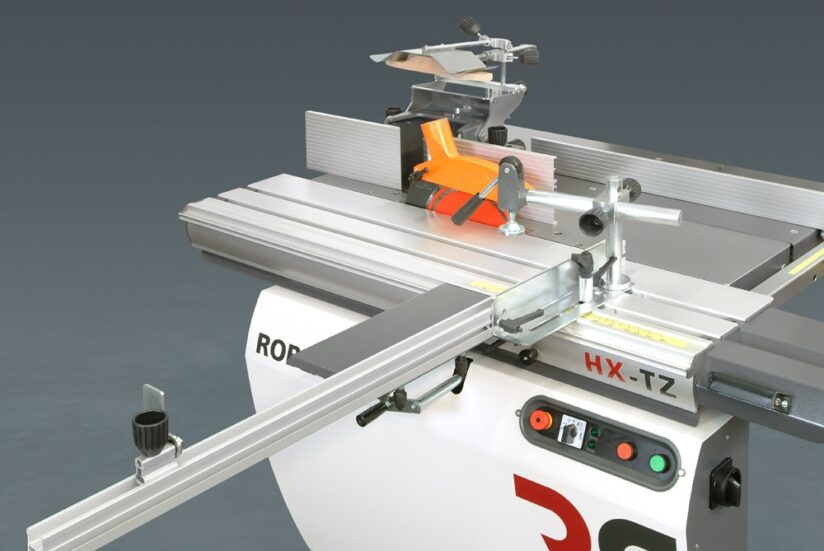

Safety Hood

Safety hood for tenoning with a diameter capacity 260 mm.

HX TZ Mitre Cross Cut Fence
Mitre Cross Cut Fence

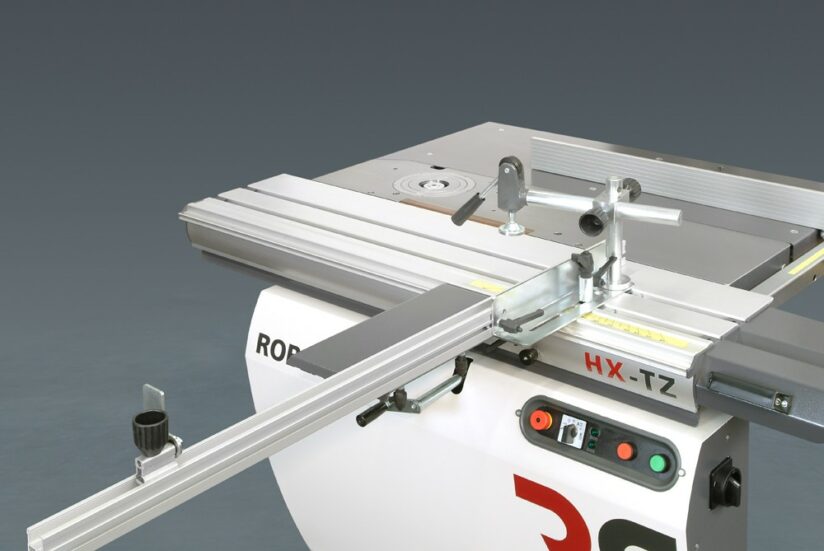

In both directions 2 x 45° mitre cross-cut fence are standard features on the machine.

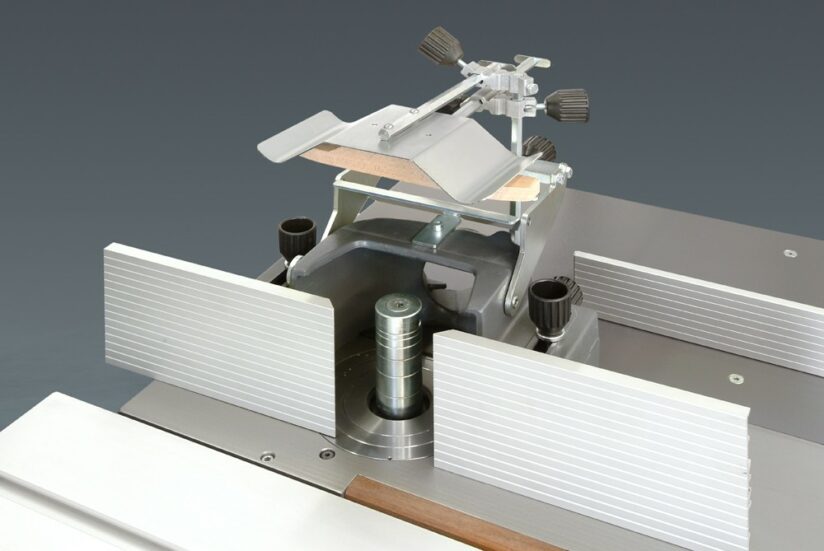

Spindle

Spindle diameter is 30mm, working length is 120 mm, up and down stroke is 140 mm.

Robland HX 260 Combination Machine - Tenon Table
Tenoning Table

The heavy duty tenoning table enables you to execute in all safety all tenoning work.
