Robland HX260 Combination Machine 1ph

Original price was: £5,200.00.Current price is: £4,950.00.

(£5,940.00 inc VAT)
  • 30mm spindle diameter
  • 260mm planer/thicknesser width
  • 1200mm cut length
  • 250mm saw blade diameter
  • standard planer blades
  • Mitre fence with excentric clamp
Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Table dimensions
1077 x 273 mm
Saw blade diameter without scoring saw
250 mm
Cutting capacity of sliding table
900 mm
thickness capacity
230 mm
overall length of surface tables
1320 mm
spindle diameter
30 mm
spindle speed
3000 / 6000 rpm
Sliding table length
1250 mm
Sliding table width
320 mm
Motor Power
3 HP
Planer block diameter
70 mm
number of knives
3
planer speed
5500 rpm
useable length of spindle
120 mm
saw blade diameter
250 x 30 mm
voltage / phase
1ph or 3ph
HX 260 Mitre Cross cut fence
Mitre cross-cut fence

In both directions 2 x 45° mitre cross-cut fence, standard feature on the machine.

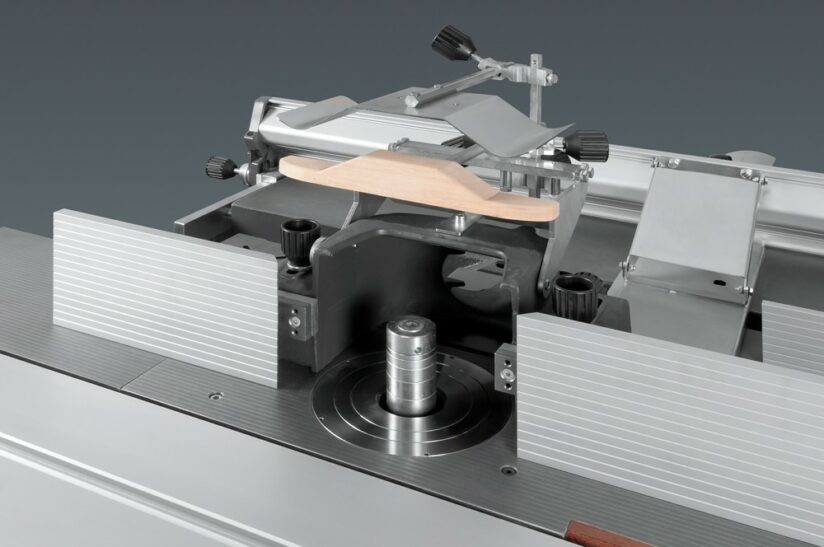

HX 260 Spindle Arbor
Spindle arbor

Standard spindle diameter is 30 mm (optional 50 mm or 1 1/4″), the working length is 120 mm. The up and down stroke is 140 mm.

HX 260 Jointer fence
Jointer fence

The large, hard anodised jointer fence makes edge planing easy. Thanks to its special swivel support bracket, the fence sets at any angle without a gap between the fence and the table surface.

Support Table (Optional)

The extra support table on the sliding table offers the possibility of machining big panels.

HX TZ Fold away support table
Extra Fold Away Support Table (Optional)

The cast iron power feed “fold away” support table.

standard block components consisting of 2 knives (packaging) and the block. Robland Planer thicknesser NXSD 410

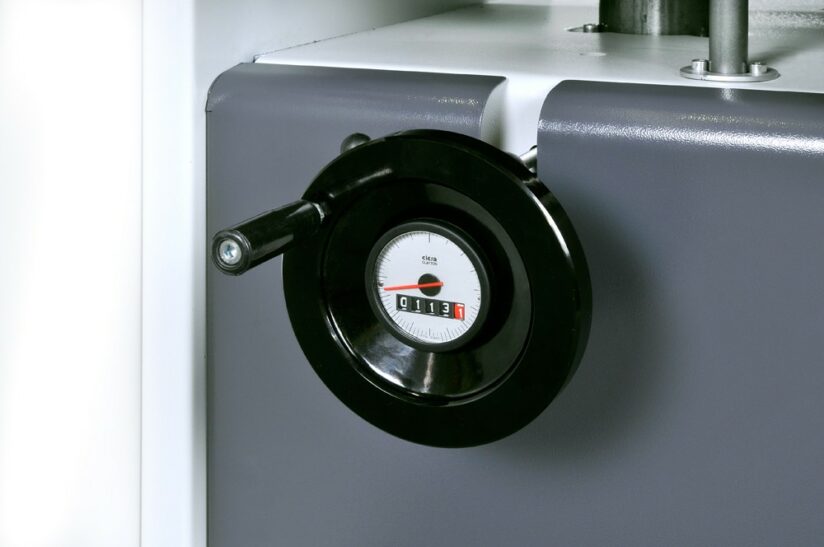

Setting the height

Setting the height of the thicknessing table is easy and simple, the travel up/down is 230 mm.

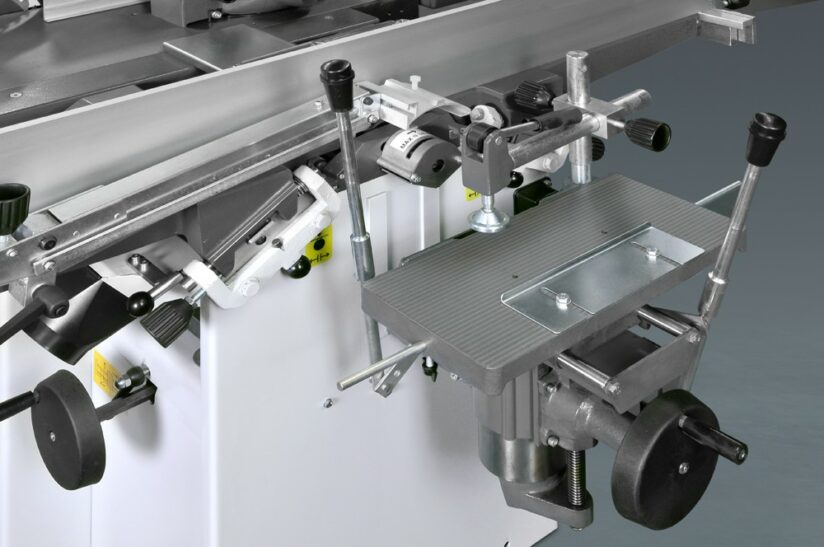

Morticer Unit (Optional)

The morticer unit guarantees a comfortable handling. The control levers are removable for the treatment of large workpieces.

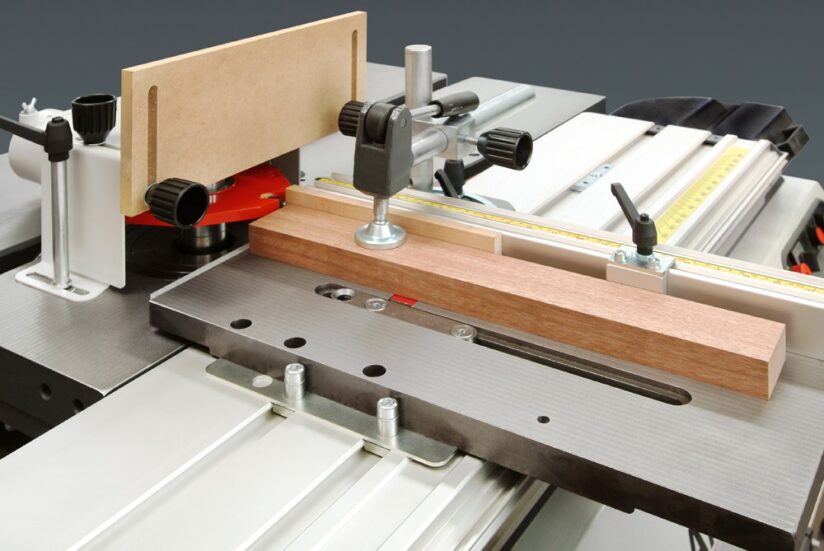

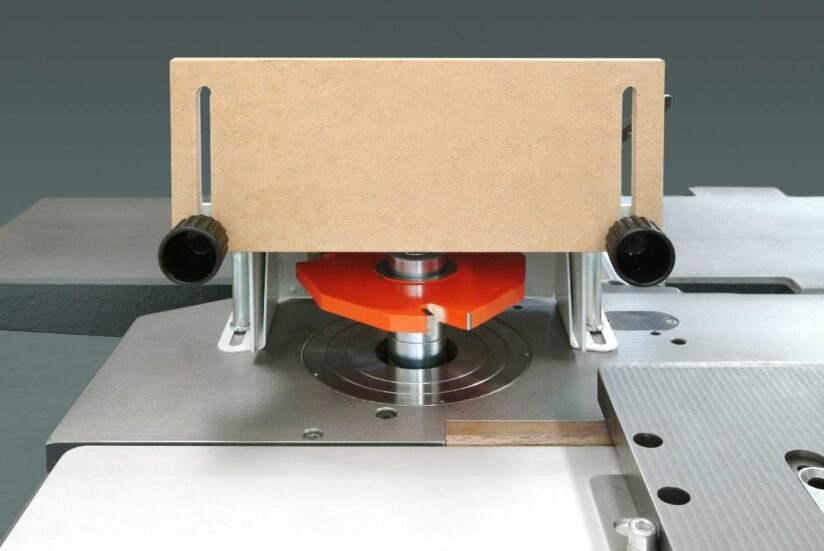

Tenoning table (Optional)

The heavy duty tenoning table enables you to execute in all safety all tenoning work. Safety hood for tenoning with diameter capacity 260 mm.

Optional support wheel kit that lifts up the machine for easy manoeuvring. Robland Planer thicknesser NXSD 410
Wheelsystem (Optional)

With the wheelsystem, you can easily move your machine.
