Robland NX TZ Pro Combination Machine 3ph

Enquire for price

Robland Saw Spindle Available in single phase or 3 phase

  • 30mm spindle diameter
  • 4 speed spindle rotation
  • 1600mm cut length
  • 250mm saw blade diameter
  • 100mm scoring blade diameter
Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Weight
395
Dust Extraction outelts
100 mm + 60 mm
Max Saw blade (with 100 mm scorer)
250 mm
Max saw blade (without scorer)
315 mm
Saw motor power (3ph)
3.72 kW / 5 HP
Saw motor power (1ph)
2.2 kW / 3 HP
Spindle Rotation Speed (3ph)
2900 / 4000 / 6000 / 7500 rpm
Spindle Rotation Speed (1ph)
2900 / 4000 / 6000 / 7500 rpm
Diameter spindle Arbor
30 mm
Spindle table opening dimensions
180 mm
Spindle Motor Power (3ph)
3.72 kW / 5 HP
Voltage / phase
1ph or 3ph
Saw rotation speed
4500 rpm
saw cutting depth @ 90° (250/315 blade)
85/107 mm
saw cutting depth @ 45° (250/315 blade)
55/65 mm
Saw table dimensions
1080 x 410 mm
Saw Sliding table dimensions
1450 x 320
Saw cutting length
1600 mm
saw cutting width parallel fence
900 mm
capacity spindle Arbor
120 mm
Spindle Travel
140 mm
Spindle Motor Power
2.2 kW / 3 HP

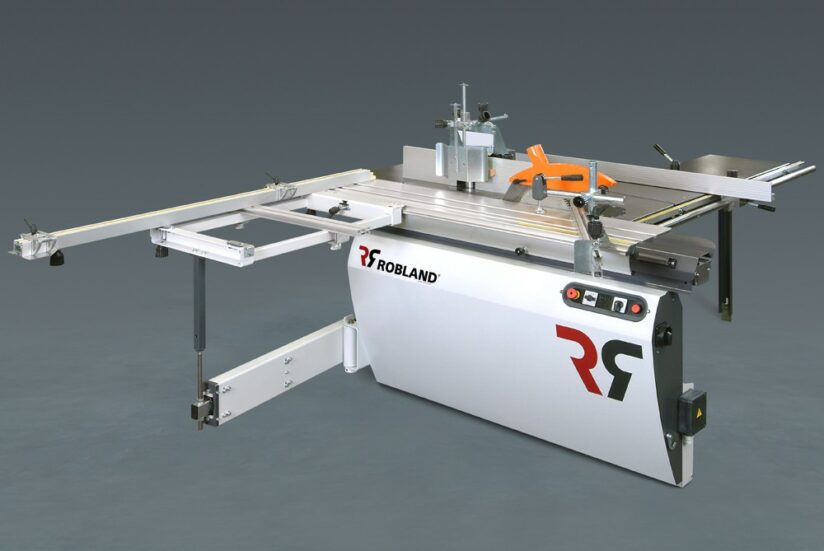

The Robland NX TZ is a combined Saw and Spindle moulder and can also be used for tenoning. A perfect partner to the NXSD 410 planer thicknesser in a semi-seperate setup.


Available in either single phase or 3 phase.

Single phase – 2 x 3hp
Three phase – 2 x 5hp

The machine comes with a 1600mm sliding table as standard with options of 2000mm and 2500mm. Built in Belgium – Robland has specialised in combination machines for over 50 years, producing heavy, reliable machinery at great prices.

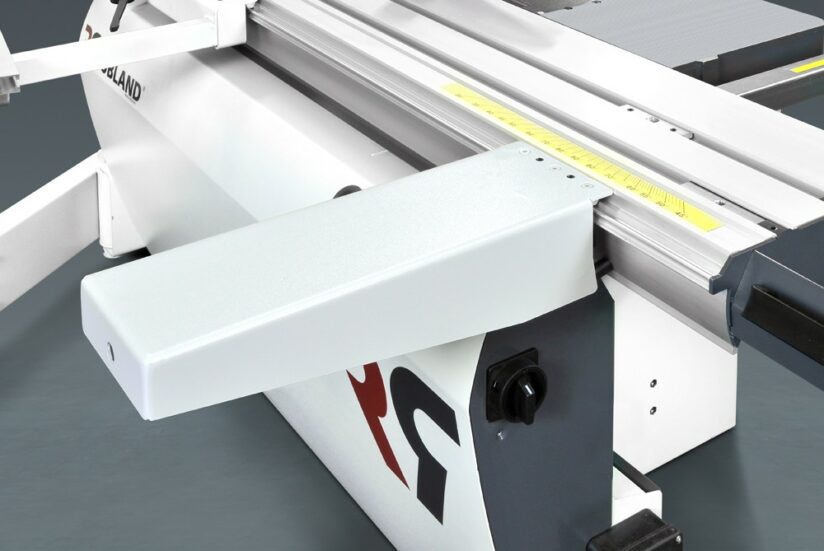

Extra Support Table (Option)

Extra support table for sliding table.

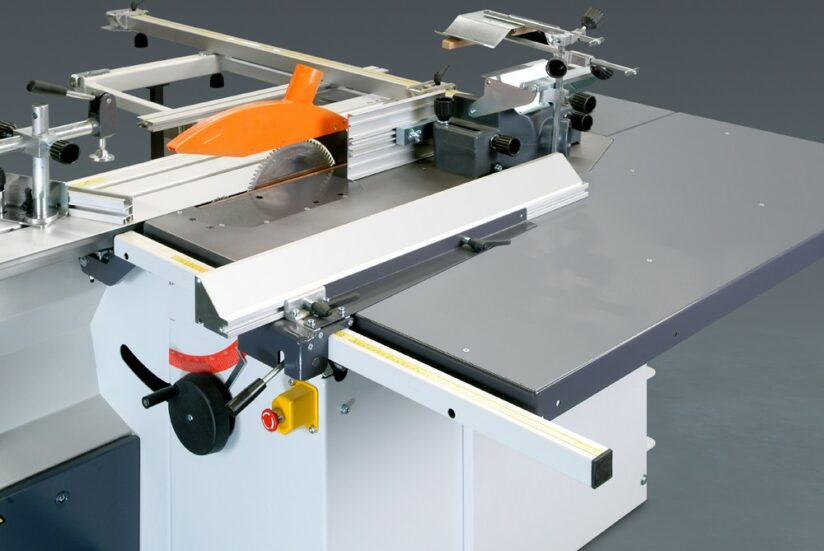

Cross-Cut Table

Equipped with a crosscut fence with 2 flip stops, enabling large workpieces in.

single phase combination woodworking machine | MWM
Safety Hood

Safety hood for tenoning with diameter capacity 260mm.

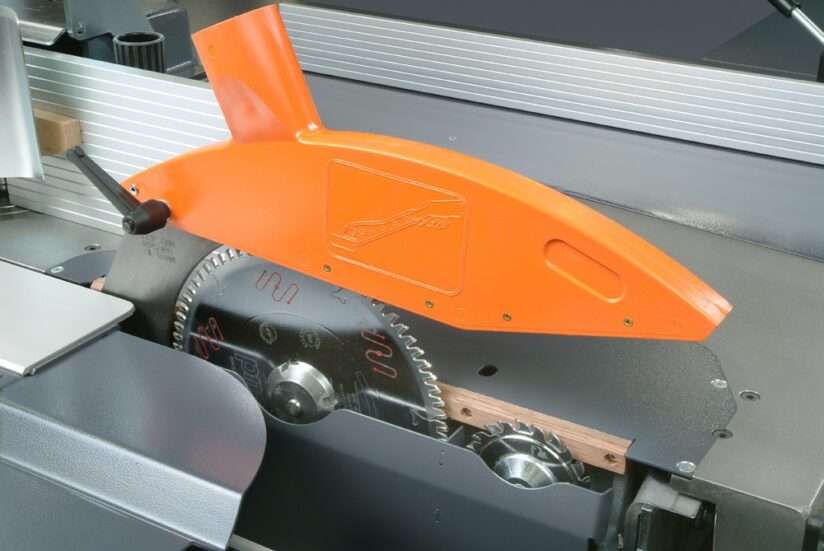

Scoring Unit

Scoring unit for the 250mm version.

Tenoning Table

The heavy duty tenoning table enables you to execute in all safety all tenoning work.

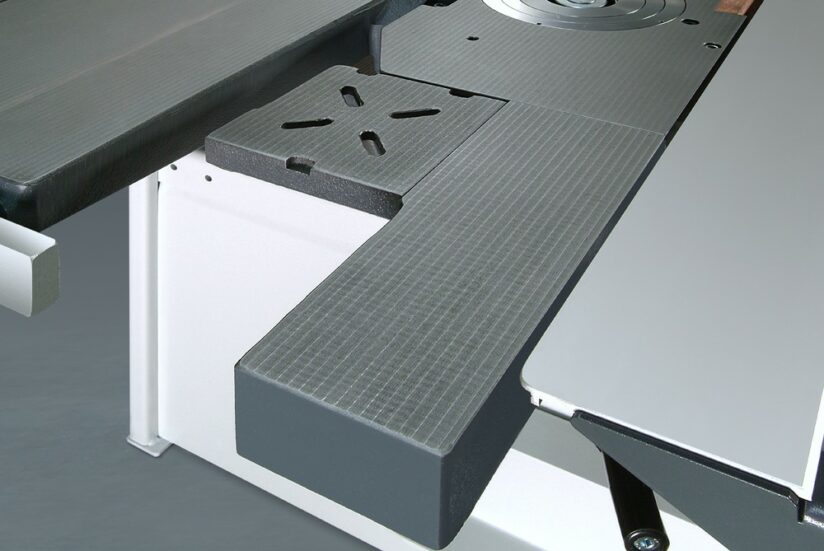

Fold Away Support Table (Option)

Cast iron power feed “fold away” support table.

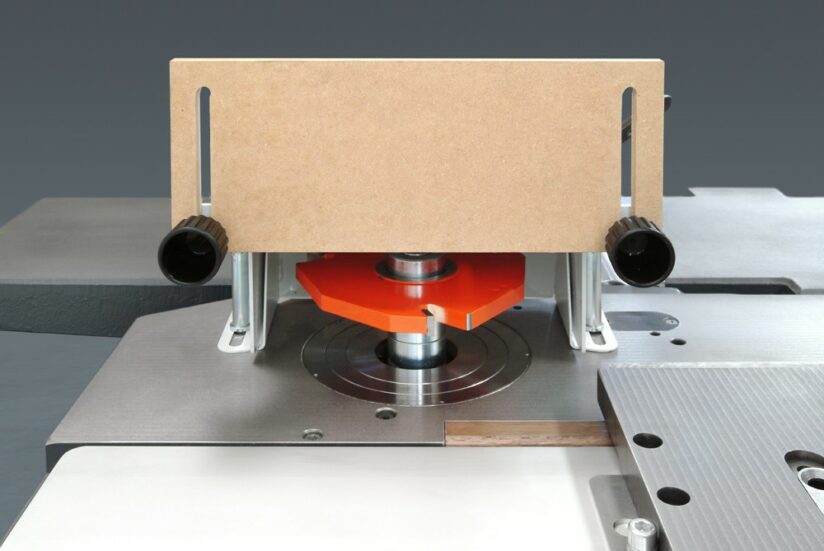

Spindle

Standard diameter is 30 mm, working length is 120 mm. The up/down stroke is 140 mm.

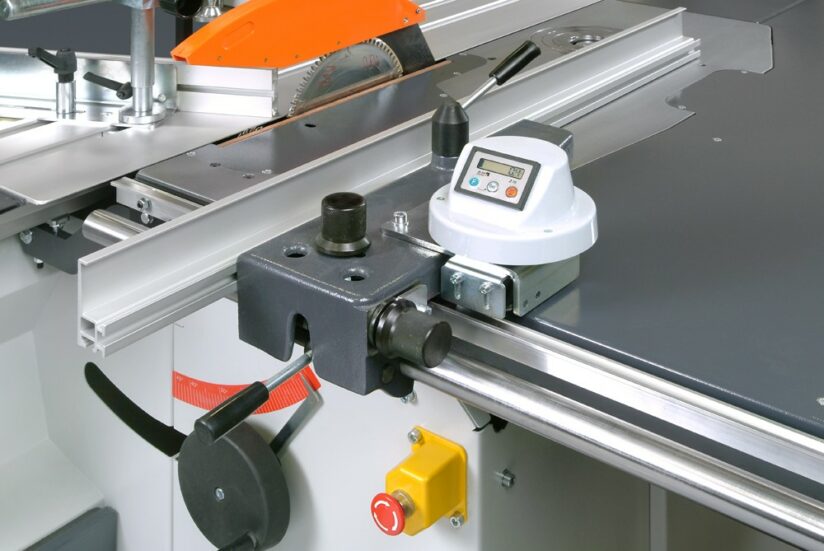

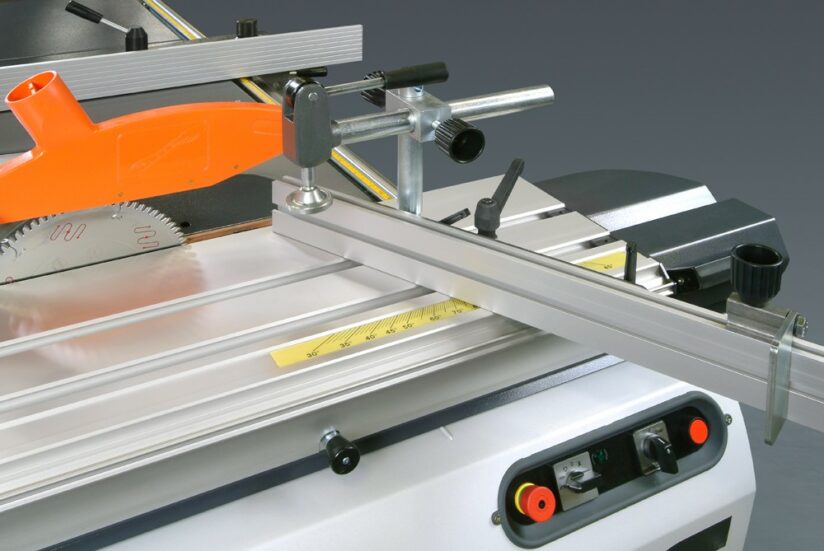

Mitre Cross-Cut Fence

In both directions 2 x 45° mitre cross-cut fence are standard features on the machine.

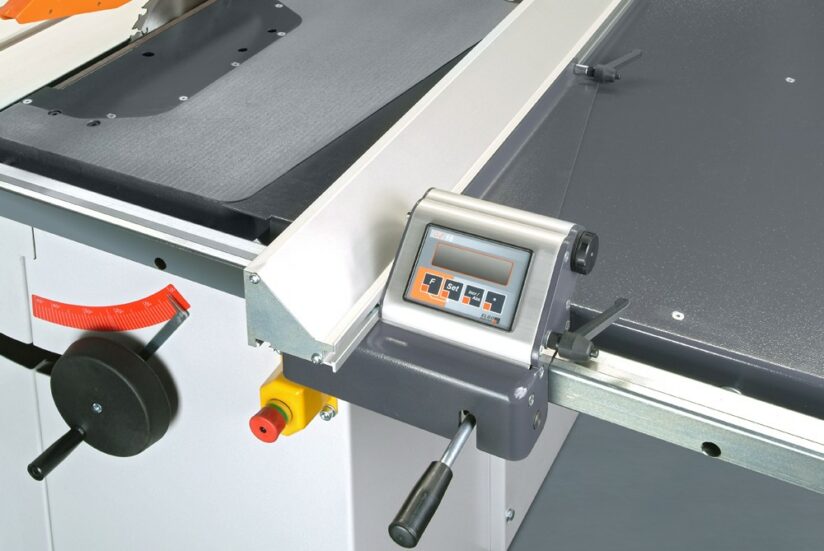

Parallel Saw Fence

Parallel saw fence, cutting width 1380 mm

Wheelsystem (Option)

With the wheelsystem, you can easily move your machine.
