Technical Specifications
Power cutting with infinitely variable feed rate

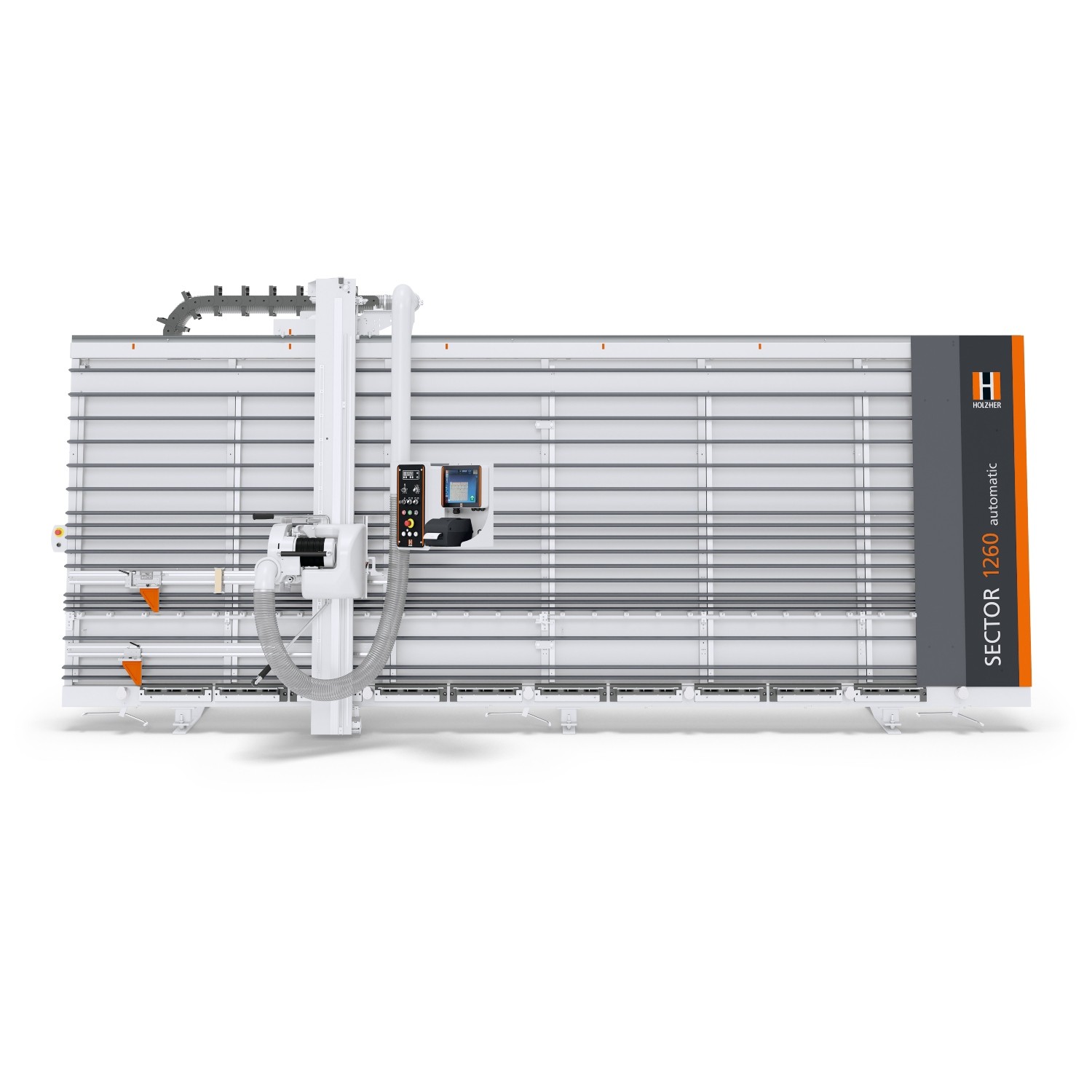

In automatic mode, the Vertical Panel Saw SECTOR 1260 Automatic can plunge, saw, plunge out and – depending on the selection – also return to the operator or park at the end of the machine at the push of a button. This guarantees fast cutting cycles.
Cut optimization with Opti-Base V-Cut
With the professional Opti-Base V-Cut cutting optimisation feature from Holzher, you always get the best optimisation results for perfect material utilisation. Clearly arranged user surface and 10” touch screen for simple, quick and intuitive operation and management of orders, material and parts lists. The label printer for Holzher machines, which is included in the package, ensures clear identification of parts.
Automatic mode: Automatic process
In automatic mode, the SECTOR 1262 automatic can automatically plunge, saw, and plunge out at the push of a button. The unit can be ordered back to the starting point at the push of a button.
The automatic mode ensures a constant feed rate and thus guarantees the best cutting results. The feed speed can be continuously adjusted by the operator from 0 – 25 m/min.
Prescoring for precision cuts
SuperCut is the patented Holzher prescoring system. It provides ready-to-glue cuts with just one basic adjustment.
- Two carbide blades score the surface of coated panels exactly to the width of the saw blade.
- The circular saw blade then cuts the panel without chipping the hard, brittle or fibrous top layer.
- The result is a smooth edge for further processing.
- SuperCut can be adjusted easily on a dimension scale.
- SuperCut can be retrofitted at any time on all SECTOR panel saws.
Top and bottom sawing beams
Top and bottom sawing beams with pneumatic arrest, can be operated from the control panel at the touch of a button. Including automatic interface detection for vertical cut.
Here is what the SECTOR 1262 offers
- Cutting Depth: 80 mm
- Cut optimisation with Opti-Base V-Cut
- SuperCut prescoring System
- TRK Evacuation
Sawing Unit
The advanced sawing unit with powerful 5.5 kW motor cuts materials with a thickness of up to 80 mm effortlessly. For harder materials, an optional 9 kW motor is also available featuring integrated speed regulation, even for synthetics and nonferrous materials.
To ensure operator-friendly tool changes, the attachment can be mounted in any desired position on the sawing beam. The ProLock quick clamp chuck guarantees quick tool changes.
Digital horizontal cutting
The sawing unit is equipped with a pneumatic brake as a standard feature.
The dimension for the horizontal cut can be precisely adjusted to an accuracy of 1/10 mm at the touch of a button with the adjustment motor included as a standard feature. As an alternative the setting can also be read off on the setting scale.
Strip Stop
The strip stop ensures a uniform cut to the width of the workpiece. Once set – every cut is the same
Digital longitudinal stop with fine adjustment
Digital dimension display for vertical cut, including fine adjustment of hardened linear guide (optional).
