Technical Specifications

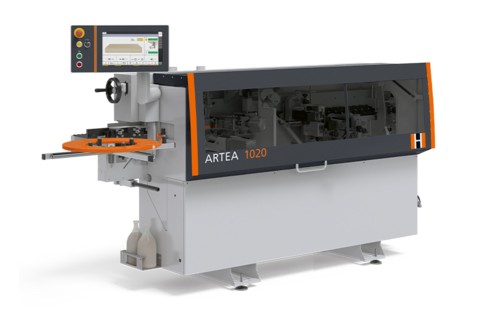

Holz-her ARTEA 1020 Edgebander Features
Control Unit
With its 15.6” wide format, touch screen color monitor, the Artea edgebander is easy as pie to operate. All settings can be selected on large, interactive graphical displays. For example, direct processes can be selected on the 3D workpiece graphical display. EVA or PUR can be selected at the touch of a button and the correct processing temperature is then set automatically.
- 15.6″ touch screen color monitor – standard feature
- Simple operation – control panel at eye height
- Programs are simple to call with program names and numbers
- Individual selection of units with the functions as basic setting possibilities for nominal values and path points
- Operator access with password protection
- Network-compatible
- USB for data backup
- VI.SE. Function (Digital Logbook)
Jointing Cutter – 50 mm
Jointing cutter unit with synchronized/counter rotation incl. 2 diamond tipped cutters. Working height of 50 mm.
The flexible glue application system
Heat-up, glue change and cleaning require only 3 minutes each
Hardly any other glue application system offers this flexibility with such energy efficiency and cleanliness. Holz-her thin film technology makes this gluing system an all rounder for craftsmen. Invisible joints with PUR glue, which can also be used in wet areas, are an obvious choice for Holz-her customers.
Brilliant appearance, regardless of material – Starting with the state-of-the-art, high gloss edging right up to all standard commercial synthetic and solid wood edging. Holz-her sets the trends for tomorrow today.
VISE Technology (VIsual SEtting mode)
VISE provides all setting values for the digital counters and pressure gauges as a digital logbook to set up the machine quickly and safely.
The display is interactive via the 15.6″ touch control panel.
Edging Feed
- Roll magazine with automatic end trimming shears
- Single strip feeder (max. edging thickness 5 mm)
- Coiled edging with edging thickness up to 3 mm
- incl. roll plate with diameter of 800 mm
Pressure Unit
High quality 2-roller pressure unit for pressing edging against panel cleanly and forcefully.
End Trimming Unit – 50mm
- Heavy duty, single motor trimming unit on stable linear guide
- Optional: Radius trimming
Cutter Unit
- Multifunction cutter for flush cutting up to 5 mm as well as 2 mm radius as standard feature
- Optional: Radius 1 mm | Radius 3 mm | Chamfer 45 degrees
Scraper Unit for Perfect Finish
For perfect smoothing of radiuses and chamfers on plastic edging
Flat Scrapers
Any glue residues are scraped off completely by the application-controlled flat scraper
Buffing Unit
Polishing for maximum gloss; for complete finishing
Front and rear spraying units
A release agent is sprayed on to a precisely defined area by special spray nozzles in the entry area. This prevents any glue or contamination residues from adhering. These glue and contamination residues are removed reliably by the spraying unit (for cleaning agent) in the discharge area in combination with the buffing unit
- Optional features for the ARTEA series
