Technical Data
Technical Specifications
Compacto Shark 83 Shredder
The Compacto Shark range of machines are a high quality, German made industrial shredding series ranging from 53 to 153 cm long cutting blocks.
The Shark 83 offers a 830mm long cutting block and is a perfect machine for preparing material for briquetting. A ferrous metal sorting conveyor is also available if required.
The following high-quality options are standard on our Shark 83 Shredder

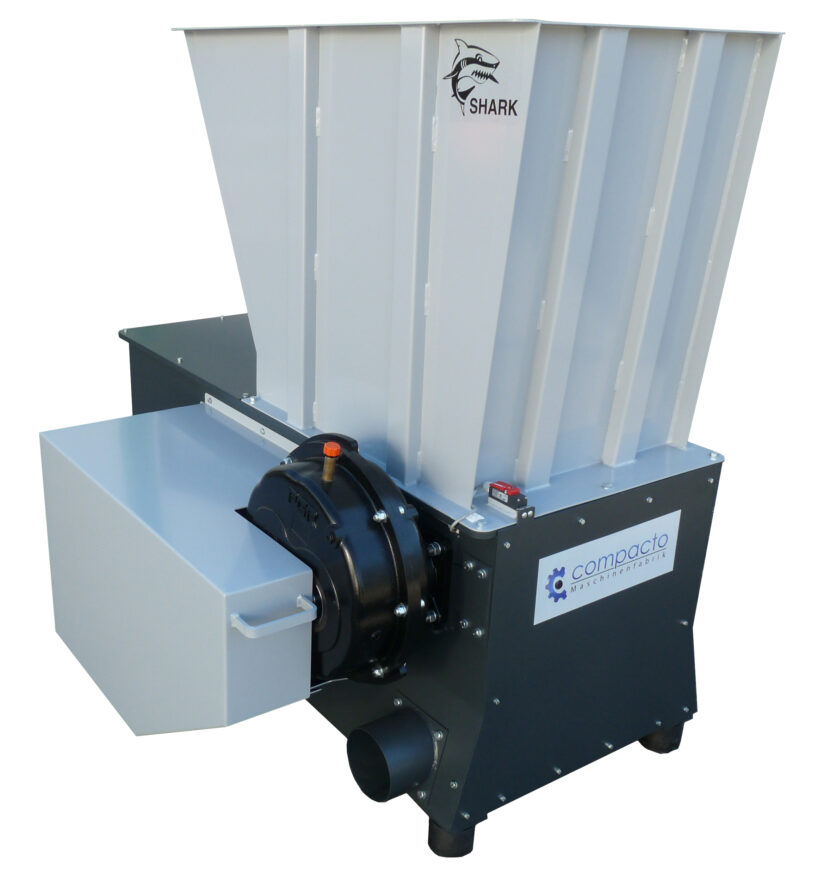

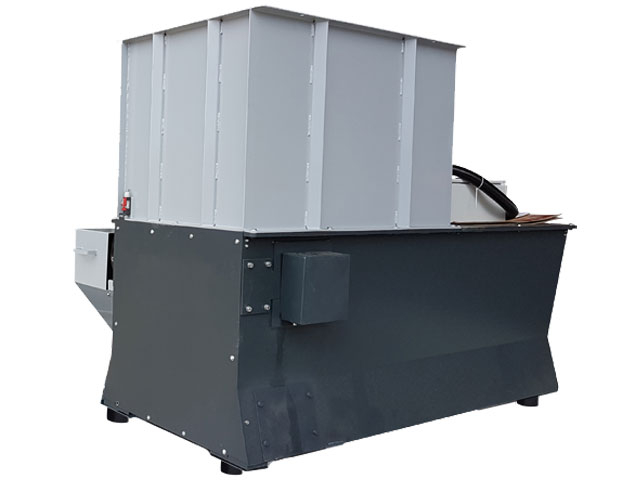

Shark 83
Shark 83 Hopper
Special Colour Shark 83

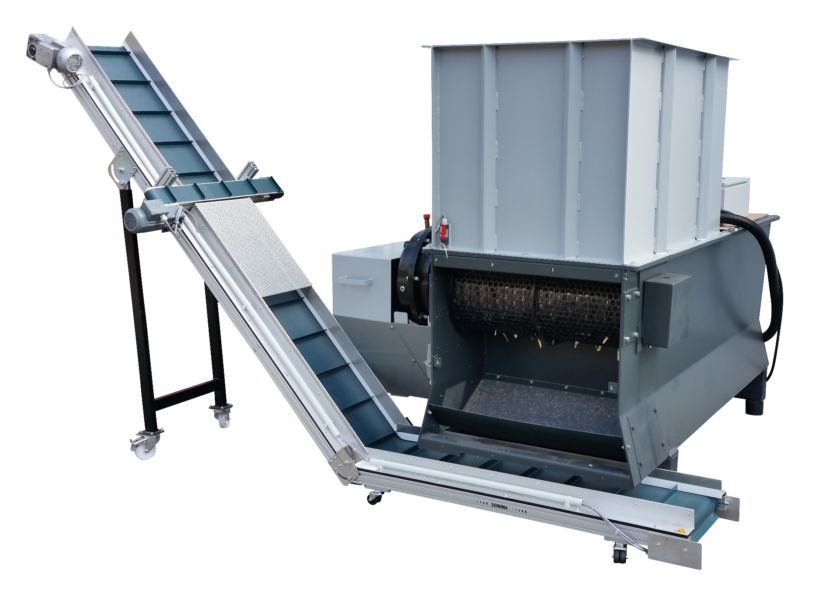

Shark 83 Conveyor
High Performance Gearbox
Robust Drive
Fast Hydraulic
Turbo Coupling
Clock Control
Robust Machine Base

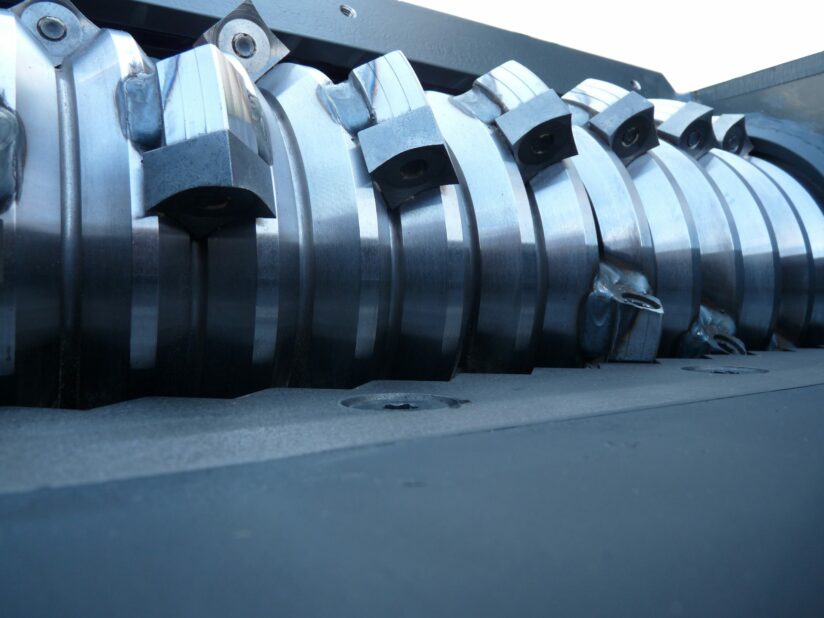

Profile Rotor
Second Row of Knifes
Robust Bearings
Limit Switch
Aspiration Connection
Siemens PLC

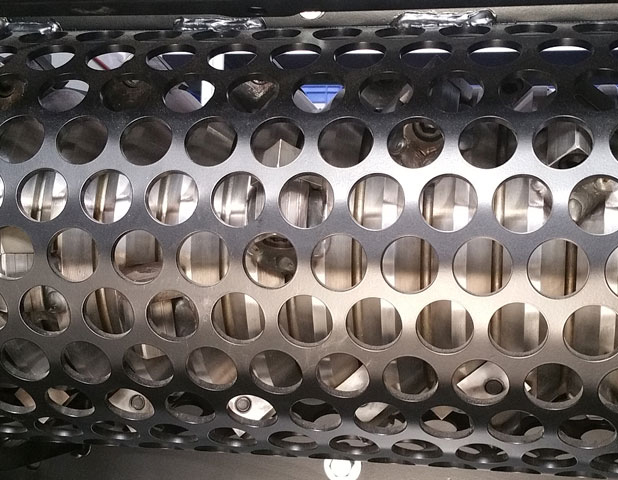

Screen
The SHARK 83 shredding machine is traditionally used for the shredding of wood residues. In addition to the production residues of the wood industry all kinds of waste material can be shredded with this machine included but not limited to cardboard, paper, plastics, cables and much more. The SHARK 83 is built with a working width of 80 cm and designed in the standard configuration with a 22 kW electric motor. The standard rotor diameter is 368 mm.
The following options can be purchased for the Shark 83 shredding machine for an additional charge:
Hopper Cover
Scraper Bar
Flared Hopper
Transport Screw
Pipe Magnet
Magnet Bar in Aspiration Channel
Magnet Bar
Overbelt Magnet
The material to be shredded is filled into the hopper of the SHARK shredding machine. To prevent ‘bridging’ in the hopper, the material residues should optimally not be larger than the working width of the machine. A hydraulic slide presses the material against a slowly rotating cutting rotor equipped with cutting tips. The current consumption of the rotor is monitored by a Siemens PLC control. The slide is clock-controlled and always works with the maximum possible pressure, depending on the current consumption of the rotor. Thus, the machine always produces the maximum throughput, no matter what material is supplied. The shredding of the material takes place between the knives and the counter knife. Behind the cutting rotor a sieve is mounted. As soon as the shredded material fits through the perforation of the sieve, it falls into the chip channel and can be removed by suction, conveyor belt or screw conveyor. The machine can be operated in manual or automatic mode. In automatic mode, the machine switches off automatically when there is no material left in the hopper.
Specification:
- Motor: 22 kW; 400 V – 50 Hz – 3 ph
- Knifes: 40 Pieces, rotable several times
- Rotordiameter: 360 mm
- Electric Panal: PLC Siemens S7-1200
- Cutting Unit Opening: 830 x 1000 mm
- Hoppervolume appr. 1.0 qbm
- Performance: 1 – 5 Hopperfillings / h
- Hydraulic Piston Screen at the choice (20 – 40mm)
- Connection piece Ø 160 mm
- Weight appr. 1.600 kg
Dimensions (lxwxh) appr.: 2290 x 1420 x 1750 mm
Technical Data:
- V-Rotor for maximum output
- 2. row of knifes on the Rotor
- automatic Star / Delta starting
- fast Hydraulic
- auto off when machine is empty
- Driving speed 70-90 U/min for high performance
- Cycle Mode to avoid no-load operation
- performance enhanced with step by step control of the Hydraulic piston
- Pertinax guides for Hydraulic piston
- vibration-damping machine feet
- CE Confirmation
