What the Holz-her ACCURA 1556 Premium Edgebander offers;
Edgebanders are decisive for furniture with a high quality appearance. You can also profit from 45 years of Holz-her technological leadership in edgebanding.
- Waterproof Invisible Joint
- Glu Jet automatic
- Intuitive Operation with Touch Screen
Technical Specifications
Adaptive trimming blade
Full adaptive trimming blades with automatic pressure adaptation to match edge thickness and height. Your advantages:
- Always the right pressure for different types of edging
- Prevents unnecessary vibration
- Reduces wear
Automatic pressure unit
The contact pressure of the individual pressure rollers is adapted perfectly to the application by an intelligent pneumatic system.
- Reduces reject quotas to a minimum
- Eliminate sample workpieces
- Optimum machining results even for continuously changing application
Automatic glue quantity control
Automatic, requirement-adapted control of glue quantity with program selection:
Always optimum glue application for:
- Various types of panels, e.g. chipboard or MDF
- Various panel thicknesses
- Various feed rates
- EVA or PUR glue
- Adaptation to processing parameters for glue from different manufacturers
Automatic cleaning routine
Integrated, fully-automatic purging routine for PUR glue at the touch of a button on the control. This process completely purges the machine, full automatically, with the correct quantity of cleaner, at the right temperature and contact pressure. (Cleaning is required after 48 h = PUR reaction time).
- Best system on the market
- PUR glue always under control
- Avoids errors during cleaning operation
Remaining glue quantity indicator
The remaining quantity of glue as well as the running meters that can still be processed are automatically monitored by a special sensor in the system and displayed to the operator on the control. Your advantages:
- Operator knows how many running meters can still be produced at all times
- Professional supervision of the cleaning process
- Optimisation of remaining quantity of glue in system at time of cleaning process.
Automatic replenishment
The pressure cylinder presses the cartridge or granules against the heater elements. After reaching a certain position, the sensor sends a replenishment signal to the control.
As long as glue is being applied to a workpiece, charging is delayed until the work is finished. The pressure cylinder retracts automatically, a new cartridge or fresh granulated material is gravity fed from the cartridge supply shaft into the heating chamber where it is again pressed against the heating elements.
SYNCHRO edging feed
The edging magazine with synchro-drive. With its synchronous adaptation to the feed rate, this edging magazine guarantees short intervals between workpieces and simultaneously optimises edging protrusions.
Small feed angle thanks to nozzle design – easy feeding of solid wood edging up to 20 mm.
Jointing Cutter
Cut edging often has small tears in the top layer. The jointing cutter unit ensures perfect glued surfaces and prepares the panels for the gluing process. Equipped with two 70 mm dia. diamond tipped cutters with AirStream technology (Holz-her / LEUCO Patent).
The ACCURA 1556 Premium Edgebander includes HSK32R chuck for greater rotary precision and to provide smoother running, longer service life and preserve tools and motor.
With symmetrical diamond tipped cutters (dia. 100 mm) for maximum joint quality and long service life. Automatic height adjustment with two NC servo-axes.
Corner buffing unit
For a perfect finishing on edging ends. Completely eliminates all manual finishing. Including plunge control and motor-driven horizontal adjustment via NC servo-axes.

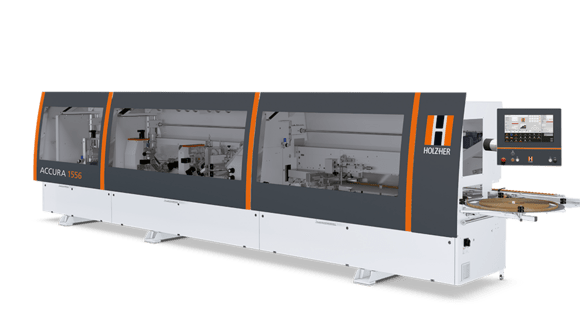

Edgebander ACCURA 1556
With this machine, the groove position and groove depth can be set fully automatically on two NC servo-axes. The standard equipment on the ACCURA 1556 flex includes a corner buffing unit for perfect edge finishing without any subsequent work.
Trimming Unit
Most powerful trimming unit in its class – edge cross-section 20 x 65 mm. With hardened linear guides for high precision trimming results up to edge thickness of 20 mm.
Flush cutting unit
High performance cutter unit for edge thickness up to 15 mm Two NC servo-axes for cutting with and without edge protrusion.
Spraying devices
Spraying units for parting agents and cleaning agents for feed and discharge area. Anti-static, coolant and lubricant – electronically controlled by special nozzles – for a perfect edge finishing (optional).
