Technical Specifications
Motor V/kW
230 V
Max. Cutter size Hard / Soft
19 / 25
Workpiece height (mm)
195
Table travel along axes (Long / Trans, mm)
400 / 100
Table size (mm)
520 x 180
Weight (KG)
100
Spindle Speeds
1,450 RPM
Max. bore size diameter (mm)
13
Max. chisel stroke (mm)
200
Table tilt
0 – 35
Dimensions of the workpiece stop (mm)
520 x 90

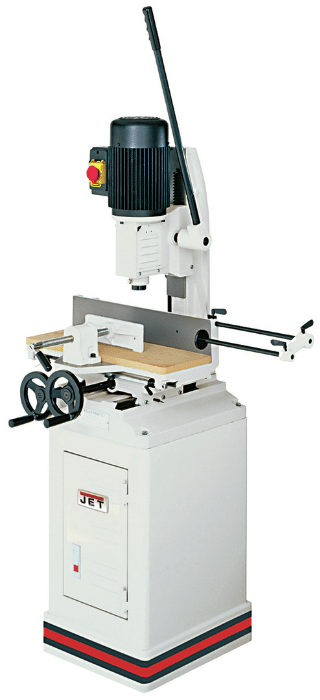

Toothed rack height adjuster with accurate dovetail guide and gas pressure balancer cylinder. Powerful motor. Head can be turned by 180° for drilling a door lock. Large-sized handwheels for easy adjustment of the jig table. End stops for precision batch productions. Workpiece clamp with quick adjustment enclosed base cabinet with storage compartment. Table tilt angle (719-AS-M) up to 35°.
