Technical Specifications
MODEL

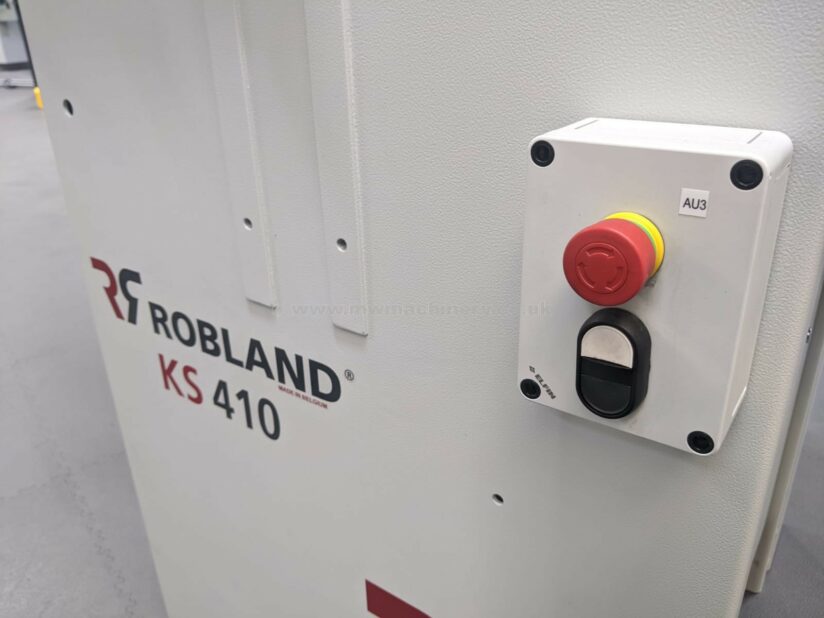

KS 410
PLANING WIDTH (MAX)
410mm

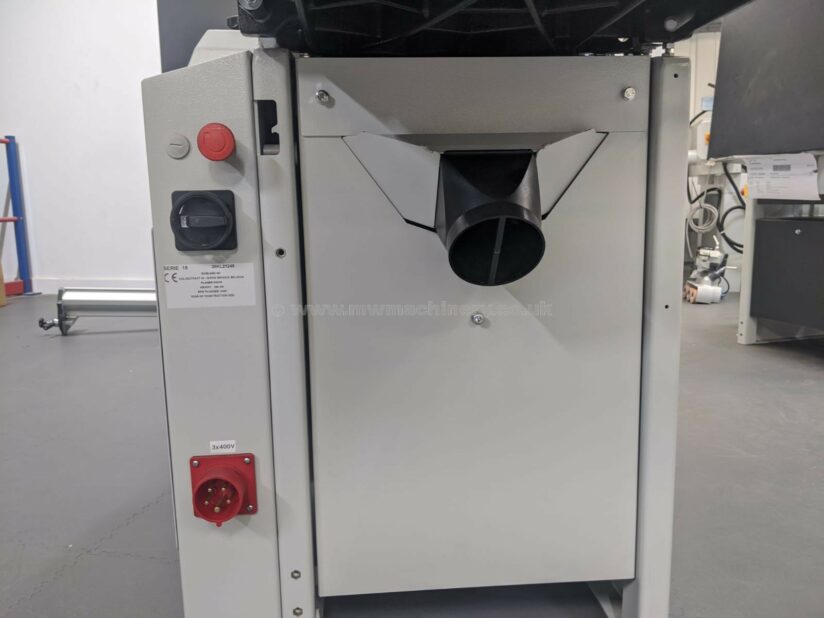

DUST EXTRACTION OUTLET
100mm
CUTTER BLOCK SPEED
5500 rpm
VOLTAGE / PHASE
1ph or 3ph
imensions of thickness table
600 x 410mm
Dimensions of blades
410x25x3 mm
Diameter of feed rollers
30mm
MOTOR POWER
6.6hp (3ph) / 3hp (1ph)
DEPTH OF CUT (MAX)
4mm

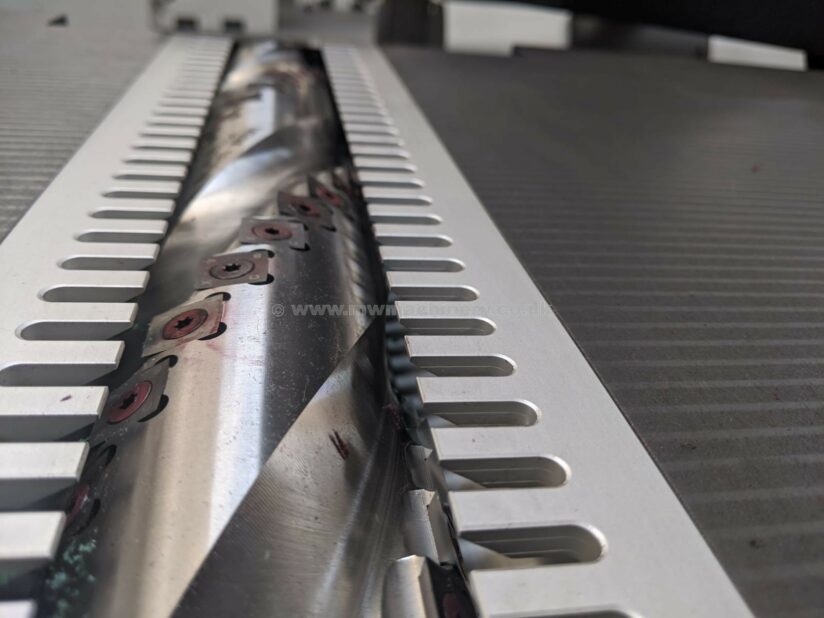

CUTTER BLOCK / DIAMETER
70mm
NUMBER OF KNIVES
3
WEIGHT
205kg
Thicknesser height capacity
230mm
Feed Speed
6m/min
Max chip removal
4mm per pass
