Technical Specifications
Make
Maggi
SAW BLADE DIAMETER
400mm
SAW BLADE TILT RANGE
0° – 45°
MOTOR POWER
4hp
TABLE SIZE
2000mm x 1355mm
MAX CUTTING WIDTH
1150mm
GROSS WEIGHT
306kg
PACKING DIMENSIONS
2000 x 1000 x 670mm

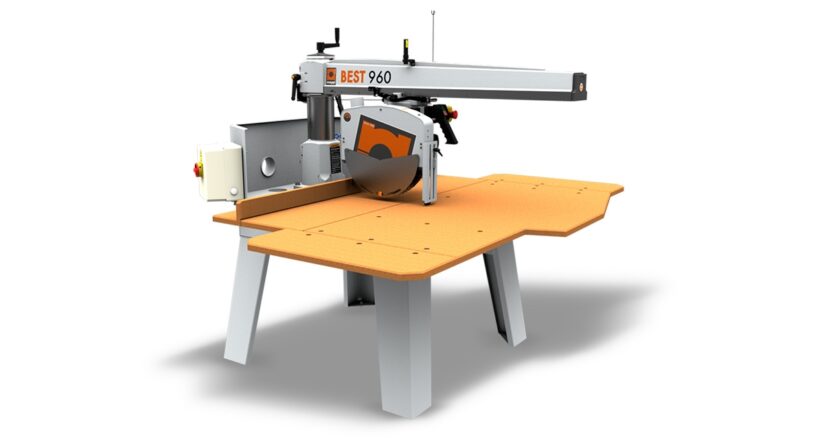

Model
Best 960
BLADE BORE DIAMETER
⌀ 30mm
BLADE SPEED
2800
DUST HOOD OUTLET DIAMETER
1 x ⌀ 60mm + 1 x ⌀ 100mm
MAX CUTTING HEIGHT
150mm
DEPTH OF CUT AT 45°
80mm
NET WEIGHT
294kg
All Maggi cross cut saw machines we sell are CE approved, complying with all current regulations.
This includes a braked motor, enclosed blade, and two dust extraction ports. The chassis of this Maggi cross cut saw has been designed with an anti-noise system Arm and base made of cast-iron. The blade moves on 8 carriage bearings and is retracted with a return spring.
Articulated Arm and head unit
Radial Arm saws that guarantee maximum work safety
Solid and stable head unit allows for precise cutting
Articulated arm and head-unit for diagonal cuts, inclined cuts and trimming
Guaranteed Maximum work safety
Laser Pointer and fixing assembly
