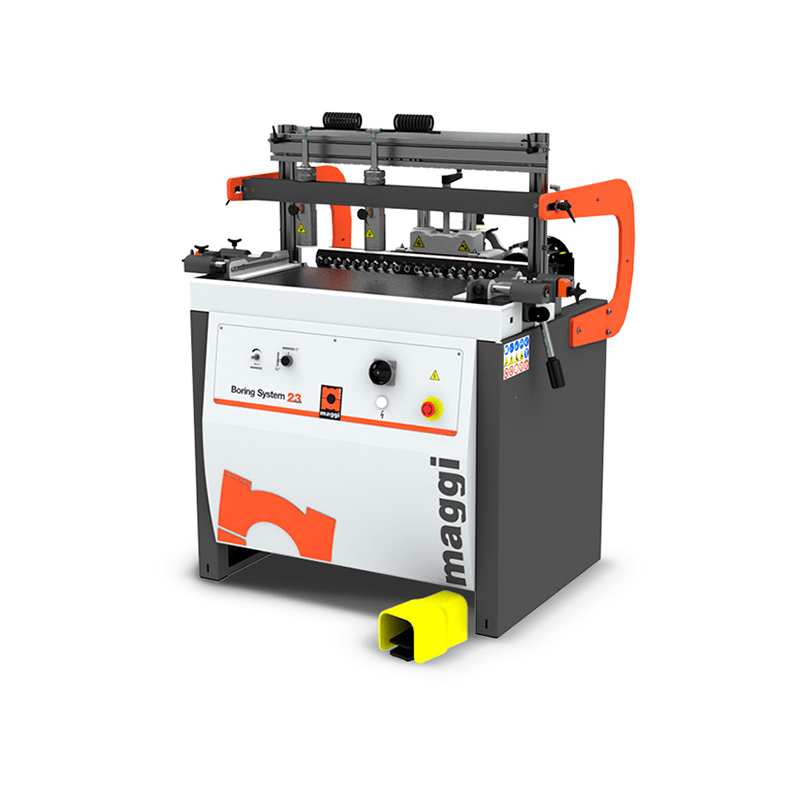

Maggi Single Head Boring System 23

From £4,400.00 + VAT

(£5,280.00 inc VAT)

Innovative and effective tool-locking system that allows quick fastening of the drills directly on spindles No need for chucks: You save money and time Drills are more steady and precise.

Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

MACHINE TYPE
Bores
MAKE
Maggi
MAX HEIGHT OF CLAMPS FROM WORKING TABLE
65mm
DISTANCE BETWEEN SPINDLES
32mm
DIMENSIONS X, Y, Z
900 x 3000 x 60mm
VOLTAGE / PHASE
415V / 3ph
MAX BORING DEPTH
60mm
MAX DIMENSIONS OF THE WORKING PIECE
885 x 3000 x 60mm
NUMBER OF SPINDLES
23
DISTANCE BETWEEN FIRST AND LAST SPINDLE
704mm
WORKING AIR PRESSURE
6-8 bar

Innovative and effective tool-locking system that allows quick fastening of the drills directly on spindles No need for chucks: You save money and time Drills are more steady and precise.

Fast drill assembly: this device reduces by 90% the stroke of the boring head with regard to the different length of the drills; and consequently speed up the working cycle.

  • Working table made in cast iron and MDF antiscratch
  • Patented Spyral System, device for programming and boring depth adjustment
  • N°2 patented safety clamps
  • Pneumatic head-rotation from 0° to 90° with lock and stop reference in any position
  • Adjustable fences on the table with a digital counter for decimal shifting adjustment
  • Digital counter (decimal) for regulation for adjustment of drills-height from the table
  • Rear fence max stroke 300 mm for an automatic match of two wooden panels both in horizontal and vertical position
  • Fitted to install dust collection system
  • Front electrical drives according to CE safety regulations with no voltage release magnetic switch protecting the motor (volt 2.4), emergency safety device
  • Main switch can be locked
  • Fixed stops for hinges at 37 mm
  • Device to automatically change the vertical and horizontal boring depth (7 mm)
  • Stackable
  • Aluminium fence 1.500 mm with 2 stops
  • Reference fence for exact setup of stop on
  • Aluminium fence 3.000 mm with 4 stops
  • Long fence 704 mm
  • Fence extention 1000 mm
  • Reference fence for rear fence parallelism
  • Extra stop for aluminium fence 500 mm
  • Stop reference pin for line boring
  • Fences for boring of frames at 45° and 90°
  • Special block to lift the clamps up to 140 mm top

PATENTED SPIRAL SYSTEM

Device for boring depth adjustment, allowing an easy and quick set-up on a millimetric scale according to the different drill lengths.

SIDE REFERENCE FENCES

Adjustable cast iron fences on a metric scale thanks to a magnify glass and nonius.

PNEUMATIC HEAD ROTATION

With lock and stop reference from 0° to 90° at any angle.

ALUMINIUM FENCE

Right and/or left aluminium fence with 2 stops.

Extra quick-change bushes.

Blocks to lift clamps up to 140mm from table.

Extra clamping unit.

Head-unit for hinges – Blum, Hettich, Grass, Salice.
