Technical Specifications
OAV 330 Edgebander Footprint

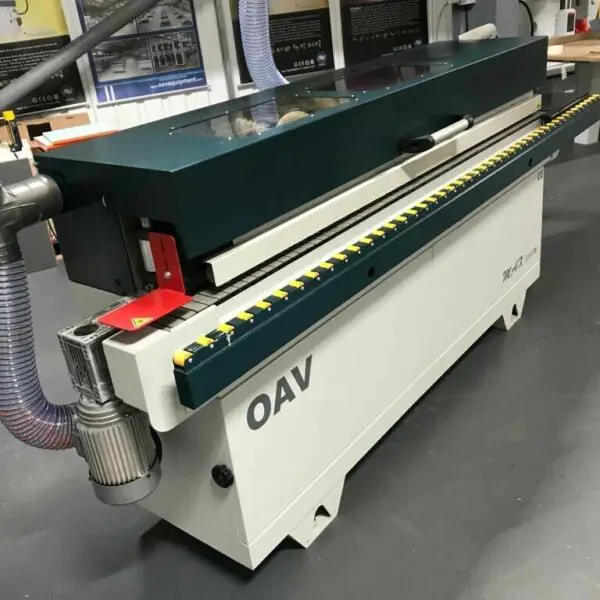

OAV 330 EdgeBander
OAV EdgeBanders allow for stable and reliable working conditions which will raise the quality of your products while also saving time.
The OAV 330 EdgeBander can apply edges to straight panels with an automatic feed and can apply glue directly to panels with both wood and plastic edges, in coils up to 3mm thick. It’s equipped with automatic front/ rear trimming cut-off, and flush trimming/ buffing on both sides of the workpiece.
Features
- A unique feeding guide – there is no need to adjust. Even when working with edges of varying thickness.
- A stable copying disk
- A dust port in the table. Making it quick and easy to keep the environment clean
- Electronic temperature regulation
- The saw can easily cut coils up to 3mm
- Synthetic table guides. And a heavy-duty roller to support both large and heavy bander jobs
- A table extension. With adjustable front supports. For gluing large panels
- A feeding device with an upper driven belt system
- Precise adjustment and read-out units for both thickness and trimming
Pre Heating
Heated infeed fence helps with glue adhesion
Hot melt glue pot
Teflon coated for easy maintenance with 1.1KG storage capacity
End trimming unit
high quality cutters powered by an impressive 3 phase motor for perfect results
Radius trimming
Fully adjustable to create either a flush edge or radius edge. 3mm radius fitted as standard
Buffing Unit
The Buffing unit, which can be positioned wherever it is necessary, perfectly cleans and polishes the edges, leaving them in pristine condition
Browse OAV Edgebanders
We have been working with OAV for over 5 years. We’re extremely impressed by the build quality of their woodworking machinery. We stock OAV Edgebanders and Bandsaws. Our OAV Edgebander range consists of:
- OAV 330 Hot Melt Edgebander
- OAV 350M Pre Milling EdgeBander
- OAV 350A Pre Milling EdgeBander
- OAV 370M Corner Rounding EdgeBander
- OAV 370P Automatic EdgeBander
- OAV 370P Automatic Corner Rounding EdgeBander
- OAV 570P EdgeBander
Delivery, Commission and Product familiarisation provided
As long as you have a forklift to unload the machine we can deliver and commission your Edgebander on the same day. On top of delivery and commission our engineers will familiarise you and your staff on how to use the machine.
