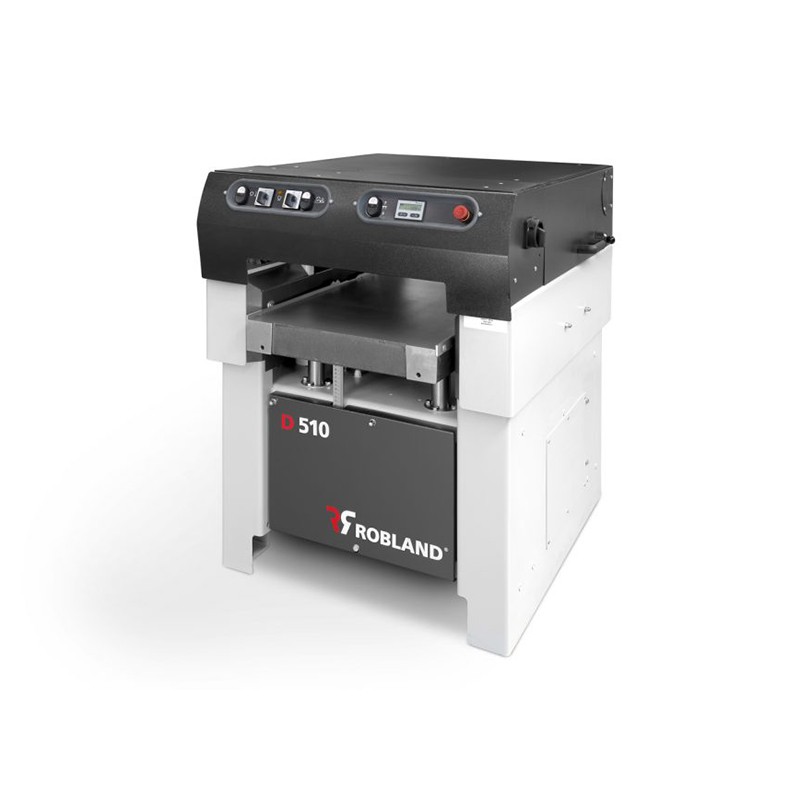

Robland D510 Thicknesser

From £6,600.00 + VAT

(£7,920.00 inc VAT)

The Robland D-510 in standard option-

  • 250mm depth thicknesser complete
  • 4 blade block
  • Electric rise and fall
  • Mechanical position indicator
  • Fine adjustment handwheel
  • 540KGS
Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

MAKE
Robland
MOTOR POWER
5.5 kW
THICKNESS HEIGHT
3 – 250 mm
NUMBER OF KNIVES
4
OVERALL DIMENSIONS (MM)
1350 x 950 x 1100 mm
FEED SPEED
8/16 m/min (options available)
FEED SPEED (Comfort Pack)
5 / 8 / 10/ 16 m/min
MODEL
D-150
THICKNESS WIDTH
510mm
CUTTER BLOCK / DIAMETER
100mm
DUST EXTRACTION OUTLET
120mm
MAX DEPTH OF CUT
6mm
DIMENSIONS OF THICKNESS TABLE
1050 x 510mm
VOLTAGE / PHASE
415V / 3ph

Robland D510 Thicknesser


The thicknesser table mounted on 4 big posts offers great stability. Even when planing long heavy timbers.
For wet or damp timber fully retractable rollers can be provided. Please note that this option must be ordered with the initial order for the machine.

Planer Table

The big cast iron table is precision planed for smooth sliding for smooth sliding of the wood. Highest quality ‘cold proccess machining’ is used, which produces ensures that the table surface stays absolutely flat throughout its life.

Tersa (optional)

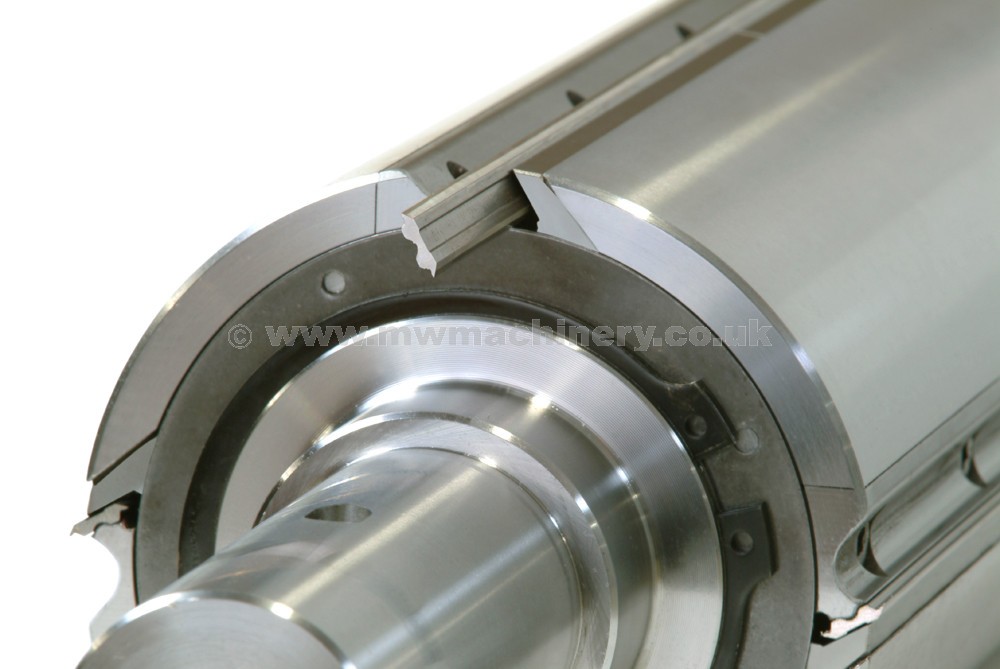

Tersa cutterblock: fast changing of the knives and small response time thanks to the TERSA knive system.

serrated roller infeed on its own Robland Planer Thicknesser NXSD
Spiral Infeed Roller

Spiral infeed roller guarantees an efficient feed motion of the wood and a good quality.

4 Sturdy Columns

The thicknesser is based on to 4 sturdy columns.

Frame


The frame is built on 6 mm steel plate and is carefully designed to maximise strength and rigidity, it’s made in a so called ‘box frame’ resulting in an extremely sturdy and torsion resistant base.

Motors and Transmission

The machine is equipped with 5.5kW (7.5 HP) motor as standard with an option of a 7.5kW (10hp) motor. Standard tension of the motor is 400 volt. This machine is also available in single phase.

Robland D630 EL Thicknesser | MW Machinery
Up to 250mm

It is possible to work pieces of woord with a thickness up to 250 mm.

Friction Reduction Rolls

2 friction reduction rolls for easier processing of wet wood.

Comfort Pack

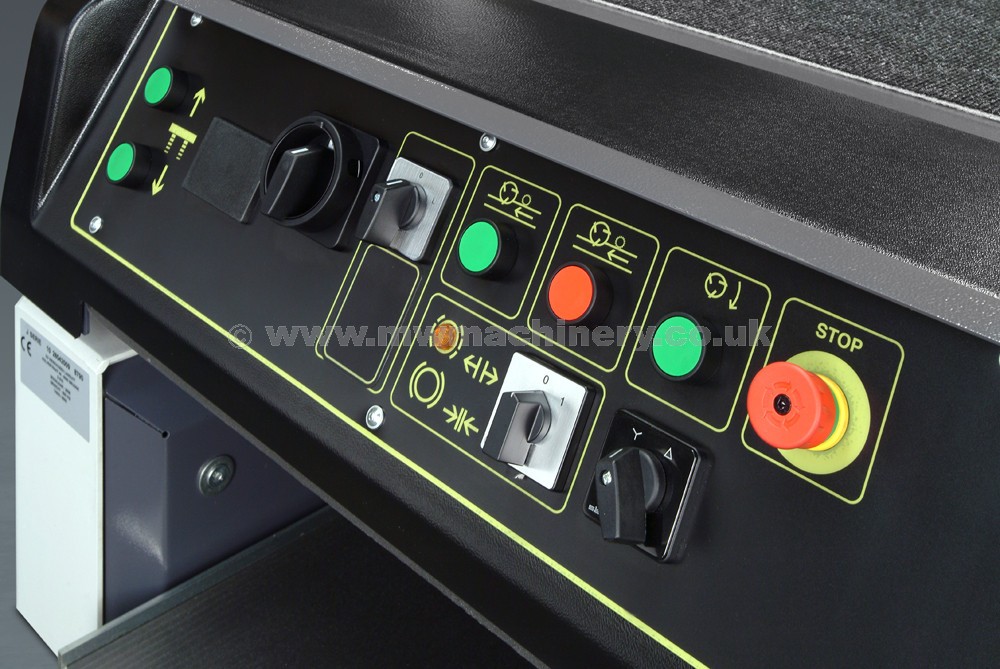

The comfort pack on the SD 510 consists out of 4 feeding speeds, digital read out of the height and an automatic star delta switch.
