Robland S410 Planer

Enquire for price

The Robland S410

  • 2360mm planer length
  • 90mm spindle diameter, 4 knives
  • 4mm planer capacity
  • Adjustable planer fence
  • Automatic Star – Delta
Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

weight
475 KG
Voltage / Phase
415V / 3ph only
Motor Power
4.4 kW / 6.6 hp
Dust Extraction Diameter
120 mm
Diameter Cutter Block
90 mm
RPM
5500
Max. Depth of cut
4 mm
Planer Width
410 mm
Total length planer tables
2360 mm
Dimensions Planer fence
1350 x 200 mm
Inclination planer fence
90° – 45°
# of Knives
4
Knives Dimensions
410 x 30 x 3 mm

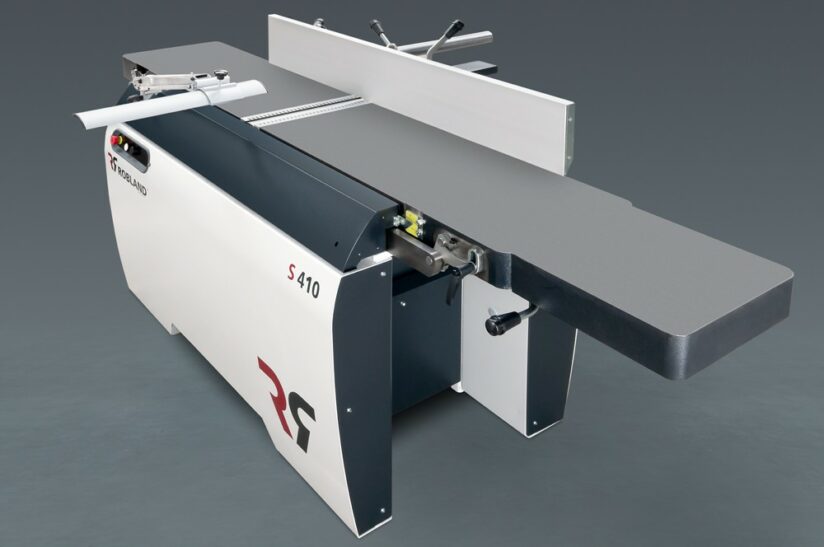

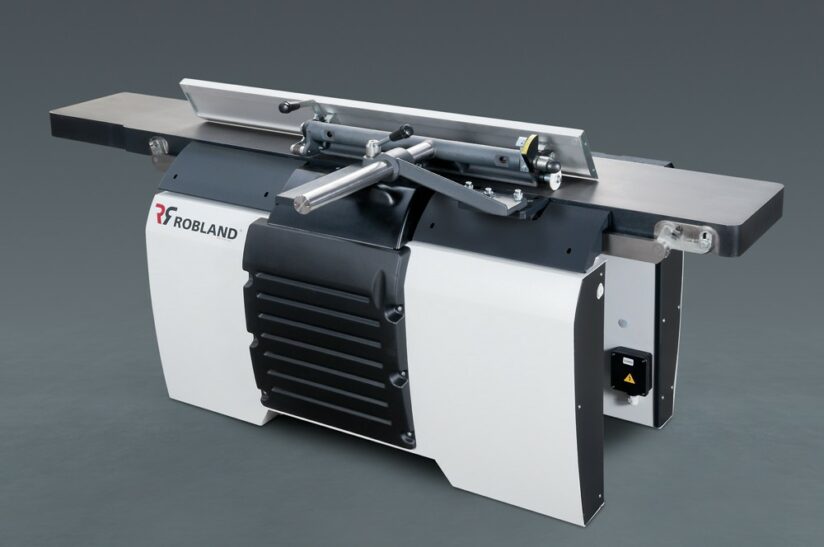

Robland S410 Planer


The Robland S410

  • 2360mm planer length
  • 90mm spindle diameter, 4 knives
  • 4mm planer capacity
  • Adjustable planer fence
  • Automatic Star – Delta

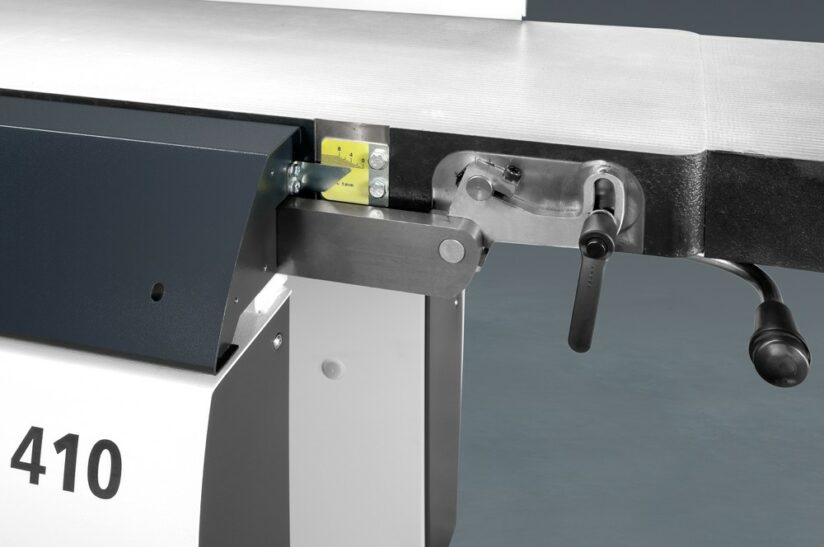

Parallelogram Slides

Mounted on paralleloagram type precision slides, and easy to use lock and lever, both tables are fully adjustable up and down. The parallelogram slides ensure minimal opening between the standard aluminium noise reduction table lips and the cutterblock.

Magnetic Knife Setter

Machine equipped with magnetic knife setter for its 4 knife cutter-block.

Tersa block on its own. Robland Planer Thicknesser NXSD

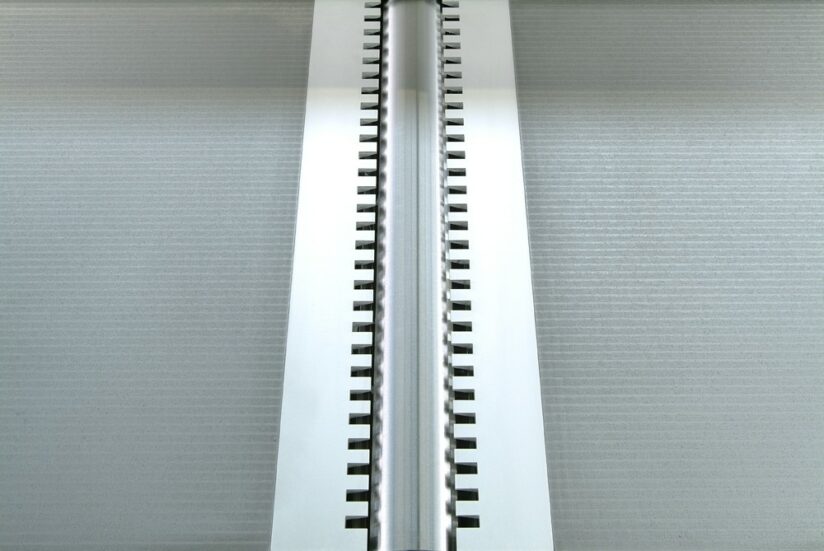

4-Knife Tersa

The 4-knives Tersa cutter (HSS) block offers you all the comfort, and precision when changing the knives.

Planer Tables

The planer tables are comfortable in use with dimensions of 2360 x 410 mm.

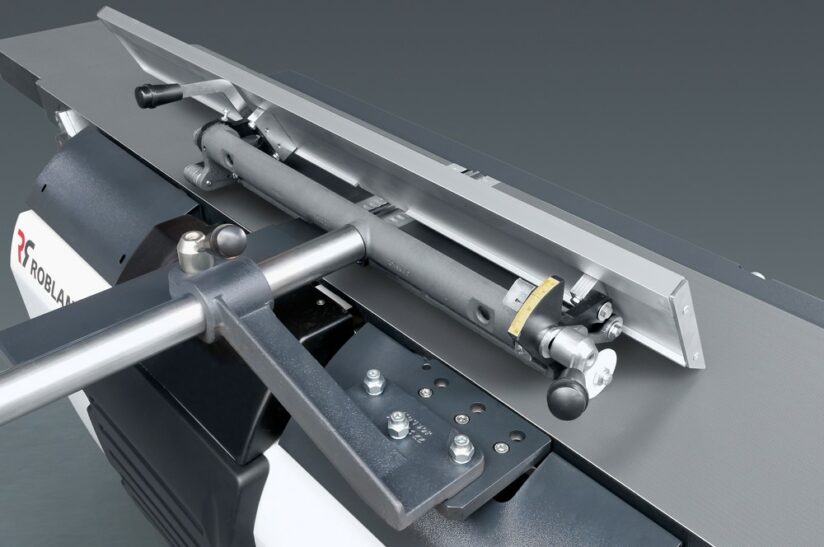

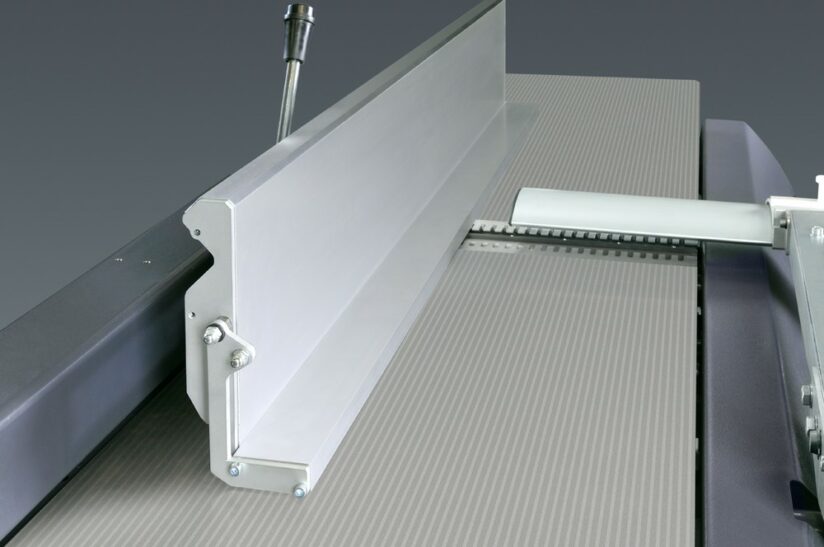

Planer Fence

The planer fence is made of a precision machined, aluminium anodized extrusion profile, with dimensions 1350 x 200 mm. The tilting from 90° to 45° is quick and easy by simple lock and lever.
