Technical Specifications
Motor Power
7 kW
Spindle Diameter
30mm (50mm optional)
Heavy duty cast iron table
710 x 1200mm

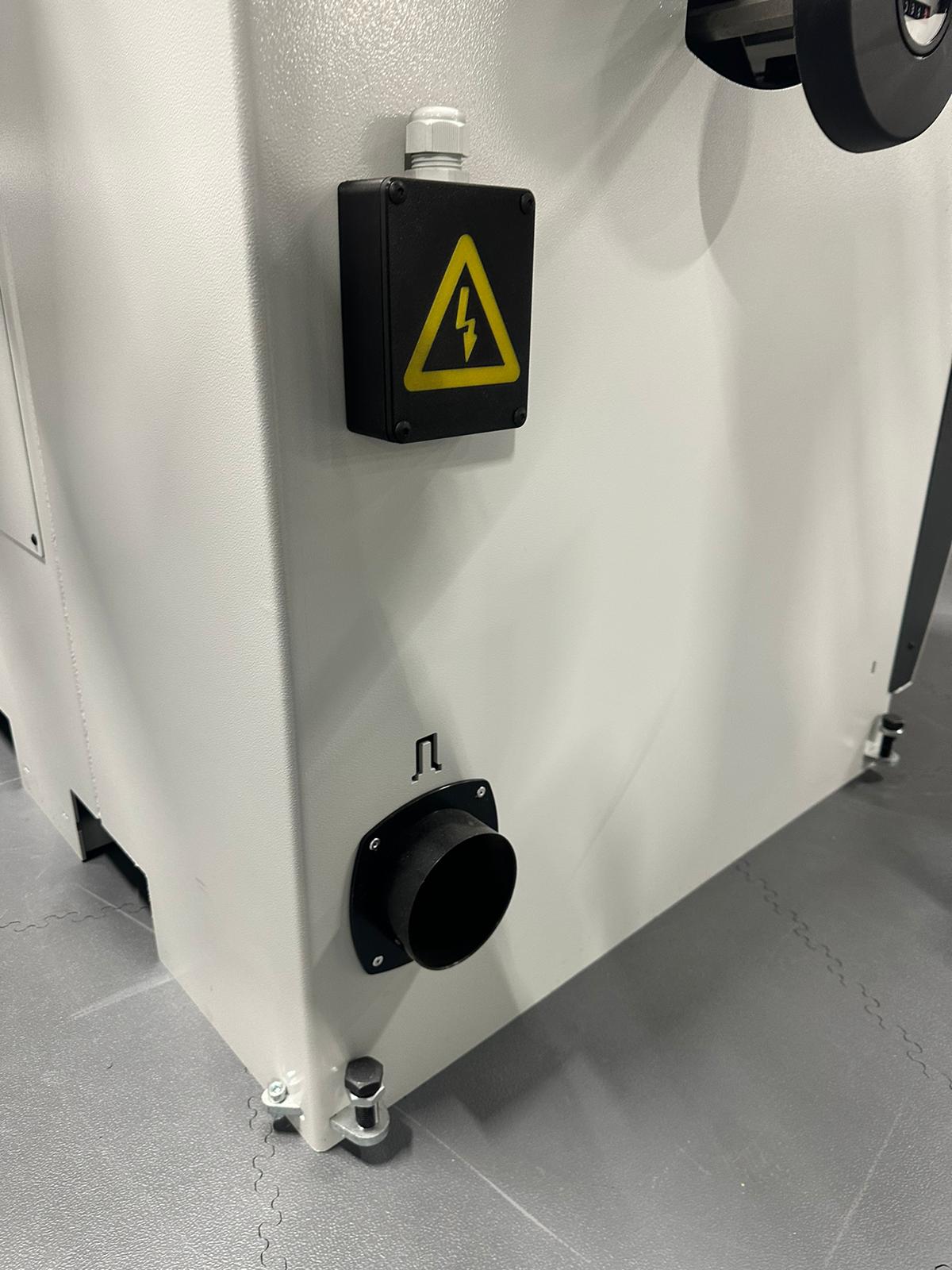

Dust Extraction outlets
2x 120mm
Weight
600KG
Spindle Speeds
3000 / 4500 / 6000 / 7500 / 10,000 RPM
tilting range
-5 – +45 degrees
Maximum tool diameter under table top
260mm
Maximum tool diameter above table top
320mm
Manufactured in
Belgium

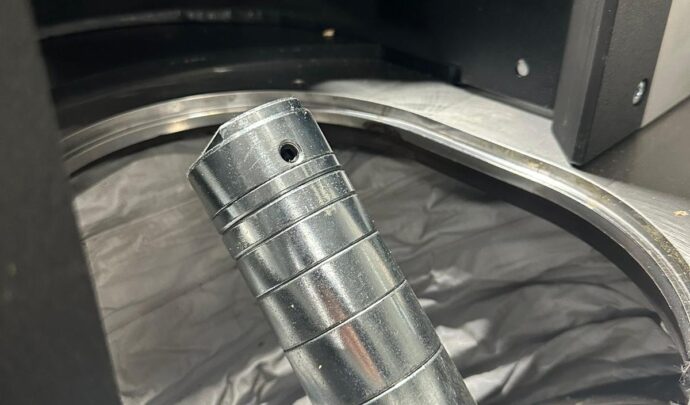

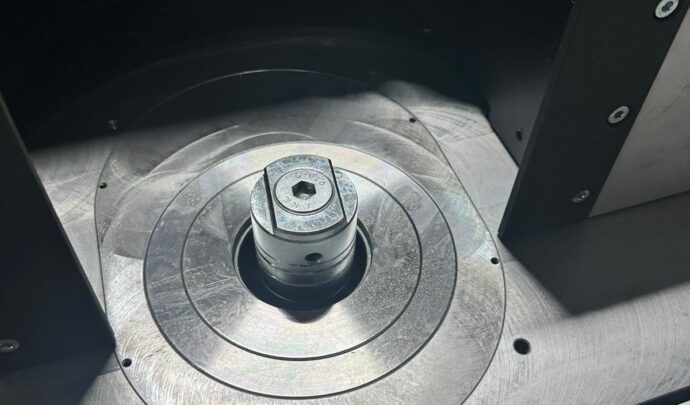

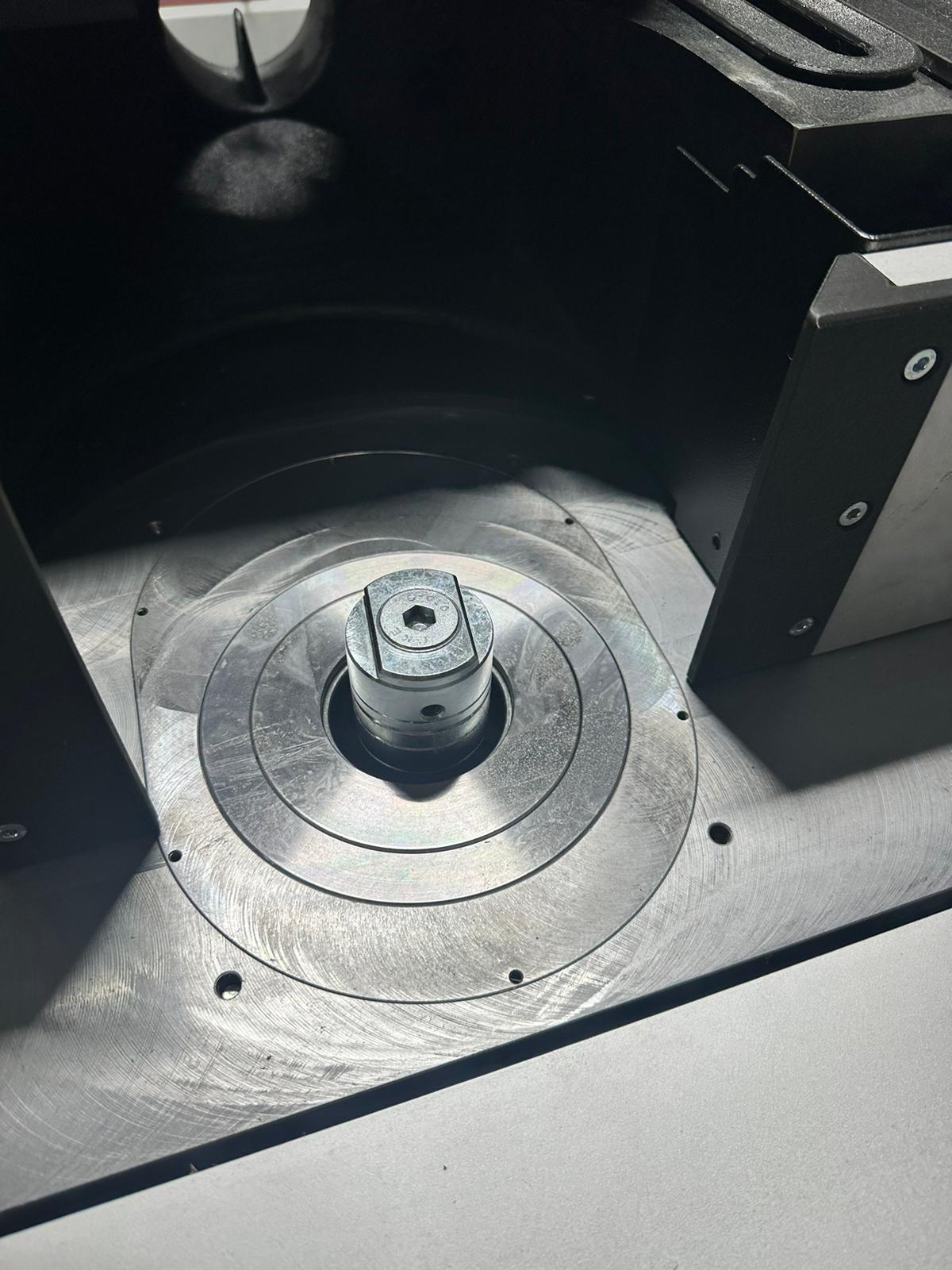

30mm Spindle
30mm Spindle diameter installed as standard. (Optional 50mm).

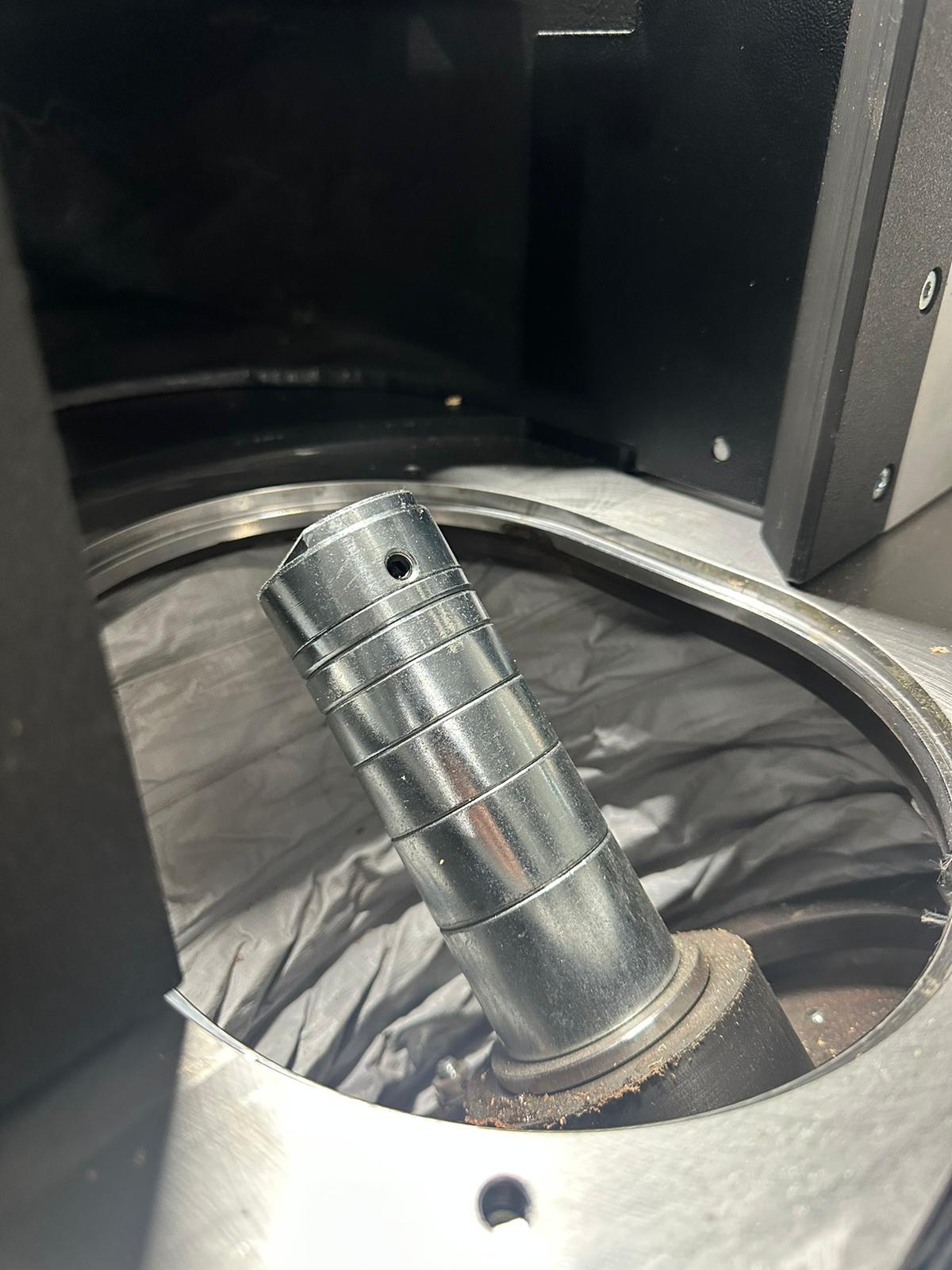

Tilting Spindle
tilting spindle as standard. tilting range from -5° to +45°.

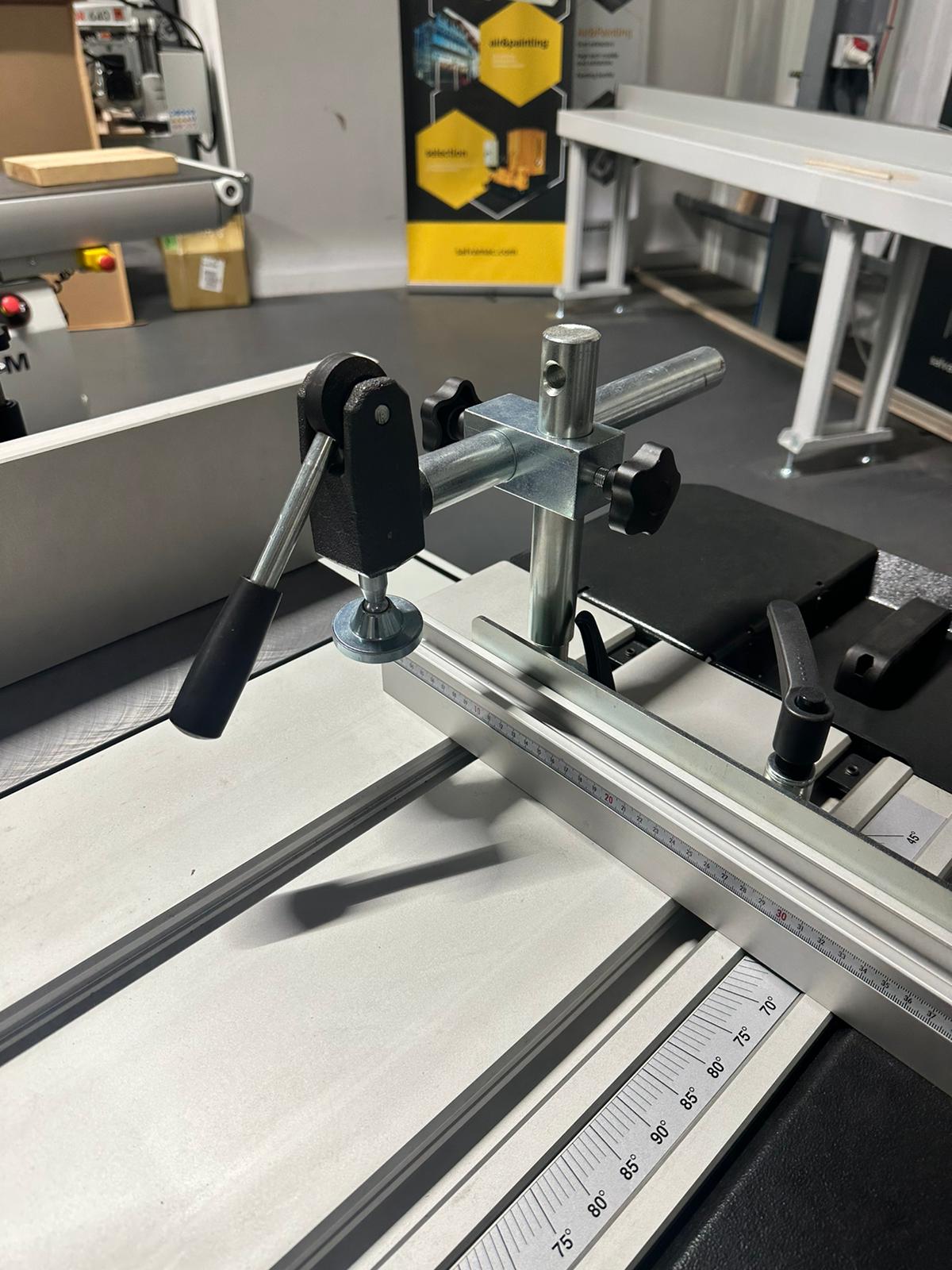

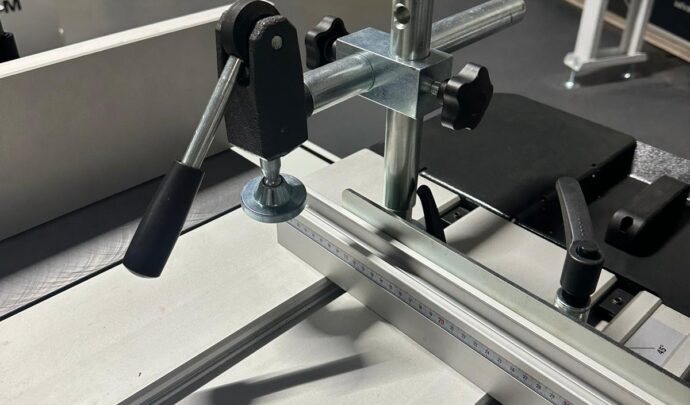

Mitre Fence with Wood Clamp
Mitre fence with wood clamp supplied as standard.
NEED ASSISTANCE OR EXPERT ADVICE?
We pride ourselves in offering a friendly and professional service

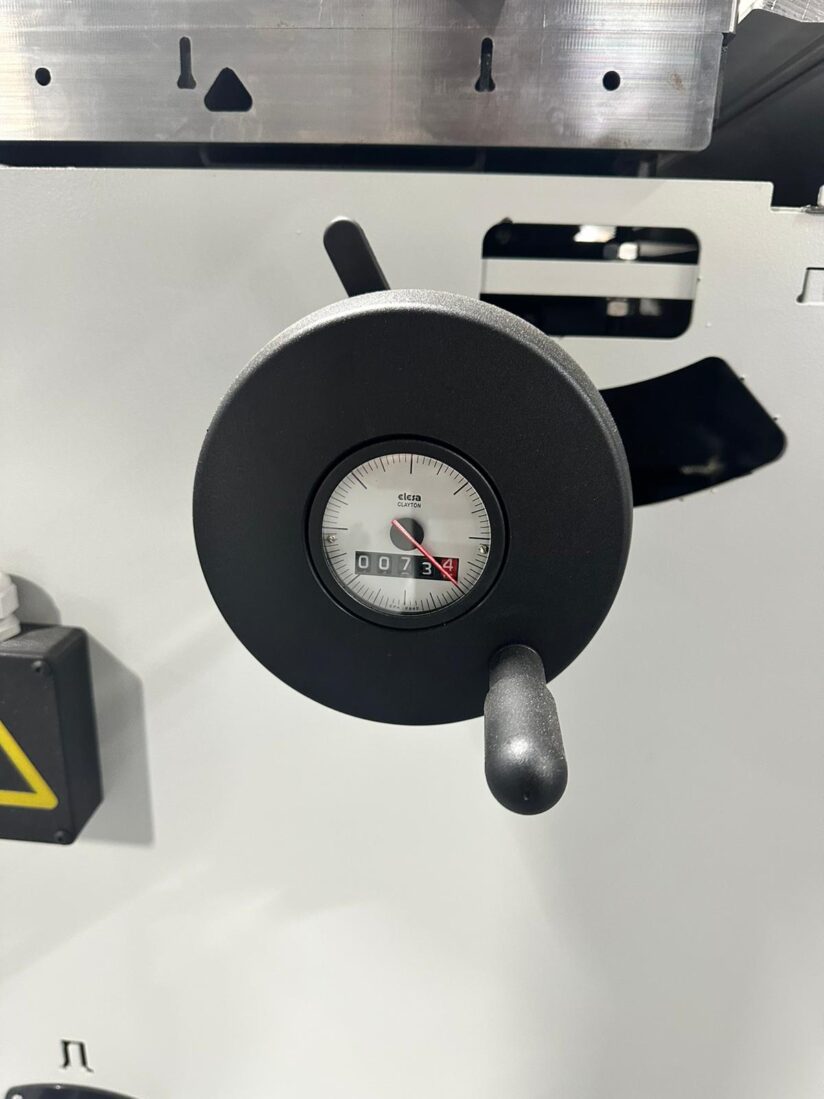

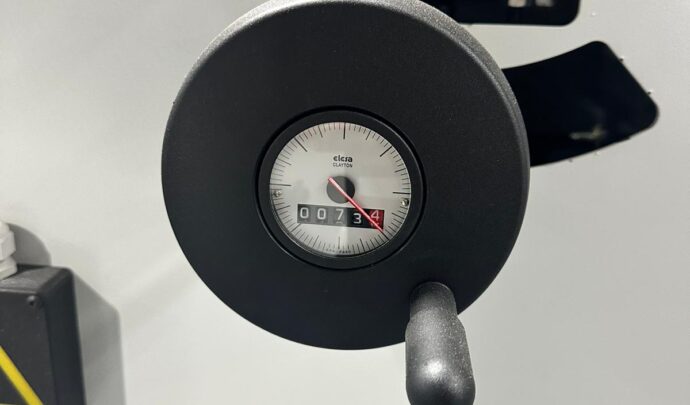

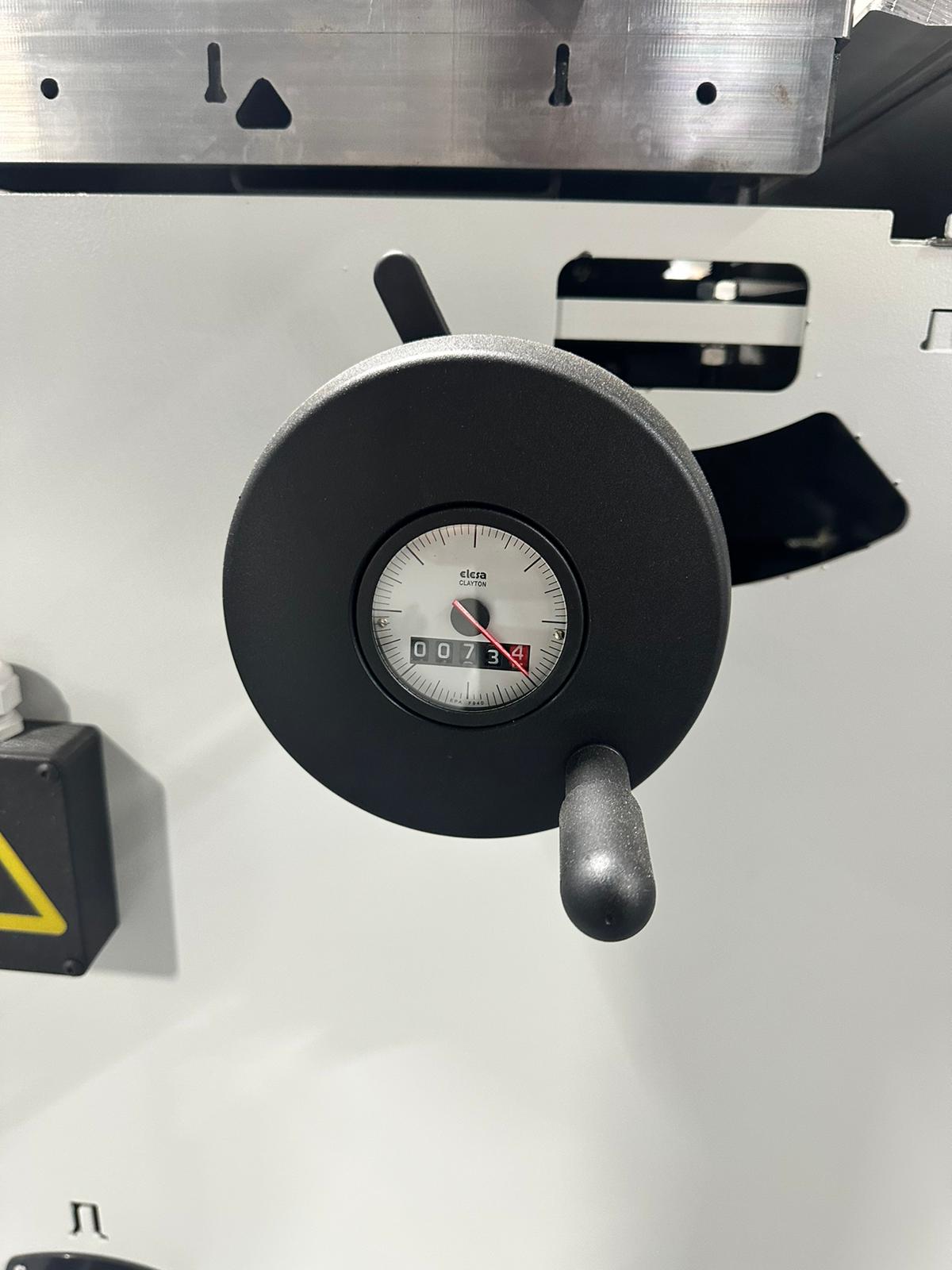

Manual Spindle Height
Handwheel for manual spindle height adjustment with analogue readout

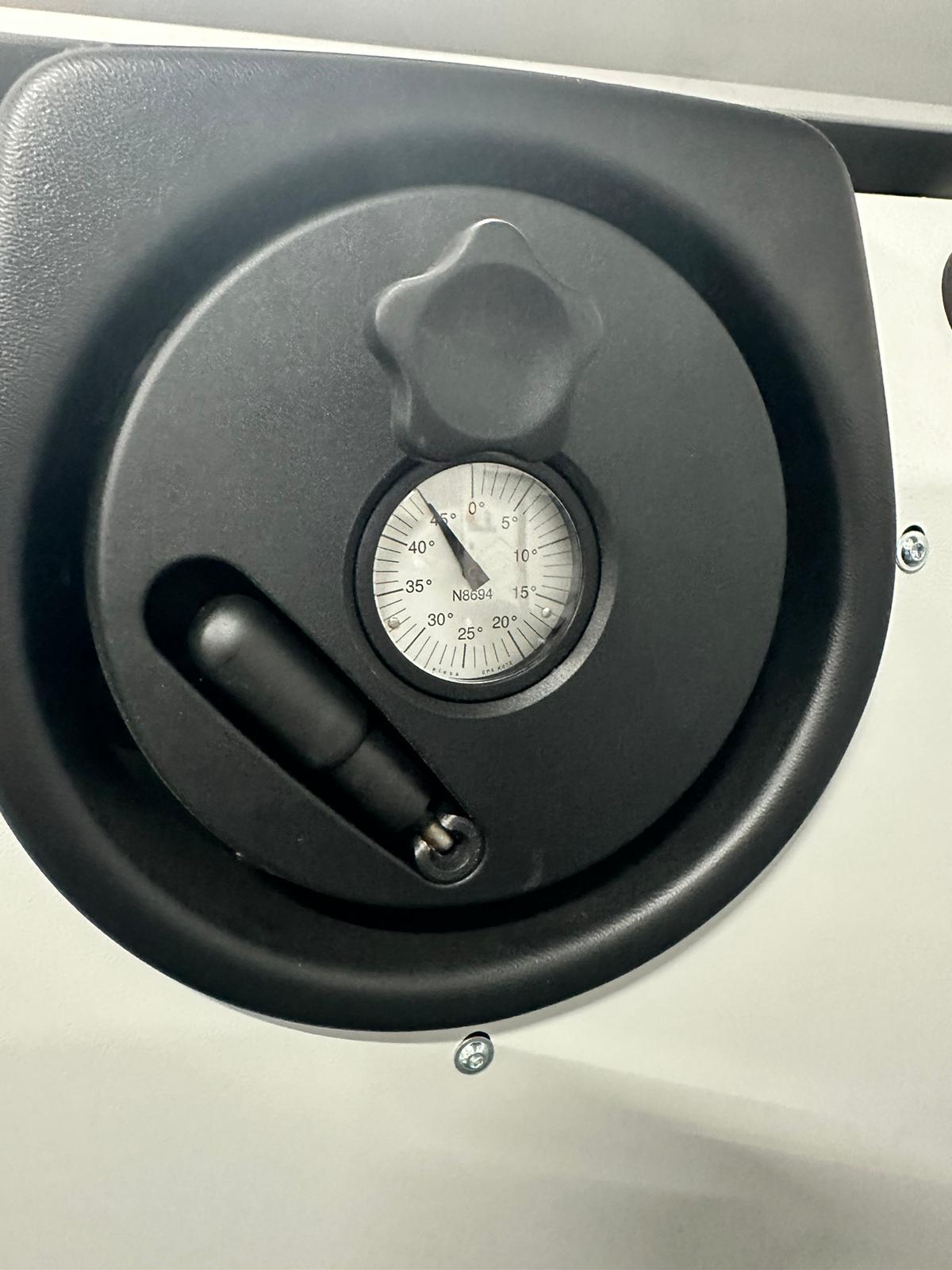

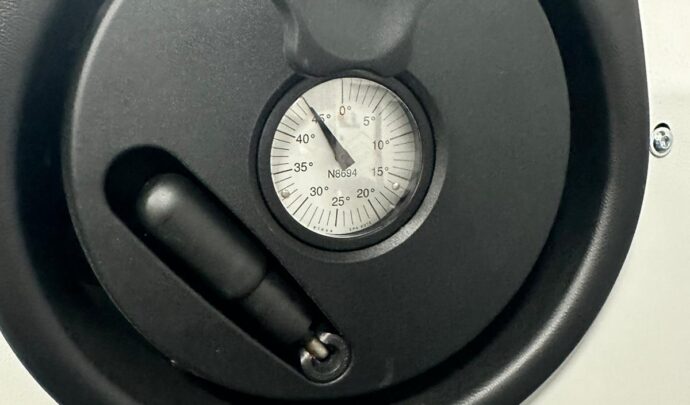

Manual Spindle tilt
Handwheel for manual spindle tilt adjustment with analogue readout

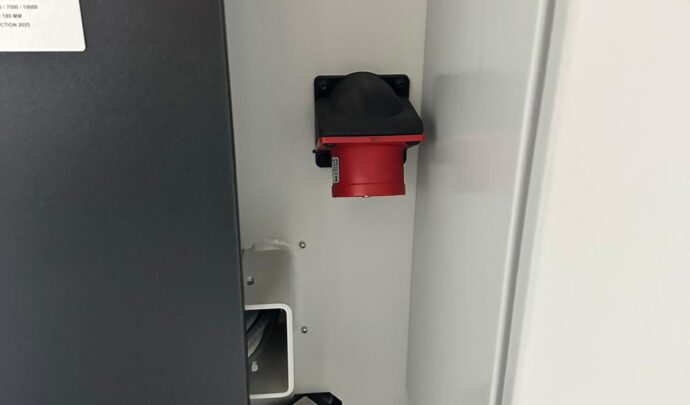

415V Plug for Power Feeder

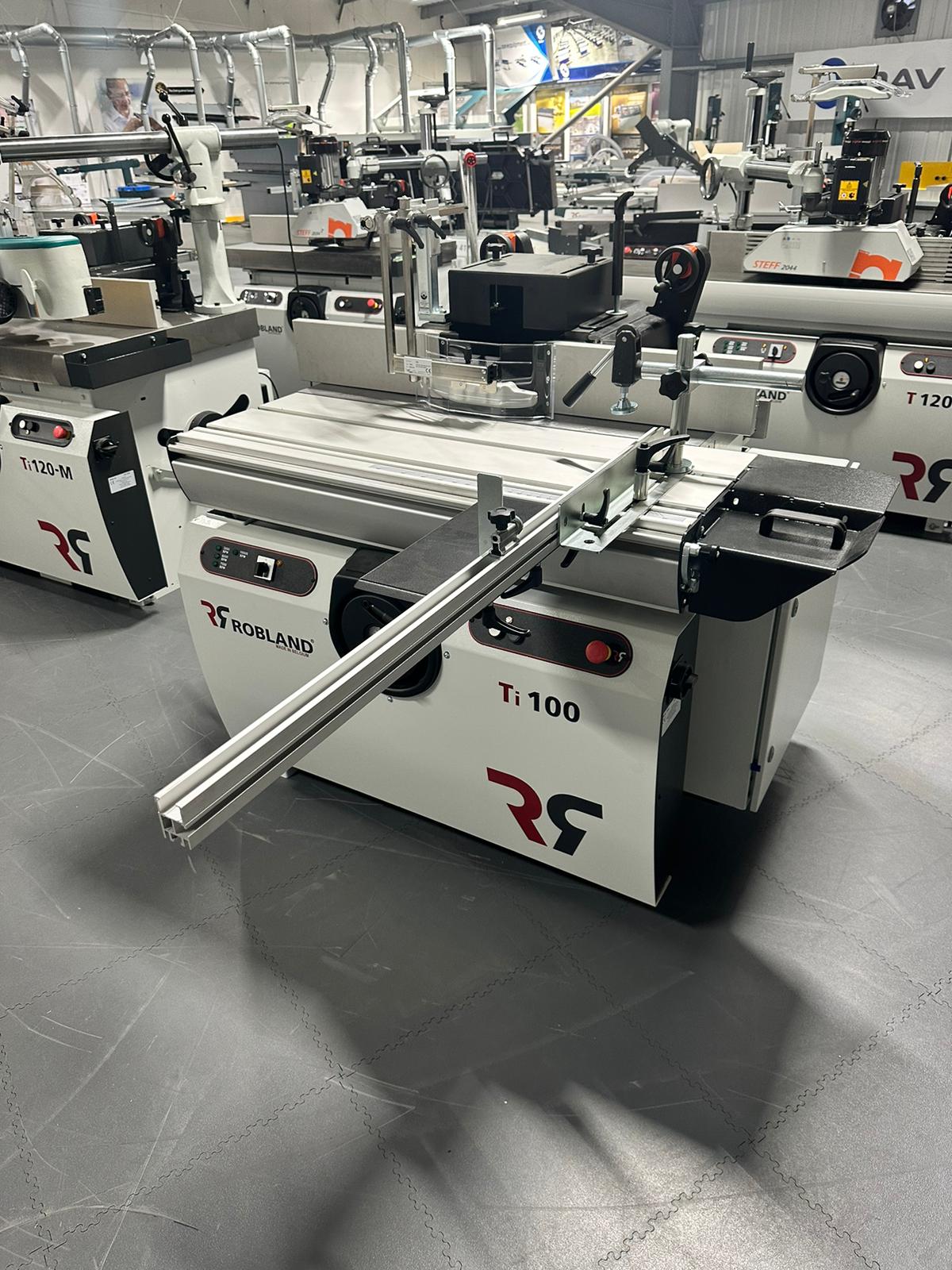

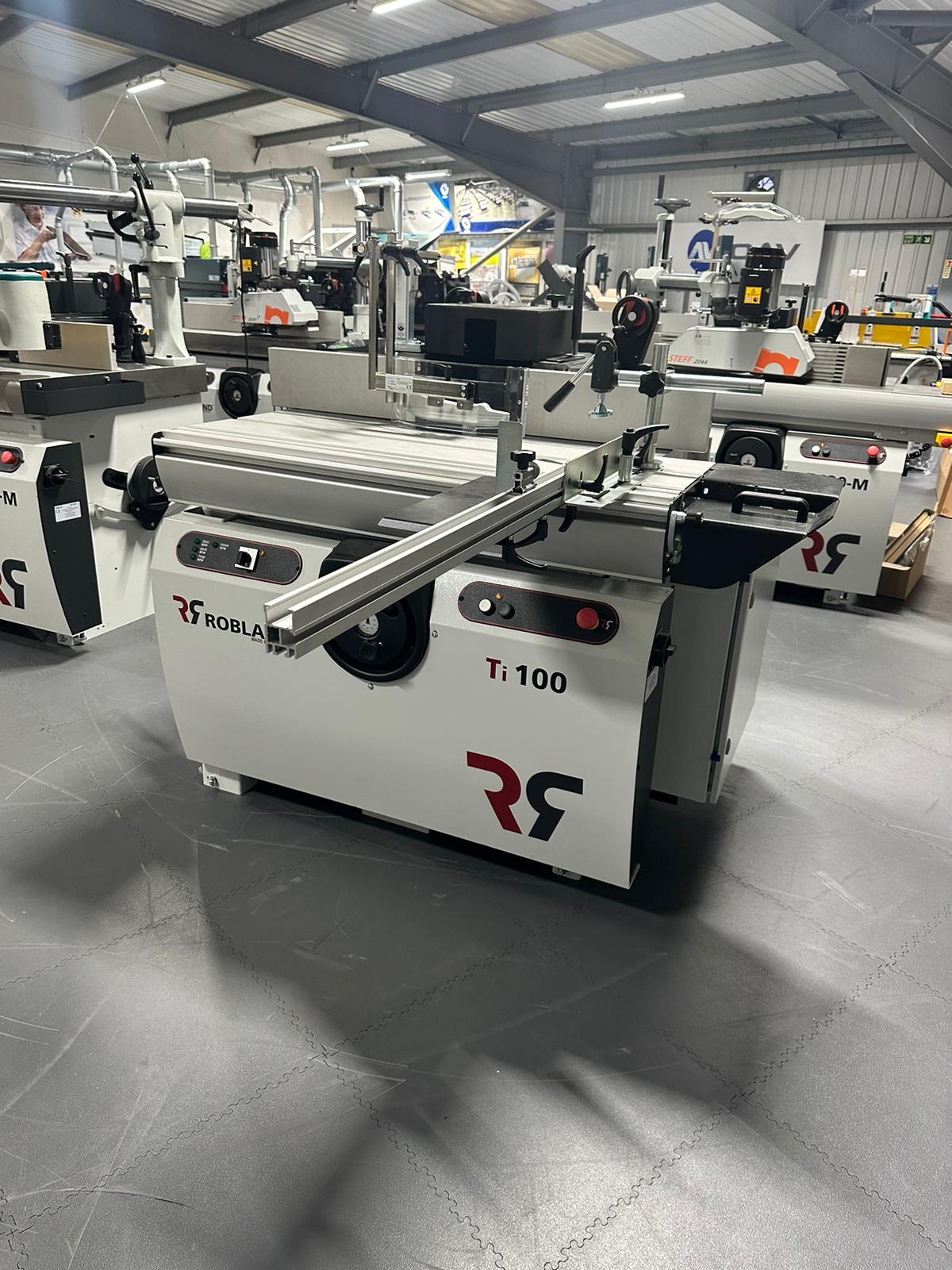

The Robland Ti100M spindle moulder comes with a 415v plug installed as standard for connection to a 415v power feed Unit
