Salvamac Classic 50 Crosscut with Salvastop Options

Enquire for price

Simple, Solid, Safe


Comparing with traditional cutting systems the Classic crosscutting saws ensure to have a fast amortization and to generate profit from the first working day.  Compact, simple, robust and innovative devices ensure really the maximum cutting safety, using flexibility and reliability in the long life of the machine. *Price for Machine Only*

Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

Blade Motor Power
kW 5.5
Saw Spindle Rotation Speed
2800rpm
Air Consumption Per Cycle
7 NI
Compressed Air Supply
6 – 8 Bar
Work Height
900mm +- 20mm
Max Cutting Height
125mm (220mm Wide)
Diameter of Saw Blade Included
500mm
Blade Type
HM Z=108
Saw Dust Extraction
1 – 120mm/ 1 – 100mm
Voltage
V 400/50 Hz 3~Phase
Colour
Ral 7035 – Ral 1007
Max Cutting Width
310mm (50mm Thick)

Semi-automatic upstroke saw for quick, safe and accurate crosscutting of medium-big cutting sections up to 125 mm thickness.


Cutting section

max. mm.

220mm Width at 125mm Thickness

260mm Width at 100mm Thickness

285mm Width at 80mm Thickness

310mm Width at 50mm Thickness

In case of packet cutting height max. mm 100.

Industrial and Fast Semi-automatic Crosscut Saw with blade 500 mm


Simple

It is so easy to use: just select the stop and press the two buttons to cut. The operator should not perform any special setting or adjustment. Simple, easy and flexible!

Solid

The Classic crosscutting saws are designed and manufactured to work also in hard conditions and with heavy wood. The structure is completely in varnished hard steel, high thickness and really strong. Solid, compact and stable!

Safe

Two handed safety control with ergonomic position and the blade protection cover allows to work with absolute safety. Safe, protected and secure!


The most appreciated technological solution as, cross-cutting saw.

The Classic_50 has a completely painted, thick and reinforced steel structure. The blade with a diameter of 500 mm, the power of 5.5 kW and the rotation speed of 2800 rpm make it the ideal machine for those who work with wood up to a maximum of 125 mm thick and 310 mm wide (optional up to 375 mm).

  • Two-handed safety manual control with ergonomic position
  • Structure completely in varnished hard steel, high thickness and really strong
  • Cutting speed adjustable by pneumatic trimmer on the machine

Options For The Salvamac Classic 50


In Feed and Out Feed Tables


As standard the machine is proposed with one meter infeed and outfeed roller or flat tables, but can be equipped with any length infeed and outfeed tables.

Rollers Table With Fence

Painted steel structure with galvanized idle rollers with 230 kg capacity, diameter 60 mm, distance between rollers 250 mm, width 320 mm. Space between rollers is closed by steel. Including side fence

Price Per Meter: £465.00



Roller Table with Fence, Guide for Stops and Scale Bar

Painted steel structure with galvanized idle rollers with 230 kg capacity, diameter 60 mm, distance between rollers 250 mm, width 320 mm. Including side fence, guide for stops and millimetre scale bar.

Price Per Meter: £590.00

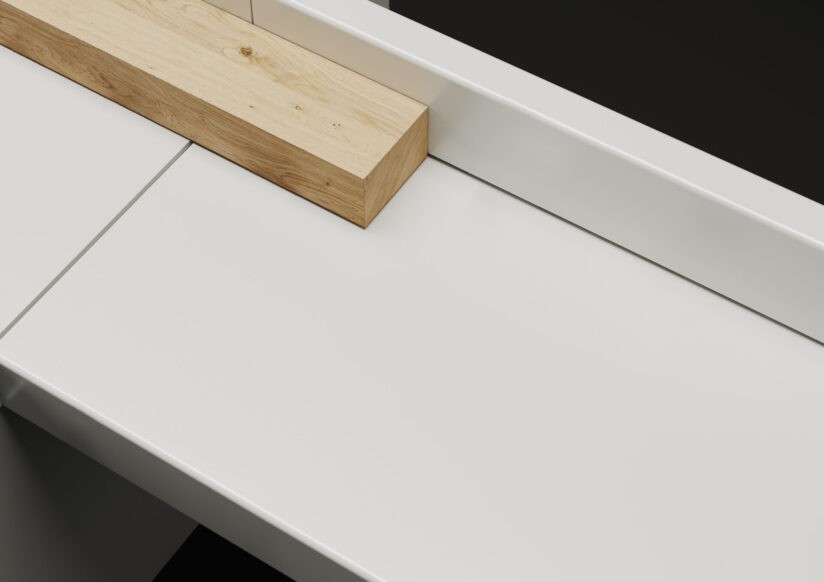

Flat Tables

Painted steel structure. Width 320 mm. Including side fence

Price Per Meter: £355.00



Flat Tables with Fence, Guide for Stops and Scale Bar

Painted steel structure. Width 320 mm. Including side fence, guide for stops and millimetre scale bar.

Price Per Meter: £485.00



Stops for your Saw


A choice of multiple really strong manual or pneumatic stops; width 100, 200 or 250 mm.

Minimum distance between first stop and blade mm. 70, minimum distance between two stops mm. 60 If the stops are placed on the right side (only on demand) the minimum distance between first stop and blade mm. 520, minimum distance between two stops mm. 60

Strong mechanical stop width 100 mm

Price Per Unit: £160.00



Strong mechanical stop width 200 mm

Price Per Unit: £180.00



Strong mechanical-pneumatic stop width 100 mm

Price Per Unit: £290.00



Strong mechanical-pneumatic stop width 200 mm

Price Per Unit: £310.00



Up and Down Front Guard

Mobile front guard protection instead of the fix one. The protection guard rises up during the cut to work in totally safe conditions. Loading and unloading of the wood is facilized by the protection guard down. The system is equipped by a special safe pneumatic system that runs on high quality and technology linear guide.

Price: £1,400.00

SALVASTOP_100 and Combo Pricing




Say Goodbye to the Tape Measure!


SalvaStop is the evolution of the numerically controlled length stop and pushing position system. SalvaStop to save (salva in Italian) your labour costs, productivity waste and measuring human errors.

Combine SalvaStop with your cross-cutting saw or with one of our machines to reduce errors and optimize work. You can have the SalvaStop stop alone or combined with one of our Classic cross-cutting saws to improve performance, work in complete safety and minimize human error.

Technical Specifications

Servo Drive Motor Closing Loop
11Nm
Capacity with Roller Conveyor
Max 100Kg
Arm Length/Plate Included
60mm/200mm x 100mm
Power Requirement
230V 50Hz
s-PAD Touch Screen
7″
Speed
max 60 m/min.
Repeatability
0.1mm

The Beam


New technological concept anodized aluminium beam: section mm 100×100, reinforced big thickness of the profile edge.

3 Sides with groves to adapt and install the structure.

1 Flat fence Side to favour the sliding of the wood on the guide avoiding wearing and dust problems.

Maximum speed of carriage movement adjustable up to max. 60 m/min.

High capacity pusher carriage thanks to considerable dimensions

Transmission system through toothed belt width 32 mm. with steel strips inside of high precision and capacity, with very high tolerance of positioning. Robust and independent steel heads for long life, reliability and precision. Strong arm with end aluminium plate with about mm.100 x 200 size.

The Electronic Hardware


Servodrive electronic moving motor in integrated version allows be simple, long life, compact and with the maximum efficiency.

This special technology allows to use the motor in closing loop controlling and not losing every moment the position even in case of accidental external pressures and strokes.

The motor is placed in front and pulling-position. Motor power 11 Nm. I/O system directly from servo drive.

Safety emergency button and start button in ergonomic position.

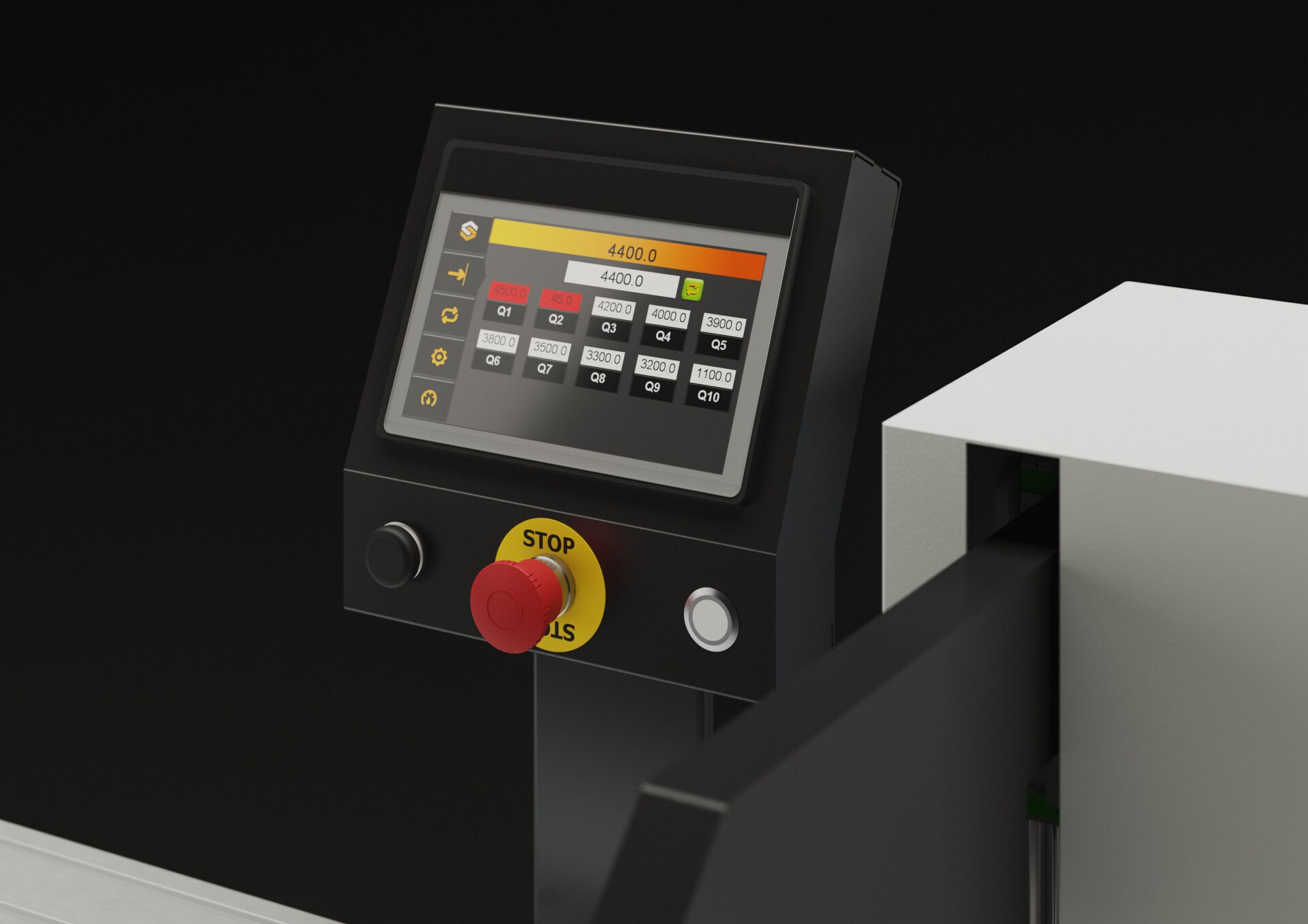

7” S-PAD touch color screen, very good position for reading and programming. Wide, easy and big keys keyboard on capacitive display. USB connection.

SALVASTOP Exclusive Software


Easy to use thanks to immediately understandable and effective graphics, complete, powerful and flexible.

Complete with 5 different sections and 2 different modes. “STOP” or “PUSH”.

Jog mode and automatic zero setting.

“STOP” Single target length and recalling of the more used lengths.

PUSH” Fix cycles in 100 cutting lists. Wide possibilities of personalization of parameters

Salvamac Classic 50 Combo Pricing


All Combos Comes as standard with – 3000mm Roller outfeed table with fence. Galvanized rollers with 230 kg capacity, diameter 60 mm, distance between rollers 250 mm, width of 320 mm.
Please choose the SalvaStop Length below (All prices are Ex VAT)

2400/3000 SalvaStop 100 Working length 2400mm. Total Length 3000mm

From £15,900.00

3400/4000 SalvaStop 100 Working length 3400mm  Total Length 4000mm

From £16,810.00

4400/5000 SalvaStop 100 Working length 4400mm  Total Length 5000mm

From £17,720.00

5400/6000 SalvaStop 100 Working length 5400mm Total Length 6000mm

From £18,630.00

6400/7000 SalvaStop 100 Working length 6400mm  Total Length 7000mm

From £19,540.00
To increase your outfeed table, It is £465.00 Per Meter.
