Technical Specifications
Model
NZ 3200
Main Blade Diameter
300mm – 400mm
Rise, fall, tilt of main blade
Electric
Tilting range of main saw
90 – 45 degrees
Cutting length
3200mm
Main blade RPM
3,000 – 4,000 – 5,000
Net Weight
1100 KG
Sliding table length
3200mm
Width capacity
1350mm
Max. Depth of cut
124mm (400mm Blade)
Max. Depth of cut 45 degrees
100mm
Scorer Diameter
120mm
Saw table dimensions
885 x 700 + 650x700mm

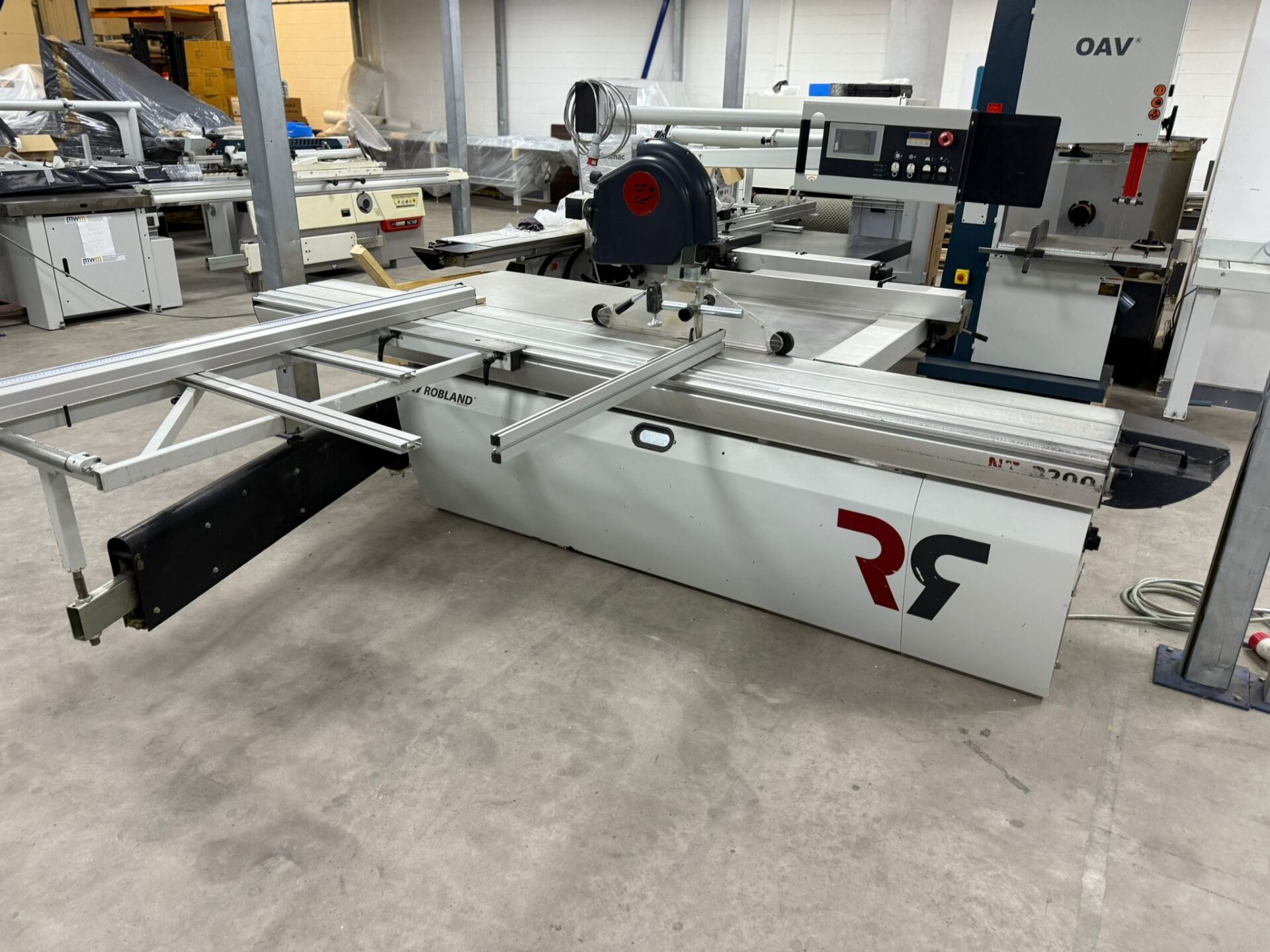

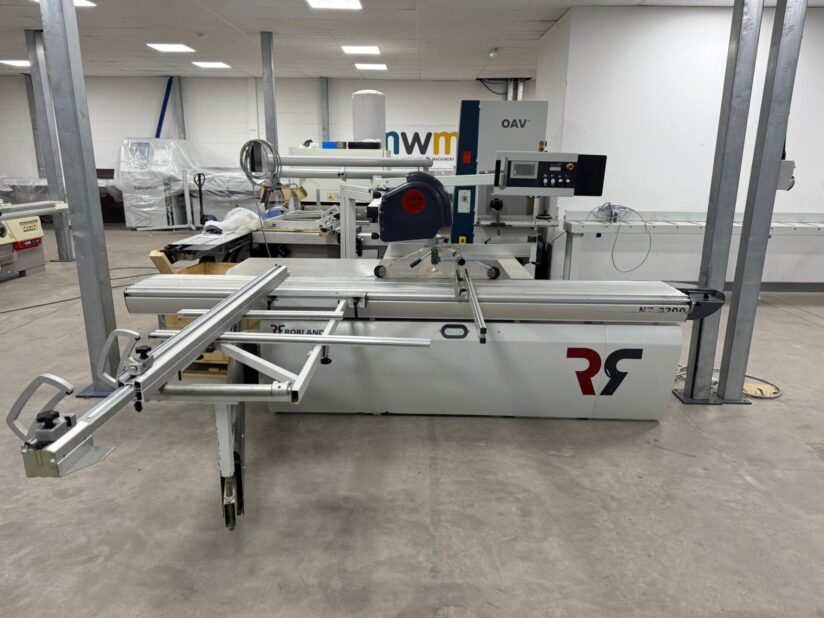

This USED Robland NZ3200 3.2M Panel Saw is a good quality, sliding panel saw with a 3200mm cut length, and a separate scoring motor. High spec machine with electronic rise, fall and tilt function. The Robland NZ 3200 is a quality Woodworking Panel Saw. The machine features a cutting length of 3200mm (3800mm option is available) and a cutting length of 1525mm.

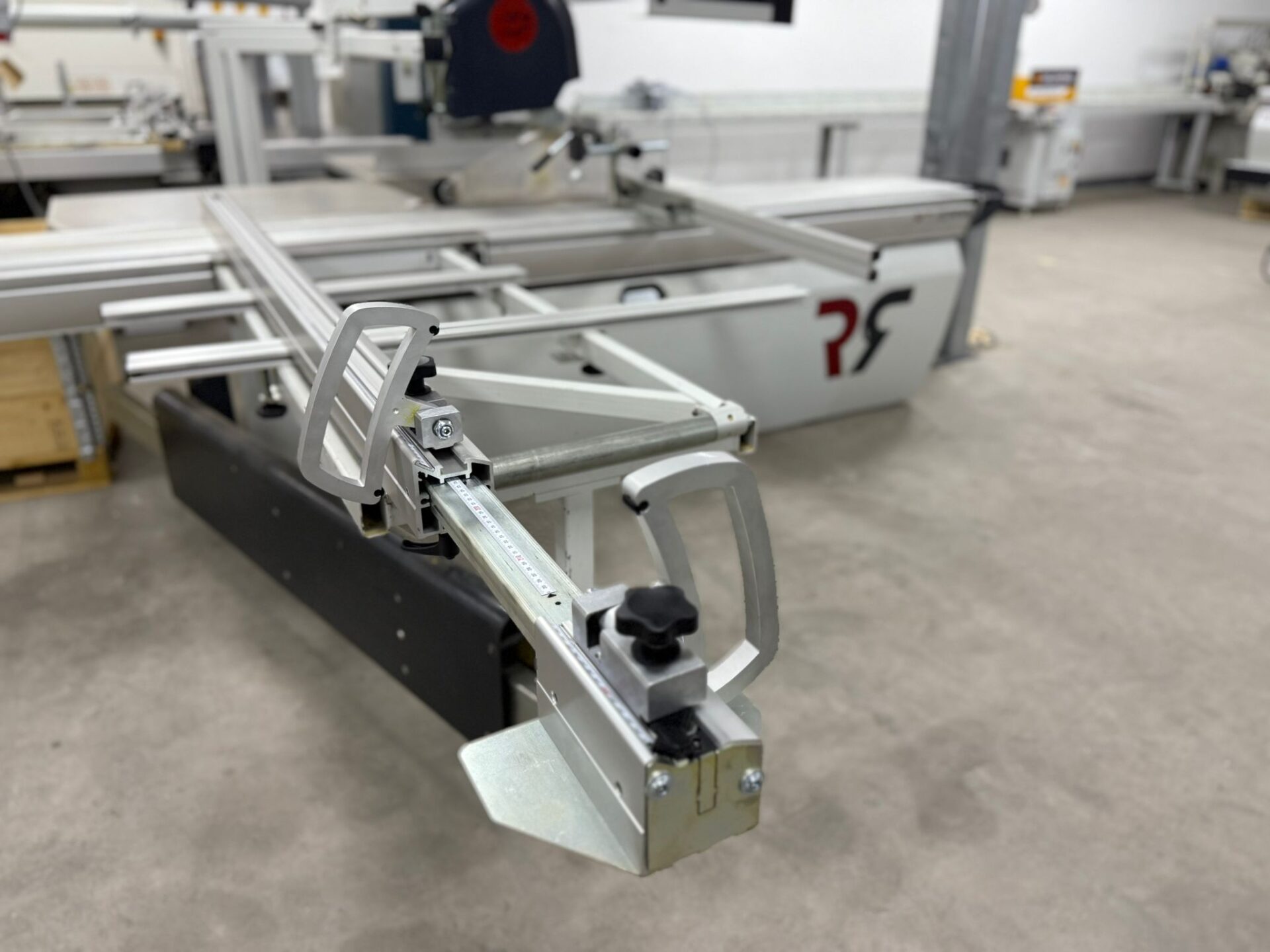

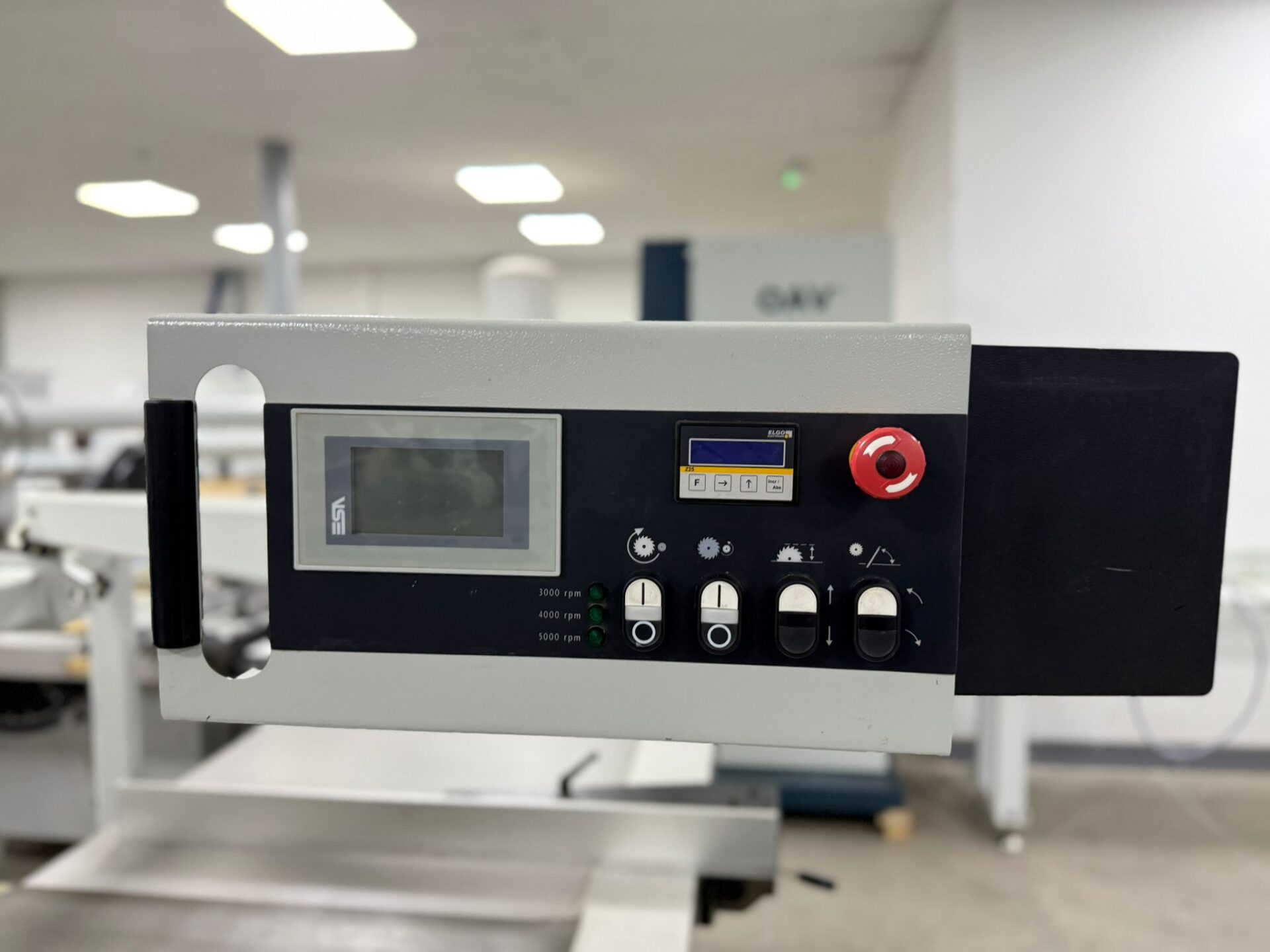

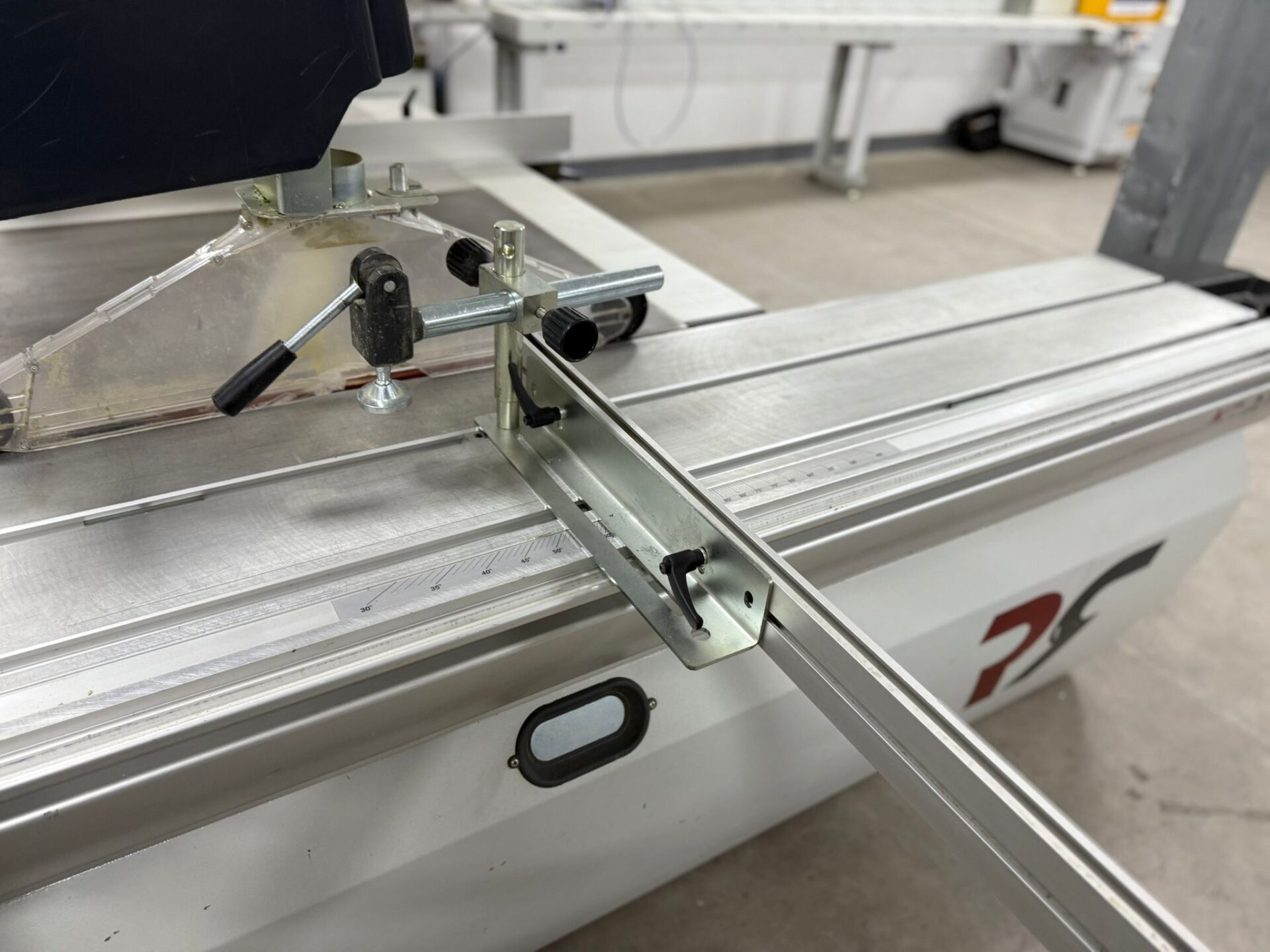

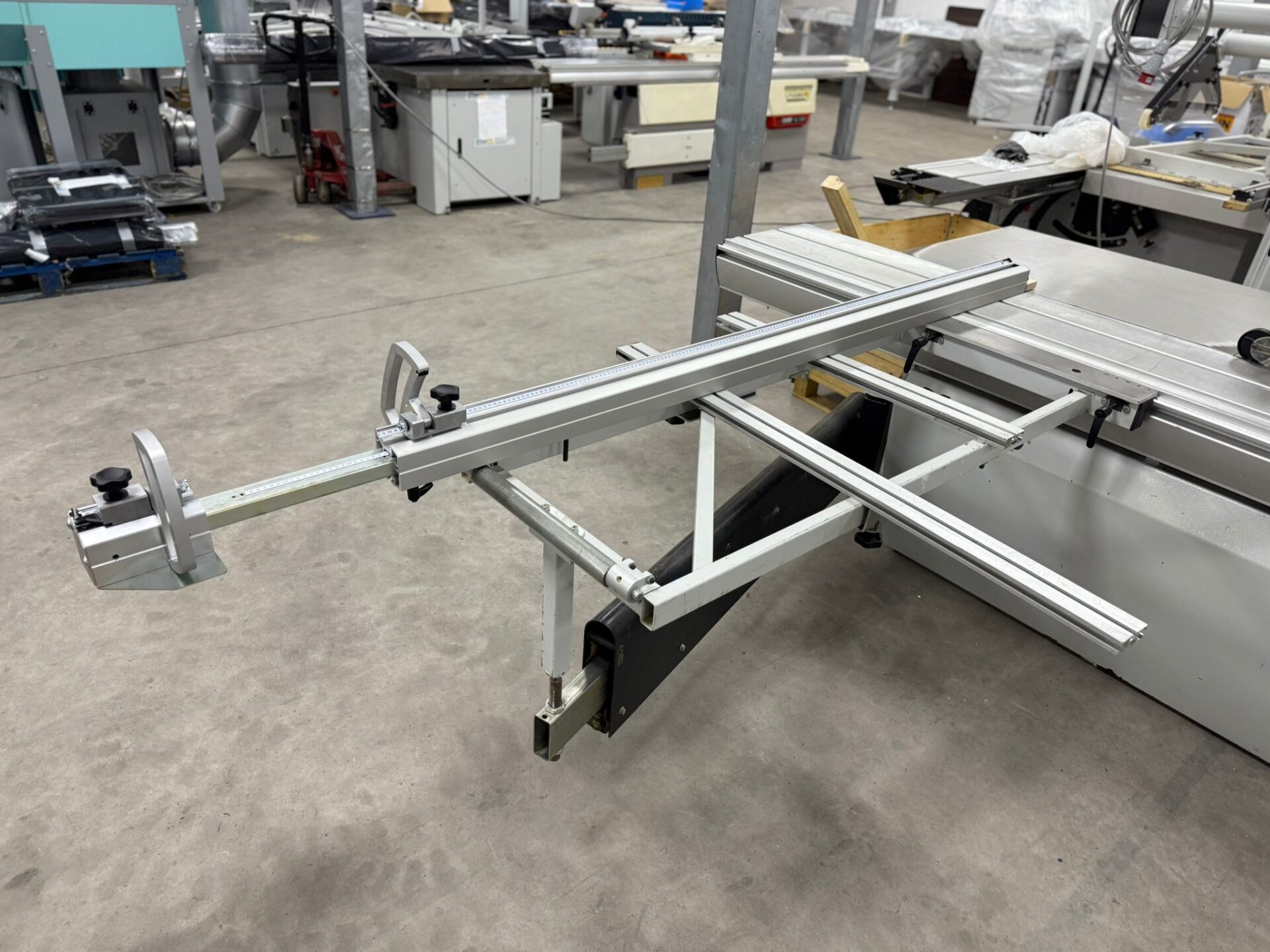

The scoring unit is standard with a 120mm blade (20mm bore) and the main blade is 400mm (30mm bore) with maximum cutting depth of 125mm driven by a 7.36kW motor (9.2kW option). Standard features include power rise, fall and tilt of main saw blade and scorer. Mitre cross cut fence, extra support table & fence, mitre fence and woodclamp on sliding table.
