SIZE, SQUARE, SHAPE AT THE SAME TIME

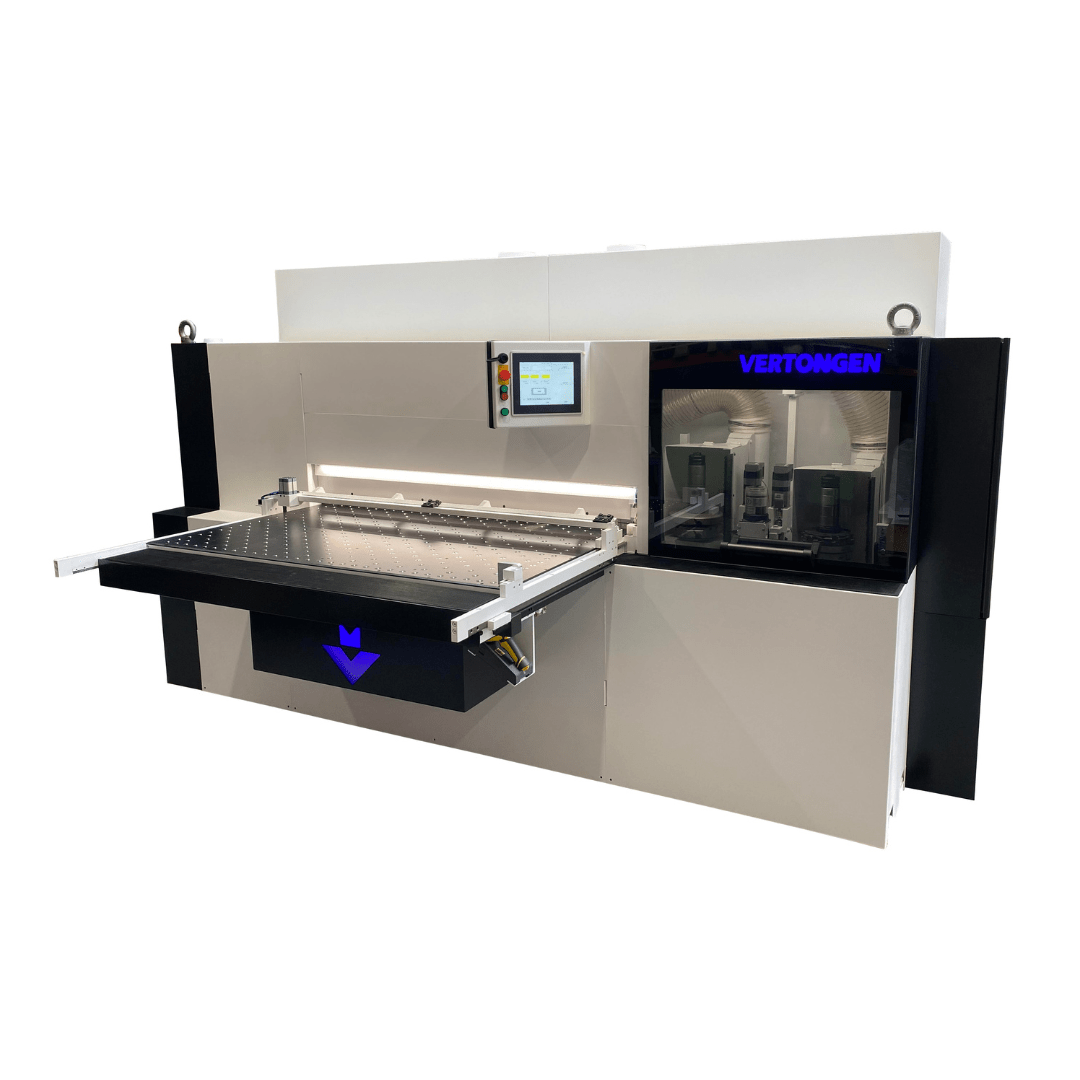

SHAPER SIZER
The Shaper Sizer is a fully CNC-controlled woodworking machine. As implied by its name, it is built specifically for shaping, sizing, and squaring flat and elevated centre panels and the outer edge profiles of assembled kitchen cabinet doors.
The high-end machine can simultaneously size, square, and shape, delivering rails that are coped and surfaced to final height and width.
Thanks to its two swivelling backstops on the automatic length-fence, CNC positioning of both table and spindles, and its electronically positioned clamping device over the total part width, the Vertongen Shaper Sizer gets results accurate to the millimetre.
Technical Specifications
Motor of Spindles
7.5kW (10HP)
Horizontal pneumatic:
On/Off for quick retraction
Turning Direction
Counterclockwise

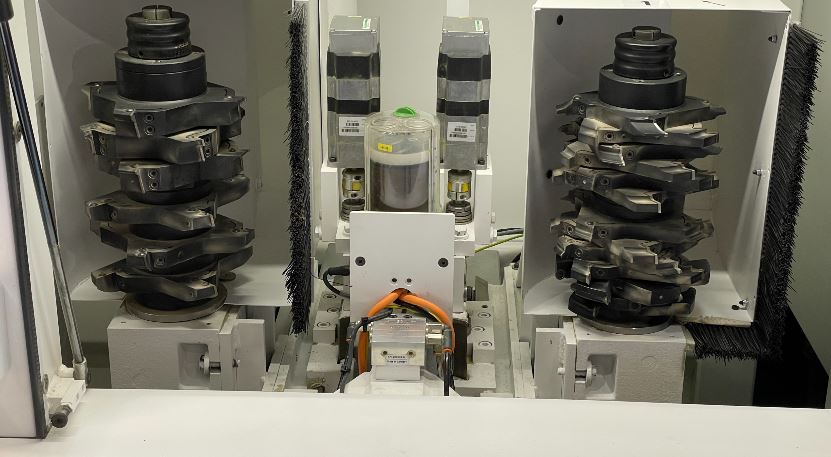

Spindle
300mm with Prolock, Ø 50 mm
Coping
2 parts at the same time possible only with exactly the same height
Spindle Working Speed
Adjustable 2-12m/min
High Speed
Vertical CNC-positioned clamp over the full width of the table
Construction of Table
Fixed stable air jet table
Clamping
CNC Clamp Across Full Table
Part Length
Minimum 4.0” and maximum 62”
Spindle Suspension
Dovetail
Positioning
Horizontal +vertical CNC-positioned
Movement
Vertical | 0mm – +270mm
Tool
Min. Ø 180 mm; max. Ø 240 mm (200mm advised)
Oversize
Maximum 1.25”( for tooling with Ø 200 mm )
Construction
Both spindles installed on mobile unit that moves along the table
Lubrication
Automatic lubrication system
Safety Specification
Pneumatic clamp for straight backing wood
Length Fence
Automatic with 1 large pneumatic swiveling back stop and 1 manual swiveling backstop
Part Width
Minimum 4”(1,5 for coping) and maximum 62”
Table Dimensions
62” x 40”(useful)
