Technical Specifications
SAW BLADE DIAMETER (MM)
565mm

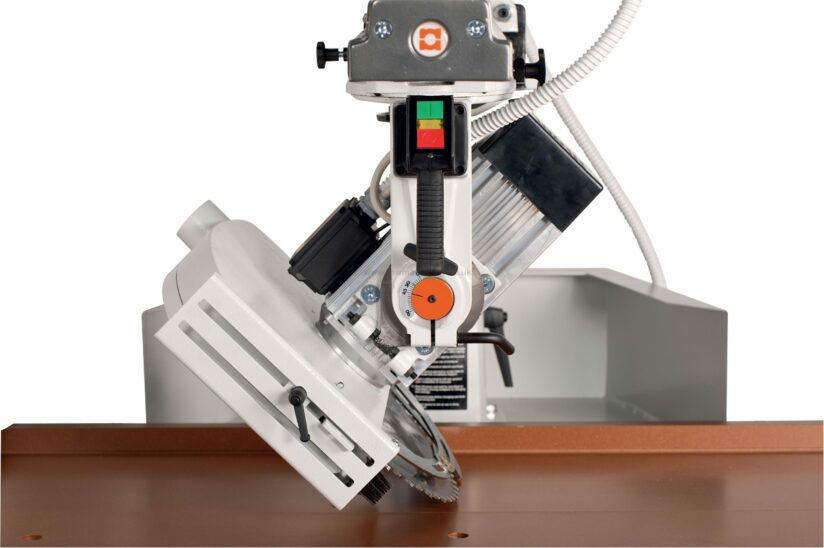

SAW BLADE TILT RANGE
0° – 45°
MOTOR POWER
7.5hp
TABLE SIZE
2400 x 1580mm
MAX CUTTING WIDTH
1440mm
GROSS WEIGHT
382kg
PACKING DIMENSIONS
2400 x 1050 x 1230mm
BLADE BORE DIAMETER
⌀ 30mm
BLADE SPEED
2800 rpm
DUST HOOD OUTLET DIAMETER
1 x ⌀ 60mm + 1 x ⌀ 100mm
MAX CUTTING HEIGHT
40mm
DEPTH OF CUT AT 45°
135mm
NET WEIGHT
364kg
All Maggi machines we sell are CE approved, complying with all current regulations.

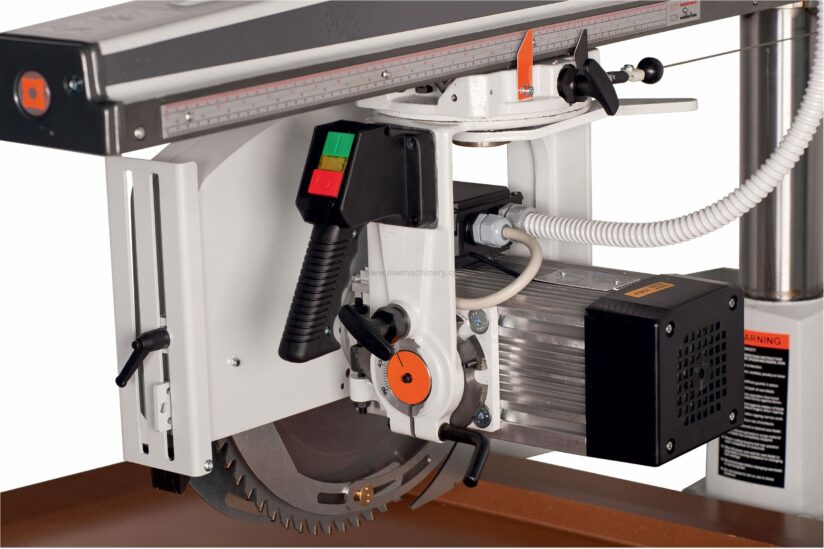

This includes a braked motor, enclosed blade, and two dust extraction ports.
The chassis of the machine has been designed with an anti-noise system arm and base made of cast-iron.
The blade moves on 4 carriage bearings and is retracted with a return spring.
