Technical Specifications
Semi-automatic upstroke saw for quick, safe and accurate crosscutting of medium-small cutting sections up to 80 mm thickness
Cutting section max. mm.
220mm Width at 80mm Thickness
250mm Width at 50mm Thickness

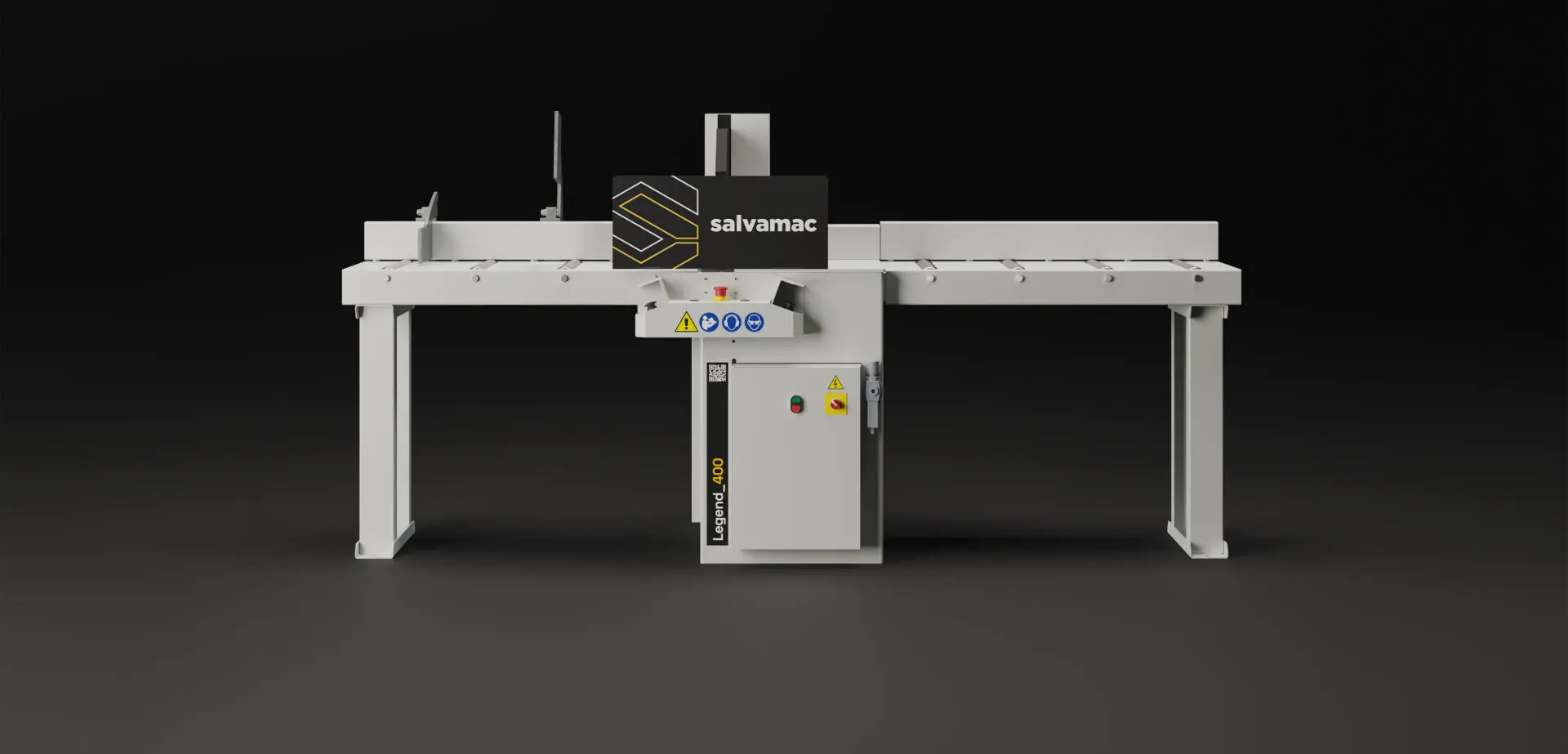

Industrial and Fast Semi-automatic Crosscut Saw with blade 400 mm
Simple
It is so easy to use: just select the stop and press the two buttons to cut. The operator should not perform any special setting or adjustment. Simple, easy and flexible!
Solid
The Classic crosscutting saws are designed and manufactured to work also in hard conditions and with heavy wood. The structure is completely in varnished hard steel, high thickness and really strong. Solid, compact and stable!
Safe
Two handed safety control with ergonomic position and the blade protection cover allows to work with absolute safety. Safe, protected and secure!
Performing, resistant, ergonomic.
The Classic_40 has a completely painted, thick and reinforced steel structure. The blade with a diameter of 400 mm, the power of 3.0 kW and the rotation speed of 2800 rpm make it the ideal machine for those who work with wood up to a maximum of 80 mm thick and 250 mm wide.
- Two-handed safety manual control with ergonomic position
- Structure completely in varnished hard steel, high thickness and really strong
- Cutting speed adjustable by pneumatic trimmer on the machine
Options For The Salvamac Classic 40
In Feed and Out Feed Tables
As standard the machine is proposed with one meter infeed and outfeed roller or flat tables, but can be equipped with any length infeed and outfeed tables.
Rollers Table With Fence
Painted steel structure with galvanized idle rollers with 230 kg capacity, diameter 60 mm, distance between rollers 250 mm, width 320 mm. Space between rollers is closed by steel. Including side fence
Price Per Meter: £465.00
Roller Table with Fence, Guide for Stops and Scale Bar
Painted steel structure with galvanized idle rollers with 230 kg capacity, diameter 60 mm, distance between rollers 250 mm, width 320 mm. Including side fence, guide for stops and millimetre scale bar.
Price Per Meter: £590.00
Flat Tables
Painted steel structure. Width 320 mm. Including side fence
Price Per Meter: £355.00
Flat Tables with Fence, Guide for Stops and Scale Bar
Painted steel structure. Width 320 mm. Including side fence, guide for stops and millimetre scale bar.
Price Per Meter: £485.00
Stops for your Saw
A choice of multiple really strong manual or pneumatic stops; width 100, 200 or 250 mm.
Minimum distance between first stop and blade mm. 70, minimum distance between two stops mm. 60 If the stops are placed on the right side (only on demand) the minimum distance between first stop and blade mm. 520, minimum distance between two stops mm. 60
Strong mechanical stop width 100 mm
Price Per Unit: £160.00
Strong mechanical stop width 200 mm
Price Per Unit: £180.00
Strong mechanical-pneumatic stop width 100 mm
Price Per Unit: £290.00
Strong mechanical-pneumatic stop width 200 mm
Price Per Unit: £310.00
Up and Down Front Guard
Mobile front guard protection instead of the fix one. The protection guard rises up during the cut to work in totally safe conditions. Loading and unloading of the wood is facilized by the protection guard down. The system is equipped by a special safe pneumatic system that runs on high quality and technology linear guide.
Price: £1,400.00
SALVASTOP_100 and Combo Pricing
Say Goodbye to the Tape Measure!
SalvaStop is the evolution of the numerically controlled length stop and pushing position system. SalvaStop to save (salva in Italian) your labour costs, productivity waste and measuring human errors.
Combine SalvaStop with your cross-cutting saw or with one of our machines to reduce errors and optimize work. You can have the SalvaStop stop alone or combined with one of our Classic cross-cutting saws to improve performance, work in complete safety and minimize human error.
Technical Specifications
The Beam
New technological concept anodized aluminium beam: section mm 100×100, reinforced big thickness of the profile edge.
3 Sides with groves to adapt and install the structure.
1 Flat fence Side to favour the sliding of the wood on the guide avoiding wearing and dust problems.
Maximum speed of carriage movement adjustable up to max. 60 m/min.
High capacity pusher carriage thanks to considerable dimensions
Transmission system through toothed belt width 32 mm. with steel strips inside of high precision and capacity, with very high tolerance of positioning. Robust and independent steel heads for long life, reliability and precision. Strong arm with end aluminium plate with about mm.100 x 200 size.
The Electronic Hardware
Servodrive electronic moving motor in integrated version allows be simple, long life, compact and with the maximum efficiency.
This special technology allows to use the motor in closing loop controlling and not losing every moment the position even in case of accidental external pressures and strokes.
The motor is placed in front and pulling-position. Motor power 11 Nm. I/O system directly from servo drive.
Safety emergency button and start button in ergonomic position.
7” S-PAD touch color screen, very good position for reading and programming. Wide, easy and big keys keyboard on capacitive display. USB connection.
SALVASTOP Exclusive Software
Easy to use thanks to immediately understandable and effective graphics, complete, powerful and flexible.
Complete with 5 different sections and 2 different modes. “STOP” or “PUSH”.
Jog mode and automatic zero setting.
“STOP” Single target length and recalling of the more used lengths.
“PUSH” Fix cycles in 100 cutting lists. Wide possibilities of personalization of parameters

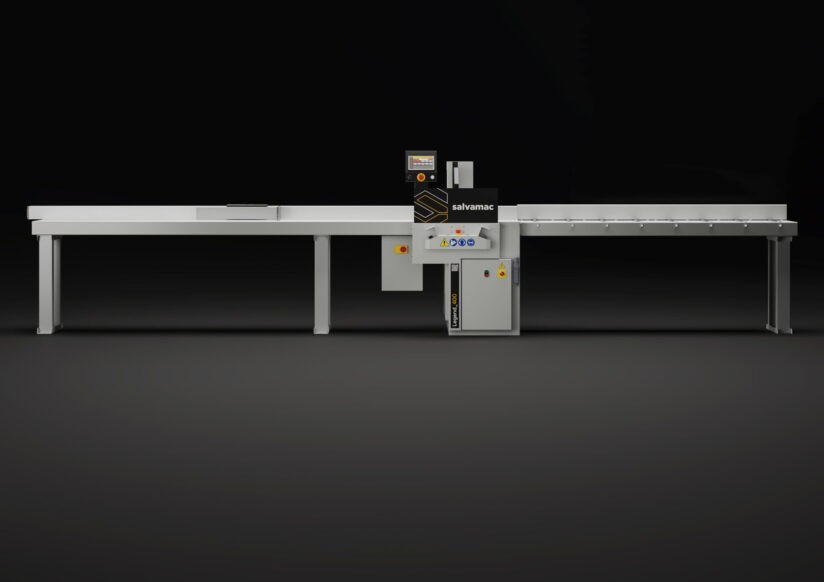

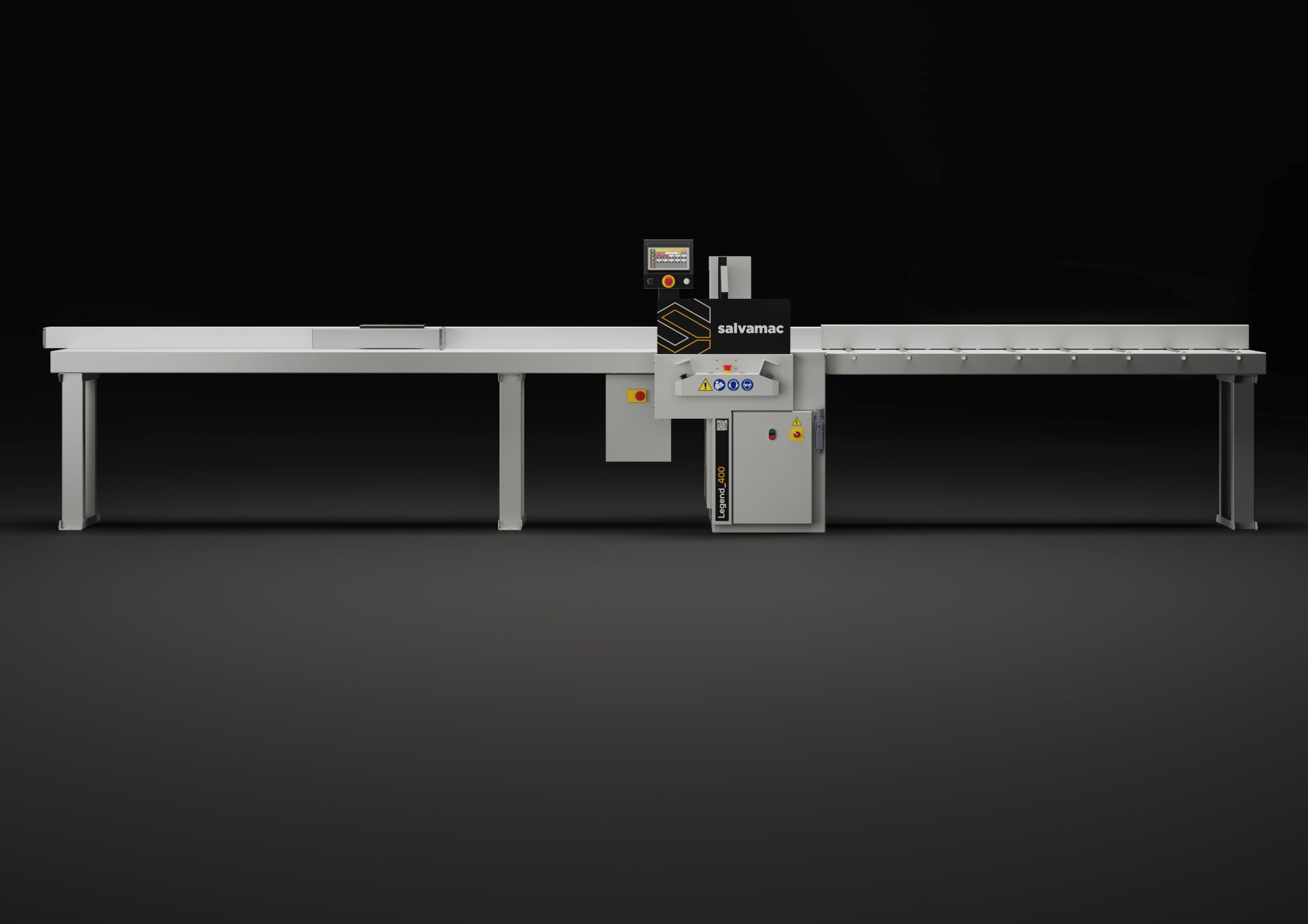

Salvamac Classic 50 Combo Pricing
All Combos Comes as standard with – 3000mm Roller outfeed table with fence. Galvanized rollers with 230 kg capacity, diameter 60 mm, distance between rollers 250 mm, width of 320 mm.
Please choose the SalvaStop Length below (All prices are Ex VAT)
2400/3000 SalvaStop 100 Working length 2400mm. Total Length 3000mm
From £15,175.00
3400/4000 SalvaStop 100 Working length 3400mm Total Length 4000mm
From £16,085.00
4400/5000 SalvaStop 100 Working length 4400mm Total Length 5000mm
From £17,000.00
5400/6000 SalvaStop 100 Working length 5400mm Total Length 6000mm
From £17,900.00
6400/7000 SalvaStop 100 Working length 6400mm Total Length 7000mm
From £18,810.00
To increase your outfeed table, It is £465.00 Per Meter.
