Salvamac Classic 60 Cross Cut Saw

From £10,500.00 + VAT

(£12,600.00 inc VAT)

For the saw unit alone. Choose the length of bed to suit

  • Structure completely in varnished hard steel, high thickness and really strong
  • Solid anchoring to the floor with special flanged steel feet with fixing hole
  • Two-handed safety manual control with ergonomic position
  • Cutting speed adjustable by pneumatic trimmer on the machine
  • System to balance the cutting group weight giving long life. Special amortising system
  • Independent pneumatic regulations to adapt to the different types of work
  • Aluminium blade soft inserts of long duration and easy to change
  • Upper pneumatic beam to block the pieces with electro-pneumatic management
Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

Technical Specifications

MAKE
Salvamac
MACHINE TYPE
Cross Cut Saw
VOLTAGE / PHASE
415V / 3ph
BLADE DIAMETER
600 mm 35 mm Bore
SPINDLE ROTATION SPEED
2750 rpm
EXTRACTION OUTLET
2 x 140 mm
WORKING HEIGHT
900 mm +- 20 mm
MAX. CUT HEIGHT
150mm (420mm w)
MODEL
Classic 60
MOTOR POWER
9.2 Kw
BLADE TYPE
HM Z=108
AIR CONSUMPTION PER CYCLE
14 NI
REQUIRED AIR PRESSURE
6 – 8 Bar
COLOUR
Ral 7035 – Ral 1007
MAX. CUT WIDTH
610mm (30mm h)

Features

  • Structure completely in varnished hard steel, high thickness and really strong
  • Solid anchoring to the floor with special flanged steel feet with fixing hole

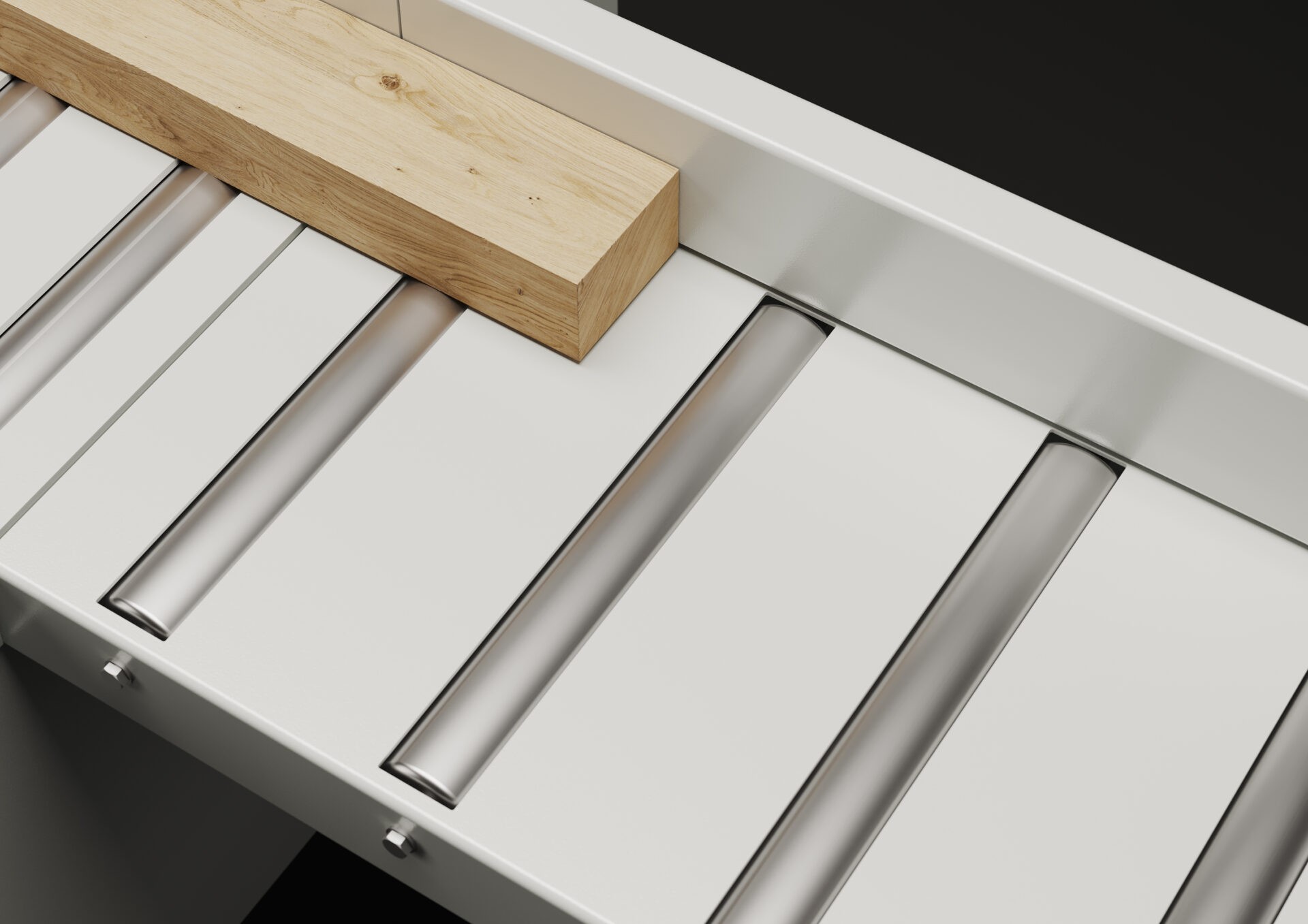

  • Heavy duty machine top equipped with galvanised idle rollers (load capacity 600 Kg), diameter 89 mm, width 500 mm
  • Two-handed safety manual control with ergonomic position
  • Cutting speed adjustable by pneumatic trimmer on the machine
  • System to balance the cutting group weight giving long life. Special amortising system
  • Independent pneumatic regulations to adapt to the different types of work
  • Aluminium blade soft inserts of long duration and easy to change
  • Upper pneumatic beam to block the pieces with electro-pneumatic management
  • Pressure beam movement system through 4 new”skf” sliding bearings with double anti-dust protection and automatic lubrication

Options

Idle roller tables

In-feed steel structure with idle rollers.

Galvanized rollers with 230kg capacity, diameter 60 mm, distance between rollers 250 mm, width 320 mm.

Per one meter – £320.00

Out-feed steel structure with idle rollers

Galvanised rollers with 230kg capacity, diameter 60 mm, distance between rollers 250 mm, width 320 mm.

Per one meter – £360.00

Flat Tables

In-feed steel structure flat table

Width 320 mm

Per one meter – £230.00

Out-feed steel structure flat table

Width 320 mm

Per one meter – £270.00

Stops

Minimum distance between first stop and blade mm. 70, minimum distance between two stops mm, 60.

Strong mechanical stop width 100 mm – £140.00

Strong mechanical stop width 200 mm – £160.00

Strong mechanical-pneumatic stop width 100 mm – £250.00

Strong mechanical-pneumatic stop width 200 mm – £280.00

Others

Additional saw blade 400 mm diam – £200.00
