Technical Specifications

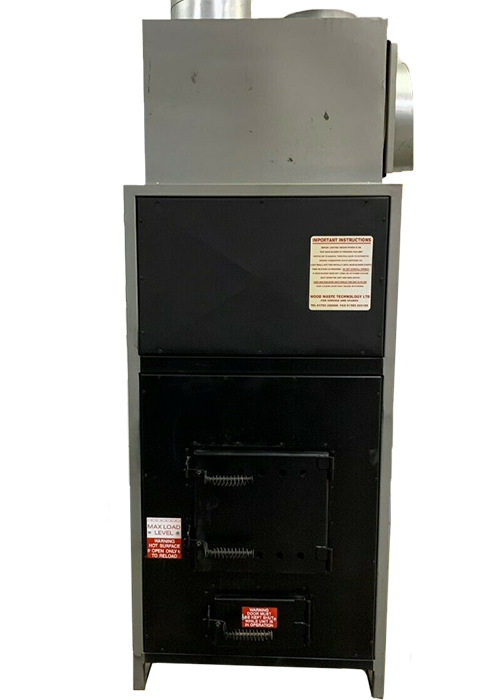

WT5 Wood Waste Heater
The WT5 is the smallest of the double pass heat exchange models and is a fully exempt appliance to burn chipboard, MDF, hardwood, and softwood off-cuts without the need of a costly afterburner, even in the city centres and built up areas.
With a full refractory lined firebox and highly efficient double pass heat exchange with fully welded heat recovery fins the WT5 producing over 150,000btu/hr is the ideal heater for a workshop up to around 4,000ft2
The WT5 Heater will burn approximately 400 – 650 KG per week depending on type of fuel.
Floor Plan
WT 5 Wood waste Heater with Compacto Fox 50 Briquetter
We’ve recently installed another efficient system at Derek Barrets workshop. This system includes the WT 5 wood waste heater and a compacto Fox 50 Briquetter, also supplied and commissioned by us.
Need assistance or Expert Advice?
We pride ourselves in offering a friendly and professional service
Summer Heat Dump
The Optional summer heat dump can be added after the initial purchase of the heater. This option is available for all Woodwaste heaters (WT2, WT5, WT10, WT15).Both the standard exhaust and summer heat dump can go through either the wall or roof and must be directed to an open space outside.
Depending on ceiling height, a scissor lift or cherry picker may be required to install the flue.
