Technical Specifications
Blade Diameter
350mm
Blade Bore
30mm
Shaft Dimension
25mm x 80mm
Table Dimensions
975mm x 1580mm
Maximum Cut Width
20mm x 550mm
Maximum Cut Depth
100mm
Net Weight
180KG
Three Phase Motor
4HP (3kW)
Motor Speed
2800rpm
Dust Chute Diameter on Blade Guard
60mm
Rear Dust Chute Diameter
100mm
Maximum Cut Height
100mm x 480mm
Max. Height of Blade from Table
70mm
Overall Dimensions
1400mmx850mmx530mm

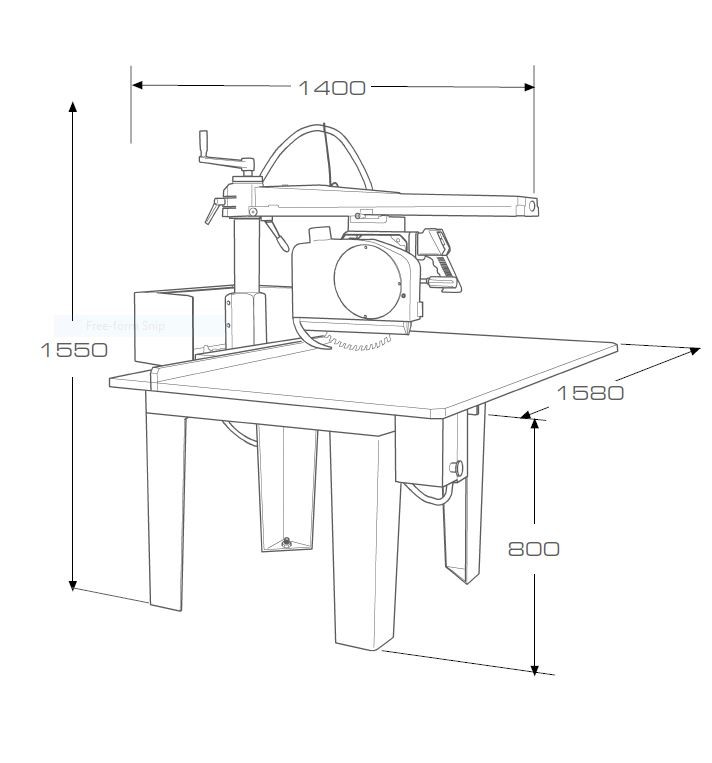

Footprint of Maggi Junior 640
