The Penpro Compact Kitchen

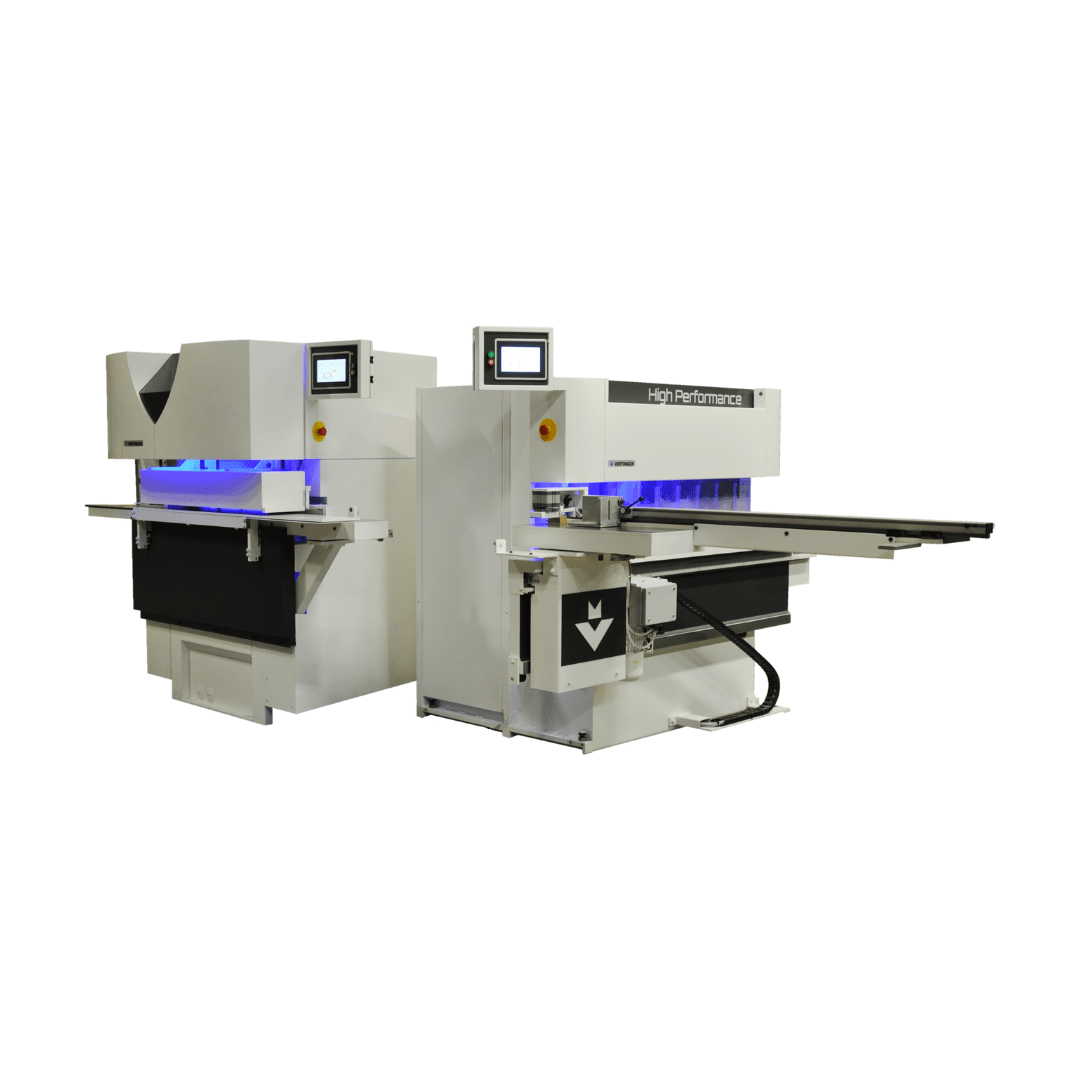

The Vertongen PenPro Compact Kitchen is our complete solution. One operator can work simultaneously with two pieces, producing complete kitchen cabinet door frames with the highest efficiency and accuracy. The PenPro Compact Kitchen is a fully CNC-controlled combination of the Pentho Compact Kitchen and the Profil Compact Kitchen.

  • 1 unit for both cope and stick joints
  • Batch size 1 or mass-production (400 to 800 doors/ 8-hour shift)
  • From lengths of 4″ up to 100″ and widths of 1,5″ up to 9″
Call our sales team 0116 2893469
Payment Options
  • Finance Options Available
  • Payment on Account/Invoice
  • Credit/Debit Card
Payment Options

PenPro Compact Kitchen


Two Machines, One Complete Solution

As a kitchen cabinet door manufacturer, your floor is filled with several machines. Each of them covering a different step of the production process and being operated by another person. No matter how professional your employees are, you’re still experiencing inaccurate finished parts.

You’re losing time and money on mechanical adjustments. Why not improving and upscaling your production with one integrated solution? Where you now need several machines, the Vertongen PenPro Compact Kitchen and the Shaper Sizer cover the whole range. These units can be operated by one single person.

PENTHO Compact Kitchen – A fully CNC Controlled Single End Tenoner


The Vertongen PenPro Compact Kitchen is a fully CNC-controlled single-end tenoner with a noise-reduced cut-off saw and 1 vertical spindle of 300mm with Prolock. The spindle is designed to stack tools, allowing you to cope and size different profiles without manual setup.

The automatic length fence makes it easy to cut your workpieces to the right length. And as the automatic table fully adapts to the chosen program, the speed of sawing, coping, and traveling is perfectly synchronised.

This way, you can work on multiple pieces at once. Finally, there is the integrated clamp detection that guarantees secure fastening of all workpieces. And the transparent safety screen making the machine extremely safe and user-friendly.

Vertongen PenPro Compact Kitchen | Markfield Woodworking Machinery

Technical Specifications

Cut off Saw Motor
2.2kW (3HP)
Tool
Noise Reduced Saw – 400mm
Positioning of Cut off Saw
CNC Positioned
Suspension
Dovetail
Movement
Vertical: – 20mm – +270mm
Tool Diameter
Min. Ø 160 mm; max. Ø 240 mm
Table Construction
Automatic Table w/ Pneumatic Clamp
Length-fence
Automatic with one large swiveling back stop
Clamping Width
Min.1.5”max. 9”
Touch Panel
7”Touch screen at eye level
Touch Panel
Memory for saving programs for easy call-up and repeatability
Cut Off Saw Adjustment
Horizontal 10-150 mm
Dust Extraction
80mm Diameter
Vertical Spindle Motor
7.5kW (10HP)
Positioning of Spindle
Vertical CNC, horizontal pneum. On/Off
Spindle
300 mm with Prolock, Ø 50 mm
Dust Extraction of Spindle
150mm
Backing Wood
Clamp for straight backing wood
Clamping Height
Min. 0.6”max. 1.25” with max
Table Dimensions
200 mm x 600 mm (useful)
Motors
All motors are started via control panel
Programming
Programming via Teach-in command for creation of new profiles

PROFIL Compact Kitchen – A fully CNC Controlled Moulder


The Profil Compact Kitchen is a fully CNC-controlled moulder with one vertical Prolock spindle of 300mm. The spindle is designed to stack tools, allowing you to machine different varieties of kitchen cabinet door profile “stickings”, without manual set-up between different profiles.

The solid steel table, and cutout for the vertical spindle profile, contribute to exact accuracy. While Air jets in the table create an air cushion between the workpiece and the machine surface for better through-feed. And the automatic outside fence allows you to smoothly change-over in between parts of different widths.

Technical Specifications

Vertical Spindle Motor
7.5kW (10HP)
Turning Direction
Counter clockwise
Spindle
300mm with Prolock, 50mm
Table Guiding
Outside fence CNC-positioned
Feed Device Speed
Adjustable between 2 – 12 m/min
Part Thickness
Min. 0.6” to max. 1.25”
Max. Profile Depth
0.75”
Motors
All motors are started via control panel
Spindle Suspension
Dovetail
Spindle Positioning
Vertical cnc-positioned, horizontal Fix
Tool
Min Ø 160 mm; max. 240 mm
System
Through-Feed
Feeding Type
Top belt, minimum part length 4 inch
Part Width
Min. 1.5” to max. 9”
Touch Panel
7” touch screen at eye level
Touch Panel
Memory for saving programs for easy call-up and repeatability

As a Kitchen cabinet door manufacturer, your floor is filled with several machines


Each machine covers a different step of the production process. And each machine is operated by a different person. Therefore, no matter how professional your employees are, errors and inaccuracies in the final products are almost inevitable. This not only costs you time but also money in mechanical adjustments.

Where you now need multiple machines, the PenPro Compact Kitchen and the Shaper Sizer cover the entire range. These devices work extremely accurately and only require one person to operate them.
